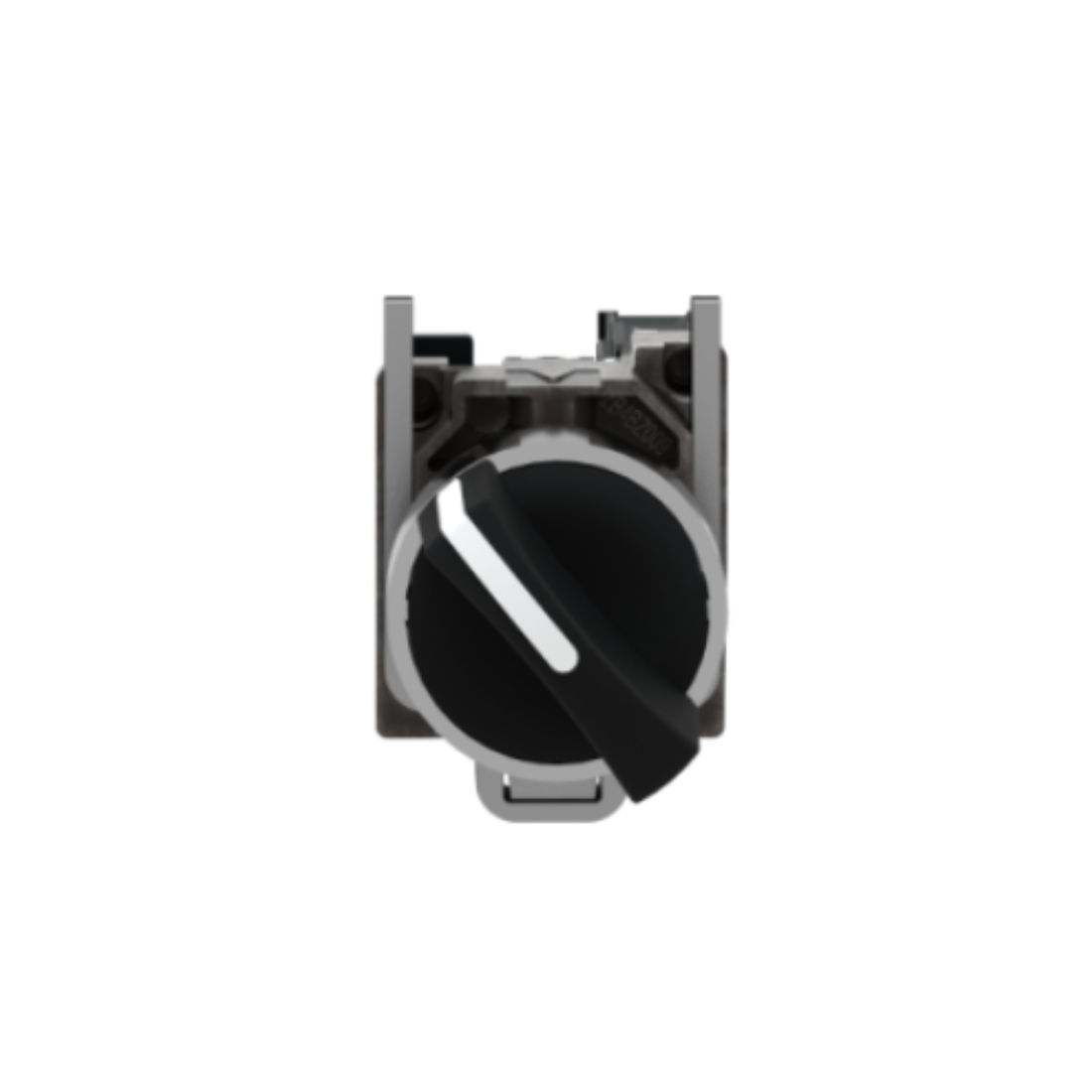

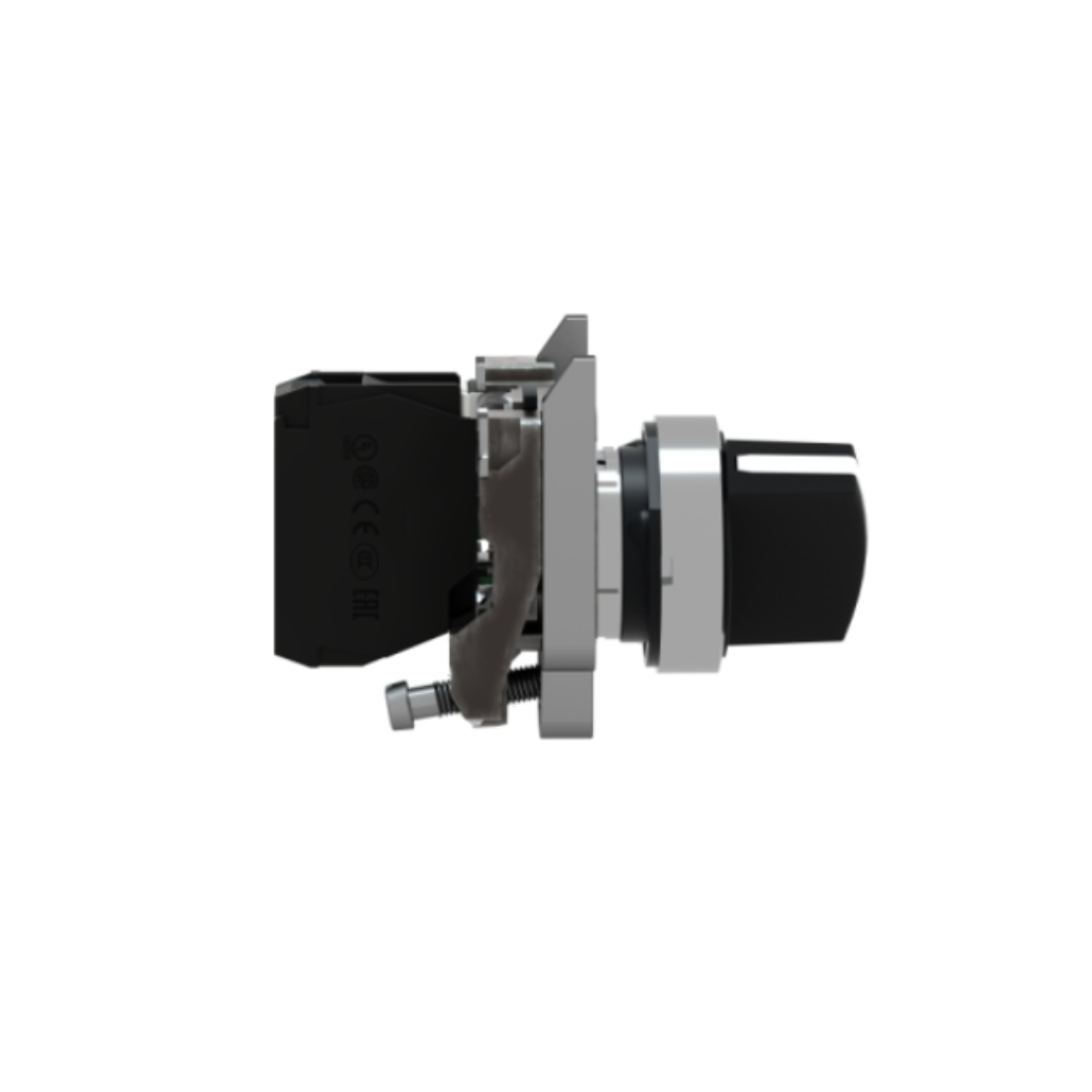

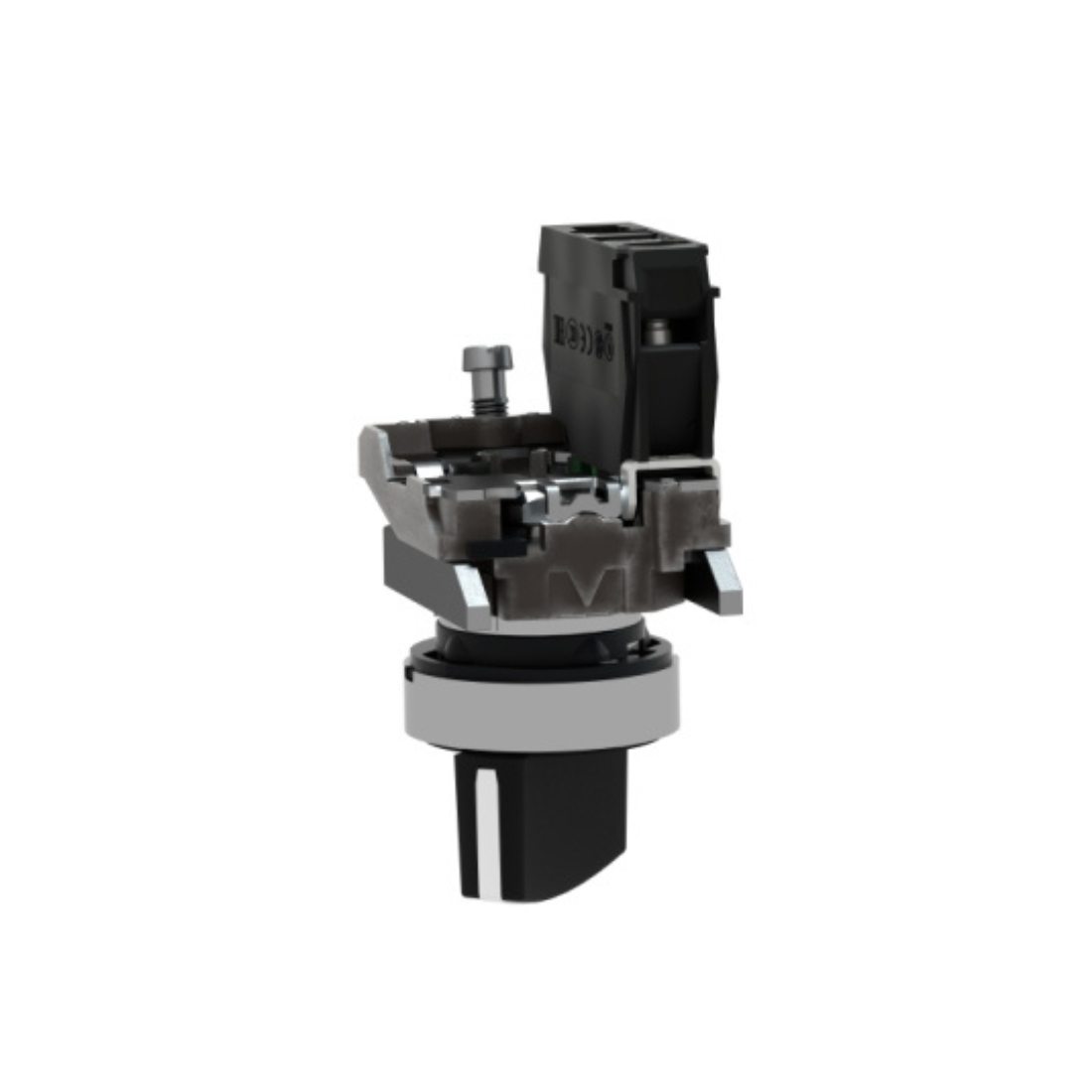

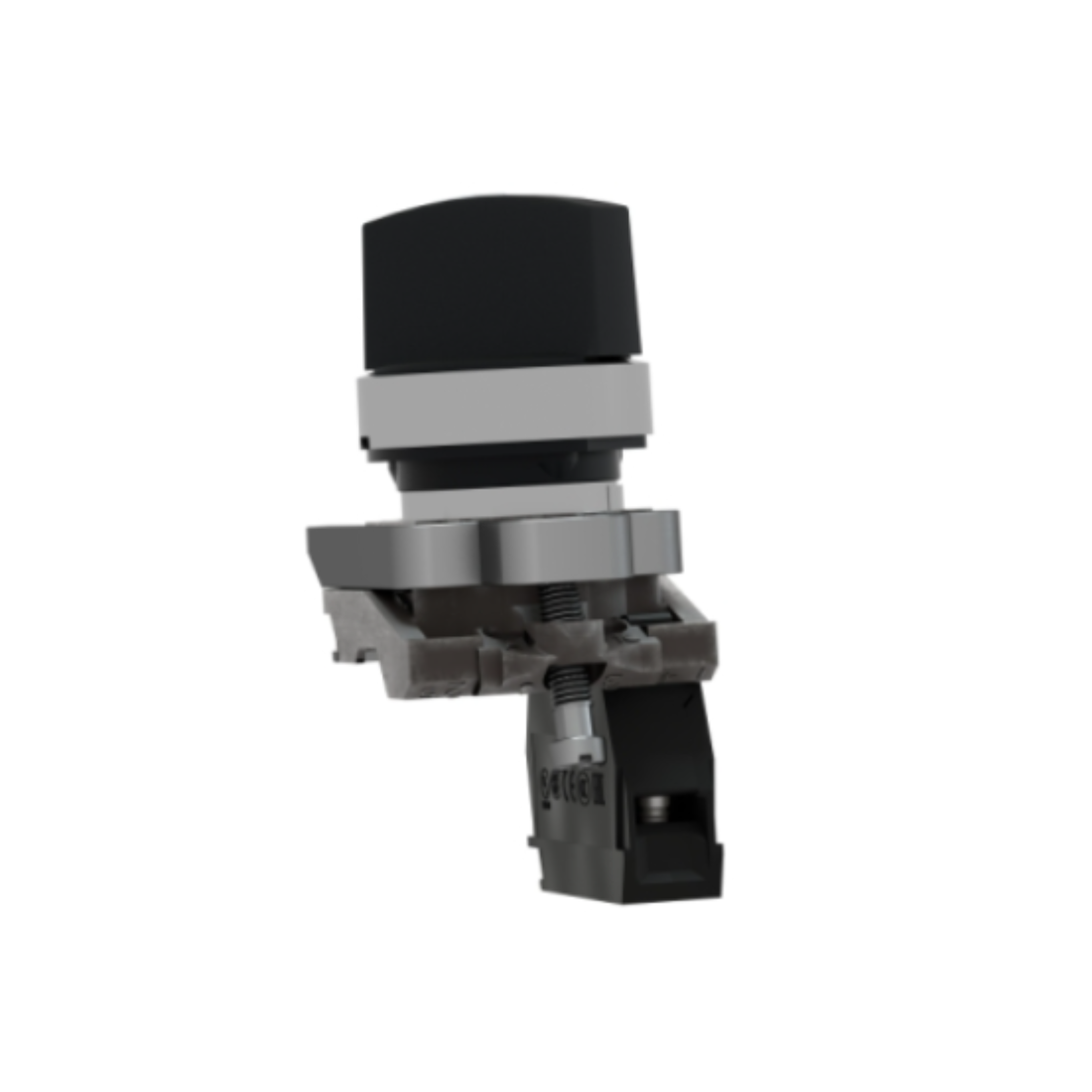

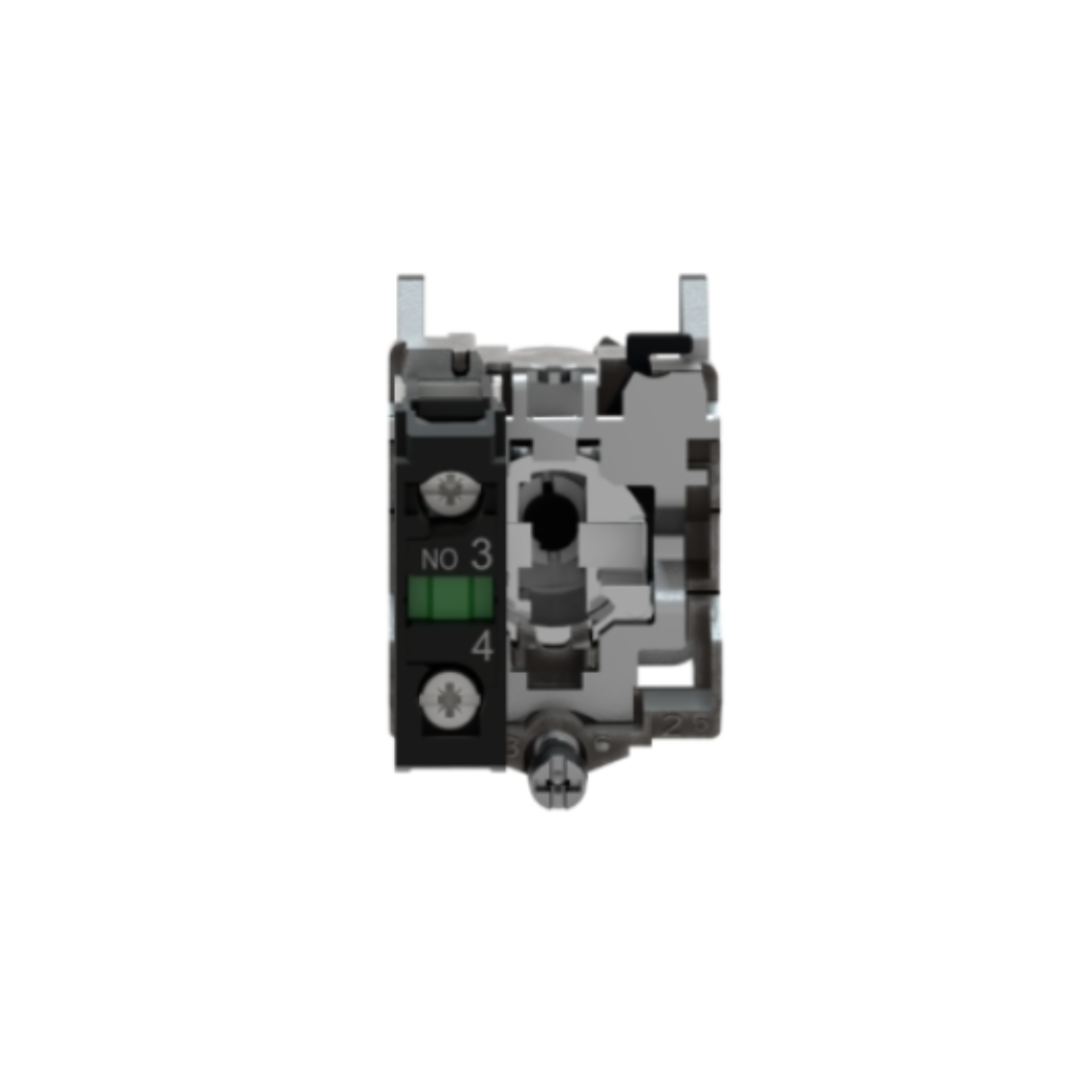

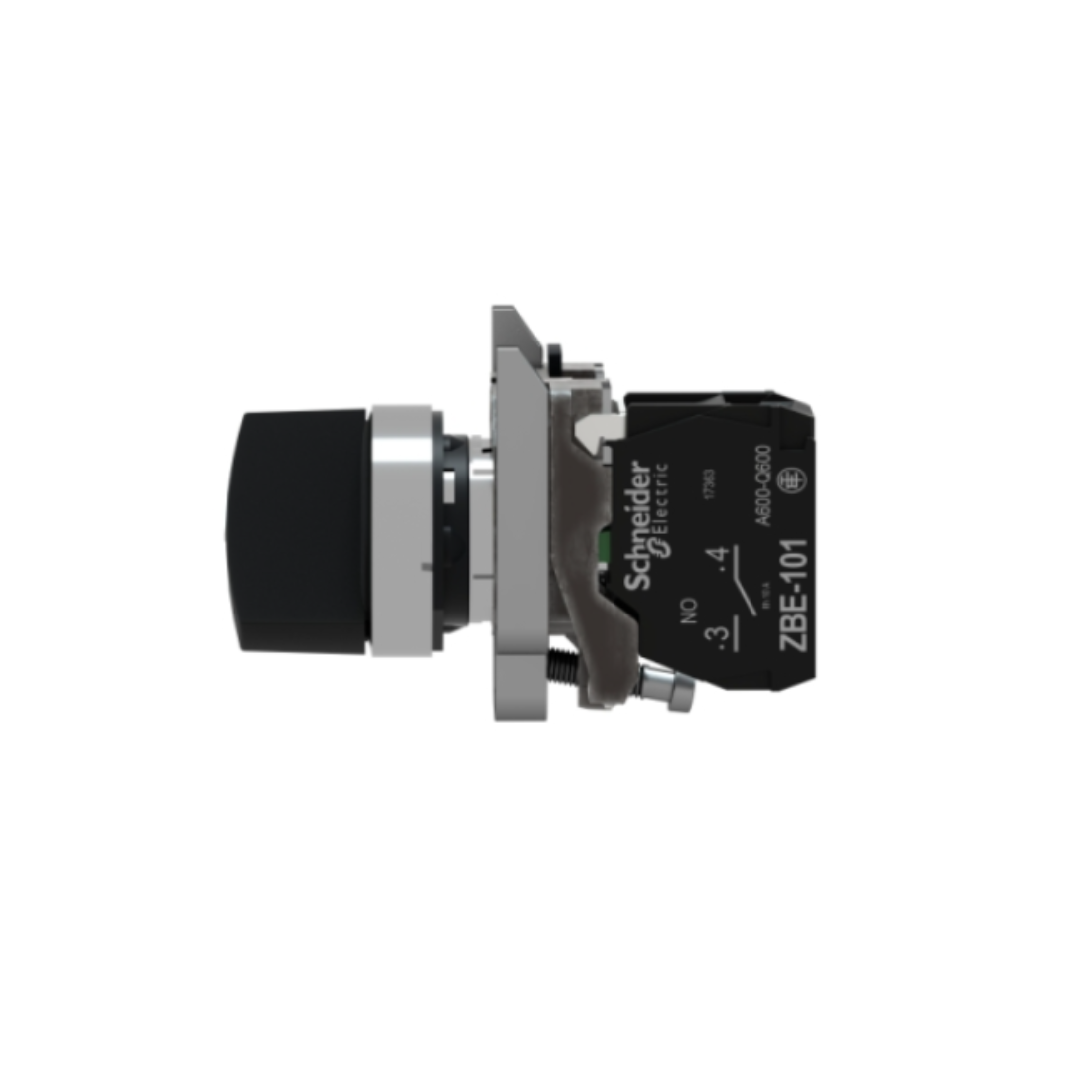

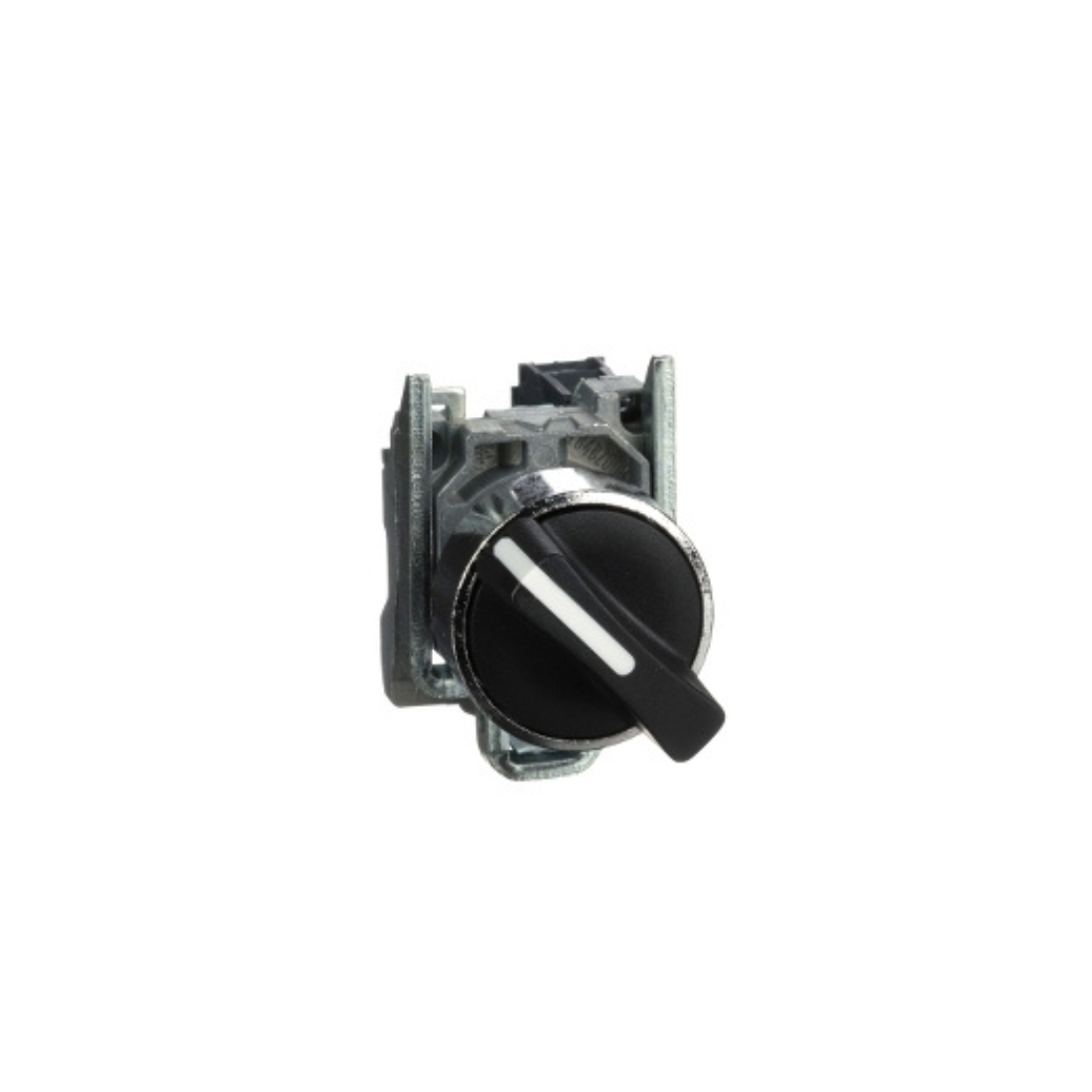

Schneider Electric Harmony XB4 Selector Switch Metal Black Ø22 2 Positions Spring Return from Right to Left 1NO XB4BD41
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Selector Switch
Description
Schneider Electric XB4BD41 Black Selector Switch has two positions and operates with a a spring-return-to-left mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling the machines. Easily installs into standard 22mm diameter cutouts and connects to your control circuits using simple screw terminal connections.
Schneider Electric XB4BD41 Black Selector Switch provides an efficient way to set the machine to different operating modes. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments.
Features
- Provides a versatile interface for controlling the machines
- It is shock, dust, water and vibration proof
- Ideal for use in harsh environments.
- It has a metal bezel.
| Brand | Schneider Electric |
| Item Name | Selector Switch |
| Model | XB4BD41 |
| Bezel Material | Chromium plated metal |
| Cap/Operator Or Lens Color | Black |
| Compatibility Code | XB4 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| Contact Operation | Slow-break |
| Contacts Material | Silver alloy (Ag/Ni) |
| Depth | 68 mm |
| Electrical Reliability | λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| Fixing Collar Material | Zamak |
| Height | 47 mm |
| IP Degree Of Protection | IP69, IP69K, IP67 conforming to IEC 60529 |
| Mechanical Durability | 1000000 cycles |
| Mounting Diameter | 22 mm |
| Operator Position Information | 2 positions 90° |
| Operator Profile | Black Standard Handle |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Protective Treatment | TH |
| Positive Opening | Without |
| Certifications | DNV, GL, UL, LROS (Lloyds register of shipping), CSA, BV |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Short-Circuit Protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Type of Operator | Right to Left Spring Return |
| Terminals Description ISO n°1 | (13-14)NO |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Width | 30 mm |
| Contacts Type And Composition | 1 NO |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | No |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts Usage | Standard contacts |
| Torque Value | 0.14 N.m NO changing electrical state |
| Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-1, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-1 |
| Electrical Shock Protection Class | Class II conforming to IEC 60536 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Weight | 0.105 kg |
