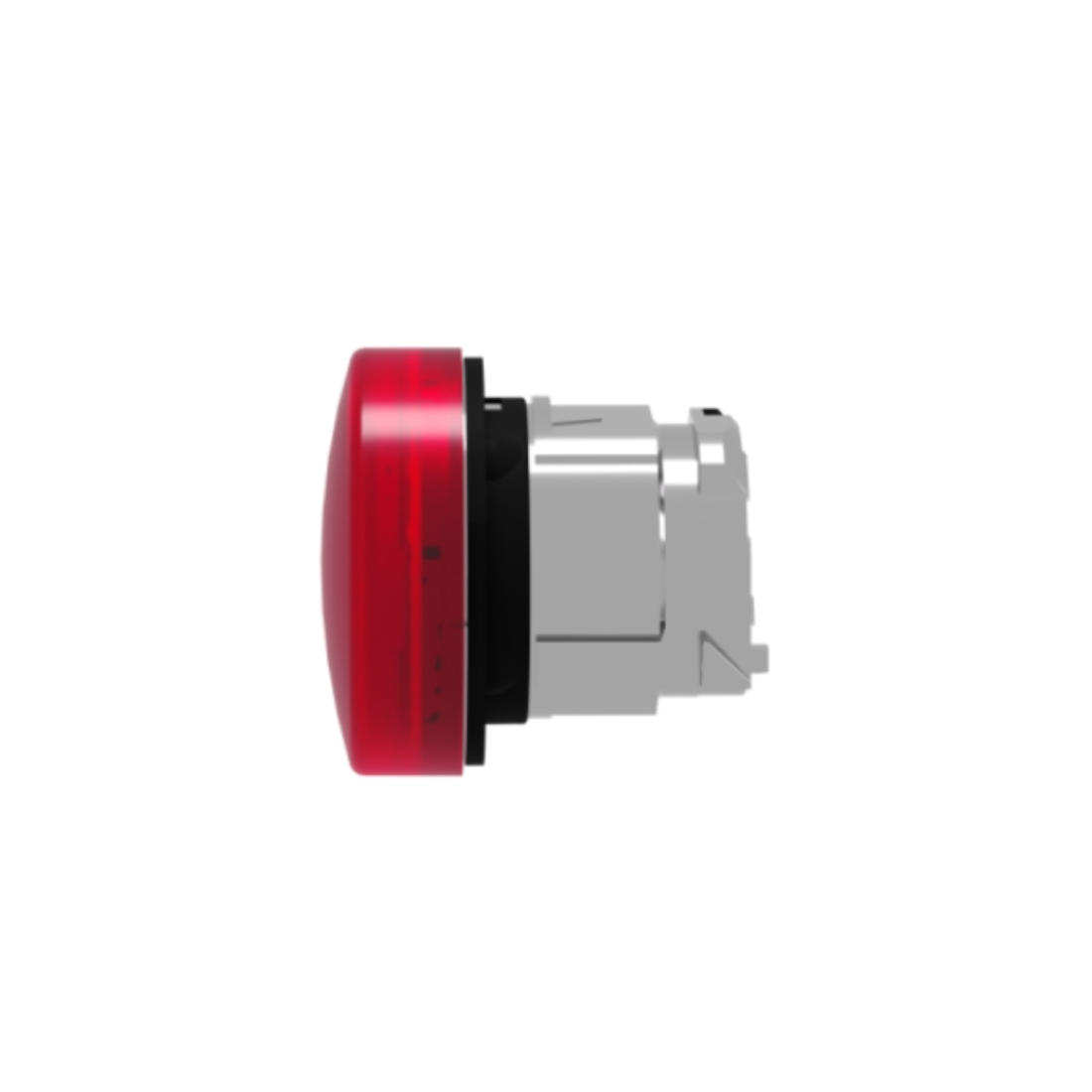

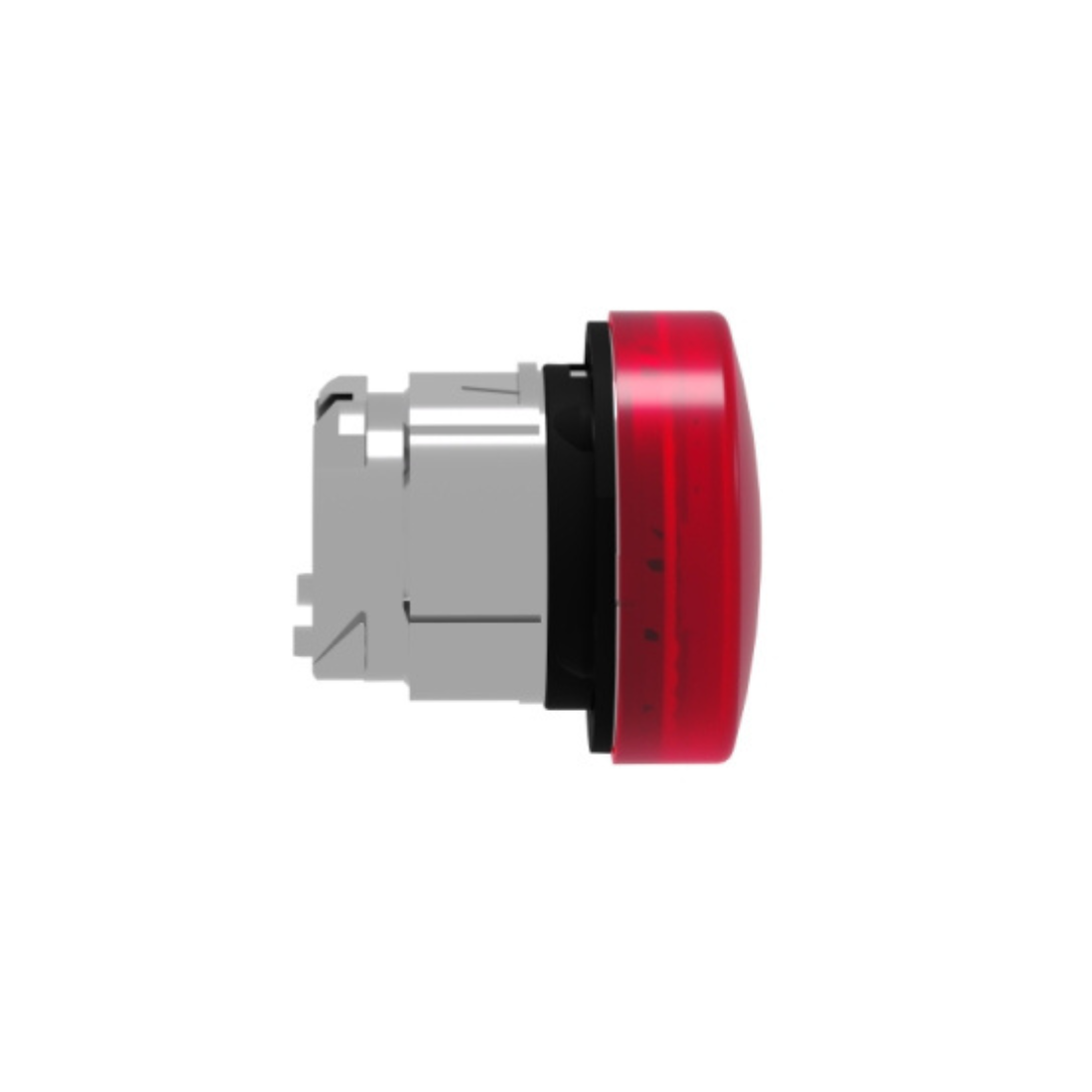

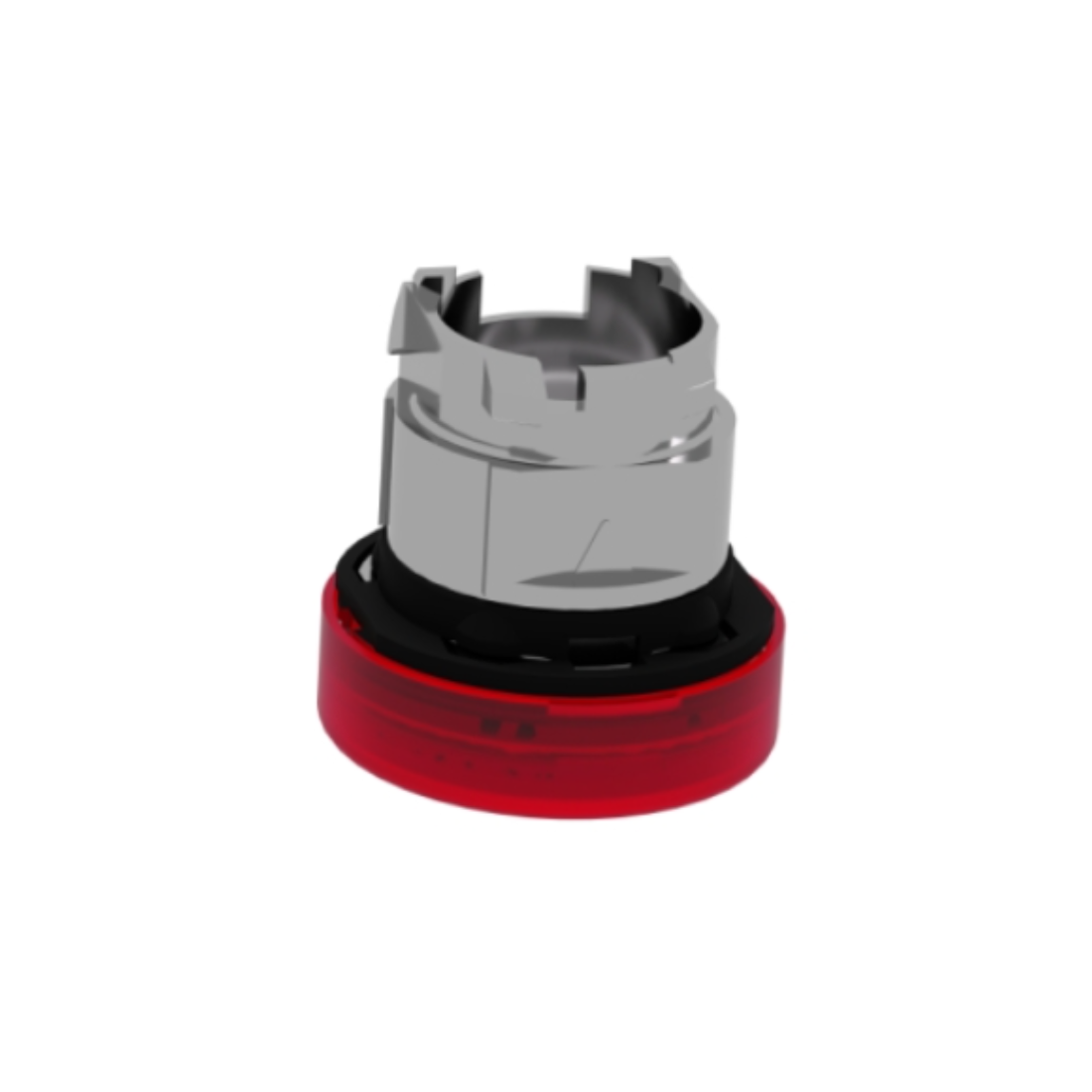

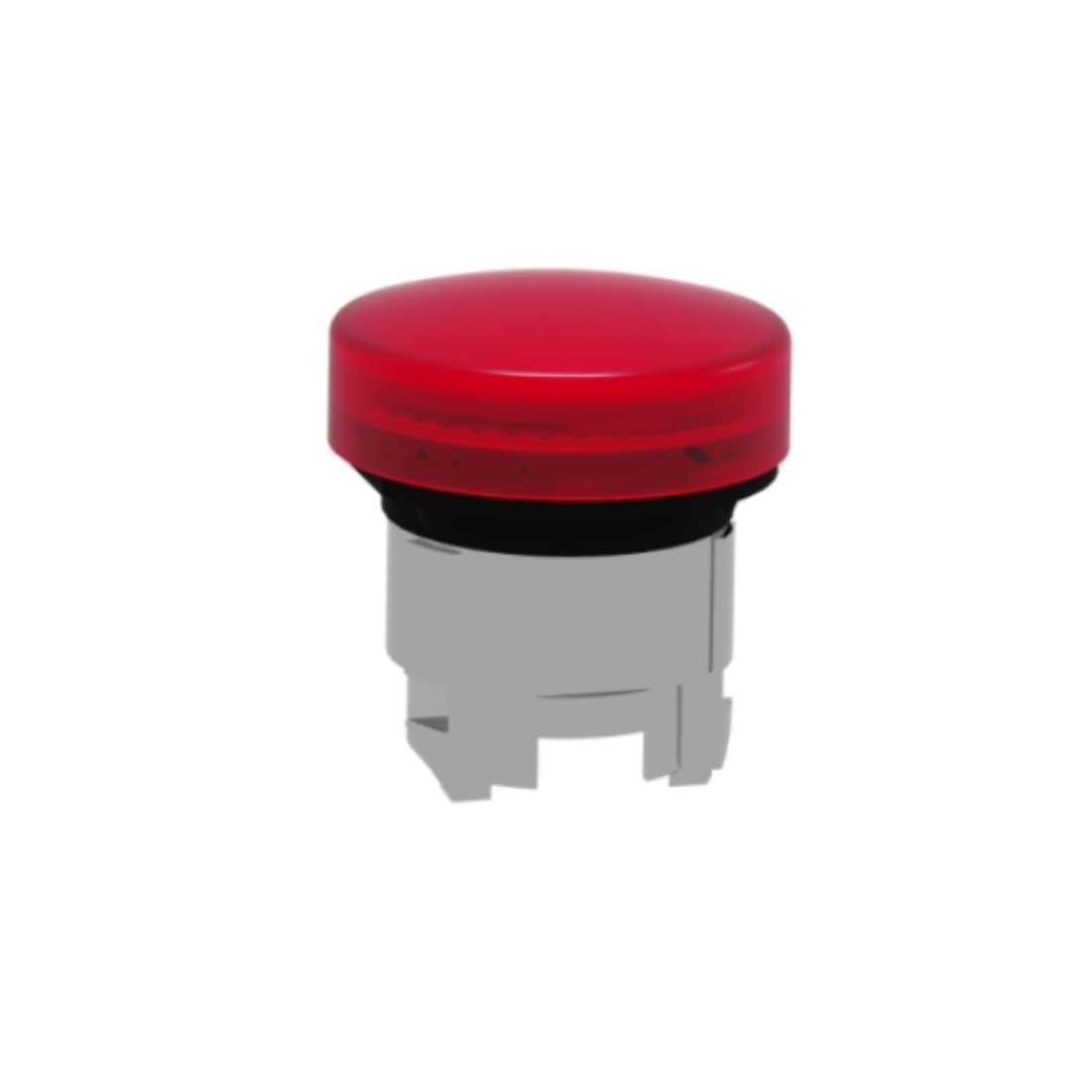

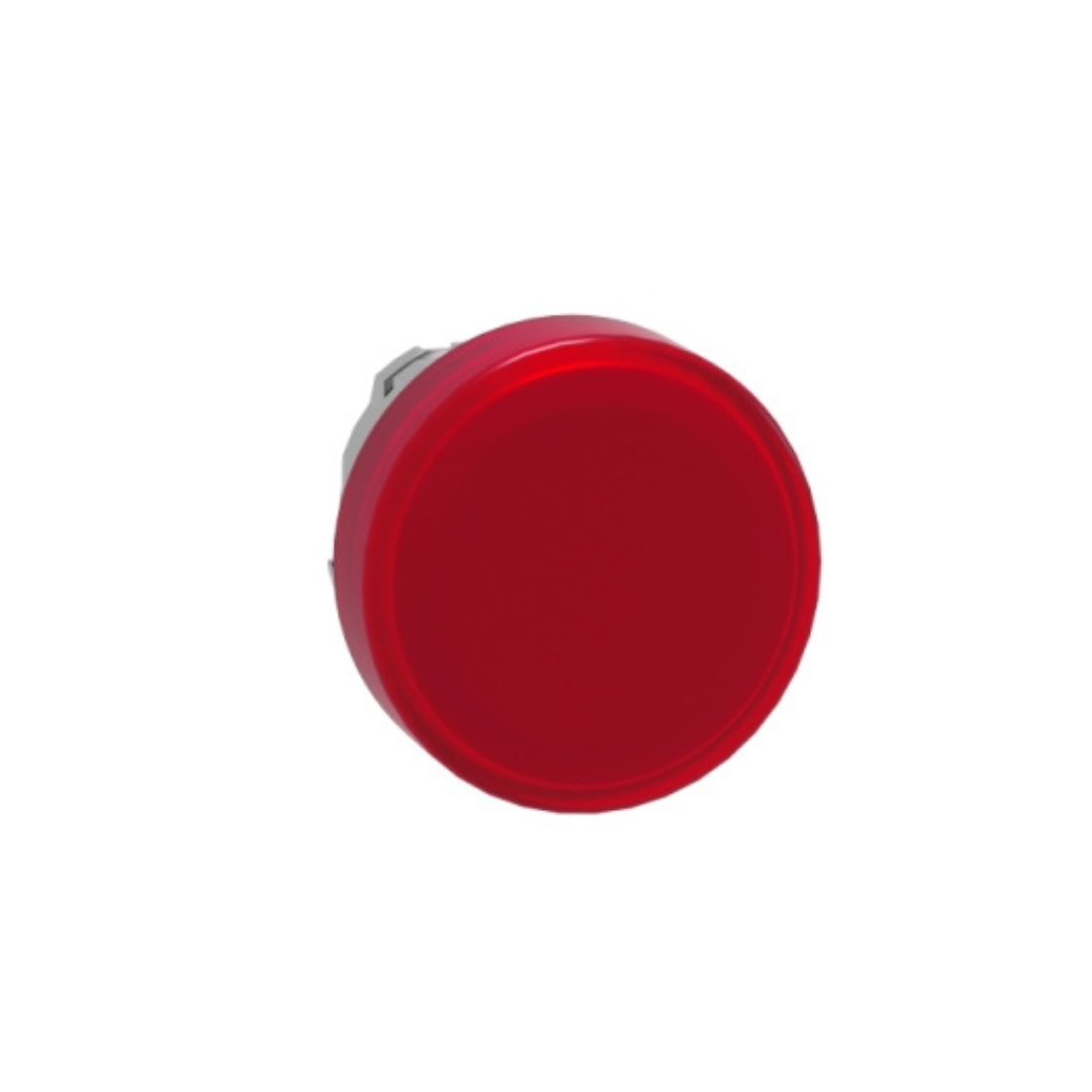

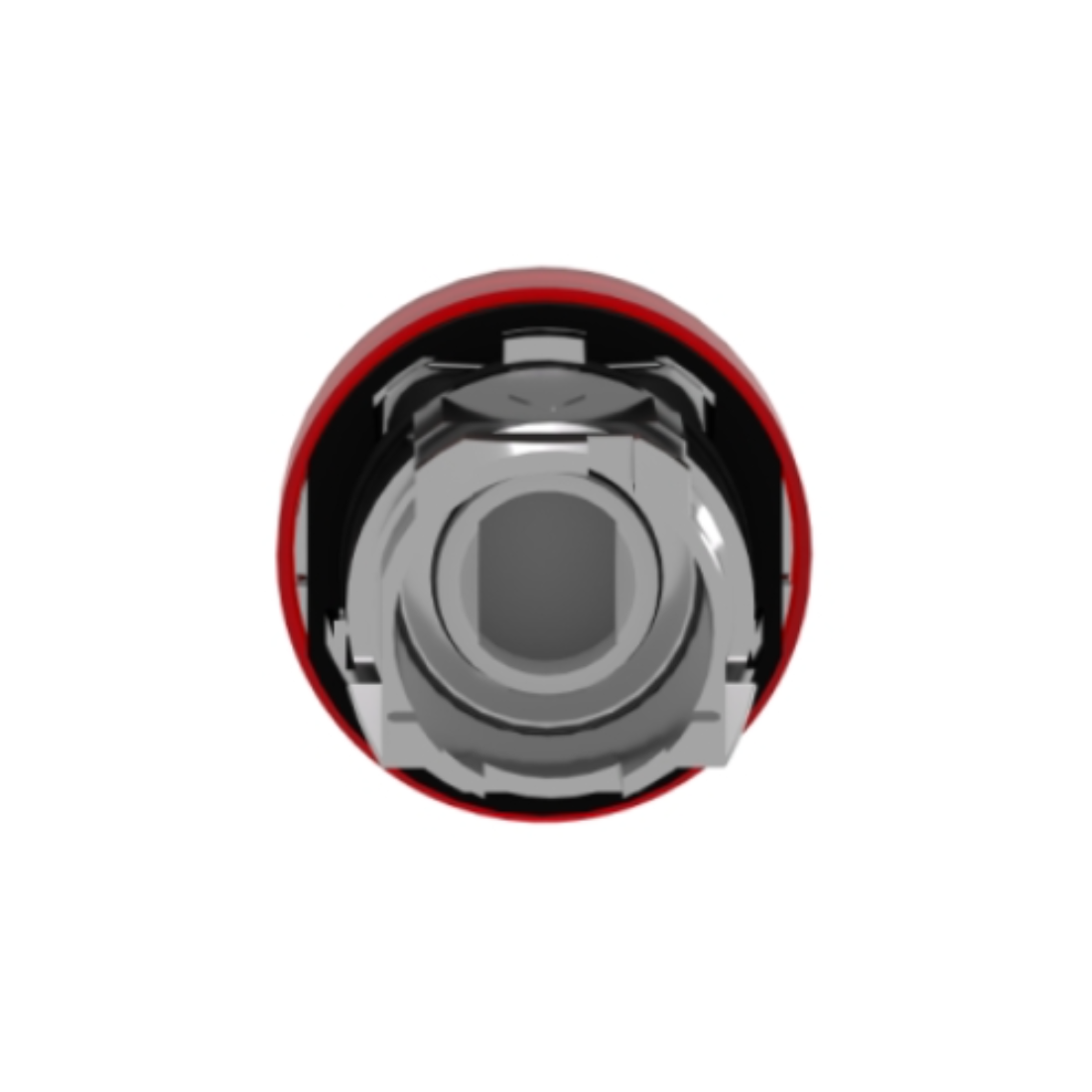

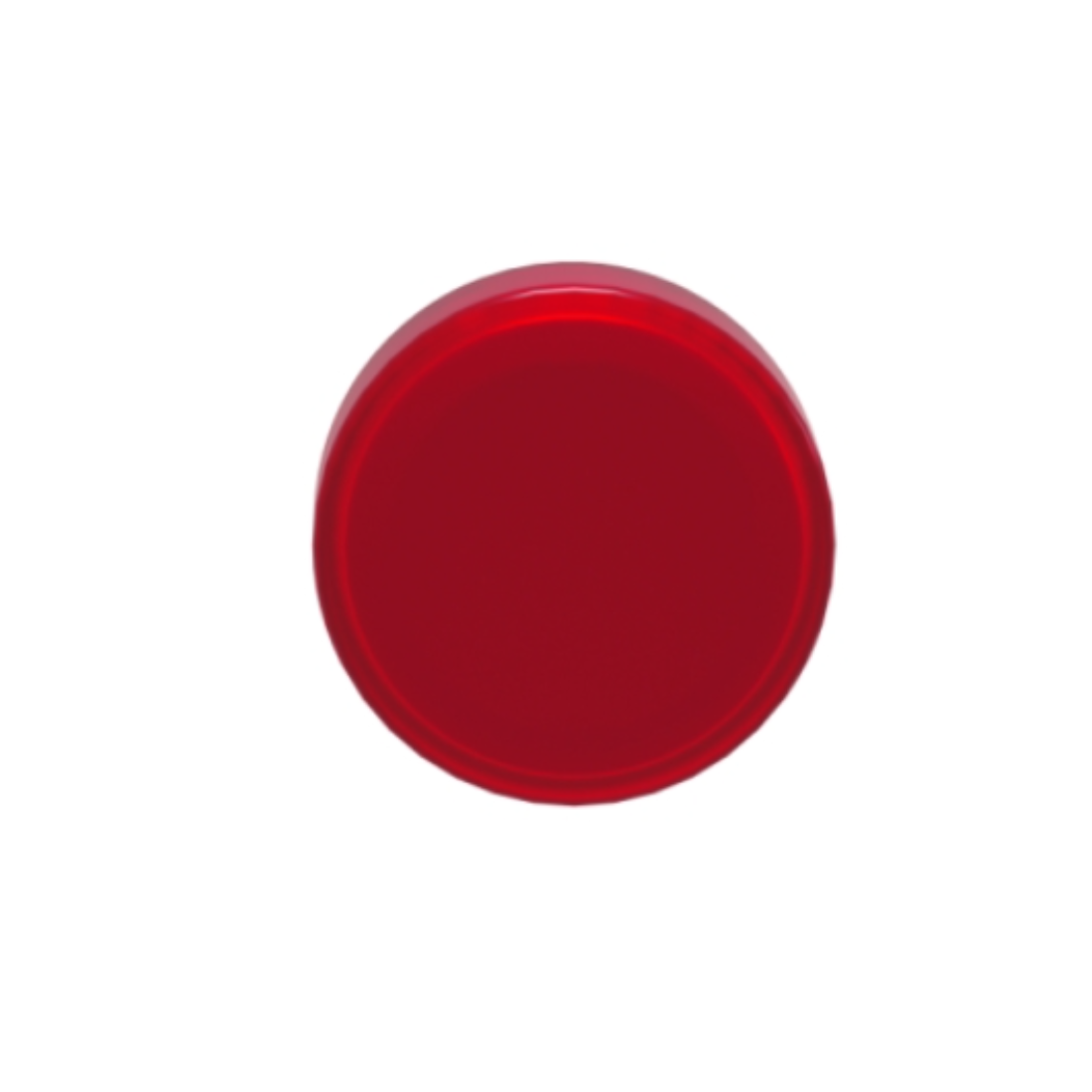

Schneider Electric Harmony XB4 Red Pilot Light Head Ø22 Plain Lens for Integral LED ZB4BV043

Schneider Electric Harmony XB4 Red Pilot Light Head Ø22 Plain Lens for Integral LED ZB4BV043

Name: Schneider Electric Harmony XB4 Red Pilot Light Head Ø22 Plain Lens for Integral LED ZB4BV043
Brand: Schneider Electric
Price: 13.65 AED
Availability: InStock

AED 13.65

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Pilot Light Head

Description

Schneider Electric ZB4BV043 Red Pilot Light Head with integrated LED. It is designed to be maintenance-free and provide a bright display of process and machine operations. Thanks to the light color of the lens, it is easily visible even from afar, allowing complex machine states to be read at a glance. Thanks to IP66, it is shock, dust, water and vibration proof.

Schneider Electric ZB4BV043 Red Pilot Light Head has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.

Features

Designed to be maintenance-free and provide a bright display of process and machine operations.
Shock, dust, water and vibration proof
It has a metal bezel

Specifications

Brand : Schneider Electric

Item Name : Pilot Light Head

Model : ZB4BV043

Bezel Material : Chromium plated metal

Cap/Operator Or Lens Color : Red

CAD Overall Depth : 30 mm

CAD Overall Height : 29 mm

CAD Overall Width : 29 mm

Compatibility Code : ZB5

IK Degree Of Protection : IK05 conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

Mounting Diameter : 22 mm

Overvoltage Category : Class I conforming to IEC 60536

Protective Treatment : TH

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Shape of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Signalling Type : Steady

Group of Product Lens : Fitted integral LED

Operator Additional Information : With plain lens

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Customizable : 1

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

GCR BRIDGE : ZB4BVCUST01

Light Source Color : Red

Main Group : Pilot light

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Electrical Composition Code : P1 in front mounting with integral LED, P2 in front mounting with integral LED and transformer

Ambient Air Temperature For Operation : -40-55 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-5-5, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-1

Compatibility : Universal LED

Device Presentation : Basic Element

Weight : 0.026 kg
