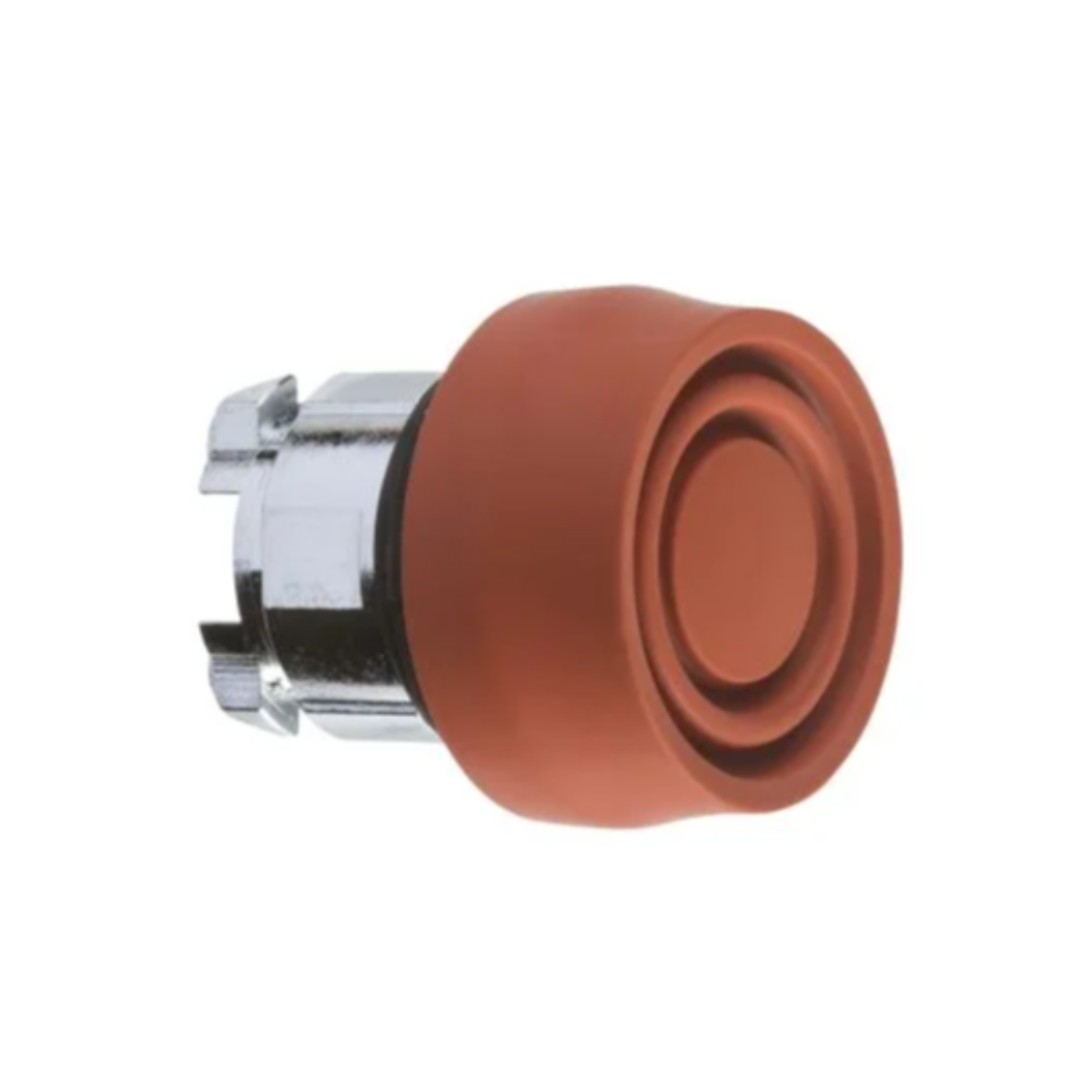

Schneider Electric Harmony XB4 Red Flush Push Button Head Ø22 Spring Return Unmarked ZB4BP4S
Schneider Electric Harmony XB4 Red Flush Push Button Head Ø22 Spring Return Unmarked ZB4BP4S

Schneider Electric Harmony XB4 Red Flush Push Button Head Ø22 Spring Return Unmarked ZB4BP4S

Regular price AED 51.45
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Push Button
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric ZB4BP4S Red Flush Push Button Head is used in various industrial or electrical applications depending on the specific requirements of the devices or machines in which it is used. These types of buttons are commonly found on electrical panels, machines, and other industrial environments. Ø22 is the diameter of the button, which is 22 millimeters.

    This measurement is often used to indicate the size of snap buttons. Spring return means that when you press the button, it will return to its original position when you release it. This is a common feature of many pressure switches. There is no specific icon, text or marker on the button. It is a blank button that can be used for various purposes.

    Features
    • Spring-loaded push/return mechanism.
    • Simple and robust control of machines and processes.
    • It is shock, dust, water and vibration proof
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Push-Button

    Model : ZB4BP4S

    Bezel Material : Chromium Plated Metal

    CAD Overall Depth : 33 mm

    CAD Overall Height : 30 mm

    CAD Overall Width : 30 mm

    Cap/Operator Or Lens Color : Red

    Compatibility Code : XB4

    IK Degree Of Protection : IK06 conforming to IEC 50102

    IP Degree Of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

    Marking : Unmarked

    Mechanical Durability : 10000000 cycles

    Mounting Diameter : 22 mm

    Operator Profile : Red flush, Unmarked

    Positive Opening : Without

    Overvoltage Category : Class I conforming to IEC 60536

    Certifications : DNV, UL listed, CSA, GL, LROS (Lloyds register of shipping), BV

    Protective Treatment : TH

    Range Of Product : Harmony XB4

    Sale Per Indivisible Quantity : 1

    Shape of Signaling Unit Head : Round

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Type of Operator : Spring Return

    NEMA Degree Of Protection : NEMA 13, NEMA 4X

    Group Of Product : Silicone boot push

    Operator Additional Information : Colored boot

    Customizable : 0

    Head Type : Standard

    Main Group : Push-button

    Electrical Composition Code : C1 for <9 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting

    Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -40-70 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Standards : EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1, JIS C8201-5-1, JIS C8201-1

    Device Presentation : Basic element

    Compatibility : Legend holder
