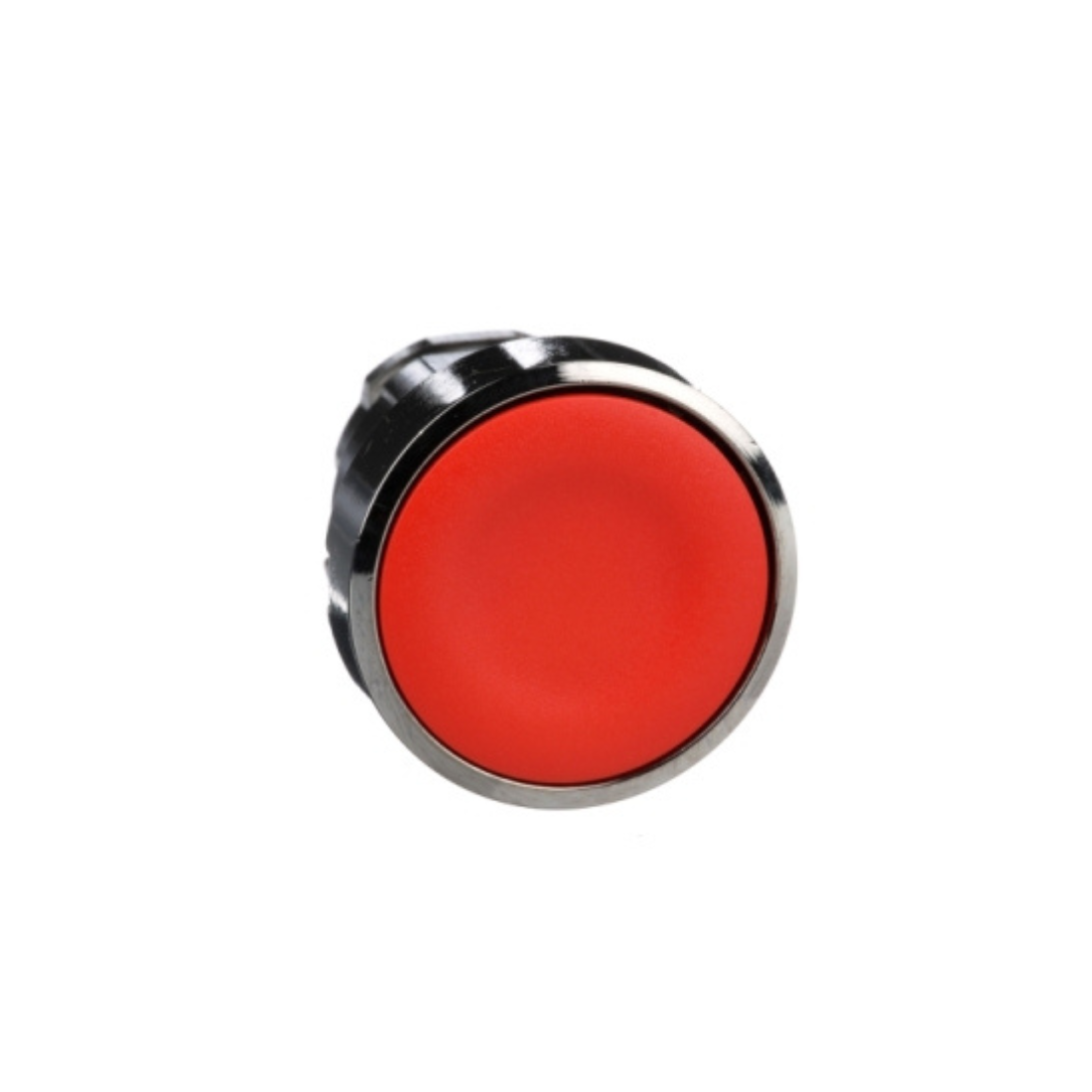

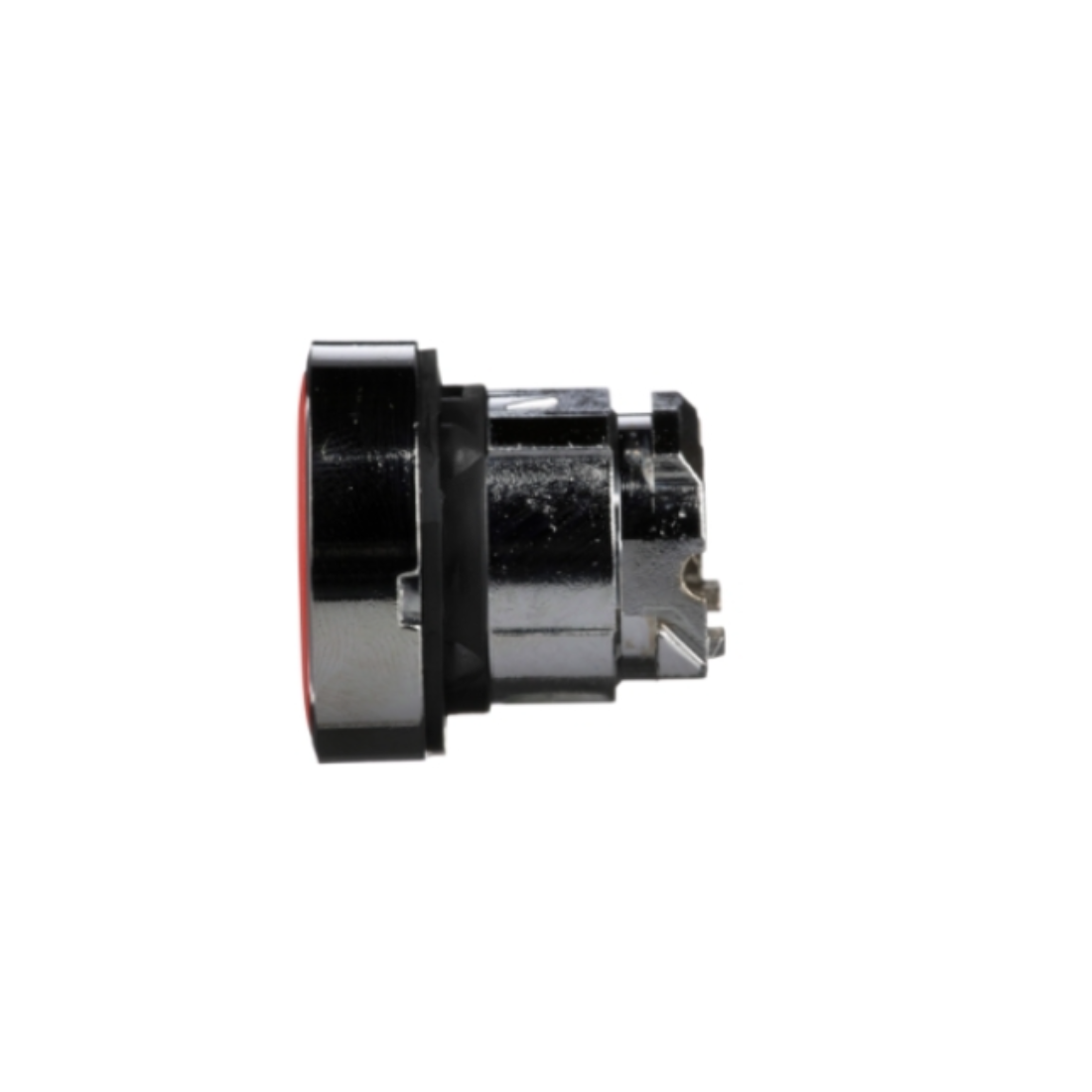

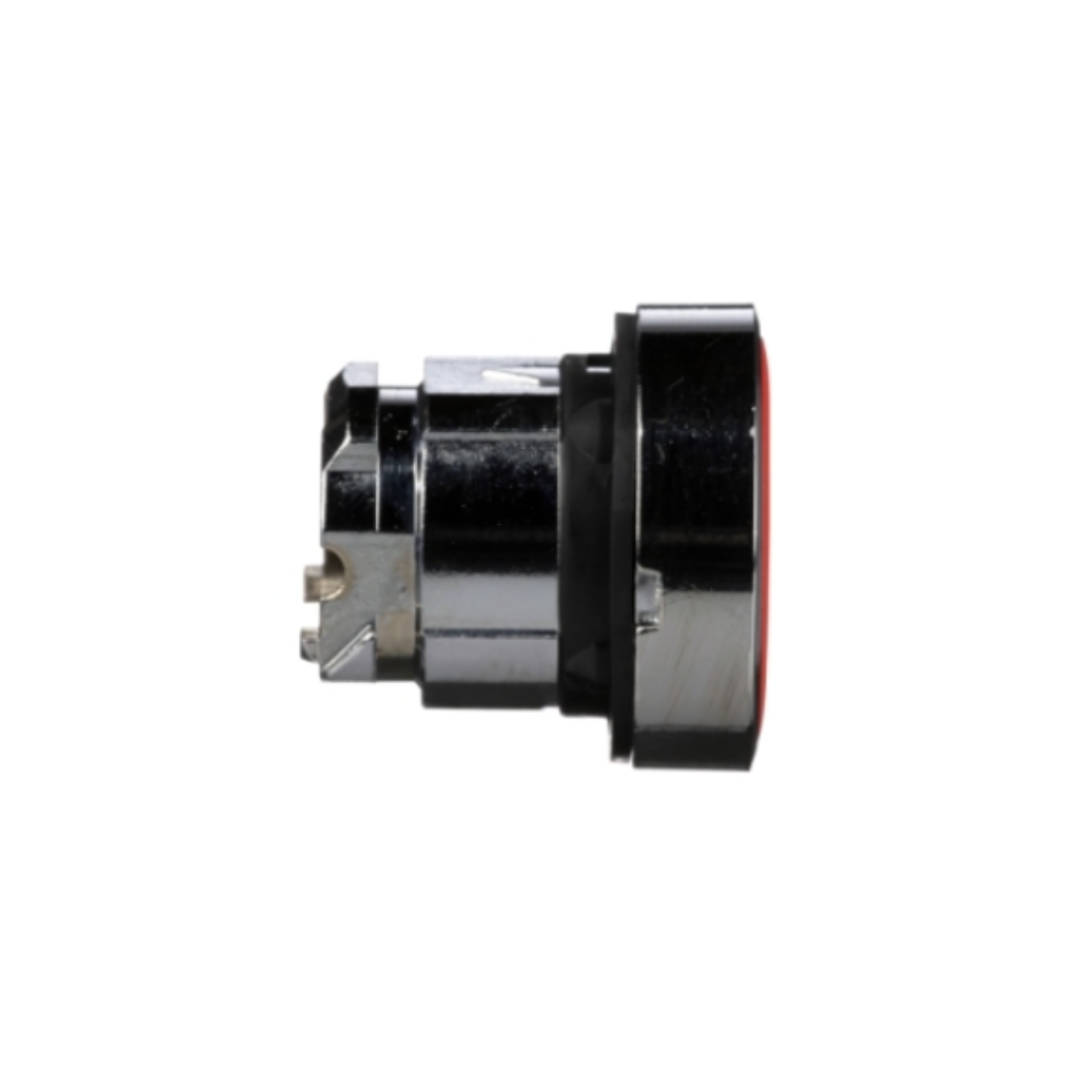

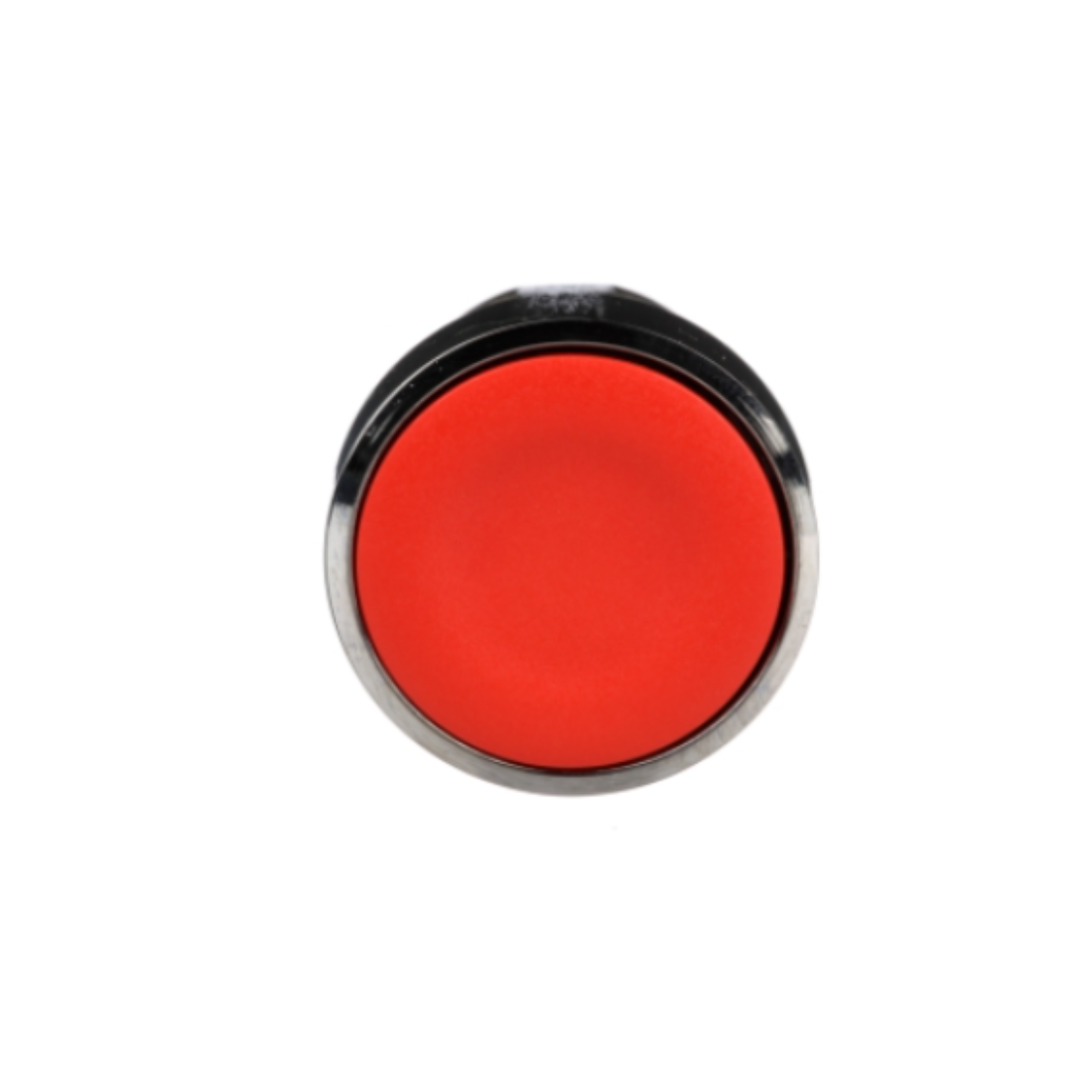

Schneider Electric Harmony XB4 Red Flush Push Button Head Ø22 Spring Return Unmarked ZB4BA4
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Pushbutton Head
Description
Schneider Electric ZB4BA4 Red Flush Pushbutton Head features a spring return mechanism. It provides an ergonomic interface to control the machines. Installation and replacement on compatible pushbutton units and complete contact blocks is simply snap-on. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof.
Schneider Electric ZB4BA4 Red Flush Pushbutton Head has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.
Features
- Spring return mechanism
- Provides an ergonomic interface to control the machines.
- Shock, dust, water and vibration proof
| Brand | Schneider Electric |
| Item Name | Head For Non-illuminated Push-Button |
| Model | ZB4BA4 |
| Bezel Material | Chromium plated metal |
| CAD Overall Depth | 28 mm |
| CAD Overall Height | 29 mm |
| CAD Overall Width | 29 mm |
| Cap/Operator Or Lens Color | Red |
| Compatibility Code | ZB4 |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Marking | Unmarked |
| Mechanical Durability | 10000000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Red flush, unmarked |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Protective Treatment | TH |
| Certifications | GL, DNV, LROS (Lloyds register of shipping), UL listed, CSA, BV |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Type of Operator | Spring Return |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Group Of Product | Flush push non illuminated |
| Customizable | 1 |
| Head Type | Standard |
| GCR BRIDGE | ZB4BACUST01 |
| Main Group | Illum Push-button |
| Electrical Composition Code | C1 for <9 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL 508, JIS C8201-1 |
| Device Presentation | Basic element |
