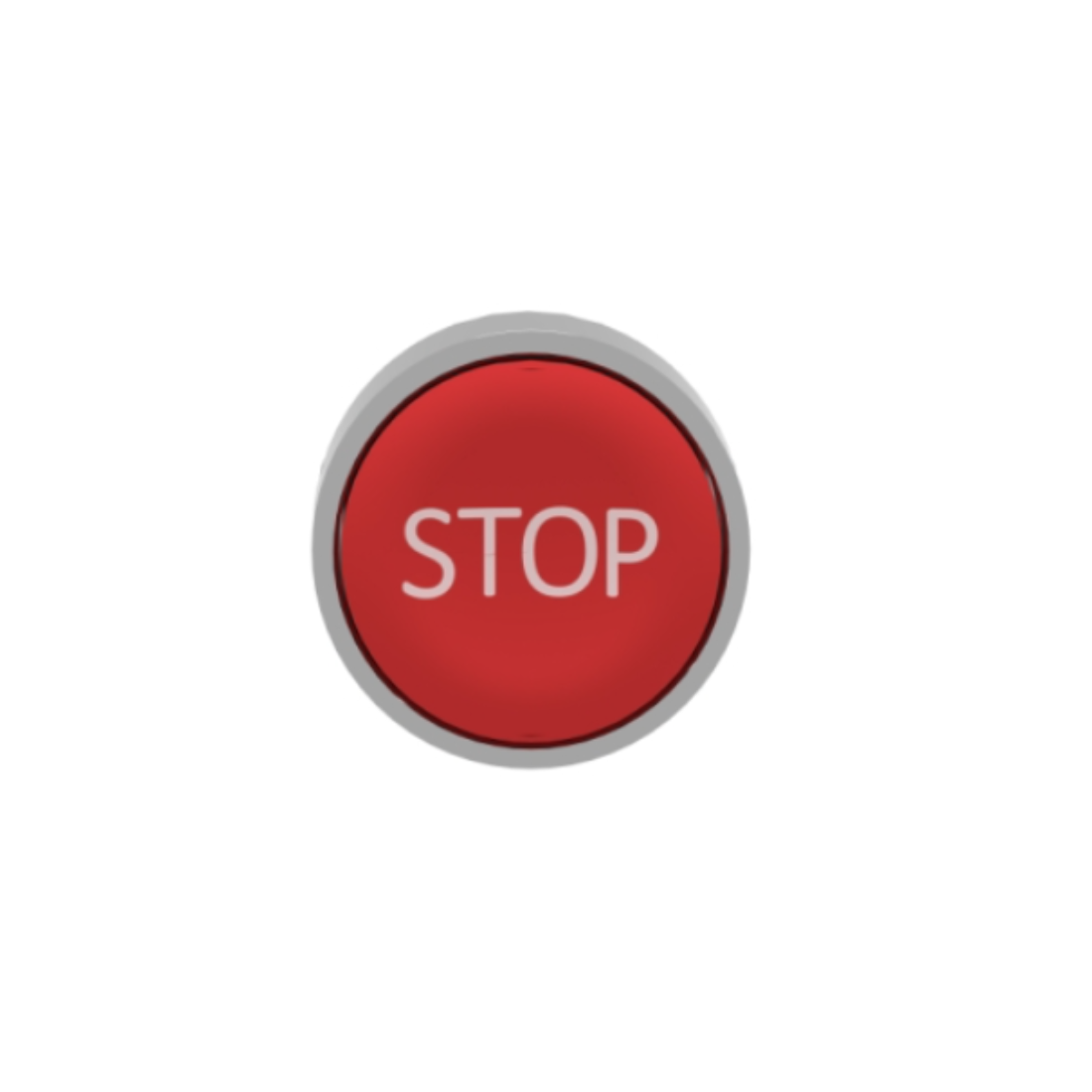

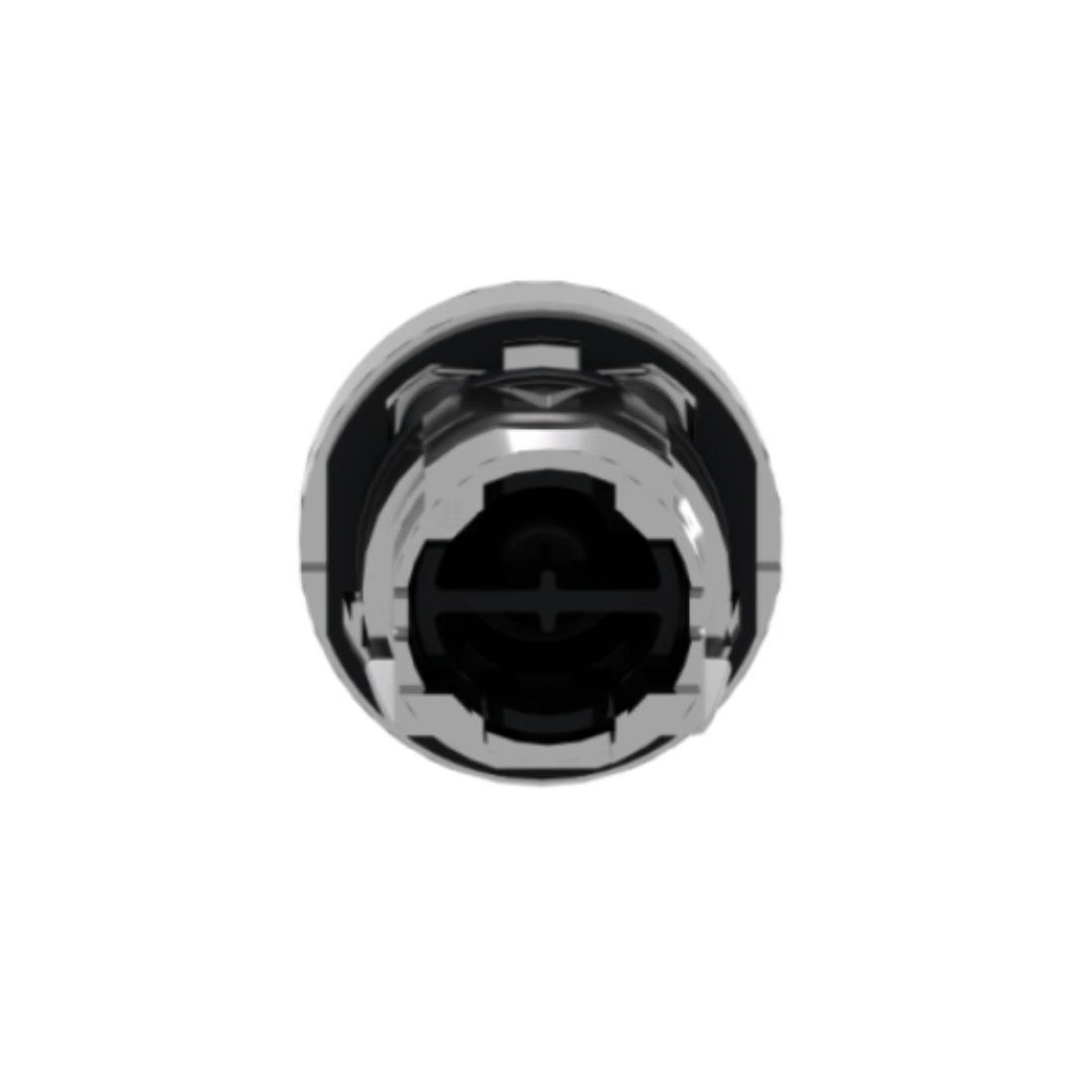

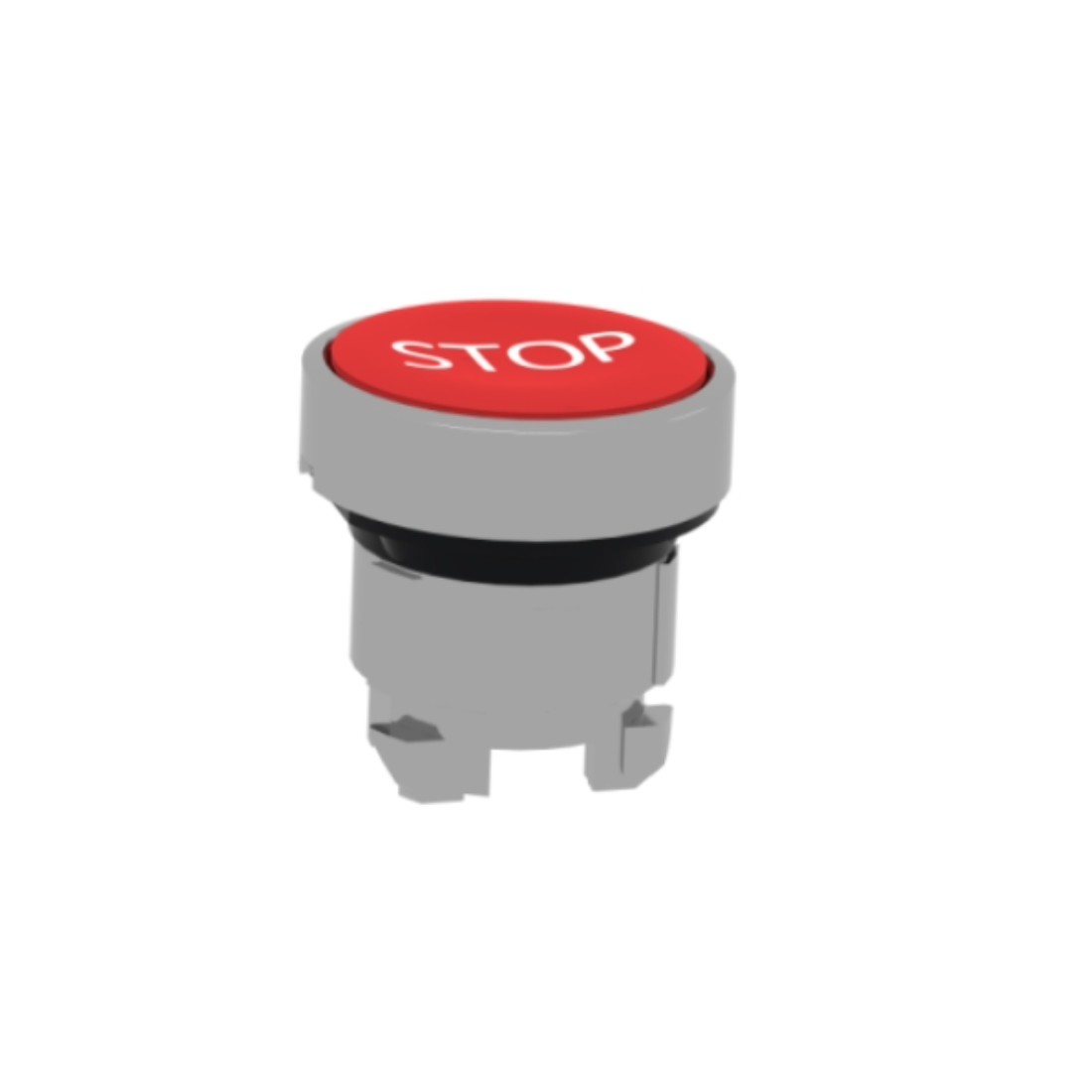

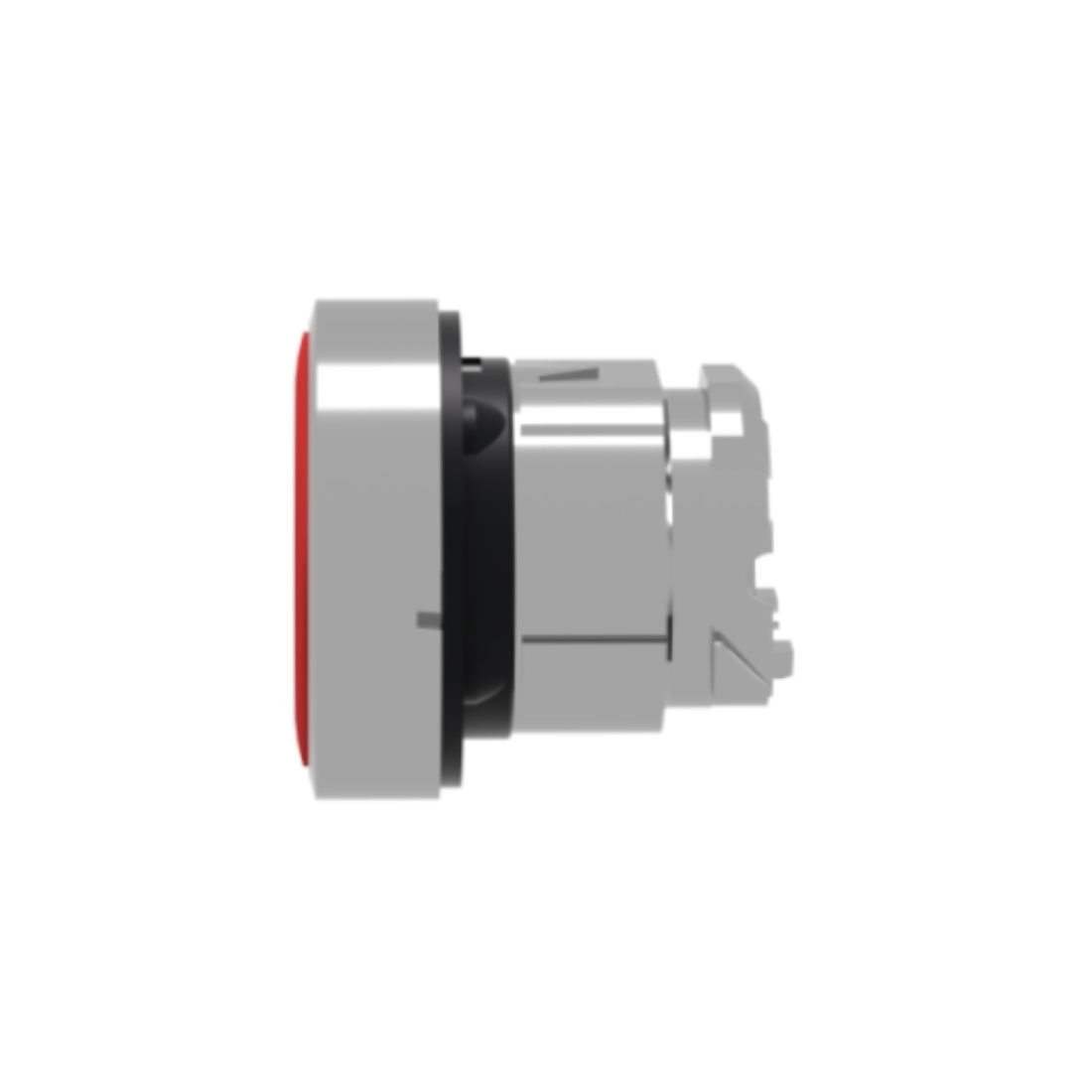

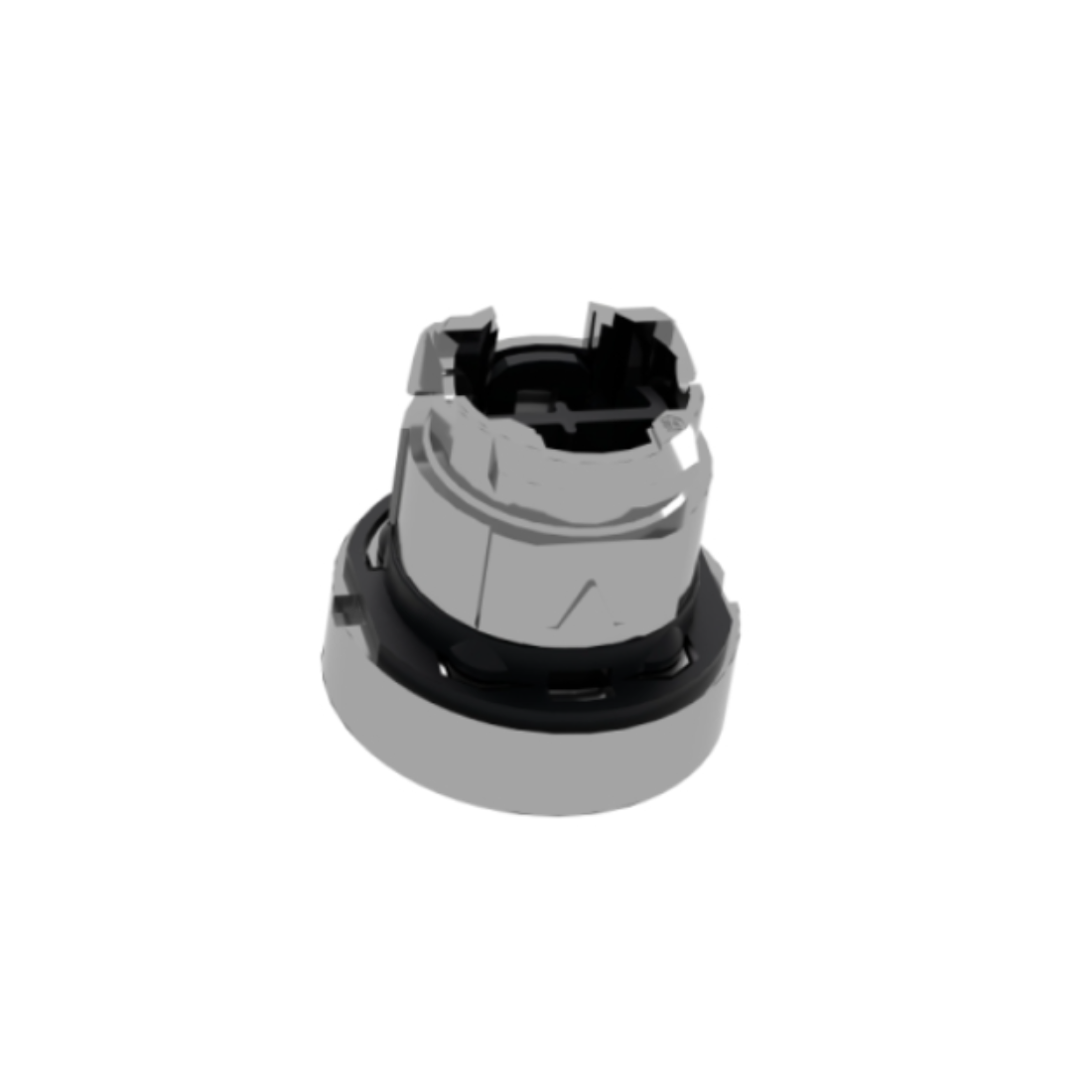

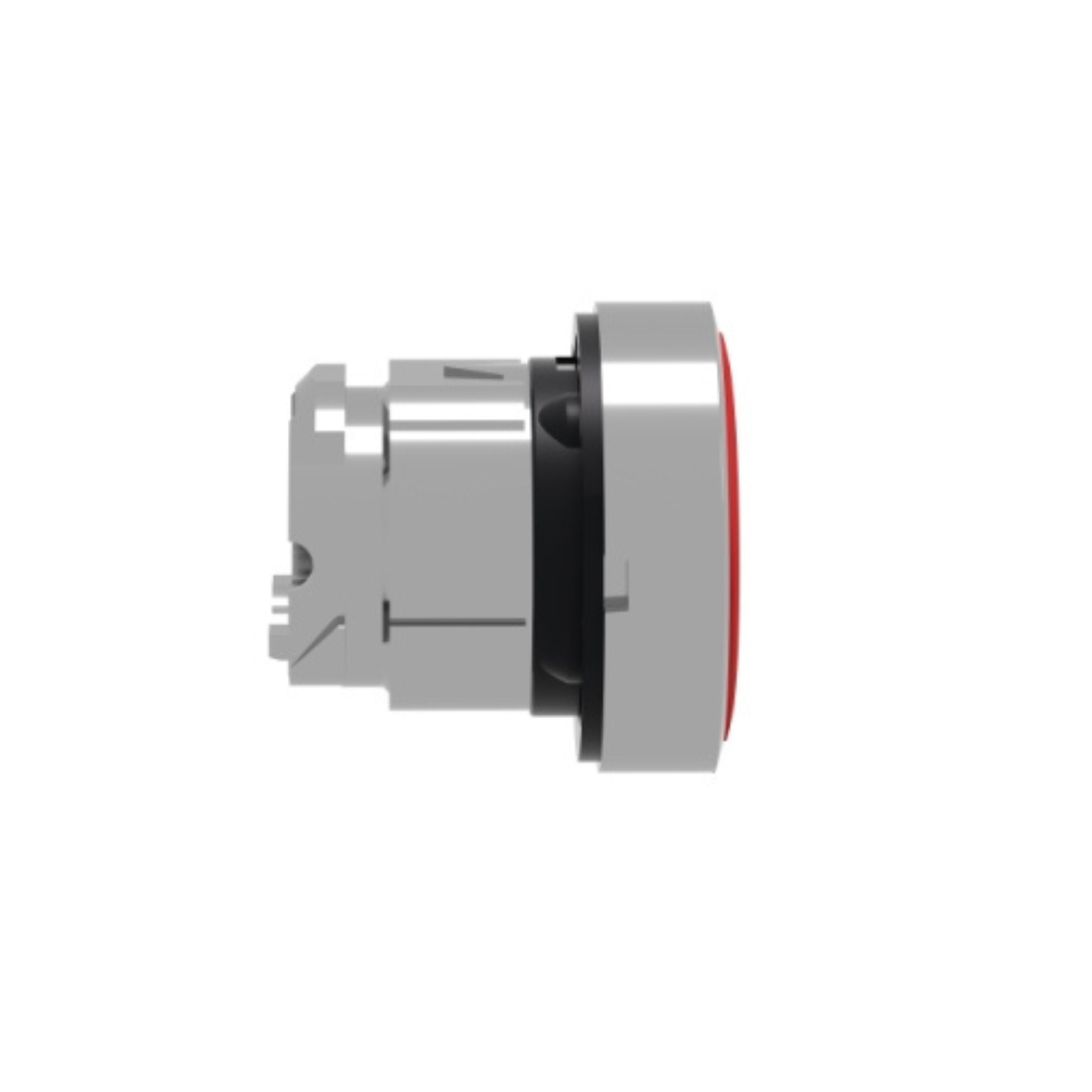

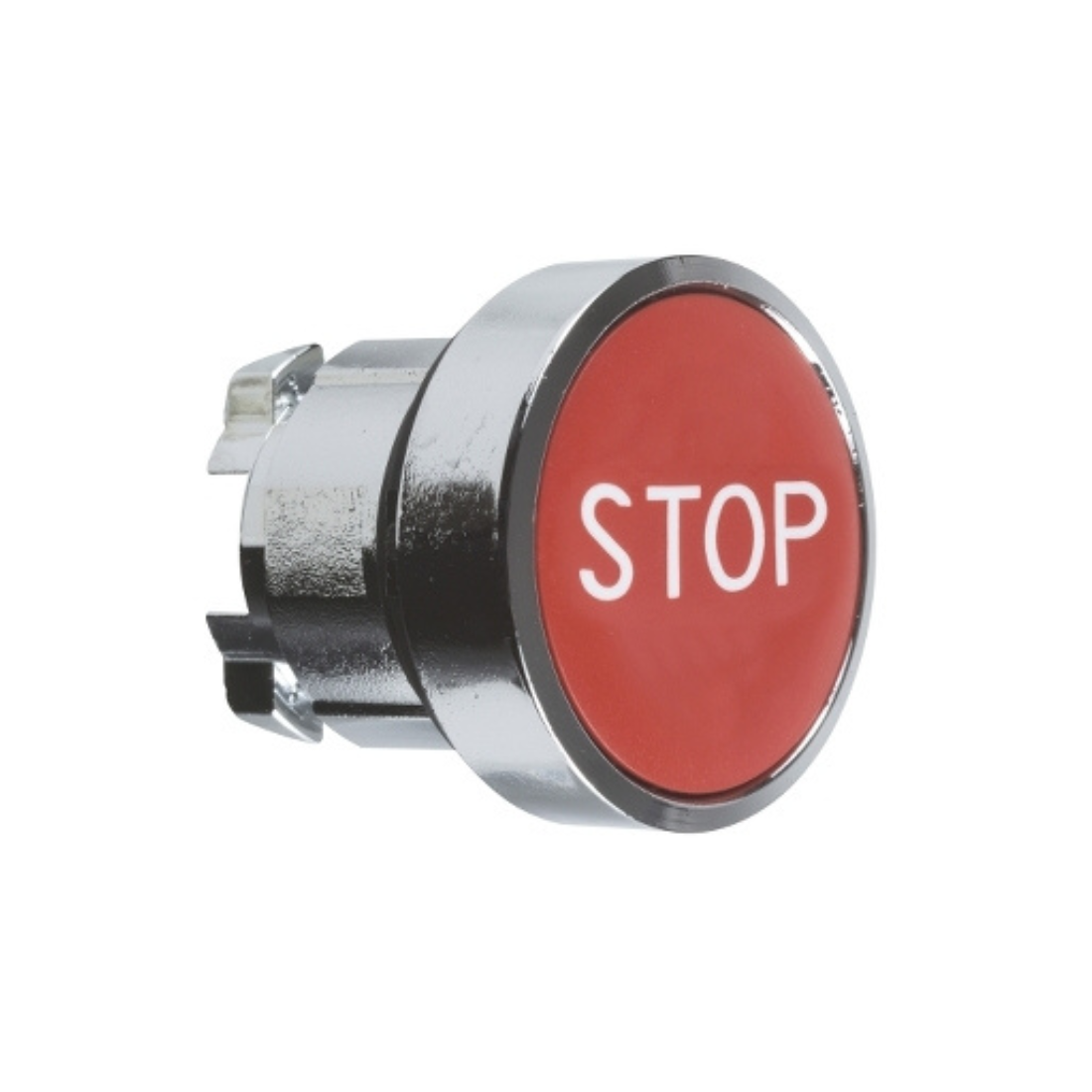

Schneider Electric Harmony XB4 Red Flush Push Button Head Ø22 Spring Return STOP ZB4BA434
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Push Button
Description
Schneider Electric ZB4BA434 Red Flush Push Button Head operates with a spring-loaded push/return mechanism. This button head provides an ergonomic interface to control the machines. Installation and replacement on compatible pushbutton units and complete contact blocks is simply snap-on. Thanks to the light color and marking, it can be seen clearly from afar. Thanks to IP66, it is shock, dust, water and vibration proof.
Schneider Electric ZB4BA434 Red Flush Push Button Head has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Various types of connection: screw clamp, connector, Fast on connector or spring terminal
- Excellent mechanical connection with operator head
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
| Brand | Schneider Electric |
| Item Name | Head For Non-Illuminated Push-Button |
| Model | ZB4BA434 |
| Bezel Material | Chromium Plated Metal |
| CAD Overall Depth | 28 mm |
| CAD Overall Height | 29 mm |
| CAD Overall Width | 29 mm |
| Cap/Operator Or Lens Color | Red |
| Compatibility Code | ZB4 |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Marking | STOP |
| Mechanical Durability | 10000000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Red flush, STOP (white) |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Certifications | UL listed, BV, CSA, LROS (Lloyds register of shipping), DNV, GL |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Type of Operator | Spring Return |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Group Of Product | Flush Push With Marking |
| Operator Additional Information | Colored boot |
| Color Of Marking | White |
| Customizable | 0 |
| Head Type | Standard |
| Main Group | Push-button |
| Electrical Composition Code | C1 for <9 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, JIS C8201-1 |
| Device Presentation | Basic element |
