Schneider Electric Pilot Light Metal White Ø22 Plain Lens with integral LED 110-120V AC XB4BVG1

Schneider Electric Harmony XB4 Pilot Light Metal White Ø22 Plain Lens with integral LED 110-120V AC XB4BVG1

Name: Schneider Electric Harmony XB4 Pilot Light Metal White Ø22 Plain Lens with integral LED 110-120V AC XB4BVG1
Brand: Schneider Electric
Price: 66.15 AED
Availability: InStock

AED 66.15

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Pilot Light

Description

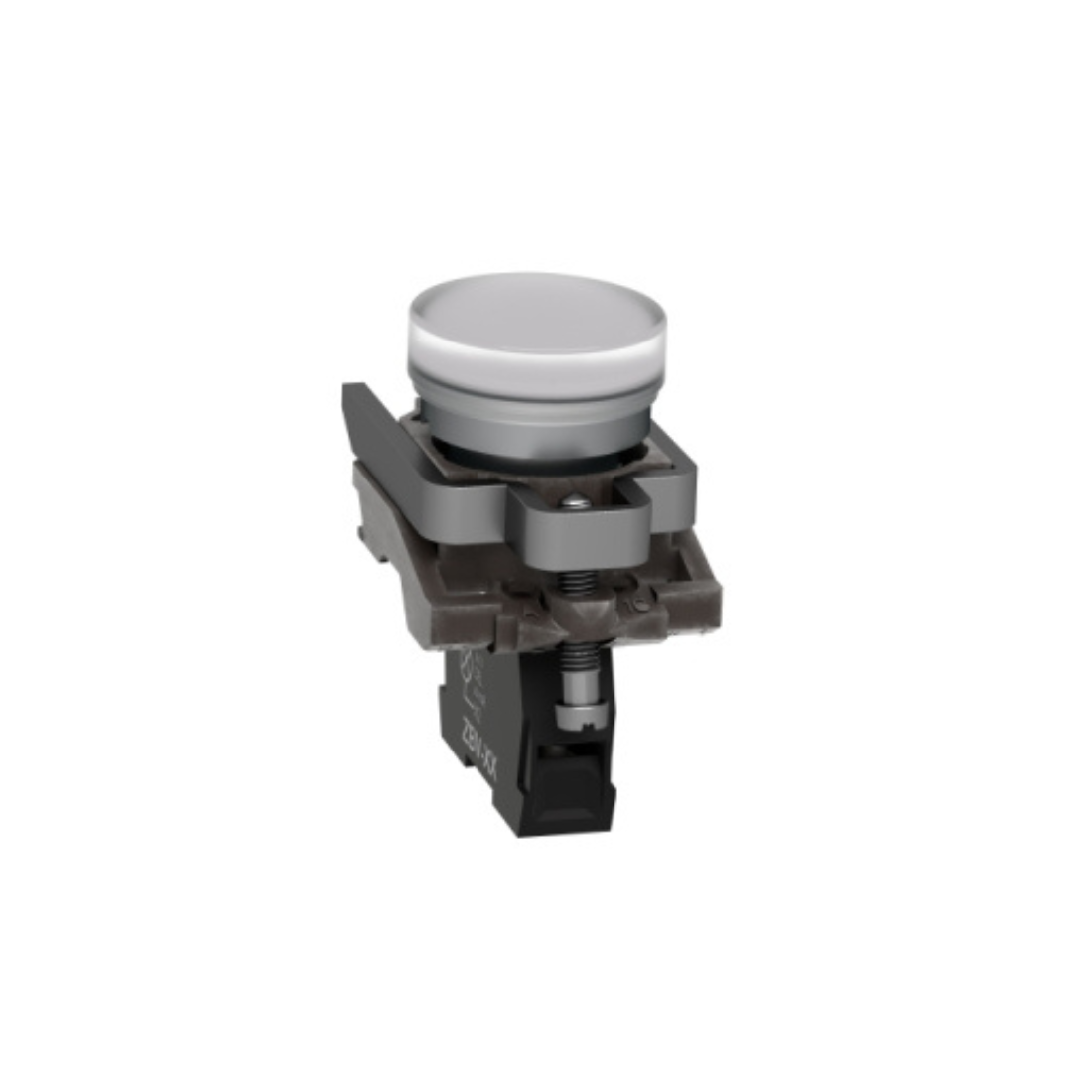

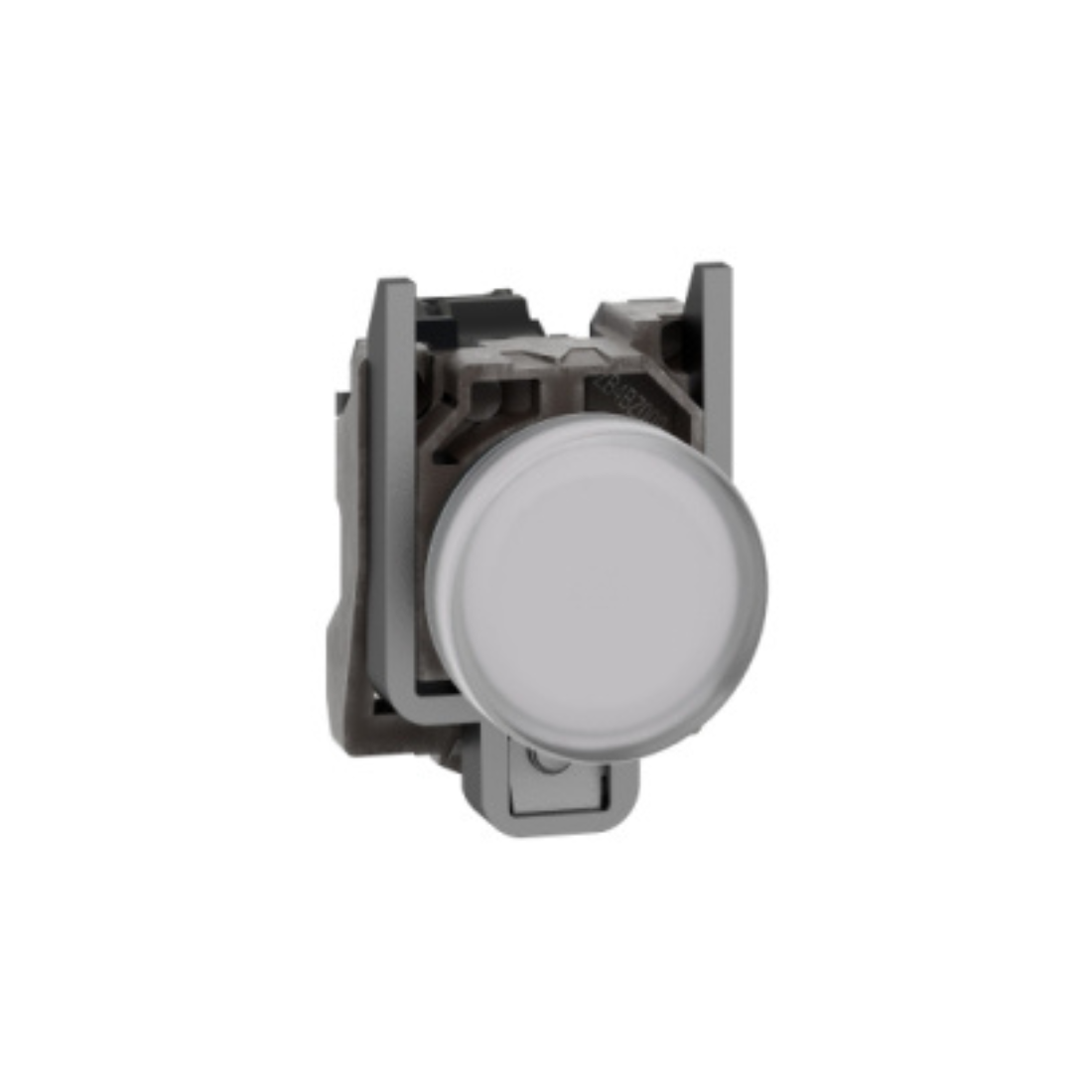

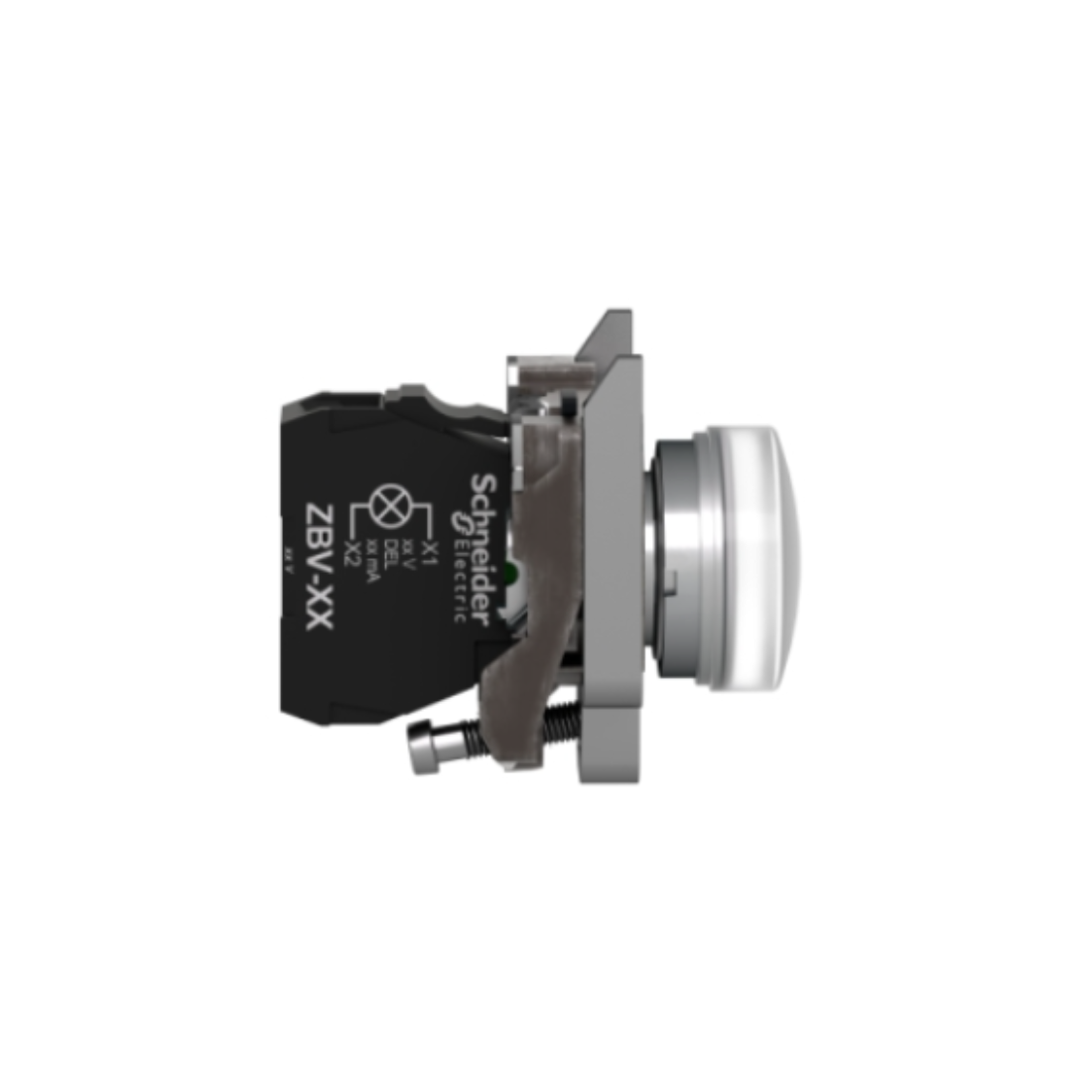

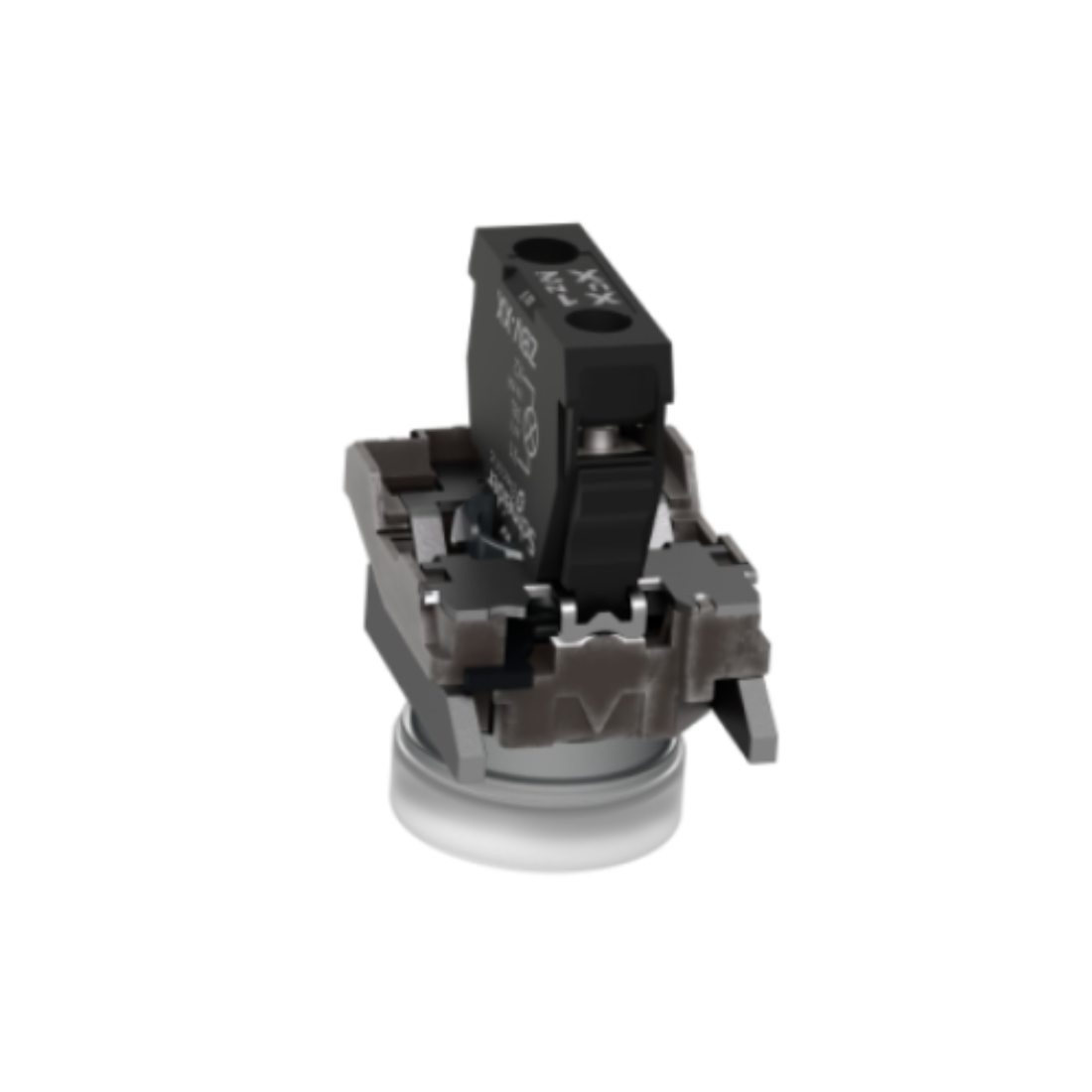

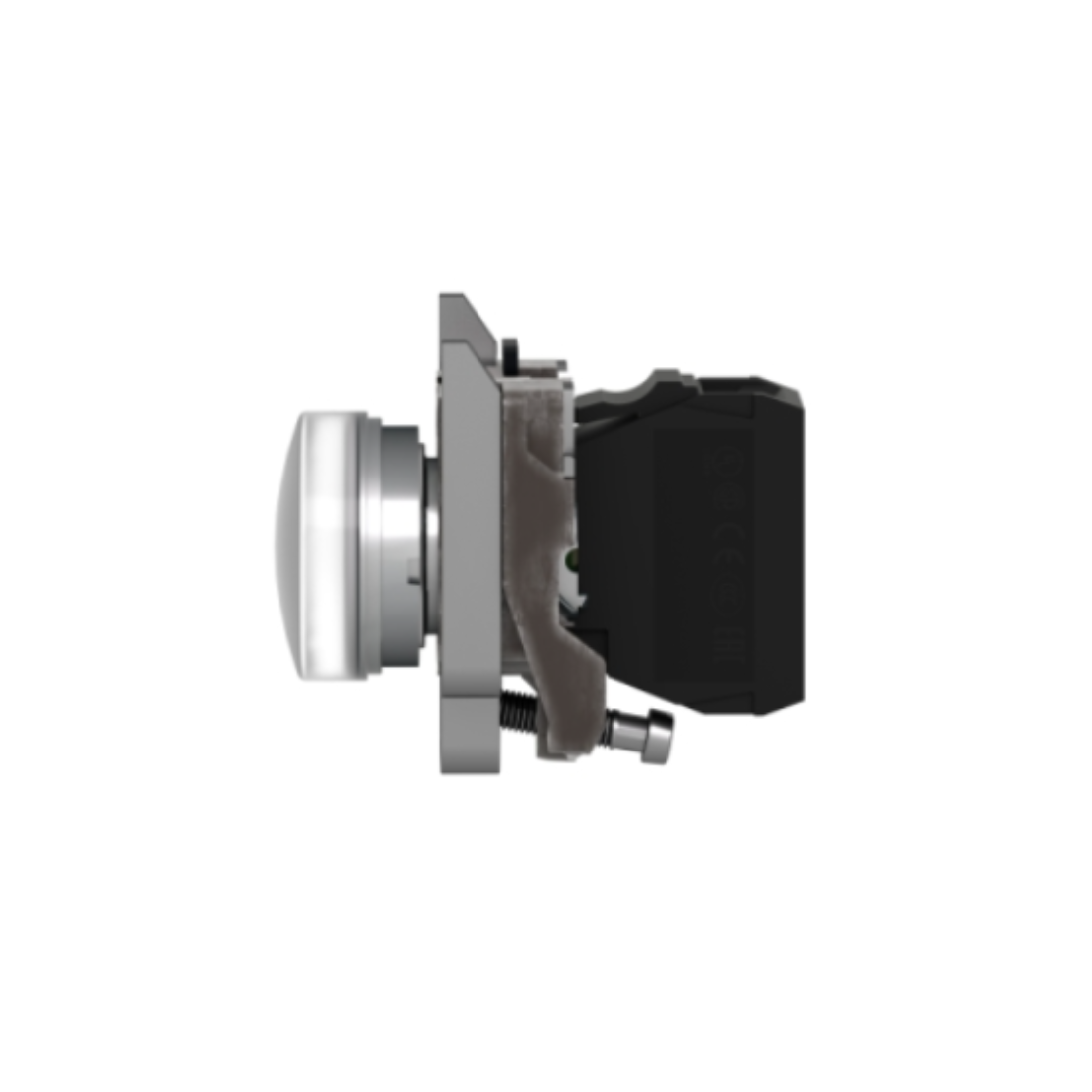

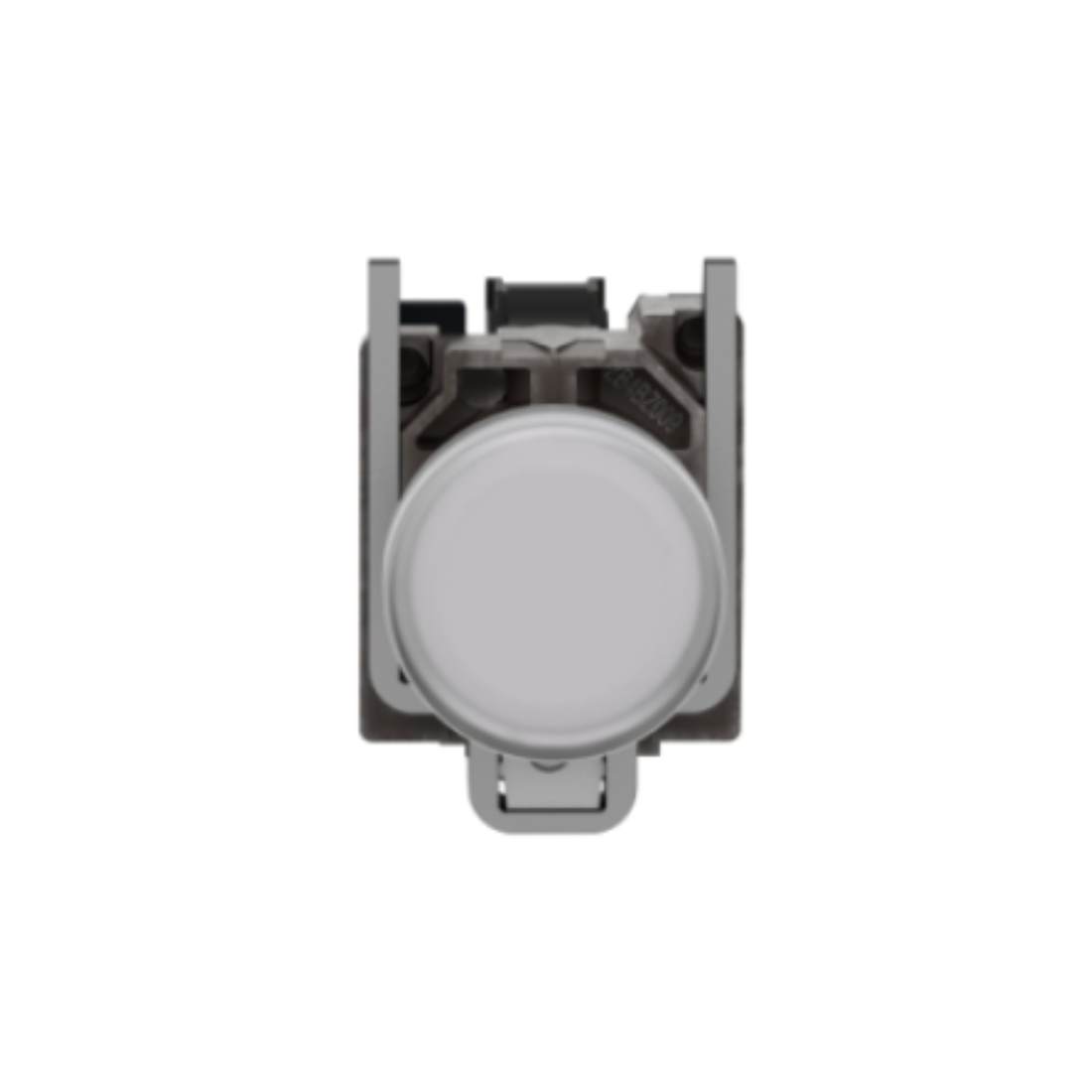

Schneider Electric XB4BVG1 White Pilot Light operates on 110V to 120V AC and uses a universal LED. It has a metal bezel. This maintenance-free indicator light provides a bright display of process and machine operations. Easily installs into standard 22mm diameter cutouts and connects with simple screw terminal connections. Thanks to the bright and long-lasting LED lighting, it is clearly visible even from afar. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments.

Features

Universal LED block to be used for all colors
Improved color intensity and brightness
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
A wide choice of contact blocks for general purposes or specific applications (low current, standard)

Specifications

Brand : Schneider Electric

Item Name : Pilot Light

Model : XB4BVG1

Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN/IEC 60947-1

Rated Impulse Withstand Voltage : 4 kV conforming to EN 60947-1

Rated Supply Voltage : 110...120 V AC 50/60 Hz

Bezel Material : Chromium plated metal

Bulb Base : Integral LED

Cap/Operator Or Lens Color : White

Compatibility Code : XB4

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Current Consumption : 14 mA

Fixing Collar Material : Zamak

Depth : 47 mm

Device Mounting : Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1

Fixing Center : >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm, >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm

Fixing Mode : Fixing nut beneath head: 2-2.4 N.m

Height : 47 mm

IK Degree of Protection : IK06 conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

Light Source : Universal LED

Overvoltage Category : Class II conforming to IEC 60536

Mounting Diameter : 22 mm

Protective Treatment : TH

Certifications : UL listed, CSA

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Service Life : 100000 h at rated voltage and 25 °C

Shape of Signaling Unit Head : Round

Shock Resistance : 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Signalling Type : Steady

Supply Voltage Limits : 100-132 V AC

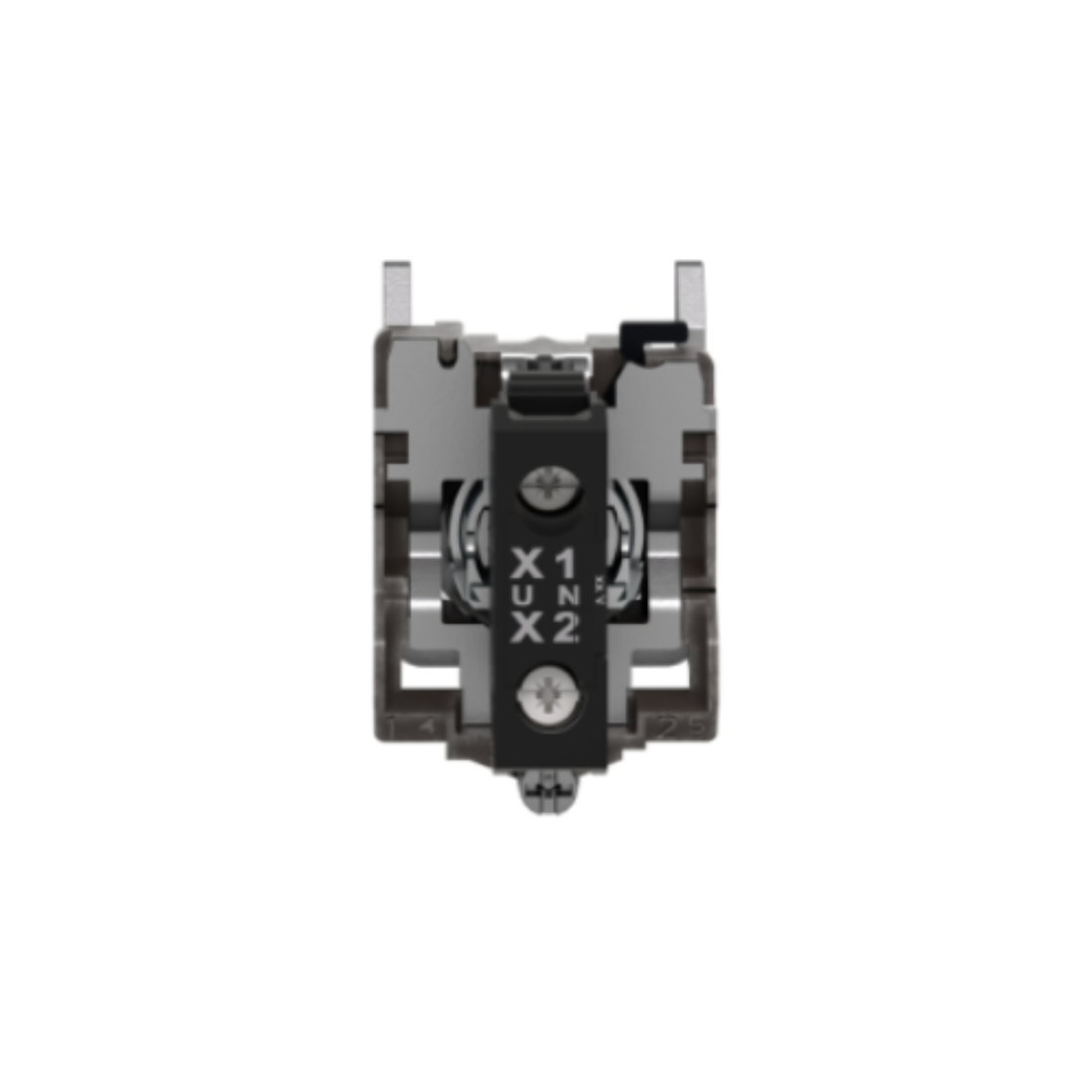

Terminals Description ISO n°1 : (X1-X2)PL

Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

Width : 30 mm

Resistance To Electromagnetic Fields : 10 V/m conforming to IEC 61000-4-3

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Operator Additional Information : With plain lens

Customizable : No

Head Type : Standard

Resistance to High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

GCR BRIDGE : XB4BVCUST04

Surge Withstand : 1 kV conforming to IEC 61000-4-5

Light Source Color : White

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Electromagnetic Compatibility : Disturbing field emission class B conforming to EN 55011

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : EN/IEC 60947-5-5, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, UL 508, JIS C8201-1

Device Presentation : Complete product

Electrical Shock Protection Class : Class I conforming to IEC 60536

Weight : 0.08 kg
