Schneider Electric Harmony XB4 Pilot Light Metal Red Ø22 Plain Lens with BA9s Bulb <= 250V XB4BV64

Schneider Electric Harmony XB4 Pilot Light Metal Red Ø22 Plain Lens with BA9s Bulb <= 250V XB4BV64

Name: Schneider Electric Harmony XB4 Pilot Light Metal Red Ø22 Plain Lens with BA9s Bulb <= 250V XB4BV64
Brand: Schneider Electric
Price: 36.75 AED
Availability: InStock

AED 36.75

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Pilot Light

Description

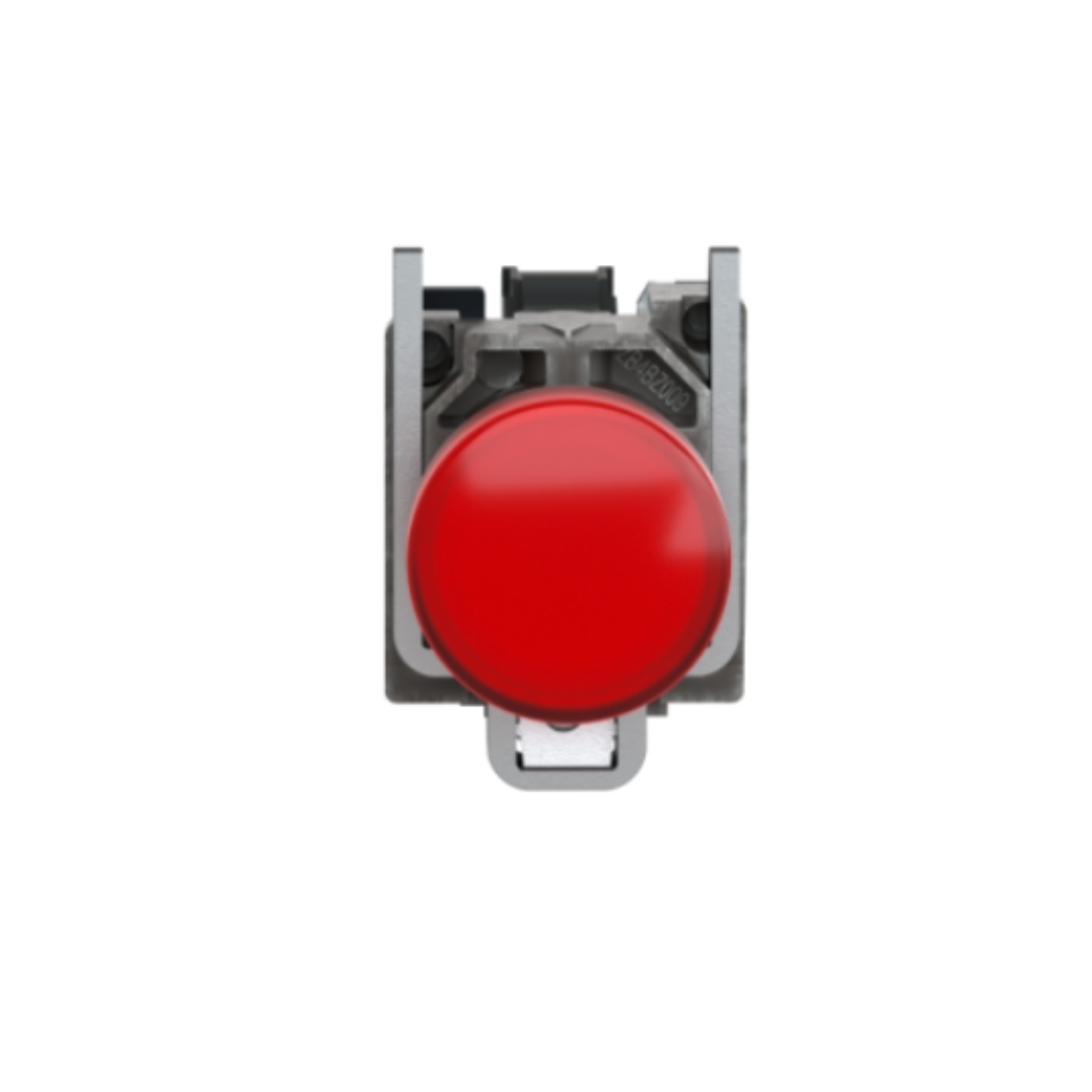

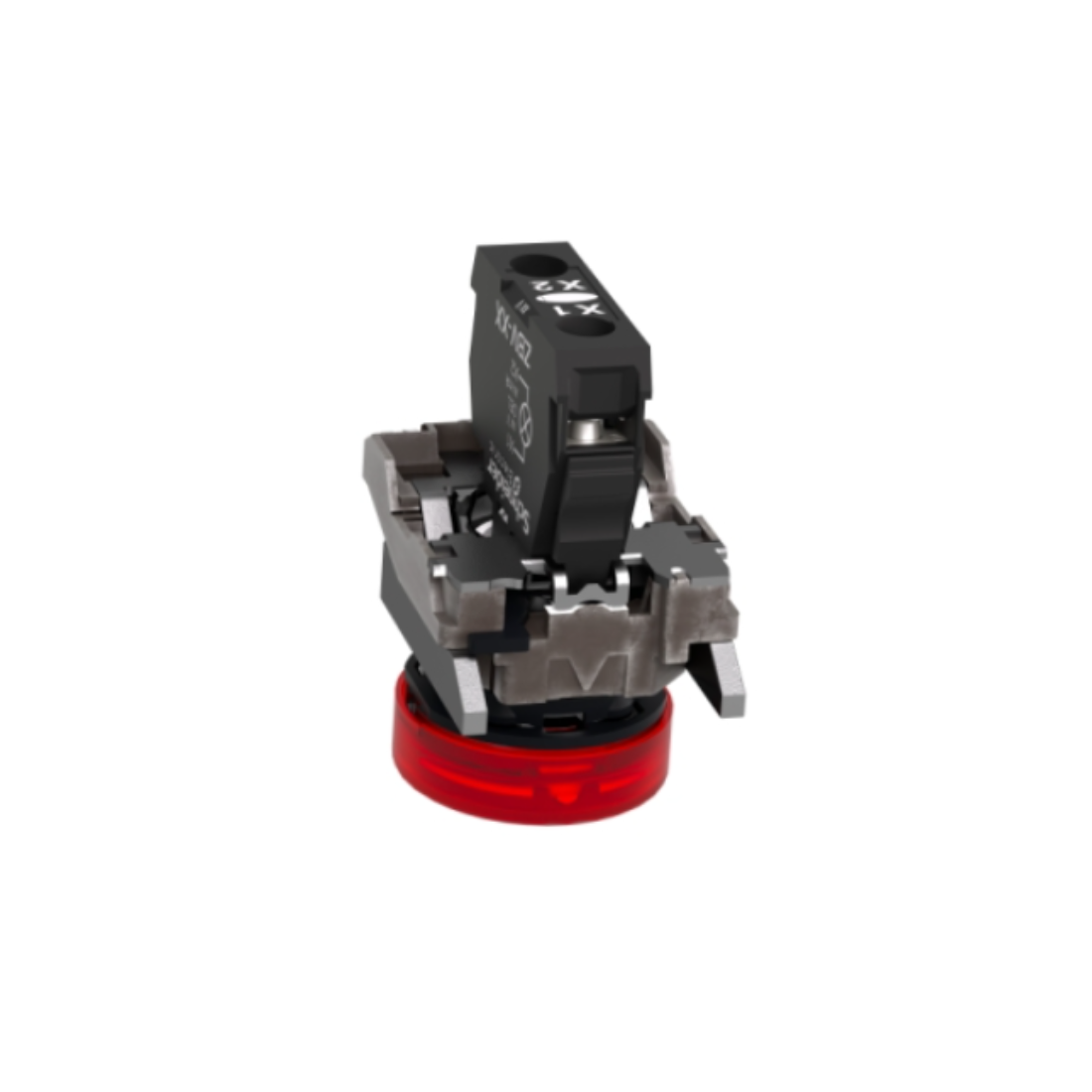

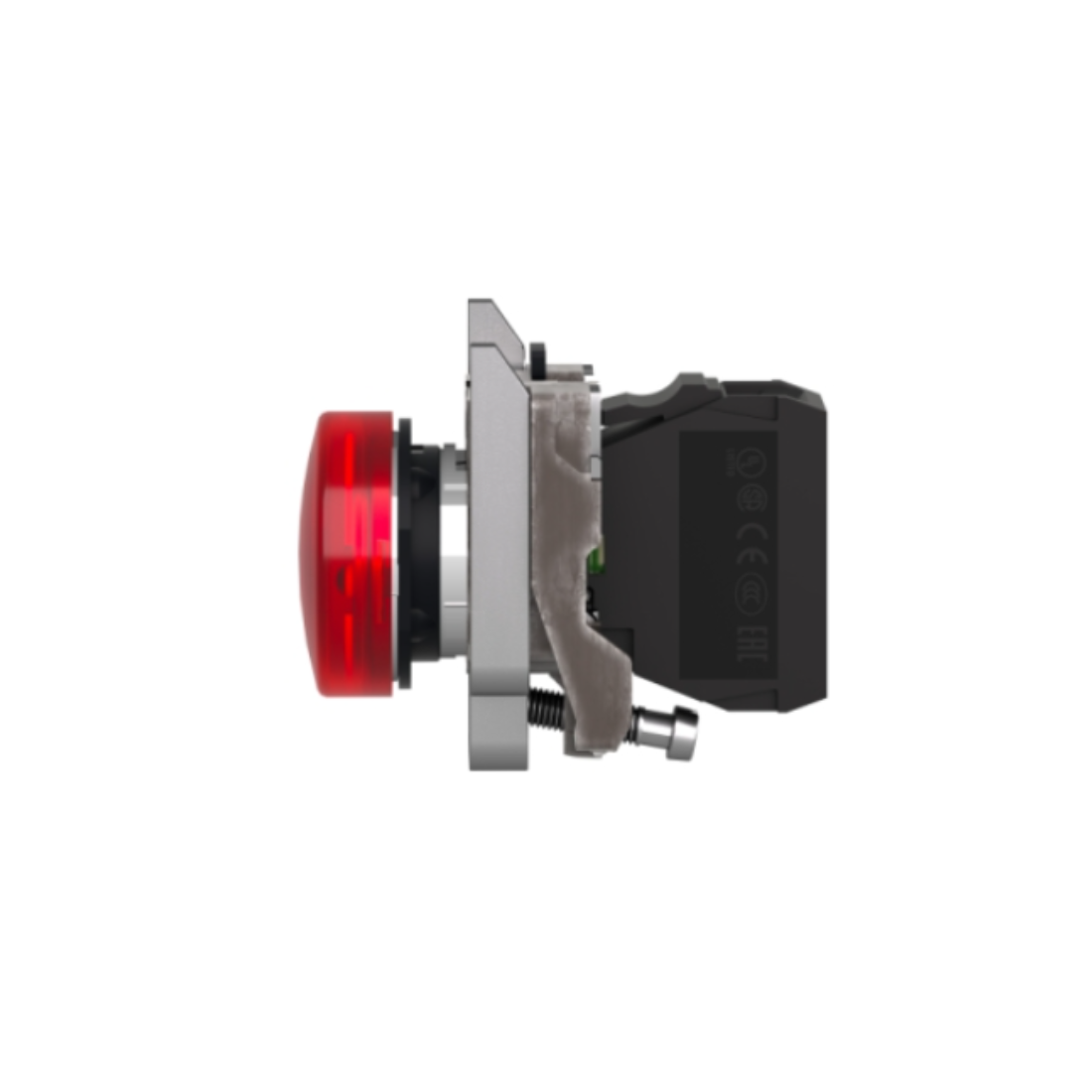

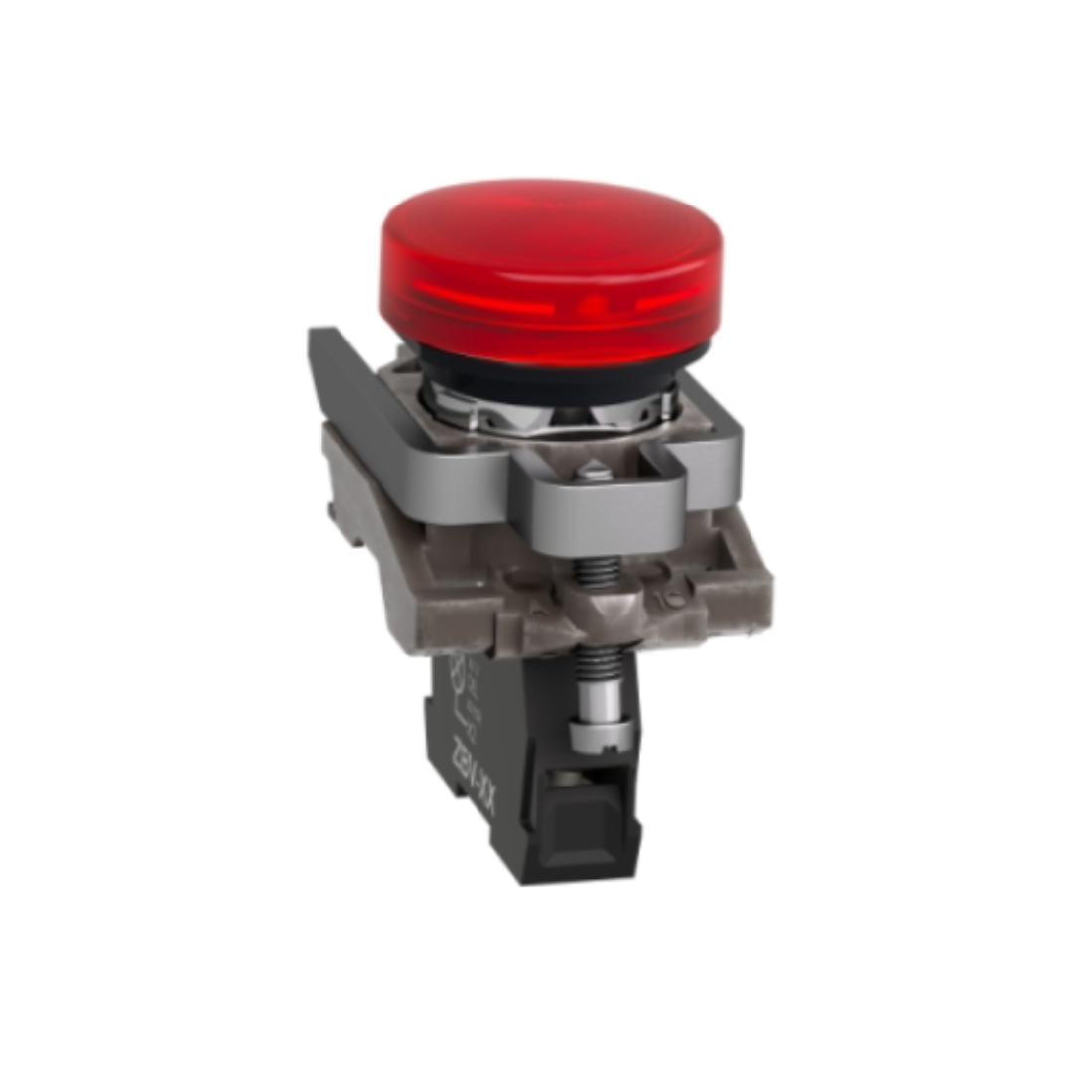

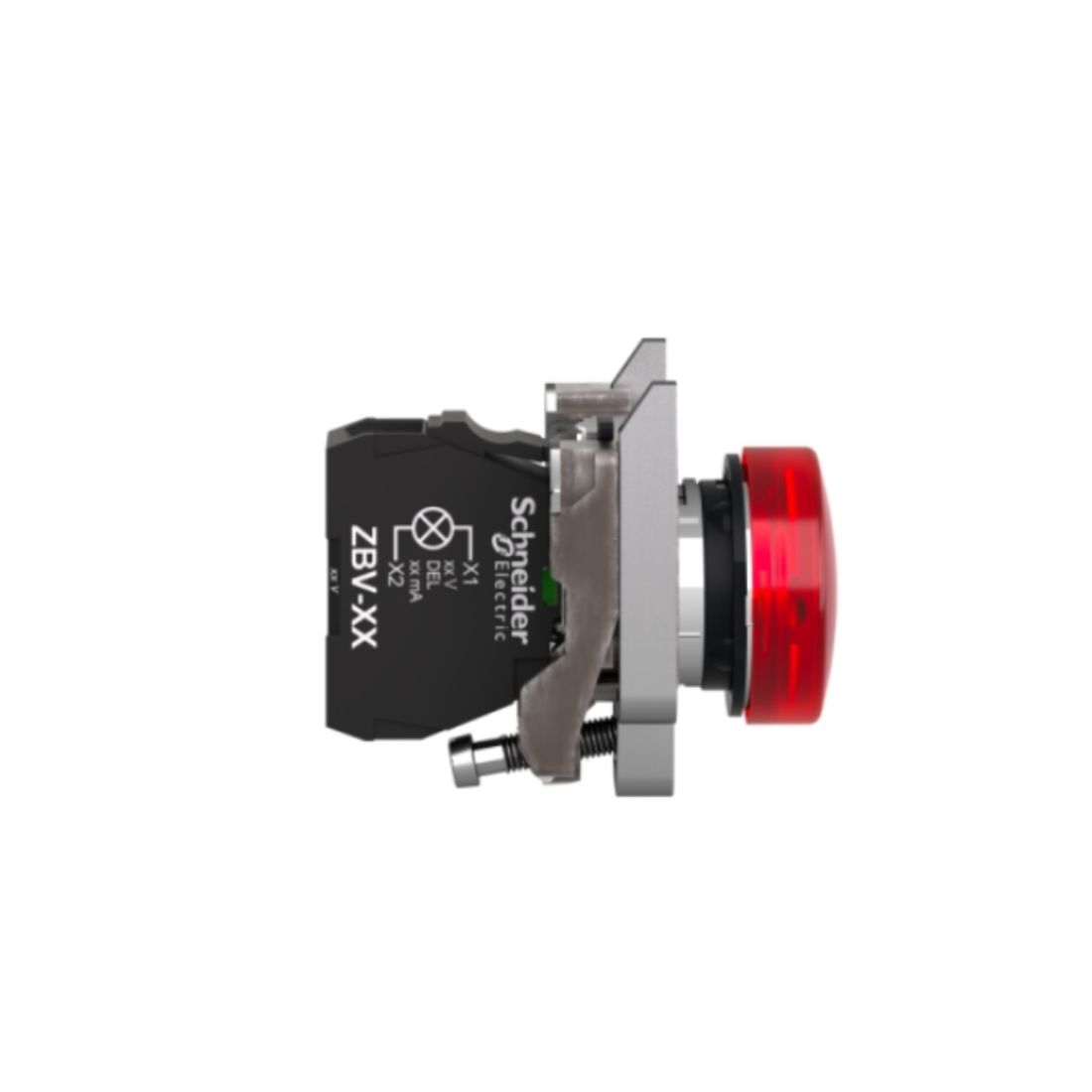

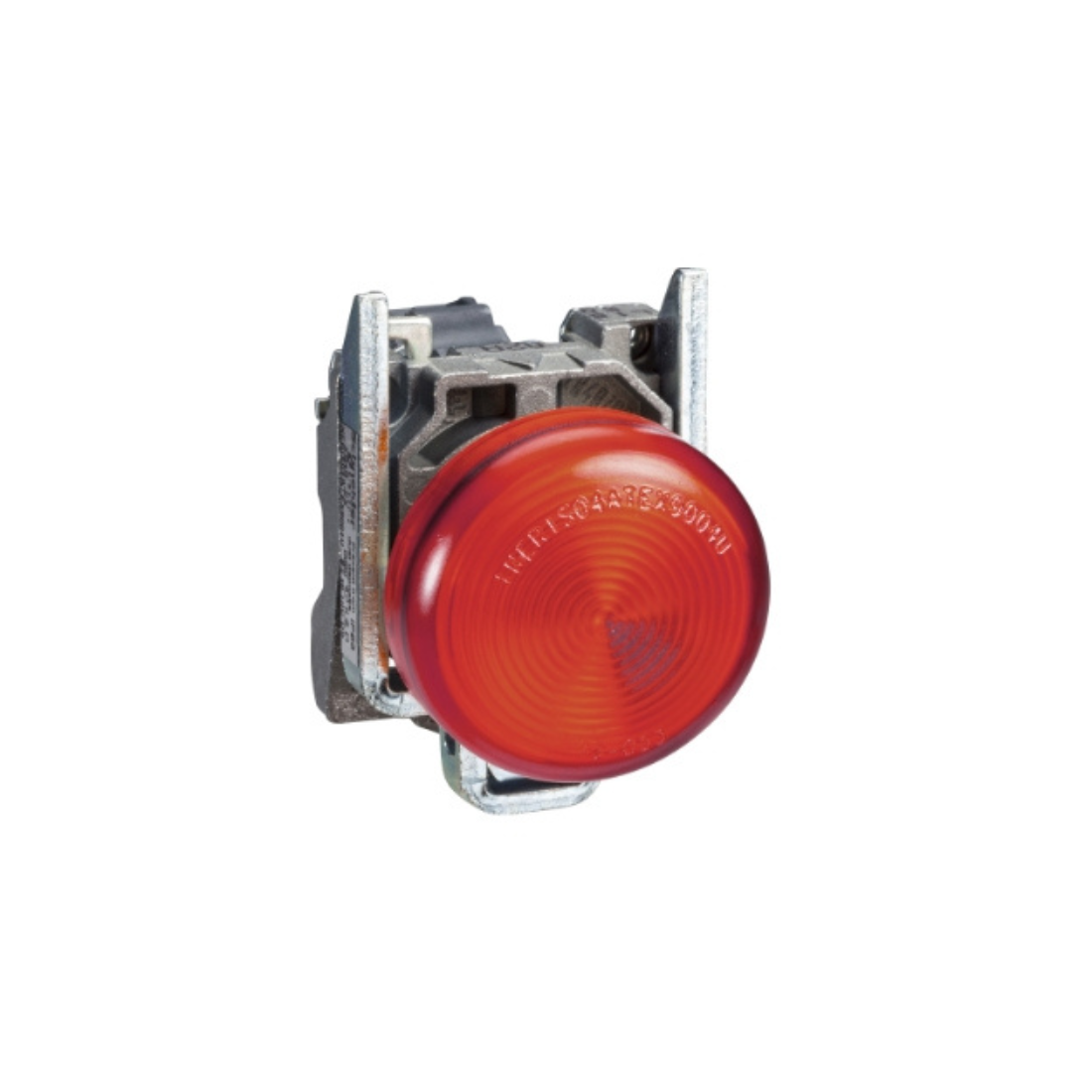

Schneider Electric XB4BV64 Red Pilot Light operates on 250V AC/DC and uses a BA9s base. It has a metal bezel. This indicator light is designed to be maintenance-free and provide a bright indication of process and machine operation. It can be easily installed into standard 22mm diameter cutouts and connected with simple screw terminal connections.

Thanks to a bright and long-lasting BA9s basic illumination, it is visually clearly visible from afar. Thanks to IP66/IP67/IP69/IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments.

Features

Bright and long-lasting BA9s basic illumination
250V AC/DC and uses a BA9s base.
Shock, dust, water and vibration proof
It has a metal bezel

Specifications

Brand : Schneider Electric

Item Name : Pilot Light

Model : XB4BV64

Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN 60947-1

Rated Impulse Withstand Voltage : 4 kV conforming to EN 60947-1

Rated Supply Voltage : <= 250 V

Bezel Material : Chromium plated metal

Bulb Base : BA 9s

Cap/Operator Or Lens Color : Red

Compatibility Code : XB4

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Depth : 55 mm

Fixing Collar Material : Zamak

Height : 47 mm

IK Degree Of Protection : IK06 conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

Light Source : Bulb not included

Mounting Diameter : 22 mm

Protective Treatment : TH

Certifications : UL listed, CSA

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Shape of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Signalling Type : Steady

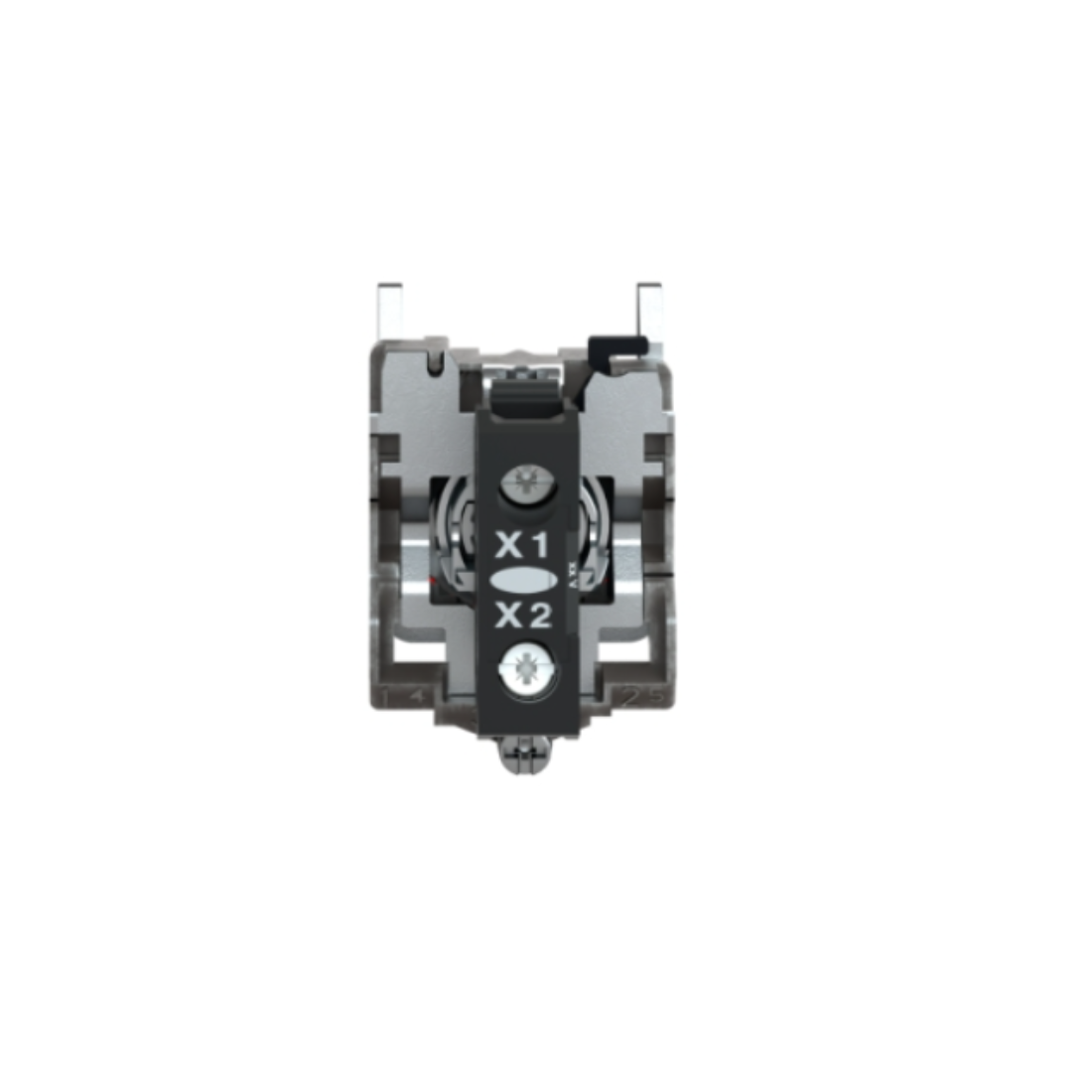

Terminals Description ISO n°1 : (X1-X2)PL

Width : 30 mm

Operator Additional Information : With plain lens

Light Block Supply : Direct <2.4 W

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Customizable : No

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

GCR BRIDGE : XB4BVCUST02

Light Source Color : Red

Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-55 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : UL 508, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1

Electrical Shock Protection Class : Class I conforming to IEC 60536

Device Presentation : Complete Product

Weight : 0.075 kg
