Schneider Electric Harmony XB4 Pilot Light Metal Orange Ø22 Plain Lens with Integral LED 24V AC/DC XB4BVB5

Schneider Electric Harmony XB4 Pilot Light Metal Orange Ø22 Plain Lens with Integral LED 24V AC/DC XB4BVB5

Name: Schneider Electric Harmony XB4 Pilot Light Metal Orange Ø22 Plain Lens with Integral LED 24V AC/DC XB4BVB5
Brand: Schneider Electric
Price: 47.25 AED
Availability: InStock

AED 47.25

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Pilot Light

Description

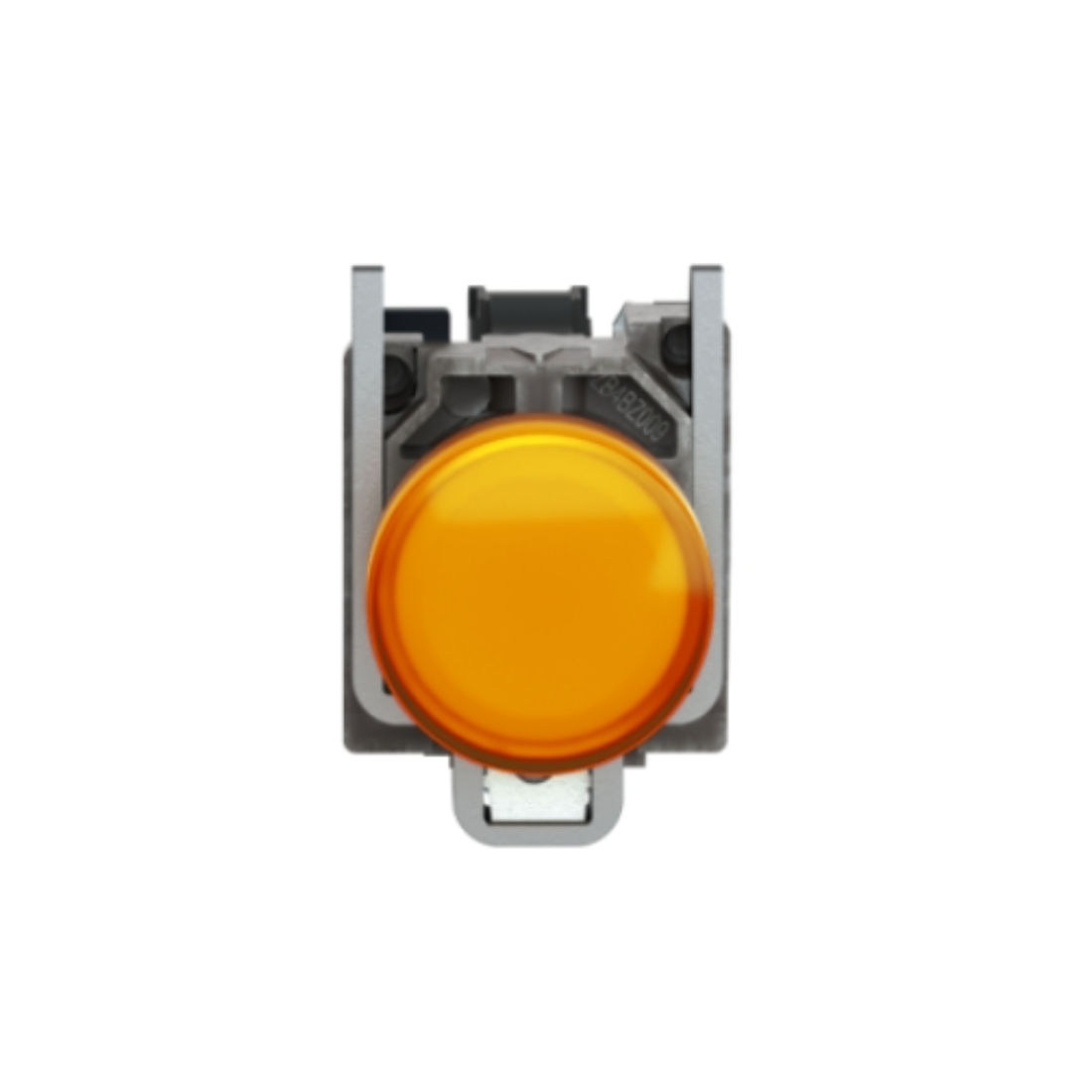

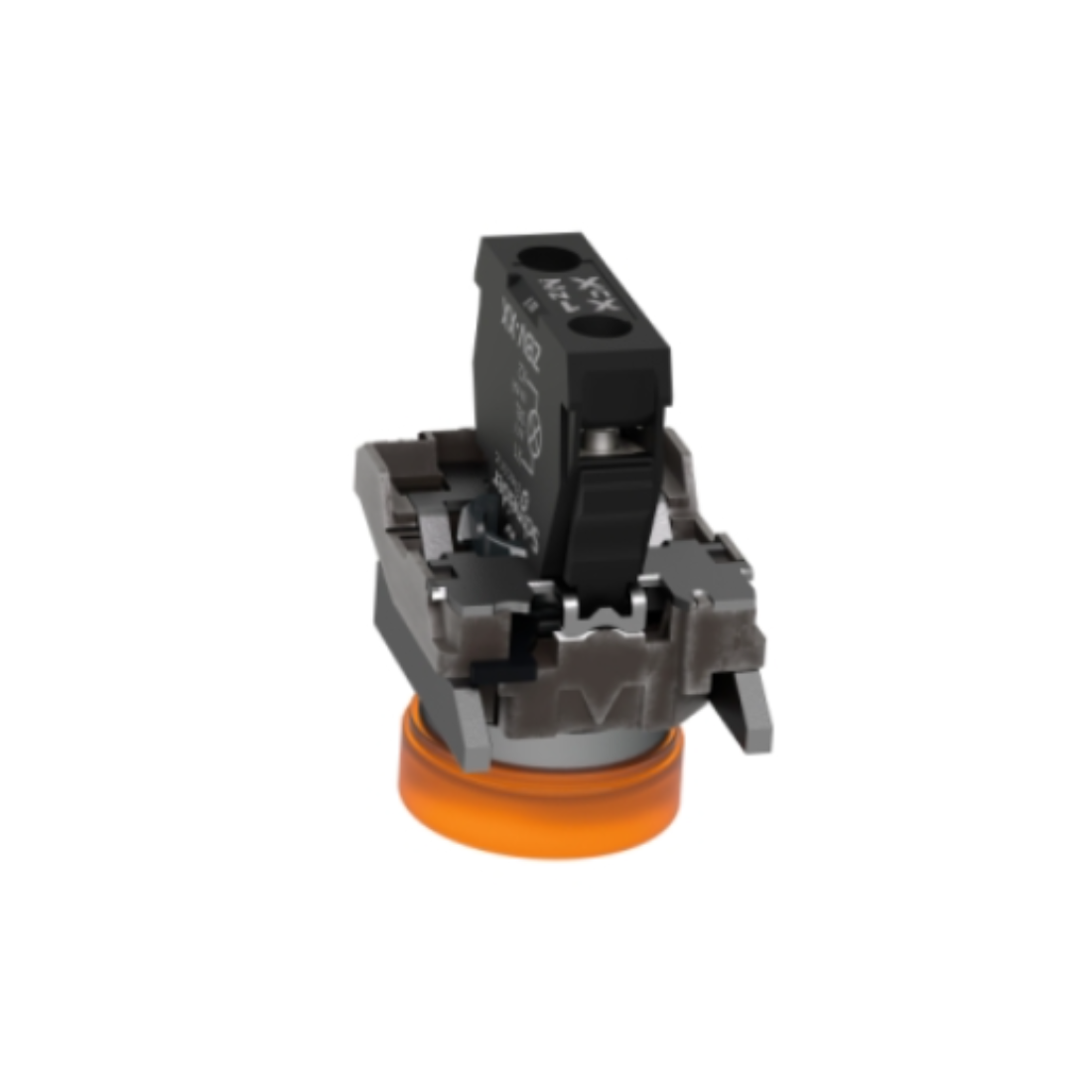

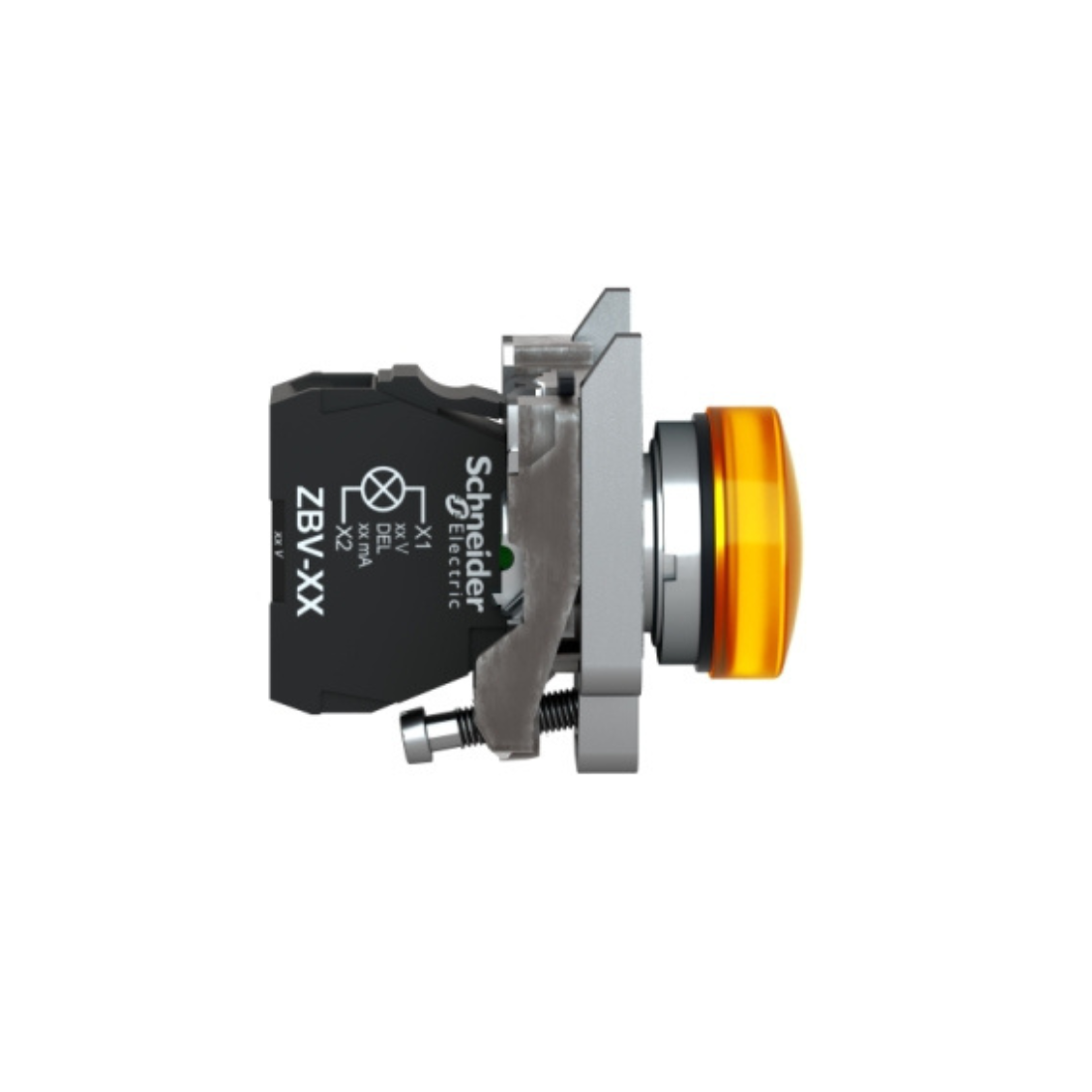

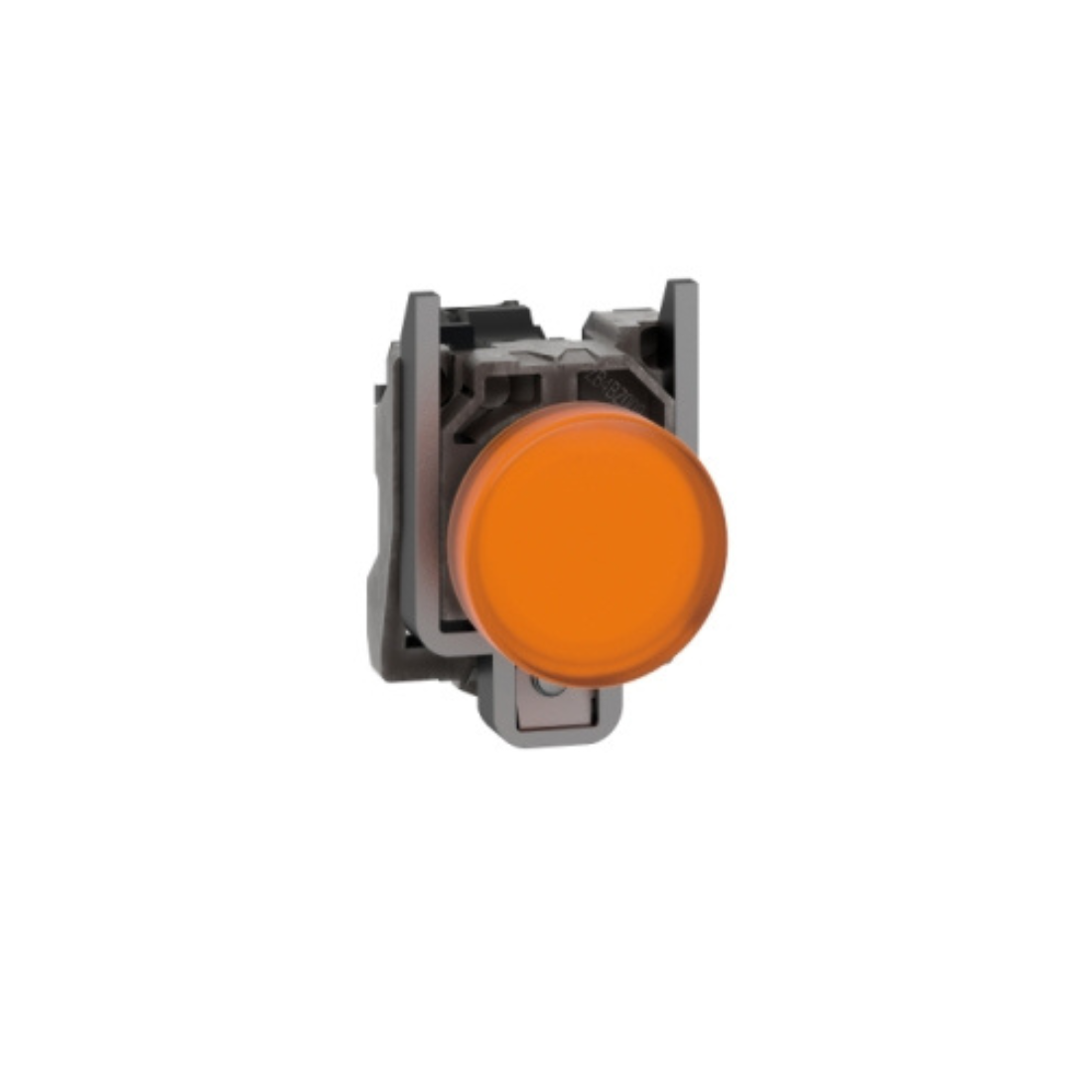

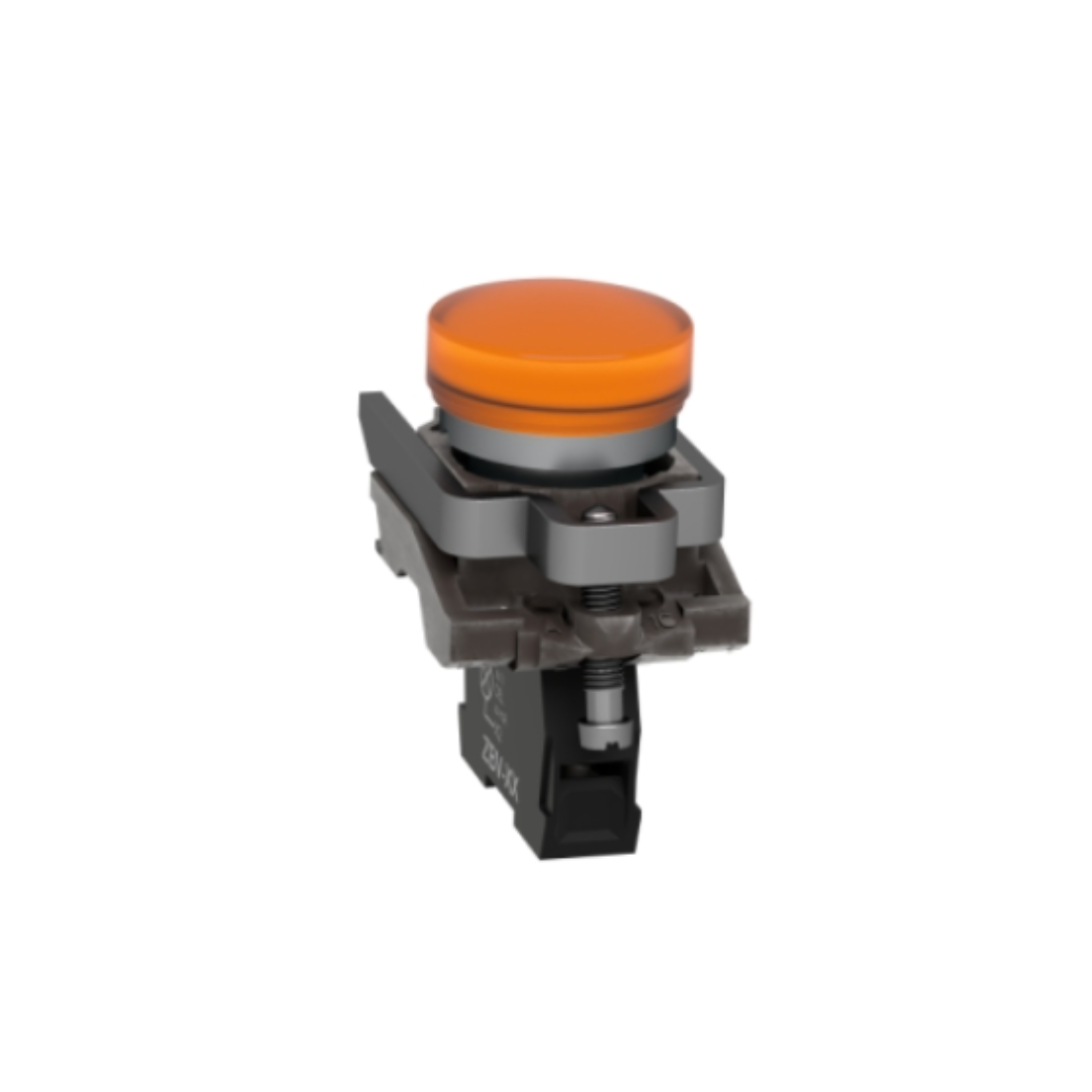

Schneider Electric XB4BVB5 Orange Pilot Light operates on 24V AC/DC and uses an integrated LED. It has a metal bezel. This maintenance-free indicator light provides a bright display of process and machine operations. Easily installs into standard 22mm diameter cutouts and connects with simple screw terminal connections. Thanks to the bright and long-lasting LED lighting, it is clearly visible even from afar. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments.

Features

Operates on 24V AC/DC and uses an integrated LED
Provides a bright display of process and machine operations.
Connects with simple screw terminal connections
Ideal for use in harsh environments.

Specifications

Brand : Schneider Electric

Item Name : Pilot Light

Model : XB4BVB5

Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN 60947-1

Rated Impulse Withstand Voltage : 4 kV conforming to EN 60947-1

Rated Supply Voltage : 24 V AC/DC at 50/60 Hz

Bezel Material : Chromium plated metal

Bulb Base : Integral LED

Cap/Operator Or Lens Color : Blue

Compatibility Code : XB4

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Current Consumption : 18 mA

Depth : 54 mm

Fixing Collar Material : Zamak

Height : 47 mm

IK Degree Of Protection : IK06 conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

Light Source : Universal LED

Mounting Diameter : 22 mm

Protective Treatment : TH

Overvoltage Category : Class II conforming to IEC 60536

Certifications : UL listed, CSA

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Service Life : 100000 h at rated voltage and 25 °C

Shape of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Signalling Type : Steady

Supply Voltage Limits : 19.2-30 V DC, 21.6-26.4 V AC

Resistance To Electromagnetic Fields : 10 V/m conforming to IEC 61000-4-3

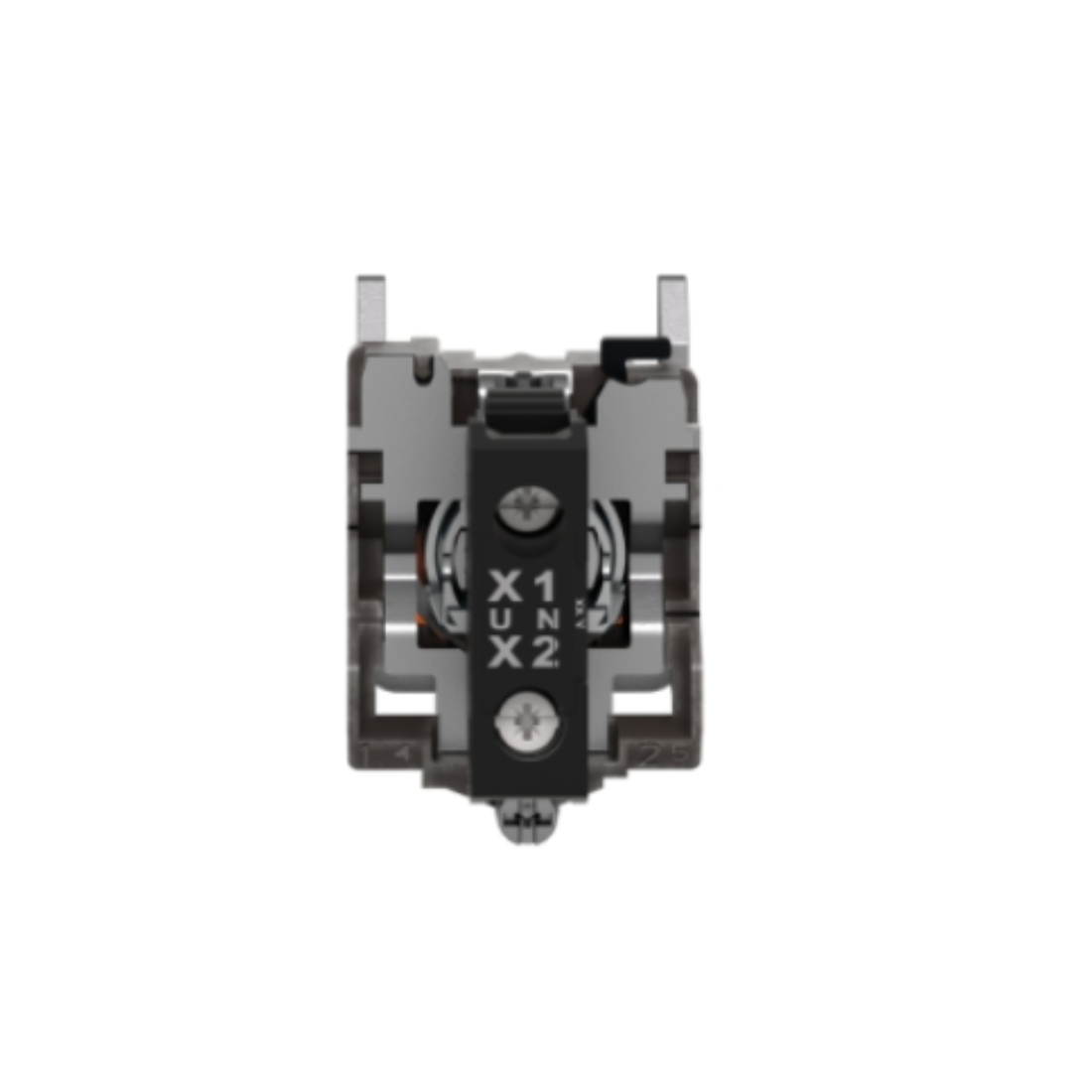

Terminals Description ISO n°1 : (X1-X2)PL

Width : 30 mm

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Customizable : No

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

GCR BRIDGE : XB5AVCUST03

Surge Withstand : 1 kV conforming to IEC 61000-4-5

Light Source Color : Orange

Resistance To Fast Transients : 2 kV conforming to IEC 61000-4-4

Electromagnetic Emission : Class B conforming to IEC 55011

Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Standards : EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, EN/IEC 60947-5-5, JIS C8201-1

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Device Presentation : Complete Product

Electrical Shock Protection Class : Class I conforming to IEC 60536

Weight : 0.08 kg
