Schneider Electric Harmony XB4 Pilot Light Metal Green Ø22 Plain Lens with Integral LED 110-120V AC XB4BVG3

Schneider Electric Harmony XB4 Pilot Light Metal Green Ø22 Plain Lens with Integral LED 110-120V AC XB4BVG3

Name: Schneider Electric Harmony XB4 Pilot Light Metal Green Ø22 Plain Lens with Integral LED 110-120V AC XB4BVG3
Brand: Schneider Electric
Price: 66.15 AED
Availability: InStock

AED 66.15

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Pilot Light

Description

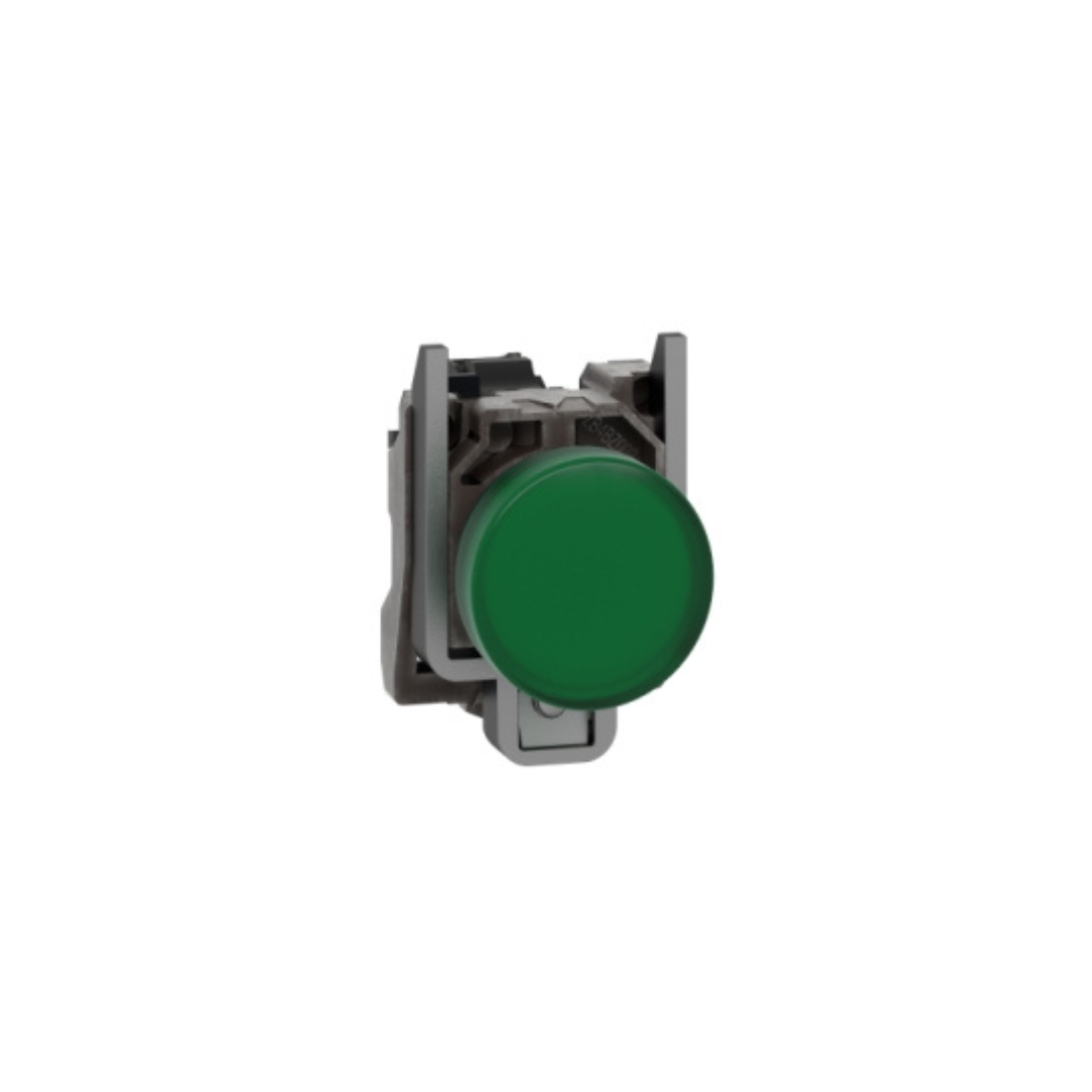

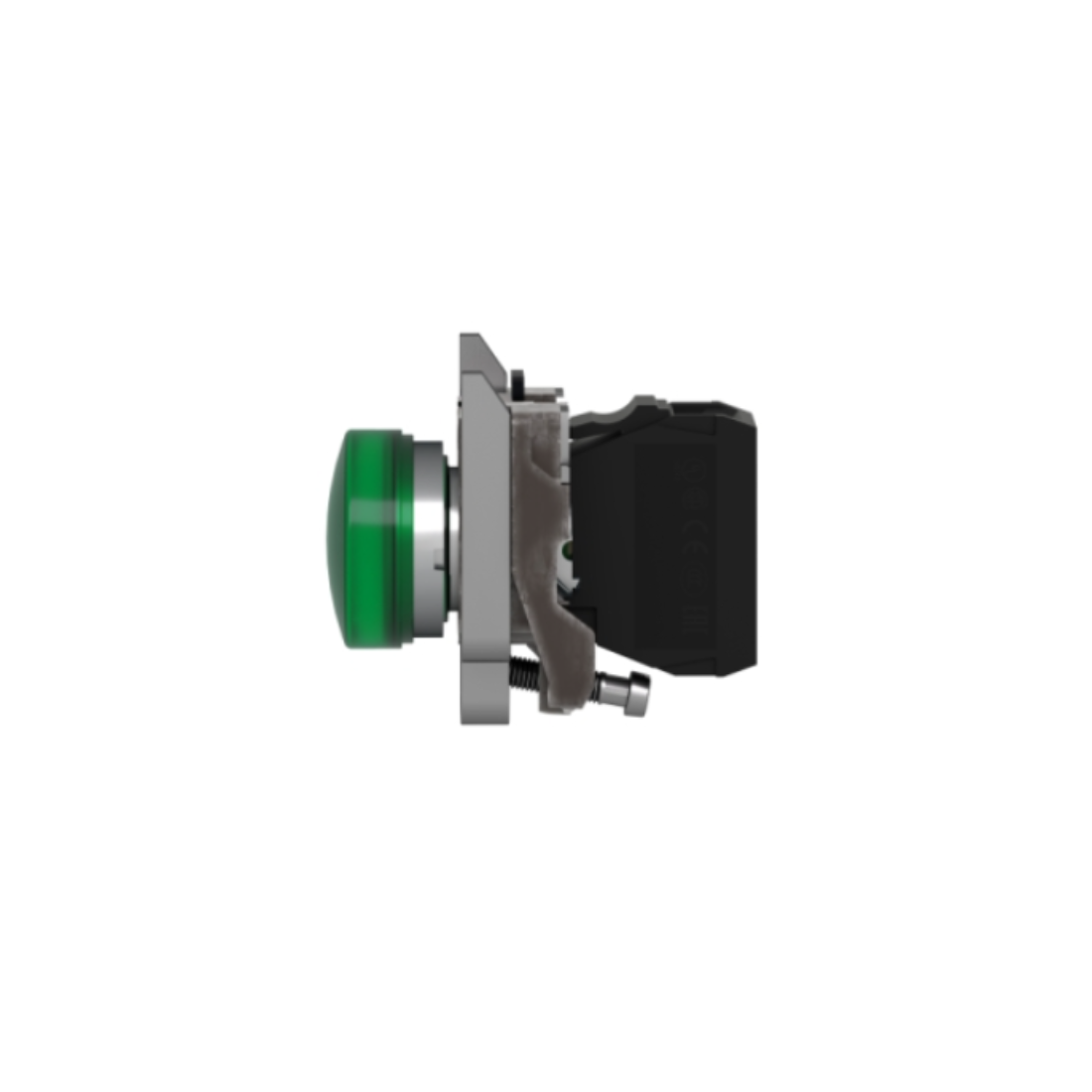

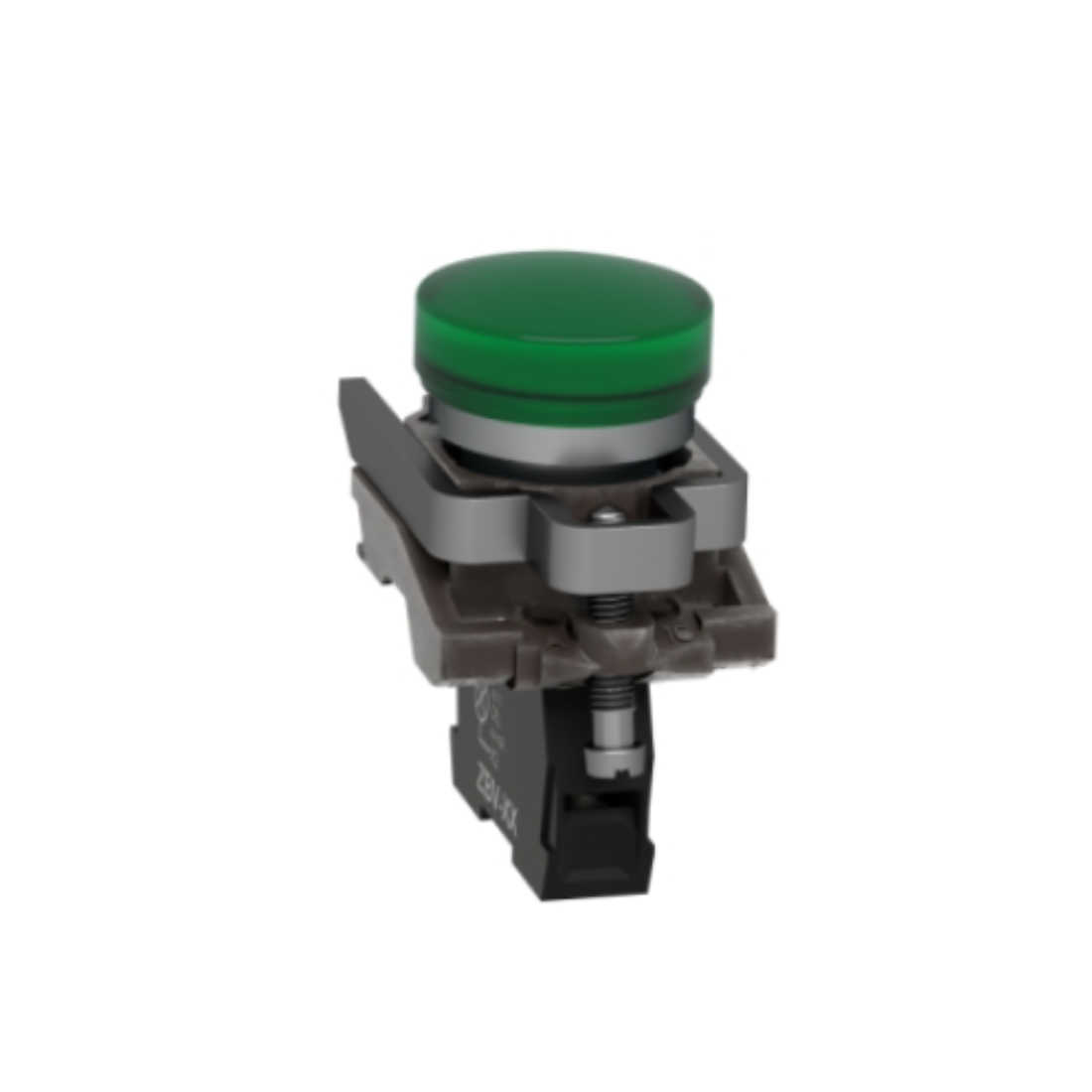

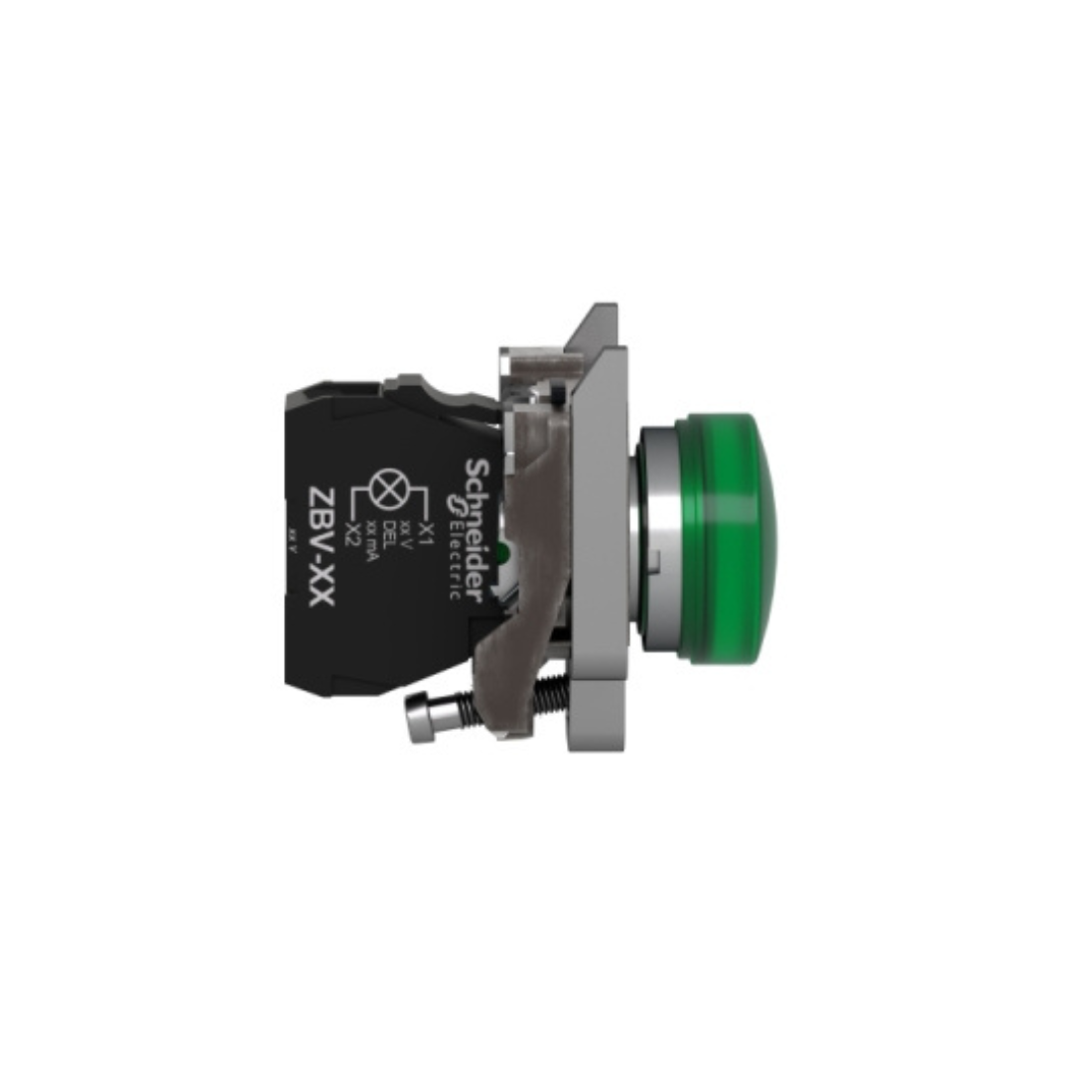

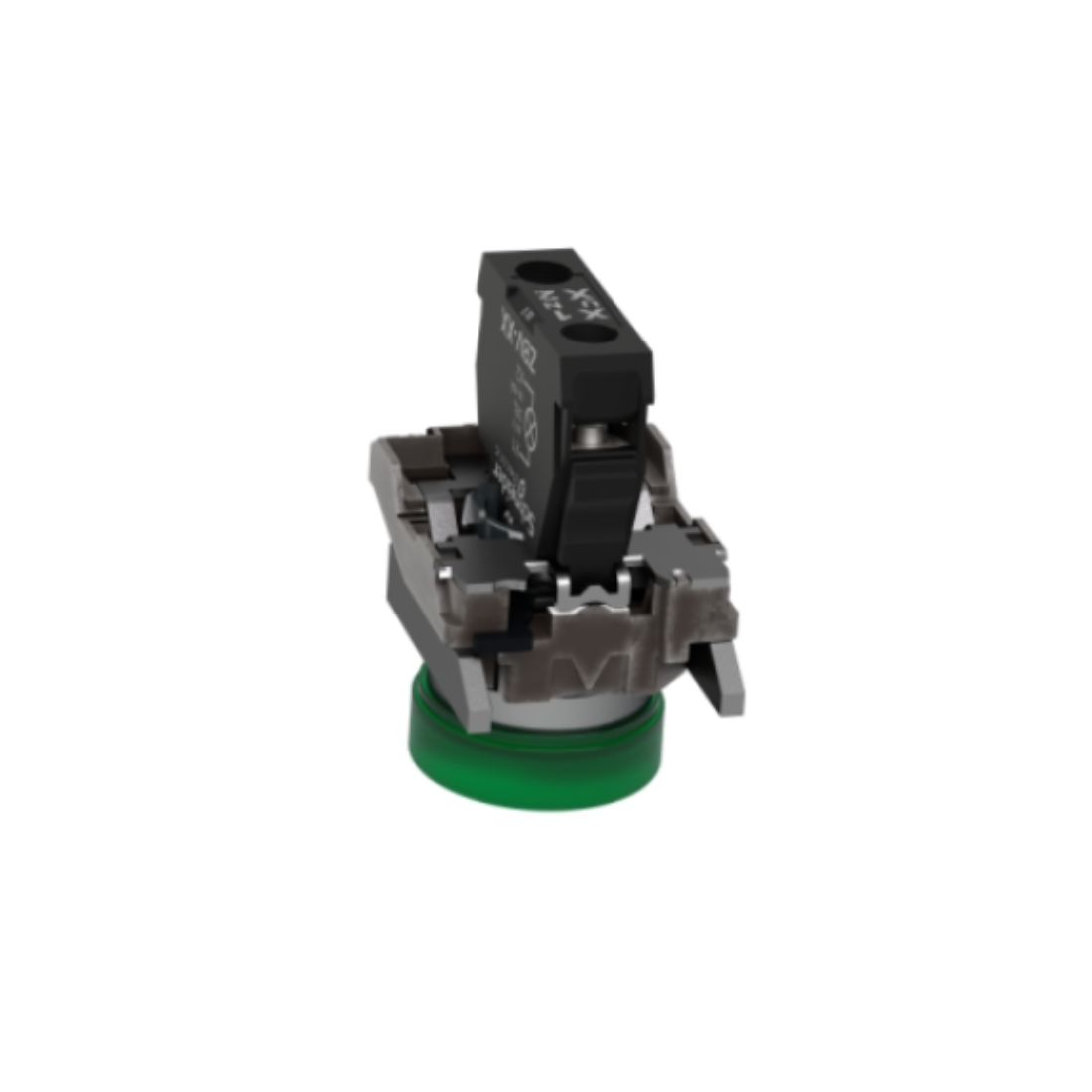

Schneider Electric XB4BVG3 Green Pilot Light is supplied with 110V to 120V AC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections.

Schneider Electric XB4BVG3 Green Pilot Light is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Features

Supplied with 110V to 120V AC, uses an integral LED.
Bright and long lasting LED illumination
Ideal for operation in harsh environments

Specifications

Brand : Schneider Electric

Item Name : Pilot Light

Model : XB4BVG3

Resistance to Electrostatic Discharge : 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN 60947-1

Rated Impulse Withstand Voltage : 4 kV conforming to EN 60947-1

Rated Supply Voltage : 110...120 V AC 50/60 Hz

Bezel Material : Chromium plated metal

Bulb Base : Integral LED

Cap/Operator Or Lens Color : Green

Compatibility Code : XB4

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Current Consumption : 14 mA

Depth : 54 mm

Fixing Collar Material : Zamak

Height : 47 mm

IK Degree Of Protection : IK06 conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653

Mounting Diameter : 22 mm

Certifications : UL listed, CSA

Light Source : Universal LED

Protective Treatment : TH

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Shape of Signaling Unit Head : Round

Service Life : 100000 h at rated voltage and 25 °C

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Signalling Type : Steady

Supply Voltage Limits : 100-132 V AC

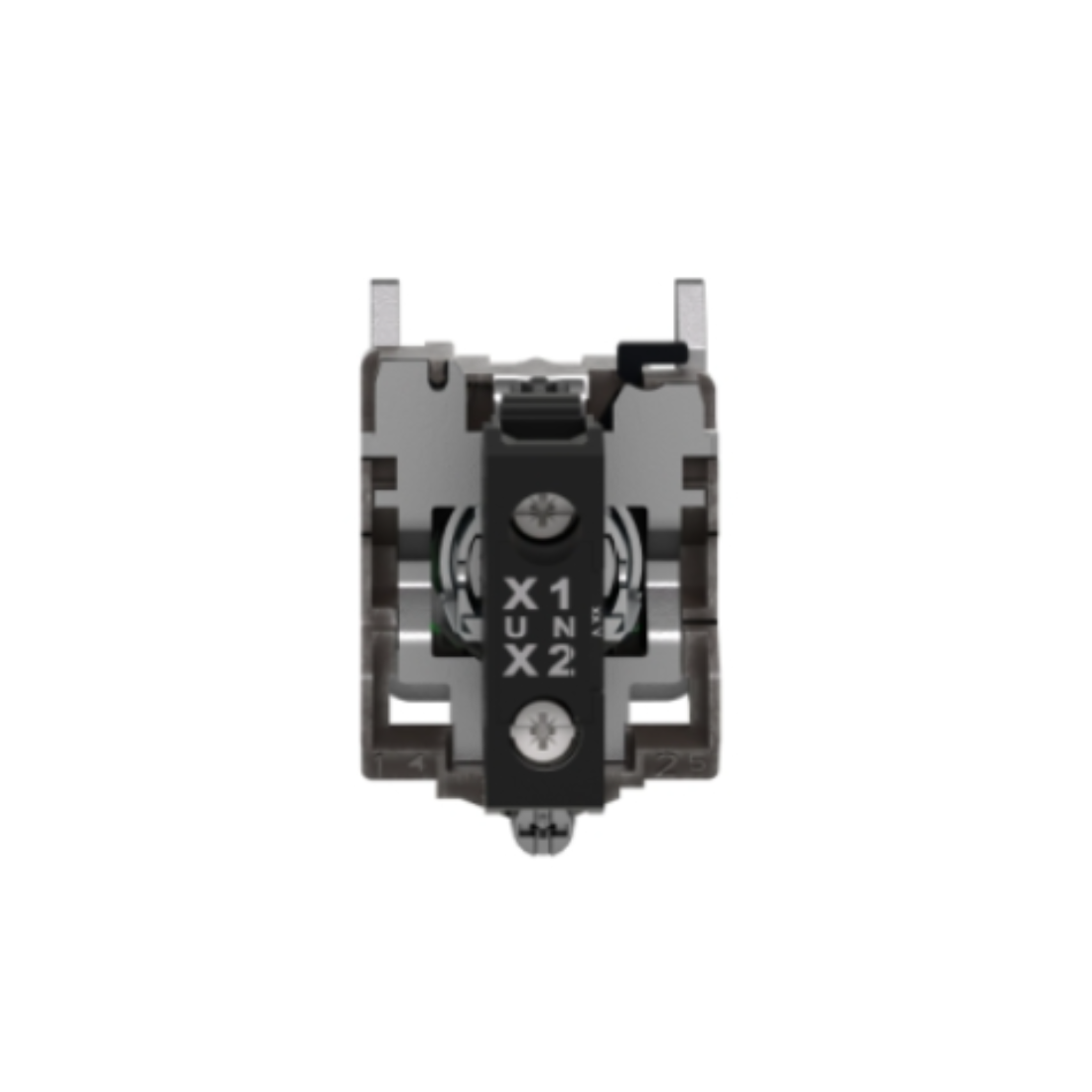

Terminals Description ISO n°1 : (X1-X2)PL

Width : 30 mm

Resistance to Electromagnetic : 10 V/m conforming to IEC 61000-4-3

Operator Additional Information : With plain lens

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Customizable : No

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

GCR BRIDGE : XB4BVCUST04

Light Source Color : Green

Resistance to Fast Transients : 2 kV conforming to IEC 61000-4-4

Electromagnetic Emission : Class B conforming to IEC 55011

Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-55 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, EN/IEC 60947-5-5, JIS C8201-1

Device Presentation : Complete product

Electrical Shock Protection Class : Class I conforming to IEC 60536

Weight : 0.08 kg
