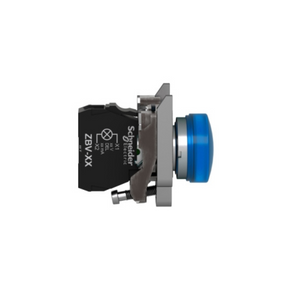

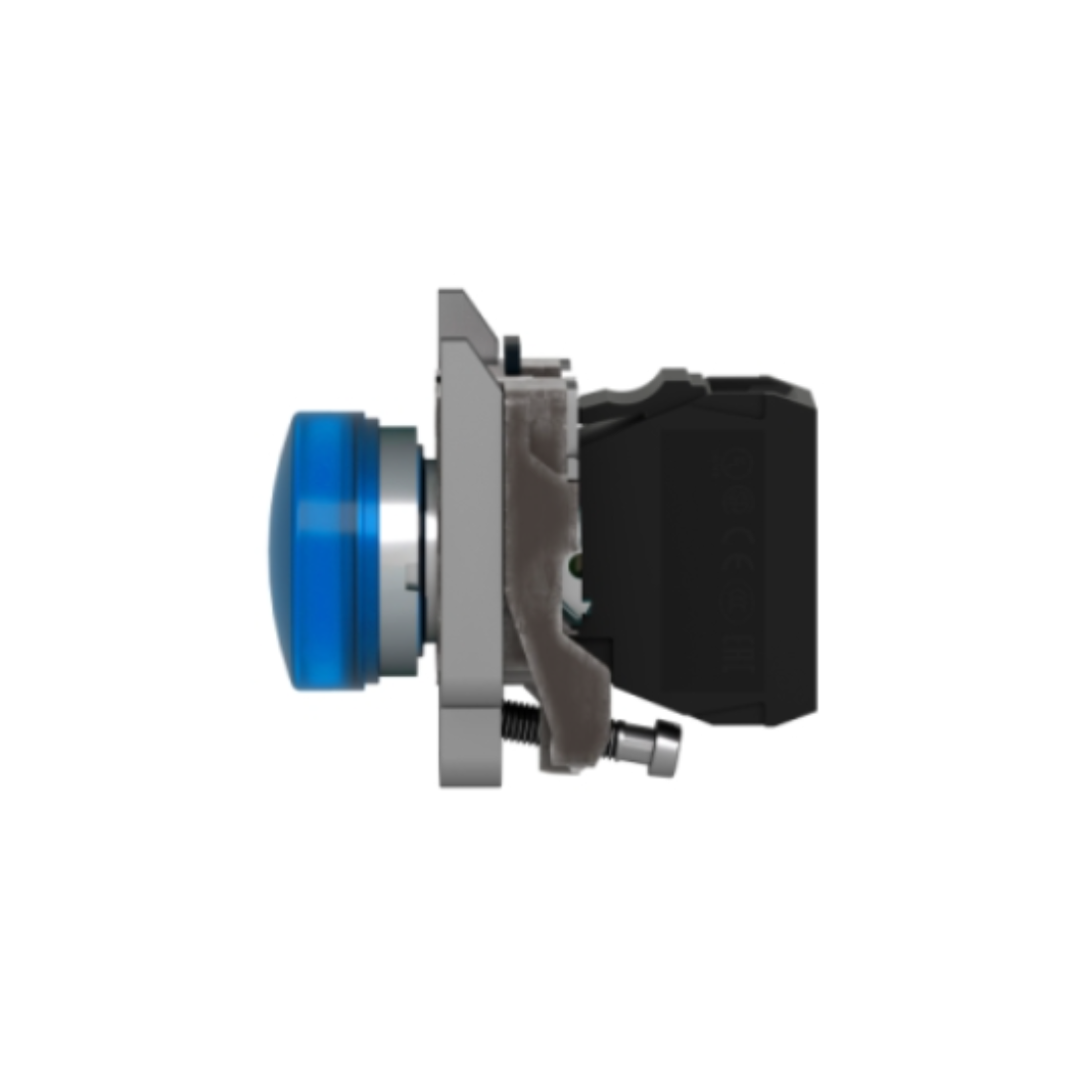

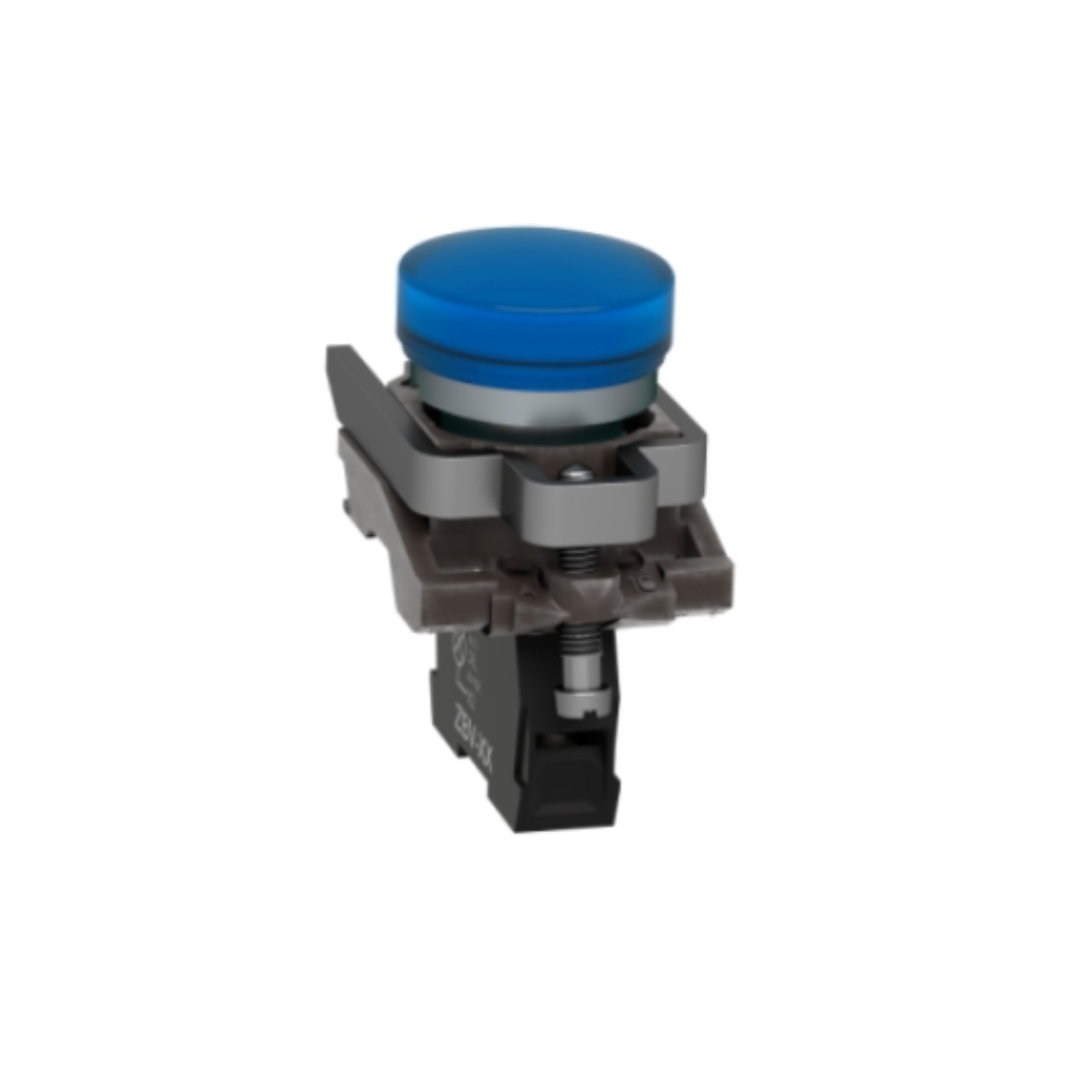

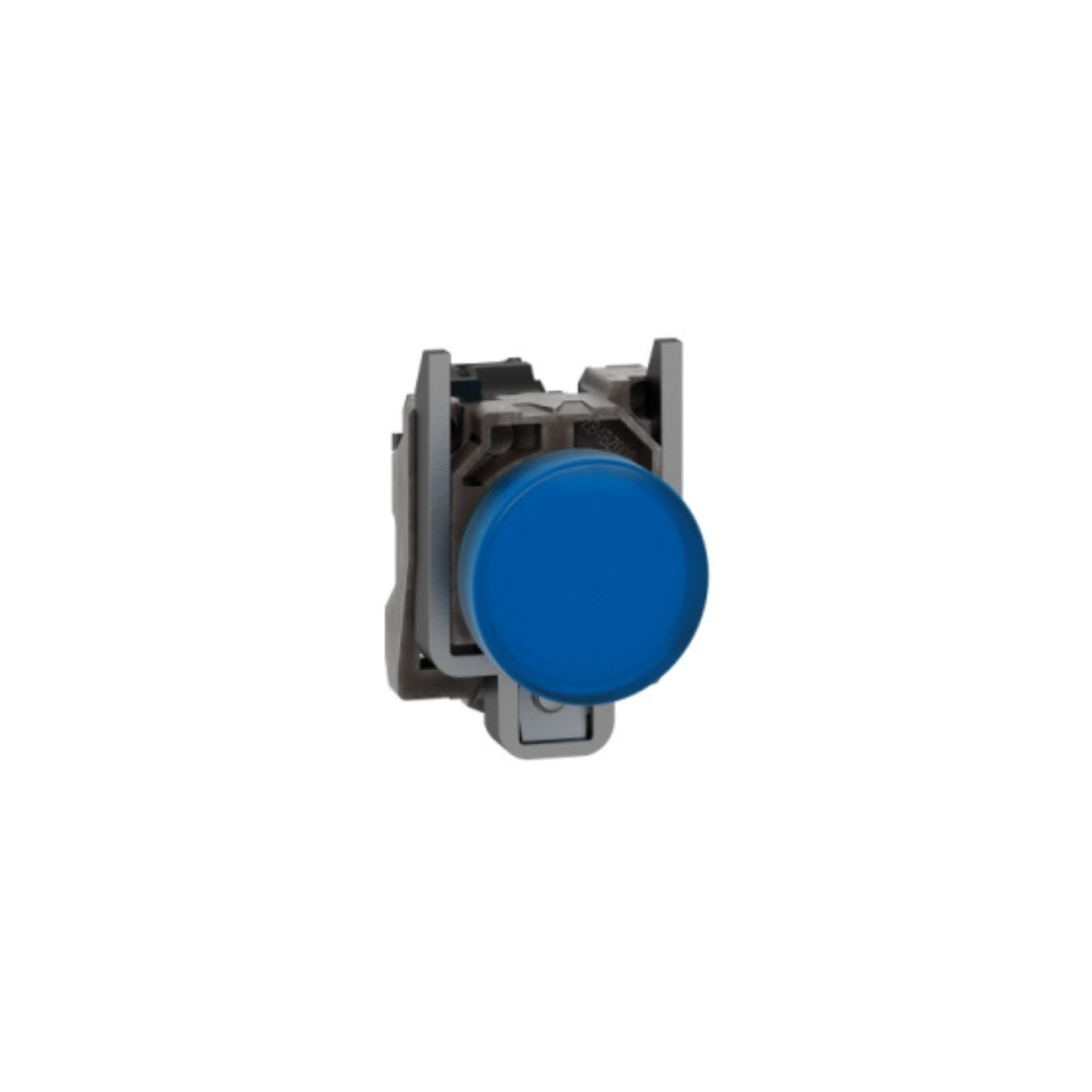

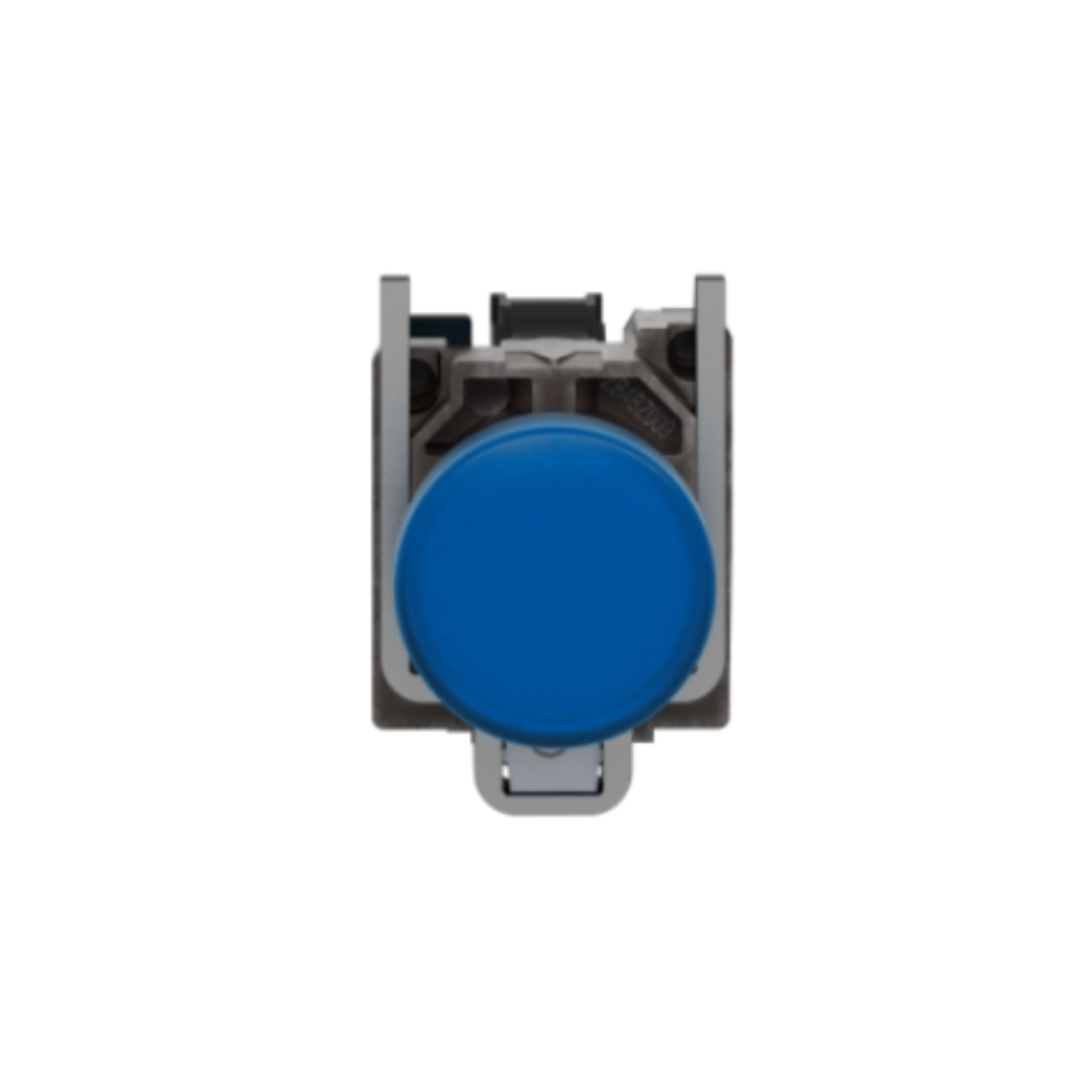

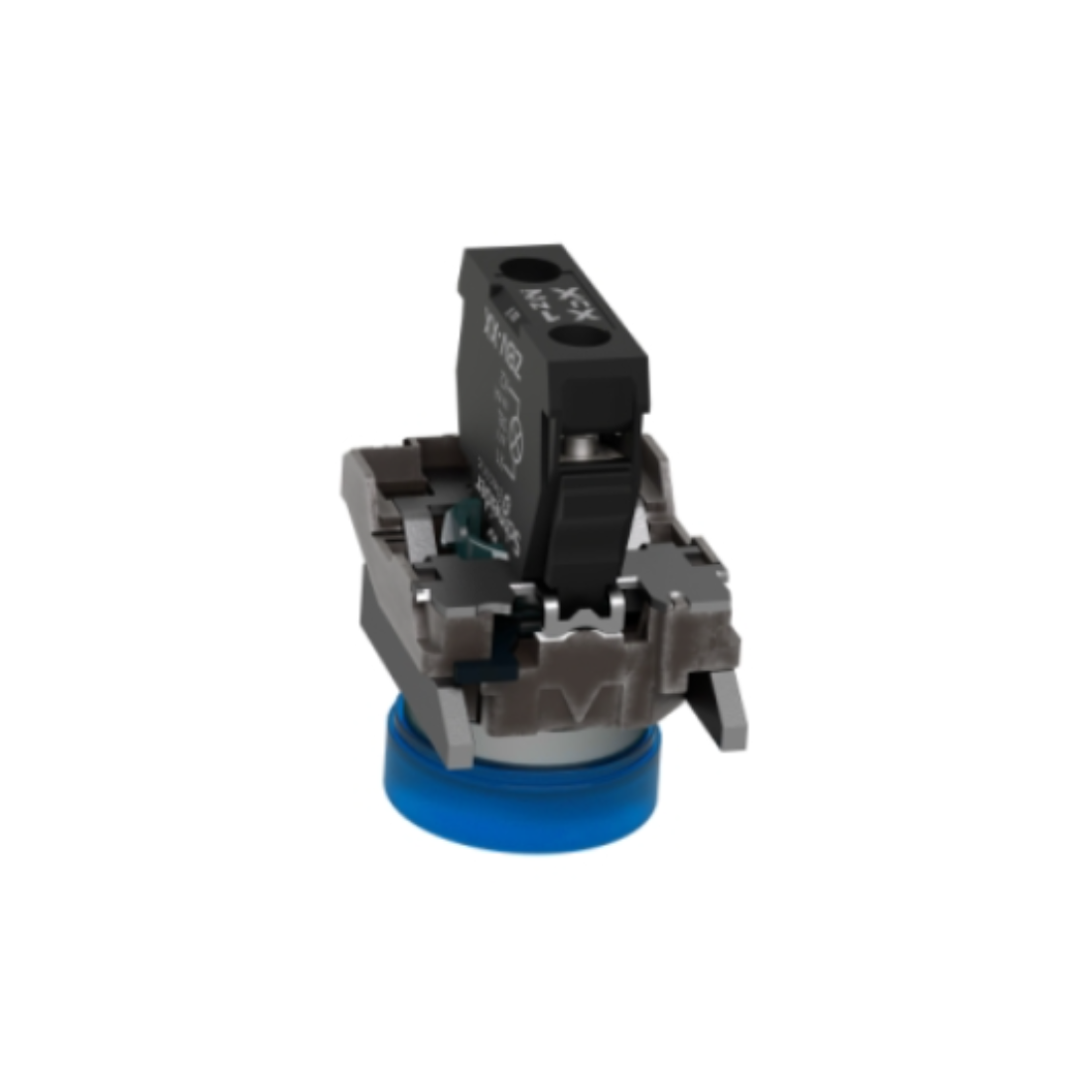

Schneider Electric Harmony XB4 Pilot Light Metal Blue Ø22 Plain Lens with Integral LED 24V AC/DC XB4BVB6

Regular price AED 47.25
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Pilot Light
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric XB4BVB6 Blue Pilot Light operates on 24V AC/DC and uses an integrated LED. It has a metal bezel. This maintenance-free indicator light provides a bright display of process and machine operations. Easily installs into standard 22mm diameter cutouts and connects with simple screw terminal connections. Thanks to the bright and long-lasting LED lighting, it is clearly visible even from afar. Thanks to IP66 / IP67 / IP69 / IP69K, it is resistant to impacts, dust, water and vibrations, making it ideal for use in harsh environments.

    Features
    • Operates on 24V AC/DC and uses an integrated LED.
    • Provides a bright display of process and machine operations.
    • Bright and long-lasting LED lighting
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Pilot Light

    Model : XB4BVB6

    Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

    Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN 60947-1

    Rated Impulse Withstand Voltage : 4 kV conforming to EN 60947-1

    Rated Supply Voltage : 24 V AC/DC at 50/60 Hz

    Bezel Material : Chromium plated metal

    Bulb Base : Integral LED

    Cap/Operator Or Lens Color : Blue

    Compatibility Code : XB4

    Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

    Current Consumption : 18 mA

    Depth : 54 mm

    Fixing Collar Material : Zamak

    Height : 47 mm

    IK Degree Of Protection : IK06 conforming to IEC 50102

    IP Degree Of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

    Light Source : Universal LED

    Mounting Diameter : 22 mm

    Protective Treatment : TH

    Overvoltage Category : Class II conforming to IEC 60536

    Certifications : UL listed, CSA

    Range Of Product : Harmony XB4

    Sale Per Indivisible Quantity : 1

    Service Life : 100000 h at rated voltage and 25 °C

    Shape of Signaling Unit Head : Round

    Shock Resistance : 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Signalling Type : Steady

    Supply Voltage Limits : 19.2-30 V DC, 21.6-26.4 V AC

    Resistance To Electromagnetic Fields : 10 V/m conforming to IEC 61000-4-3

    Terminals Description ISO n°1 : (X1-X2)PL

    Width : 30 mm

    Light Block Supply Via Transformer : 1.2 VA 24 V

    NEMA Degree Of Protection : NEMA 13, NEMA 4X

    Customizable : No

    Head Type : Standard

    Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

    GCR BRIDGE : XB4BVCUST03

    Surge Withstand : 1 kV conforming to IEC 61000-4-5

    Light Source Color : Blue

    Resistance To Fast Transients : 2 kV conforming to IEC 61000-4-4

    Electromagnetic Emission : Class B conforming to IEC 55011

    Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -40-70 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Standards : EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1, JIS C8201-1

    Device Presentation : Complete Product

    Electrical Shock Protection Class : Class I conforming to IEC 60536

    Weight : 0.08 kg
