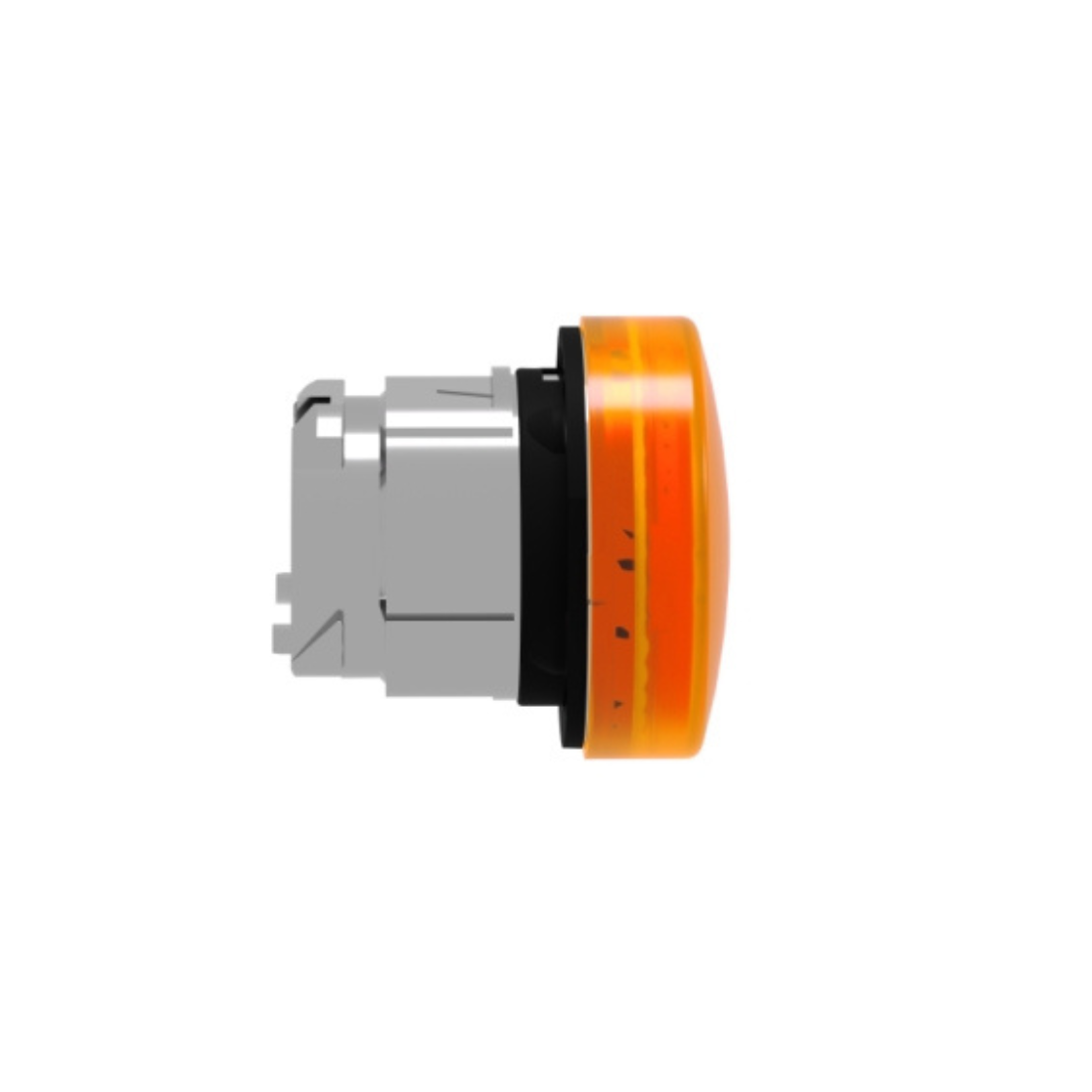

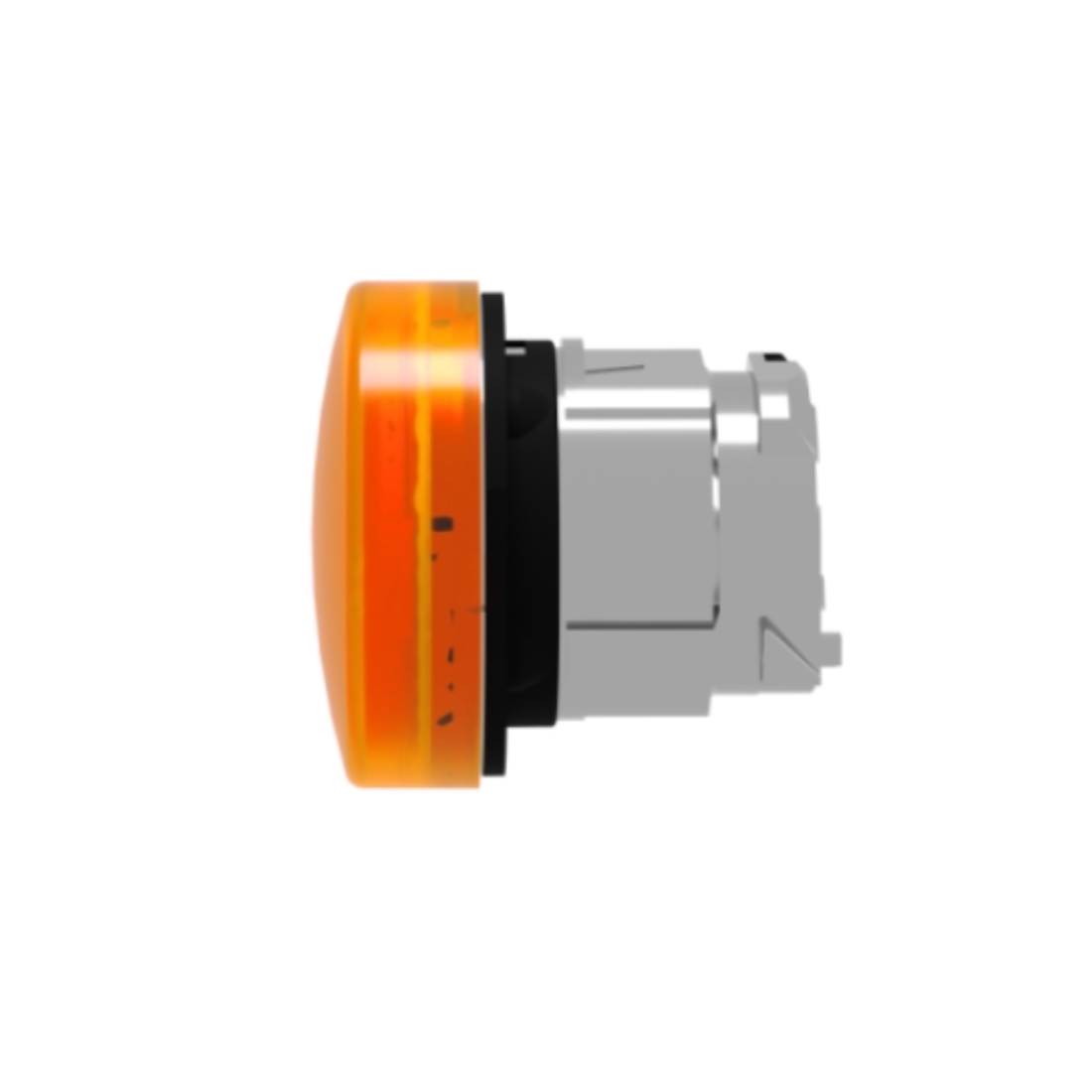

Schneider Electric Harmony XB4 Orange Pilot Light Head Ø22 Plain Lens for Integral LED ZB4BV053
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Pilot Light Head
Description
Schneider Electric ZB4BV053 Orange Pilot Light Head with integrated LED. This integrated LED indicator light head is designed to be maintenance-free and provide a bright display of process and machine operations. Thanks to the light color of the lens, it is easily visible even from afar, allowing complex machine states to be read at a glance. Thanks to IP66, it is shock, dust, water and vibration proof.
Schneider Electric ZB4BV053 Orange Pilot Light Head has a metal bezel that makes it ideal for applications that require high resistance to shock and vibration. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the Pilot Light Head to be used in a variety of ways.
Features
- Maintenance-free and provide a bright indication of process and machine operation.
- IP66 Protection
- It has a metal bezel
- Shock, dust, water and vibration resistant
| Brand | Schneider Electric |
| Item Name | Pilot Light Head |
| Model | ZB4BV053 |
| Bezel Material | Chromium plated metal |
| Cap/Operator Or Lens Color | Green |
| CAD Overall Depth | 30 mm |
| CAD Overall Height | 29 mm |
| CAD Overall Width | 29 mm |
| Compatibility Code | ZB4 |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Mounting Diameter | 22 mm |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Signalling Type | Steady |
| Group of Product | Lens Fitted integral LED |
| Operator Additional Information | With plain lens |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | 1 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | ZB4BVCUST01 |
| Main Group | Pilot light |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Electrical Composition Code | P1 in front mounting with integral LED, P2 in front mounting with integral LED and transformer |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, UL 508, JIS C8201-1 |
| Compatibility | Universal LED |
| Device Presentation | Basic Element |
| Weight | 0.026 kg |
