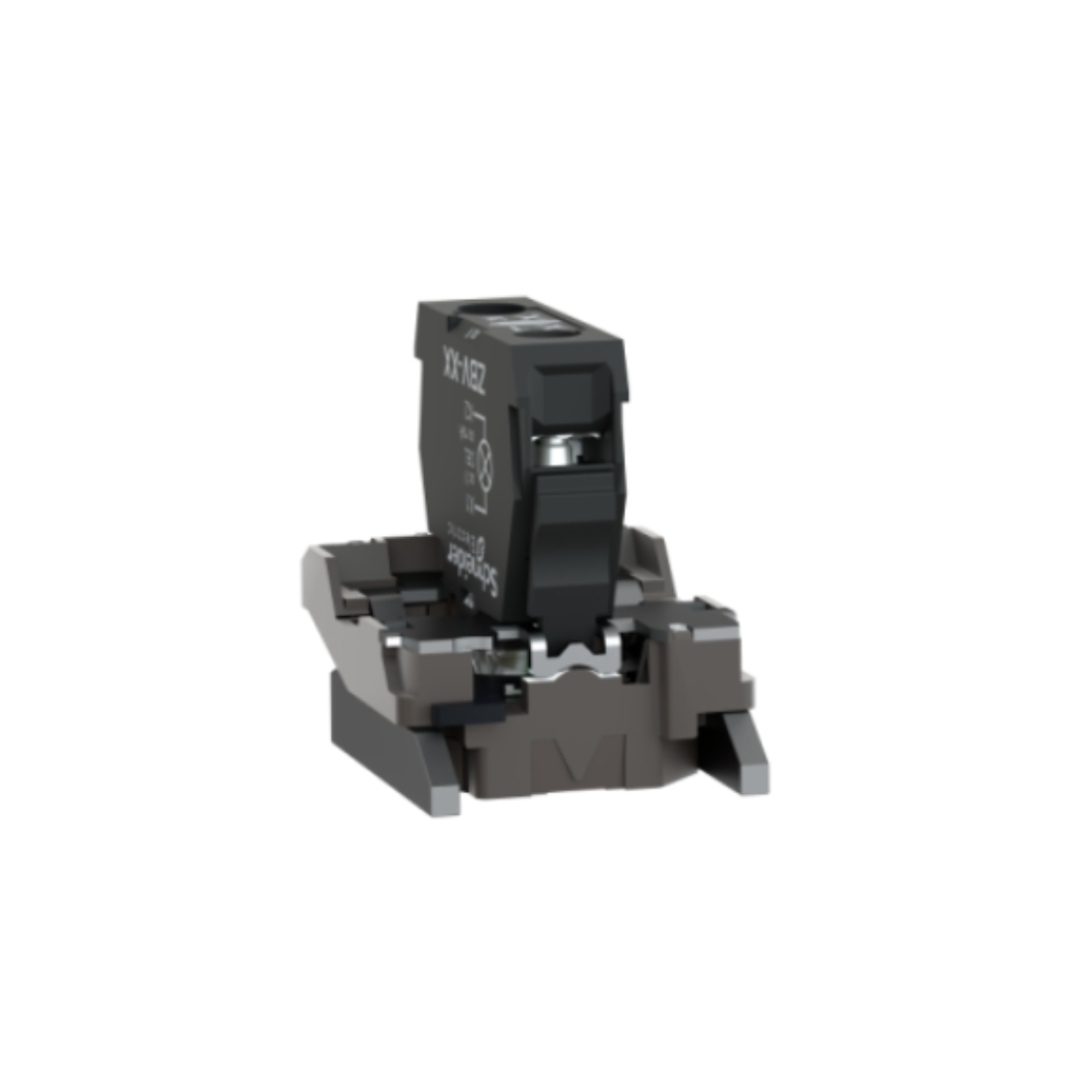

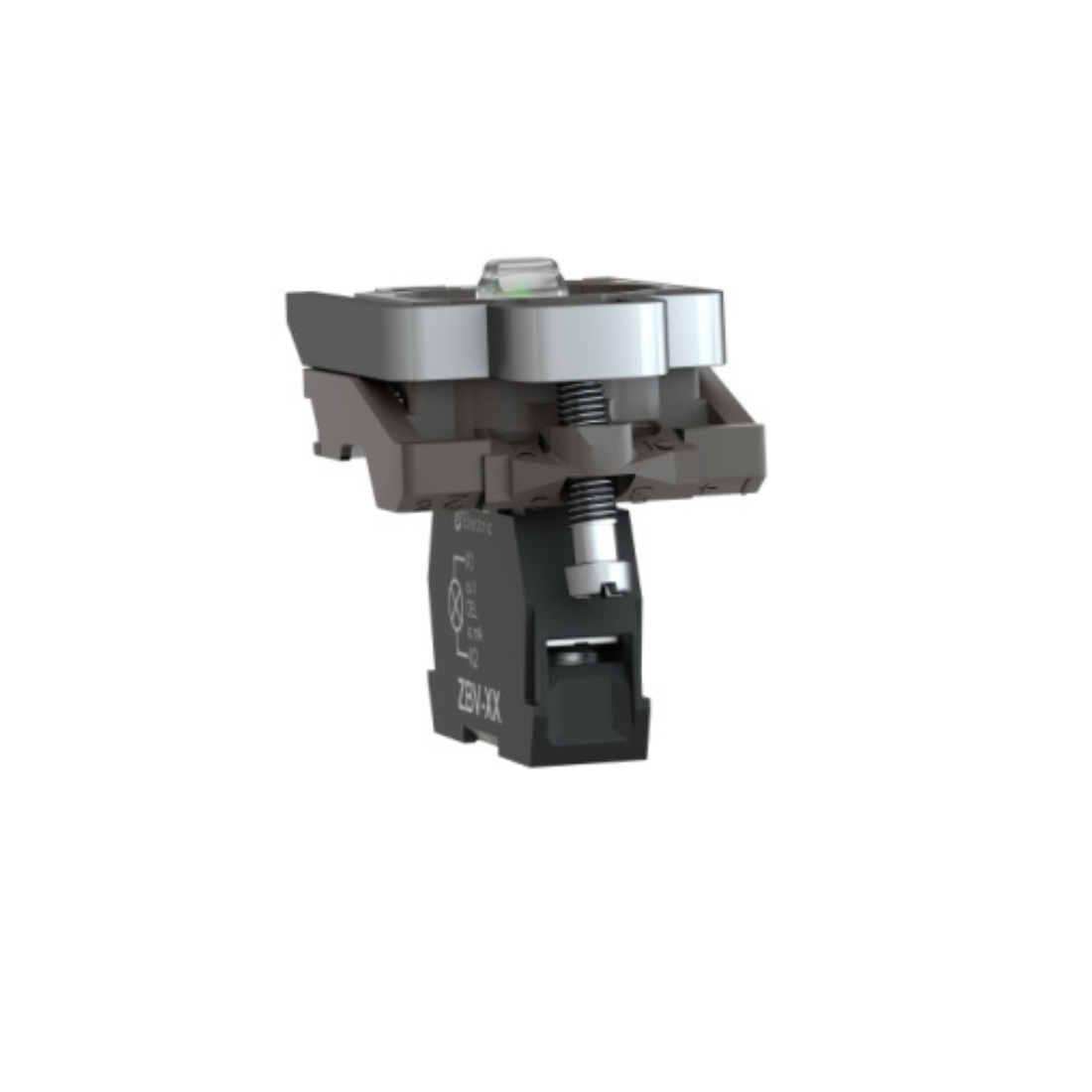

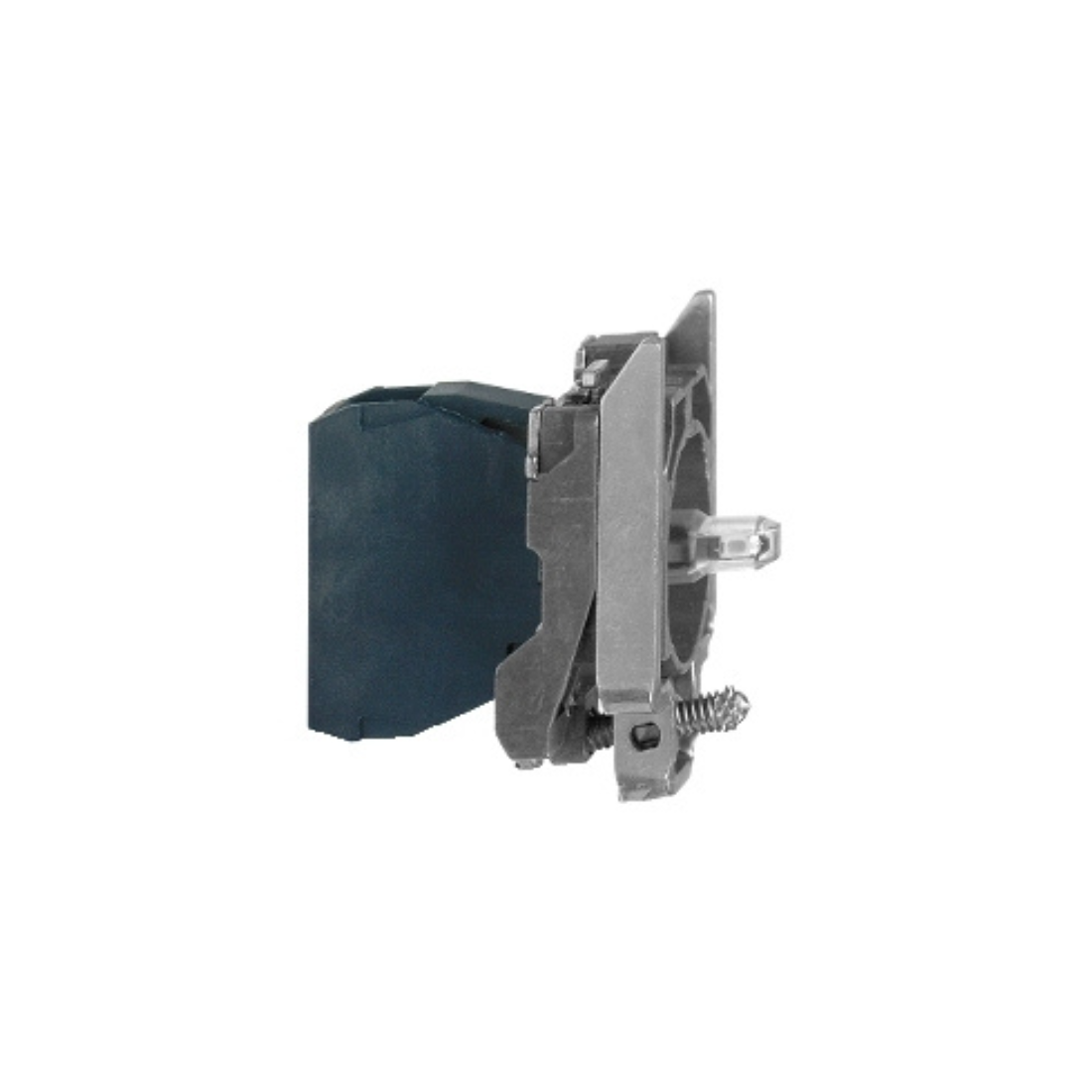

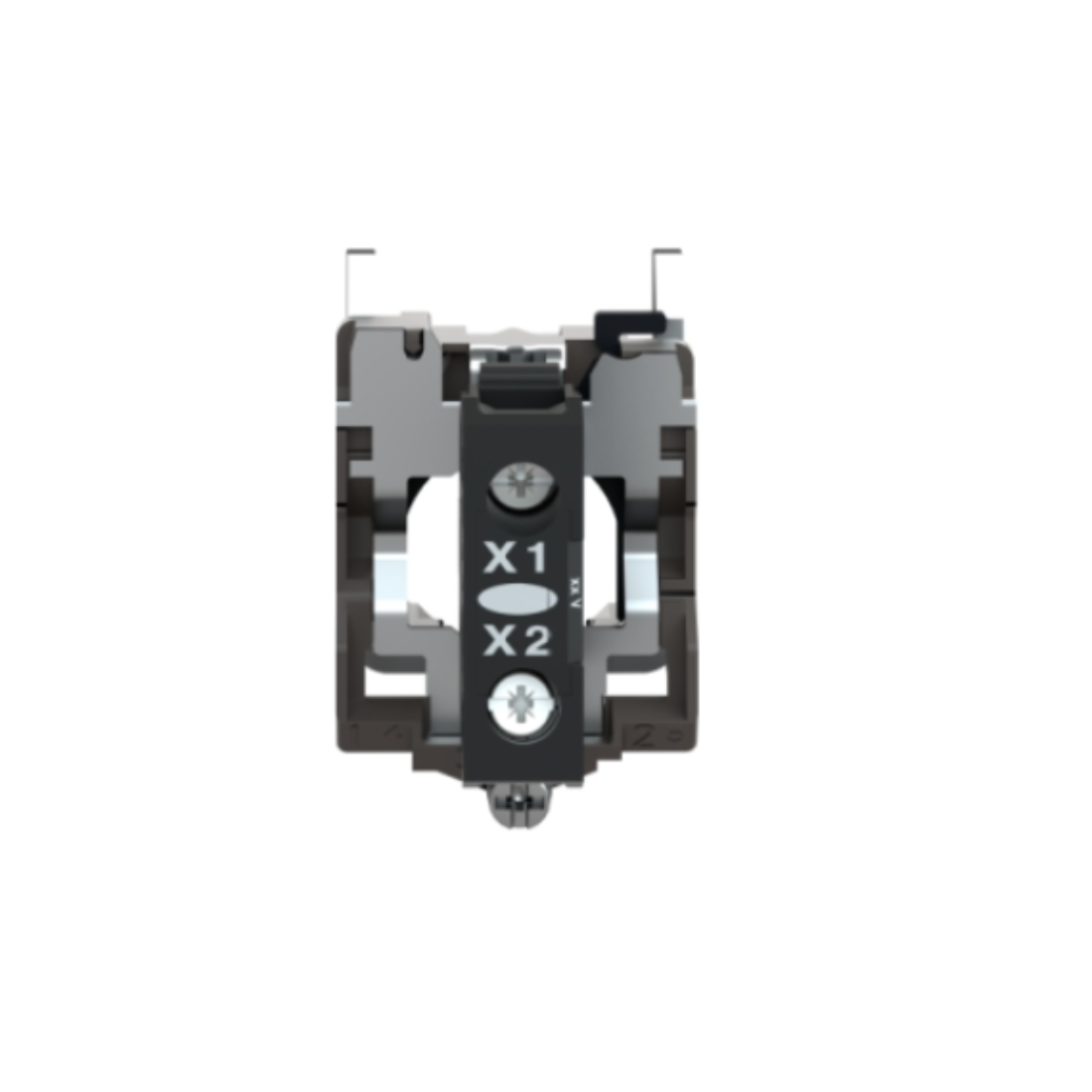

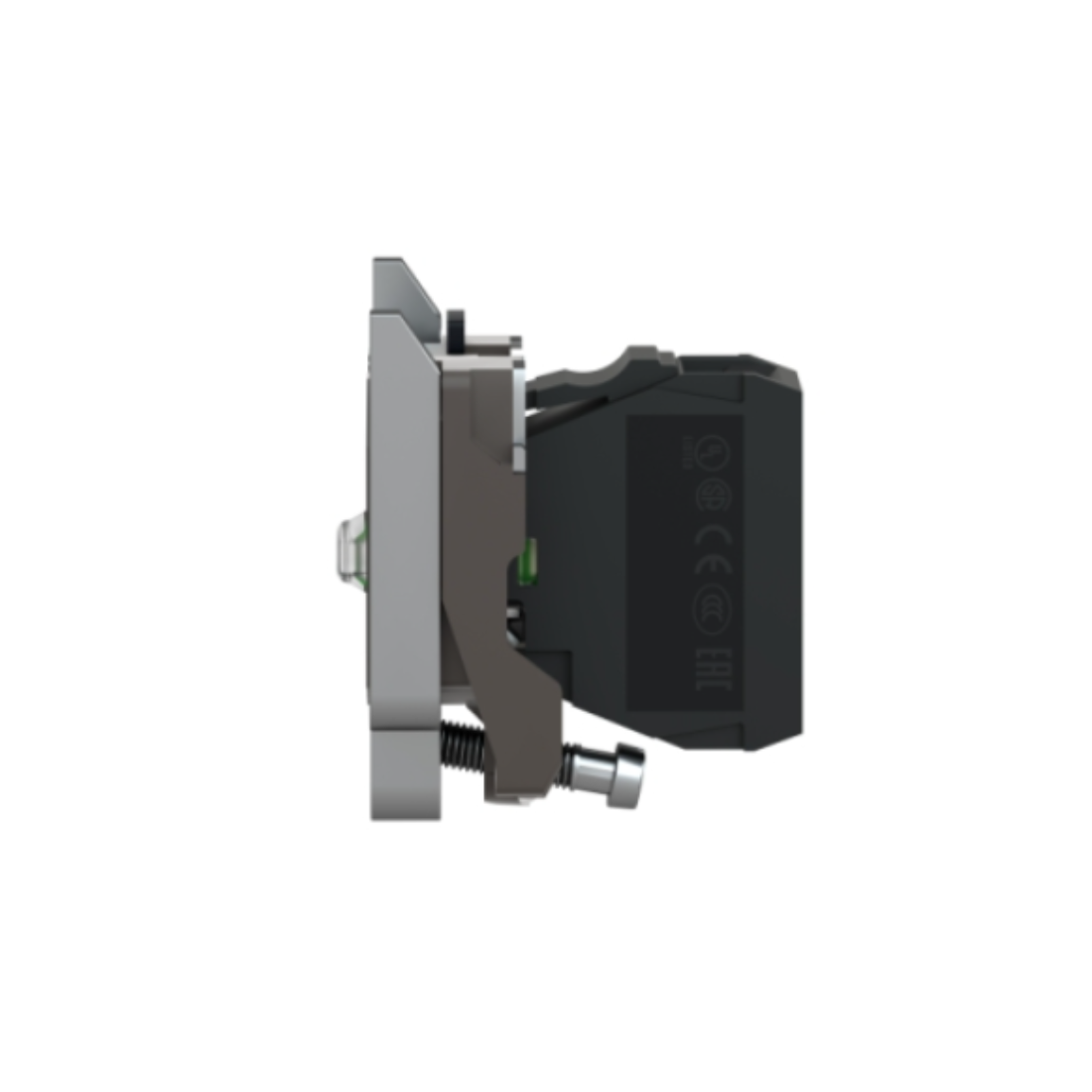

Schneider Electric Harmony XB4 Orange Light Block with Body/Fixing Collar Integral LED 24-120V ZB4BVBG5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Light Block
Description
Schneider Electric ZB4BVBG5 Orange Light Block With Body/Fixing Collar is orange and operates with an integrated LED. It has a metal casing and is compatible with Harmony XB4 pilot lights. This light block allows for quick and easy replacement and setup of the signaling devices. Installation and replacement on compatible illuminated pushbutton or selector switch units is easy using clip assembly and connection is made using simple screw terminal connections.
Schneider Electric ZB4BVBG5 Orange Light Block allows signaling devices to be visually distinguished by lighting using integrated LEDs. Thanks to its IP20 rating, it protects operators from unexpected contact with live circuits. It is designed to fit standard 22mm signaling and control units, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 55°C allows the product to be used in a variety of ways.
Features
- It has a metal casing and is compatible with Harmony XB4 pilot lights.
- Quick and easy replacement and setup of the signaling devices.
- IP20 Protection
| Brand | Schneider Electric |
| Item Name | Complete Body/Light Body Assembly |
| Model | ZB4BVBG5 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand | 6 kV conforming to EN 60947-1 |
| Rated Supply Voltage | 24...120 V AC/DC at 50/60 Hz |
| Bulb Base | Integral LED |
| CAD Overall Depth | 37 mm |
| CAD Overall Height | 47 mm |
| CAD Overall Width | 30 mm |
| Compatibility Code | ZB4 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end, Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Fixing Collar Material | Zamak |
| Light Source | Protected LED |
| Light Source Color | Orange |
| Certifications | GL, BV, UL listed, DNV, CSA, LROS (Lloyds register of shipping) |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | |
| Signalling Type | Steady |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-2-6 |
| 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6 | |
| Electromagnetic Emission | Class B conforming to IEC 55011 |
| Supply Voltage Limits | 19.2…132 V DC |
| 21.6…132 V AC | |
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV conforming to IEC 61000-4-5 |
| Tightening Torque | 0.8…1.2 N.m conforming to EN 60947-1 |
| Vibration Resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60947-1, JIS C8201-5-1, EN/IEC, 60947-5-4, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-5, EN/IEC 60947-5-1, JIS C8201-1 |
| Device Presentation | Basic sub-assemblies |
| Electrical Shock Protection Class | Class I conforming to IEC 60536 |
