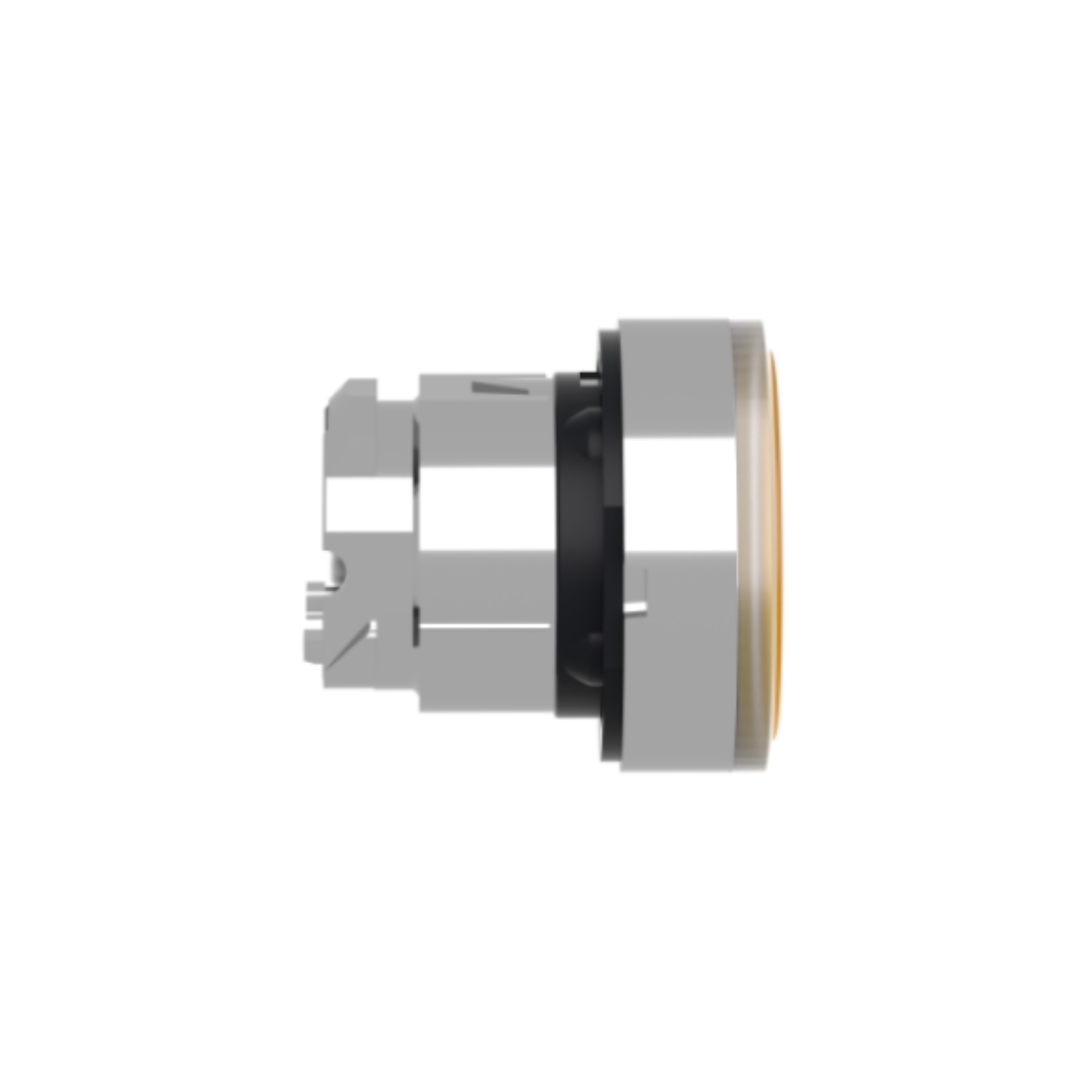

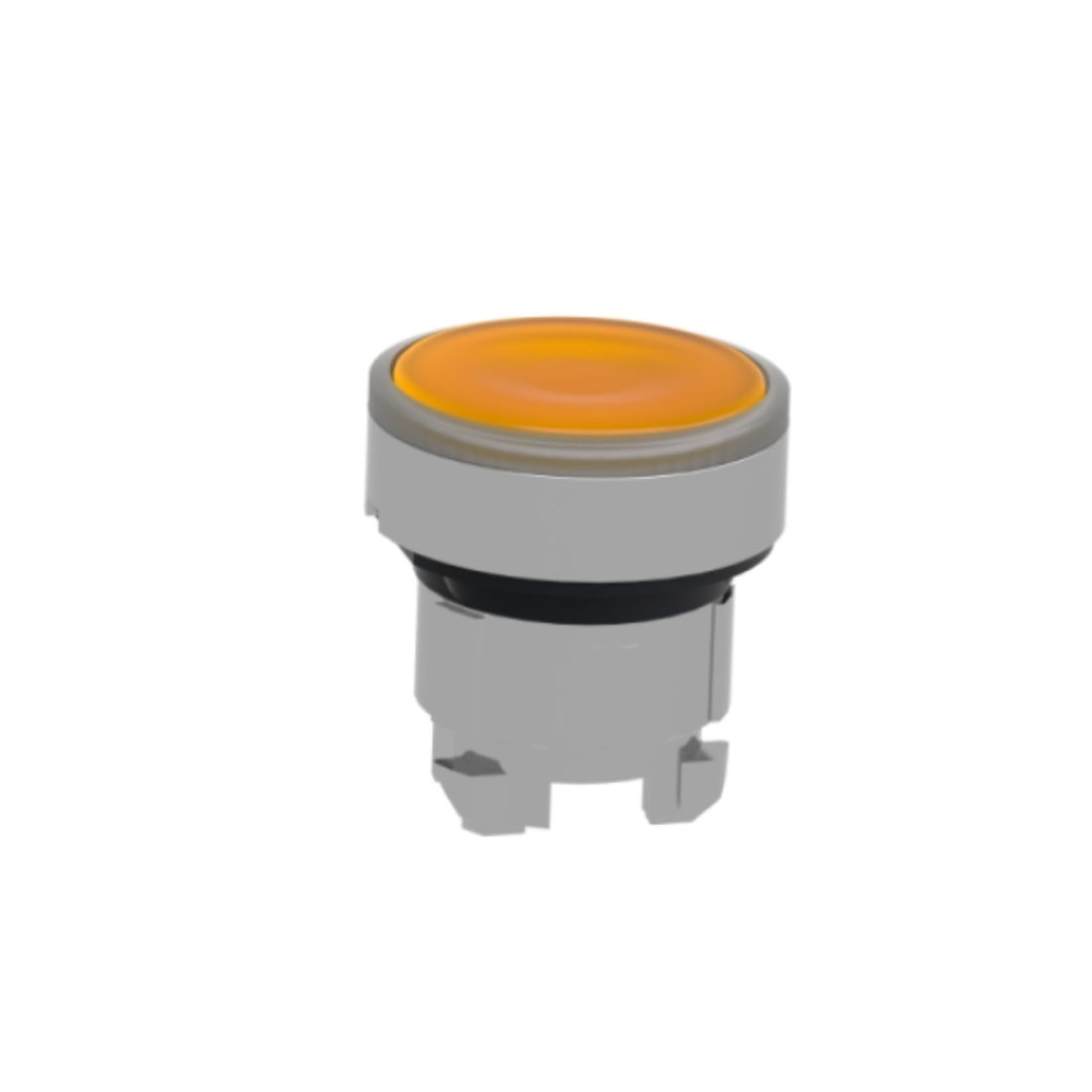

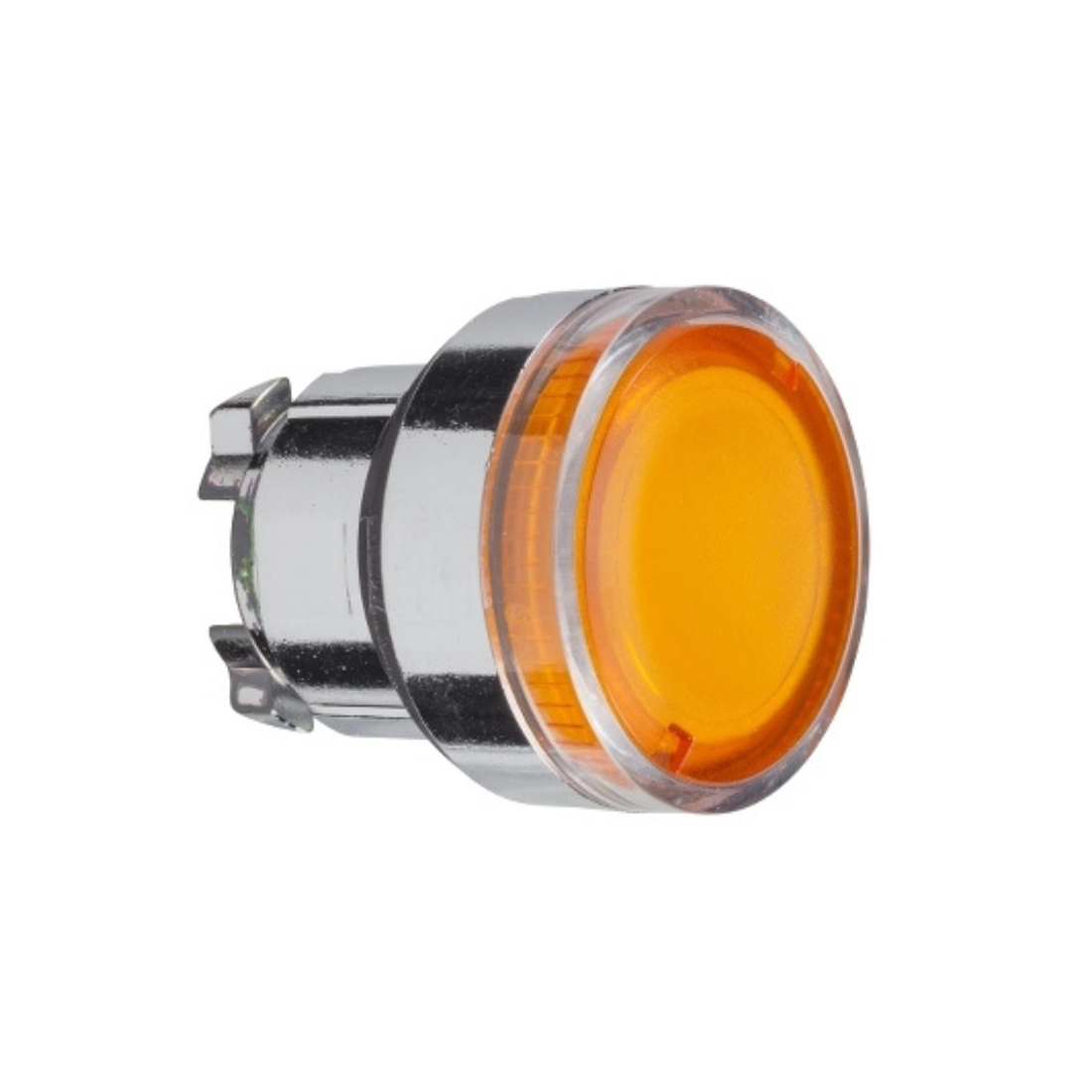

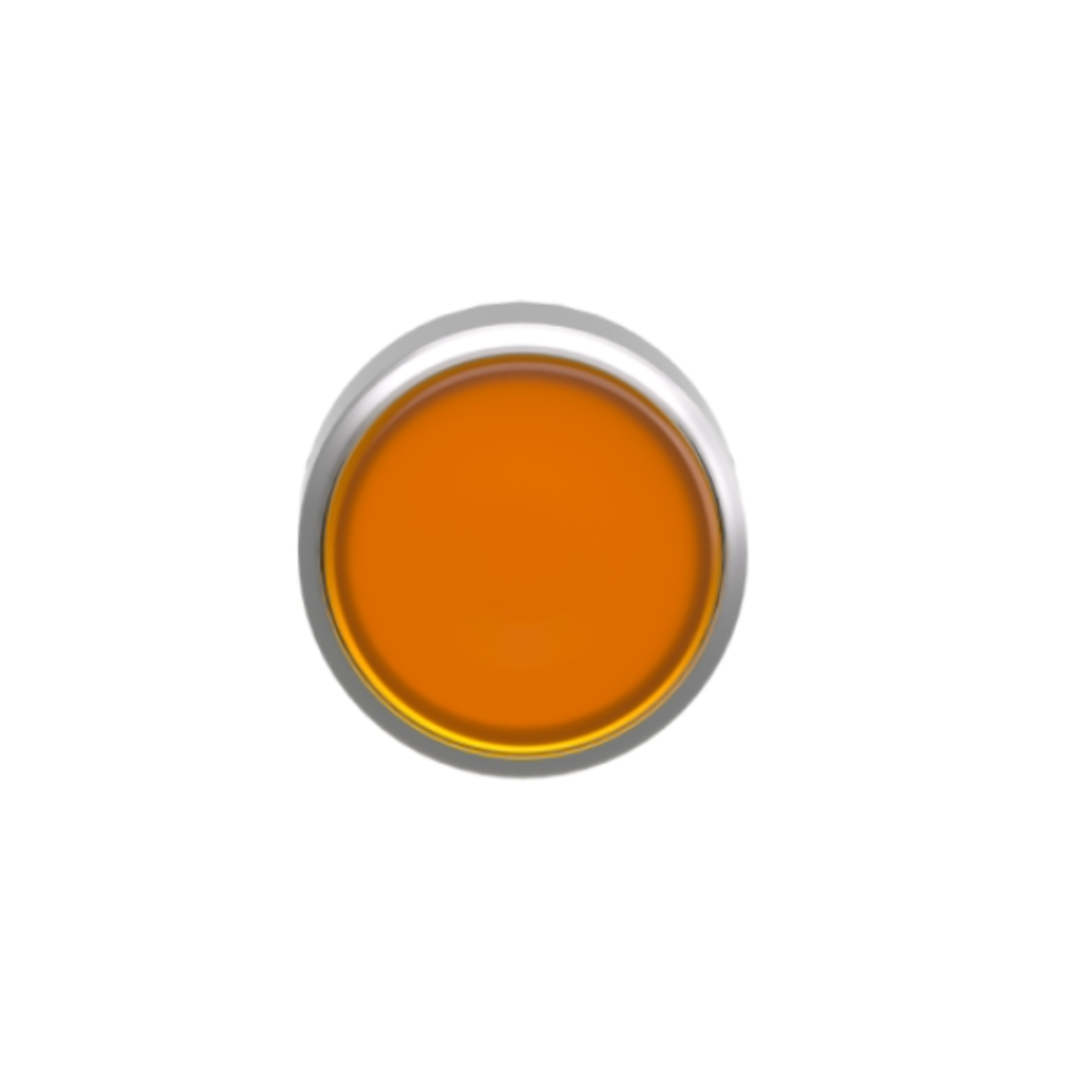

Schneider Electric Harmony XB4 Orange Flush Illuminated Pushbutton Head Ø22 Spring Return for BA9s Bulb ZB4BW35

Schneider Electric Harmony XB4 Orange Flush Illuminated Pushbutton Head Ø22 Spring Return for BA9s Bulb ZB4BW35

Name: Schneider Electric Harmony XB4 Orange Flush Illuminated Pushbutton Head Ø22 Spring Return for BA9s Bulb ZB4BW35
Brand: Schneider Electric
Price: 35.7 AED
Availability: InStock

AED 35.70

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Illuminated Pushbutton Head

Description

Schneider Electric ZB4BW35 Orange Flush Illuminated Pushbutton Head uses a spring return/pulse mechanism. This Integral BA9 LED illuminated button head provides a versatile interface for controlling the machines. Installation and replacement on compatible pushbutton units and complete contact blocks is simply snap-on. It is clearly visible from afar thanks to the light illuminated color and also tactile thanks to the recessed element, minimizing errors in machine control. Thanks to IP66, it is shock, dust, water and vibration proof.

Schneider Electric ZB4BW35 Orange Flush Illuminated Pushbutton Head has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the push button to be used in a variety of ways. Offers high brightness for easy identification of function and operating mode, even in brightly lit environments.

Features

Uses a spring return/pulse mechanism.
Provides a versatile interface for controlling the machines.
It has a metal bezel
IP66 Protection

Specifications

Brand : Schneider Electric

Item Name : Head For Illuminated Push-Button

Model : ZB4BW35

Bezel Material : Chromium plated metal

CAD Overall Depth : 32 mm

CAD Overall Height : 29 mm

CAD Overall Width : 29 mm

Cap/Operator Or Lens Colour : Orange

Compatibility Code : ZB4

IK Degree Of Protection : IK06 conforming to EN 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

Marking : Unmarked

Mechanical Durability : 10000000 cycles

Mounting Diameter : 22 mm

Operator Profile : Orange flush, unmarked

Overvoltage Category : Class I conforming to IEC 60536

Protective Treatment : TH

Certifications : GL, UL listed, DNV, LROS (Lloyds register of shipping), CSA, BV

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Shape of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Type of Operator : Spring Return

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Group Of Product : Flush push integral LED

Operator Additional Information : With plain lens

Customizable : 1

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

GCR BRIDGE : ZB4BWCUST04

Main Group : Illum Push-button

Electrical Composition Code : M7 for <6 contacts using single blocks in front mounting with BA 9s, M8 for <6 contacts using single and double blocks in front mounting with BA 9s, M9 for <2 contacts using single blocks in front mounting with BA 9s and transformer

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-55 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-1

Compatibility : BA 9s

Device Presentation : Basic sub-assemblies

Weight : 0.267 kg
