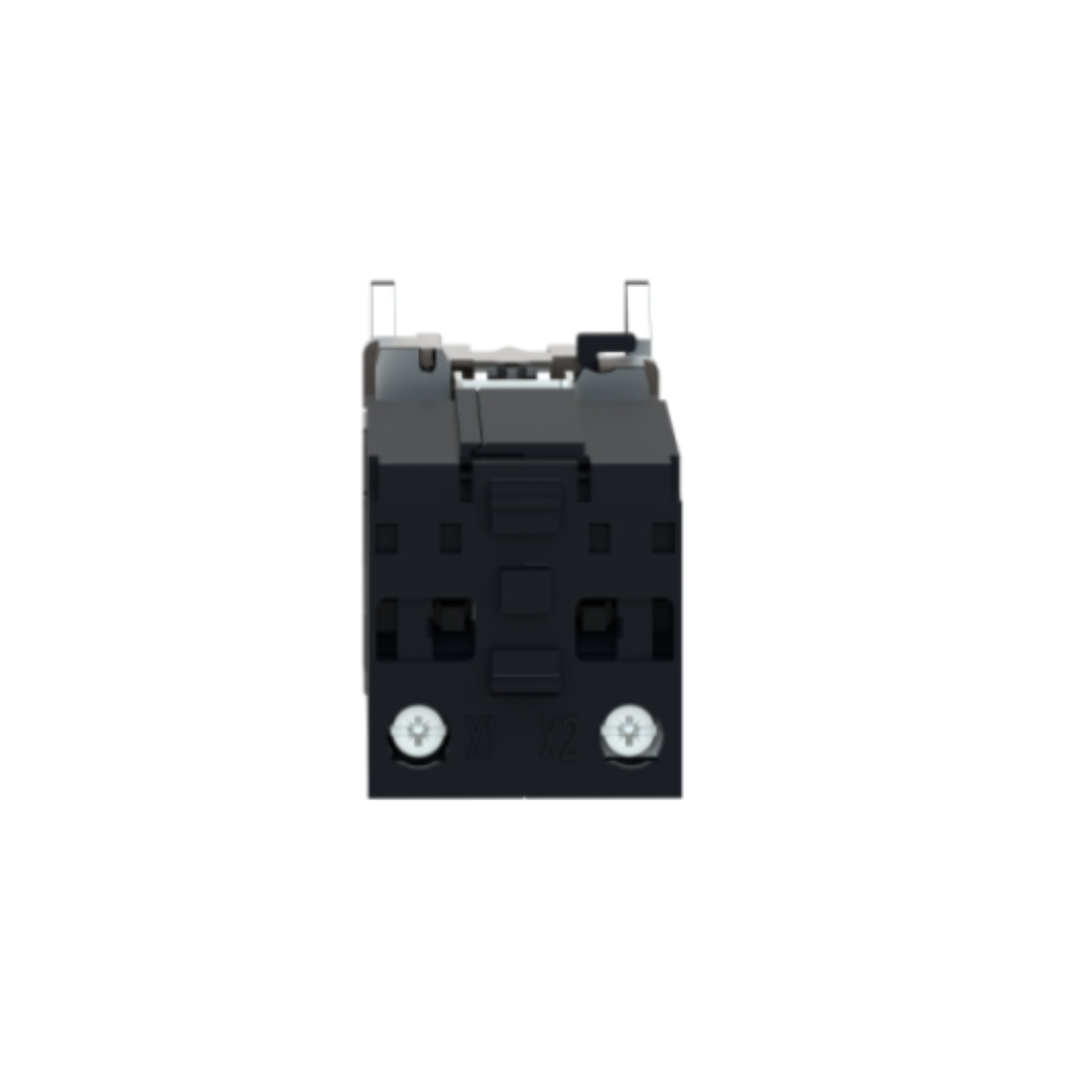

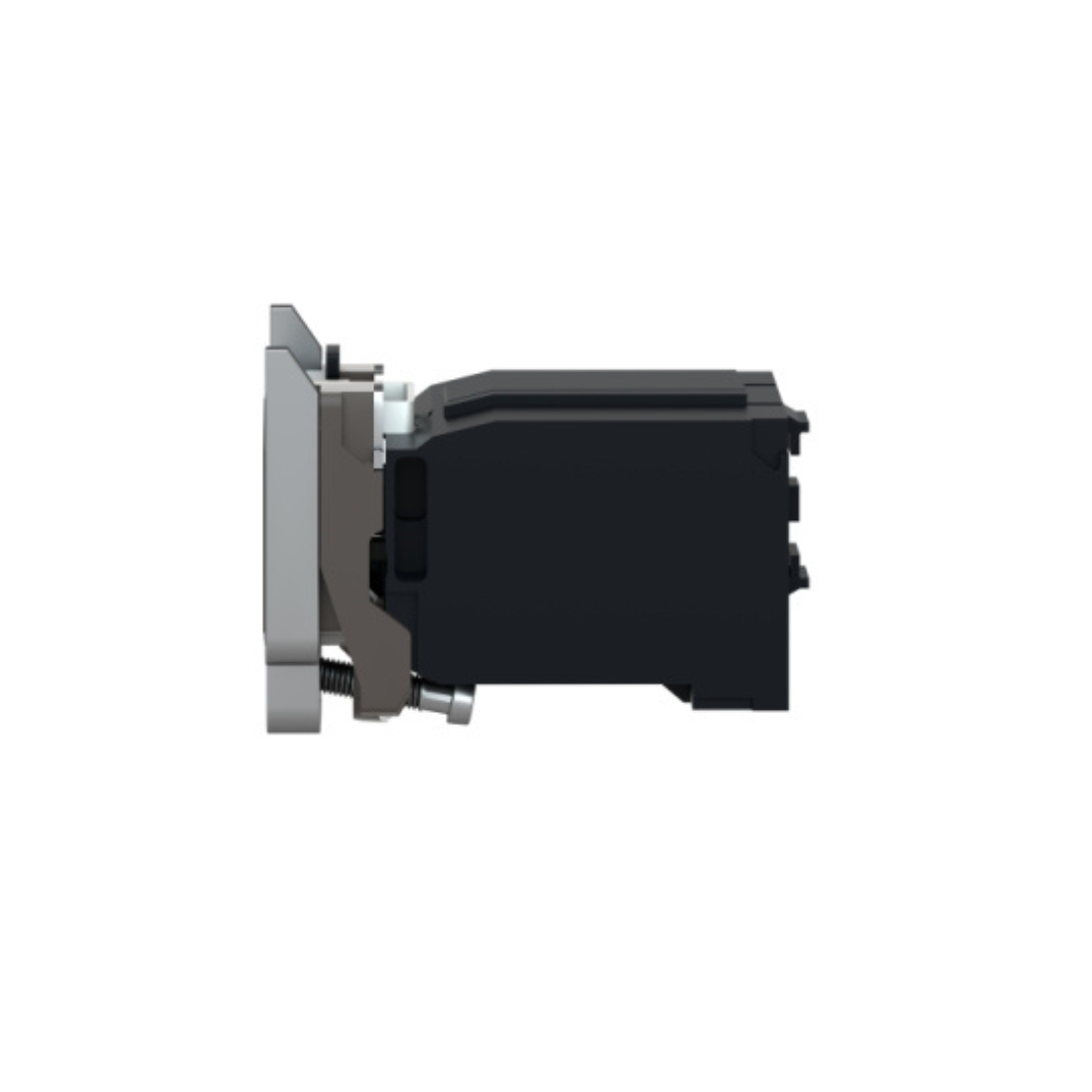

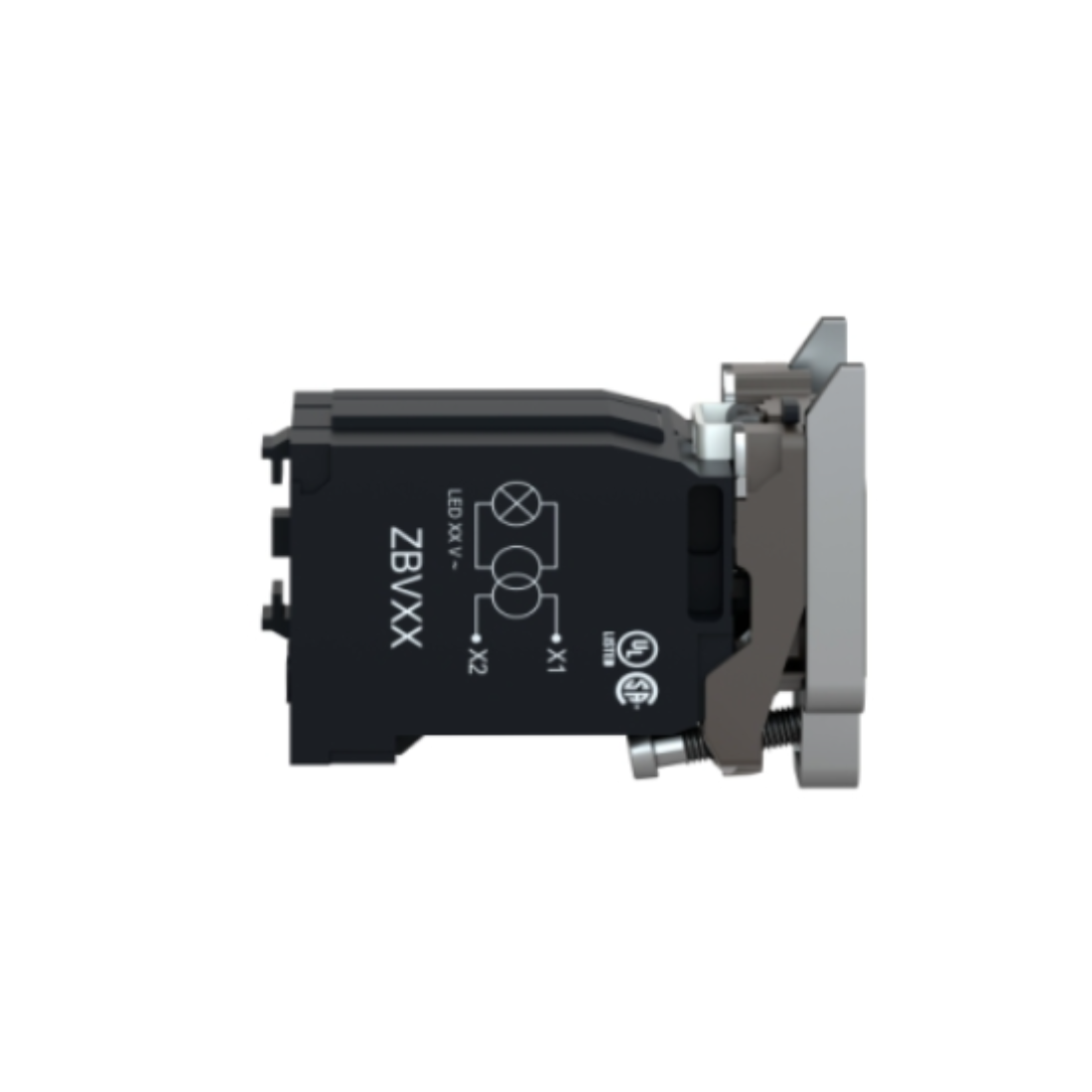

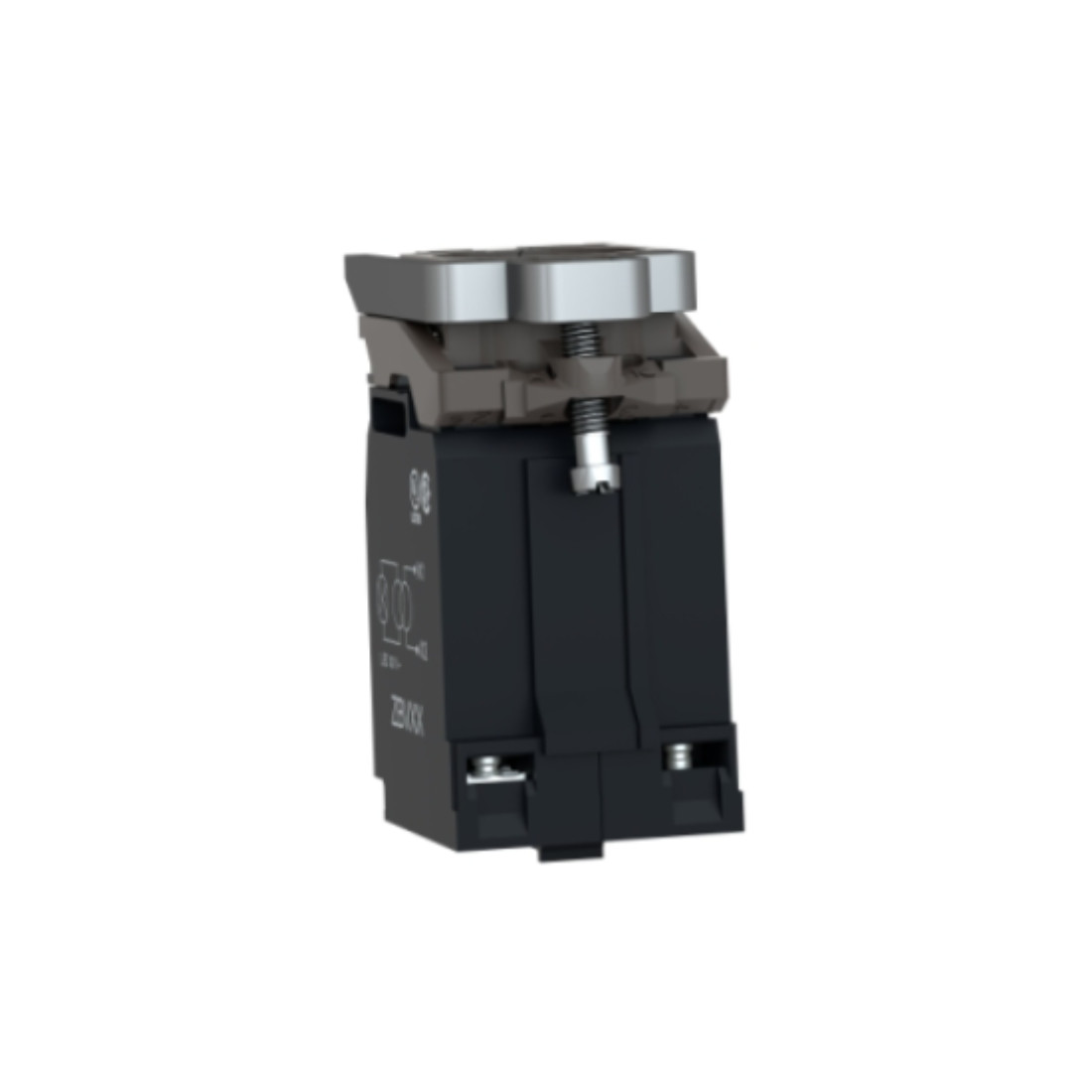

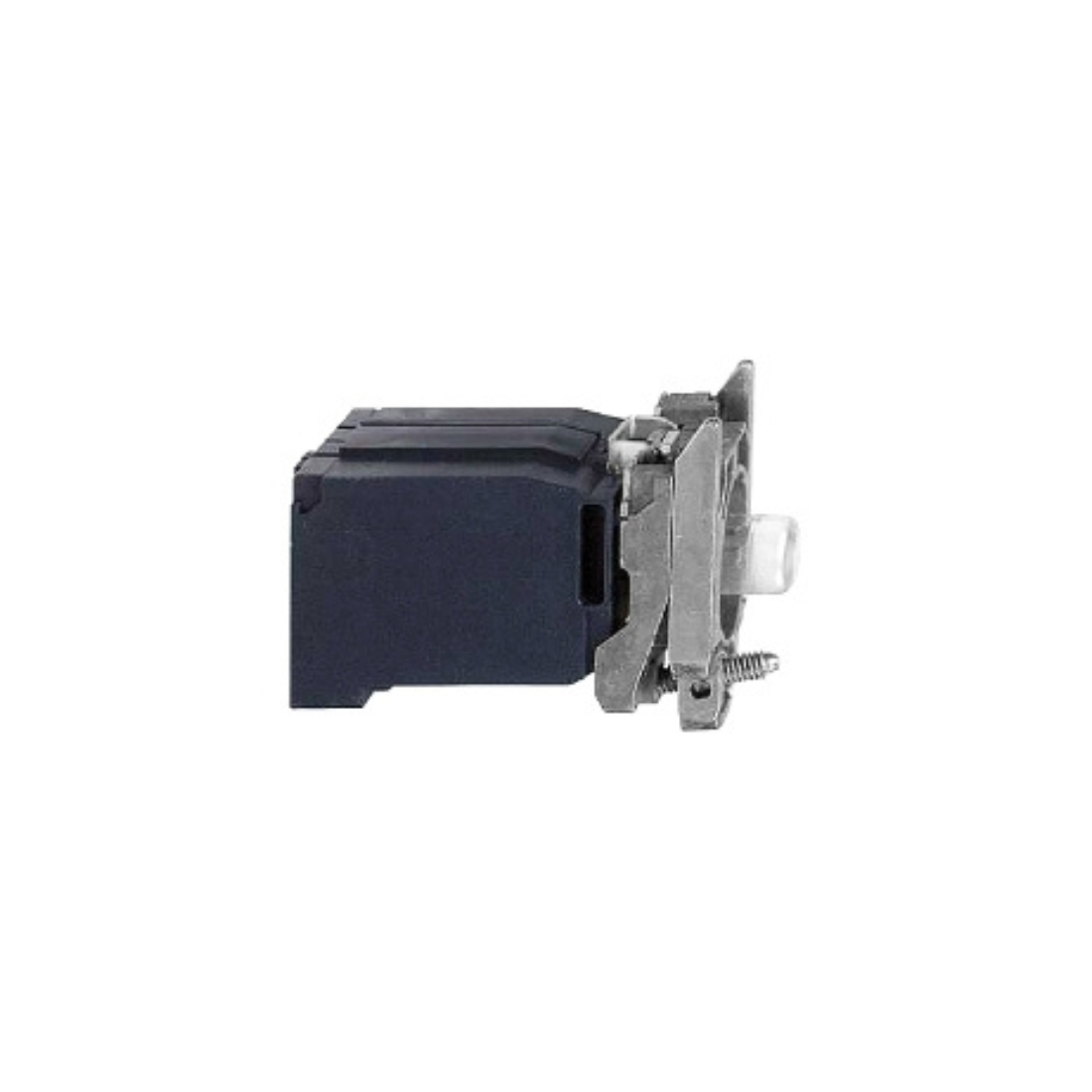

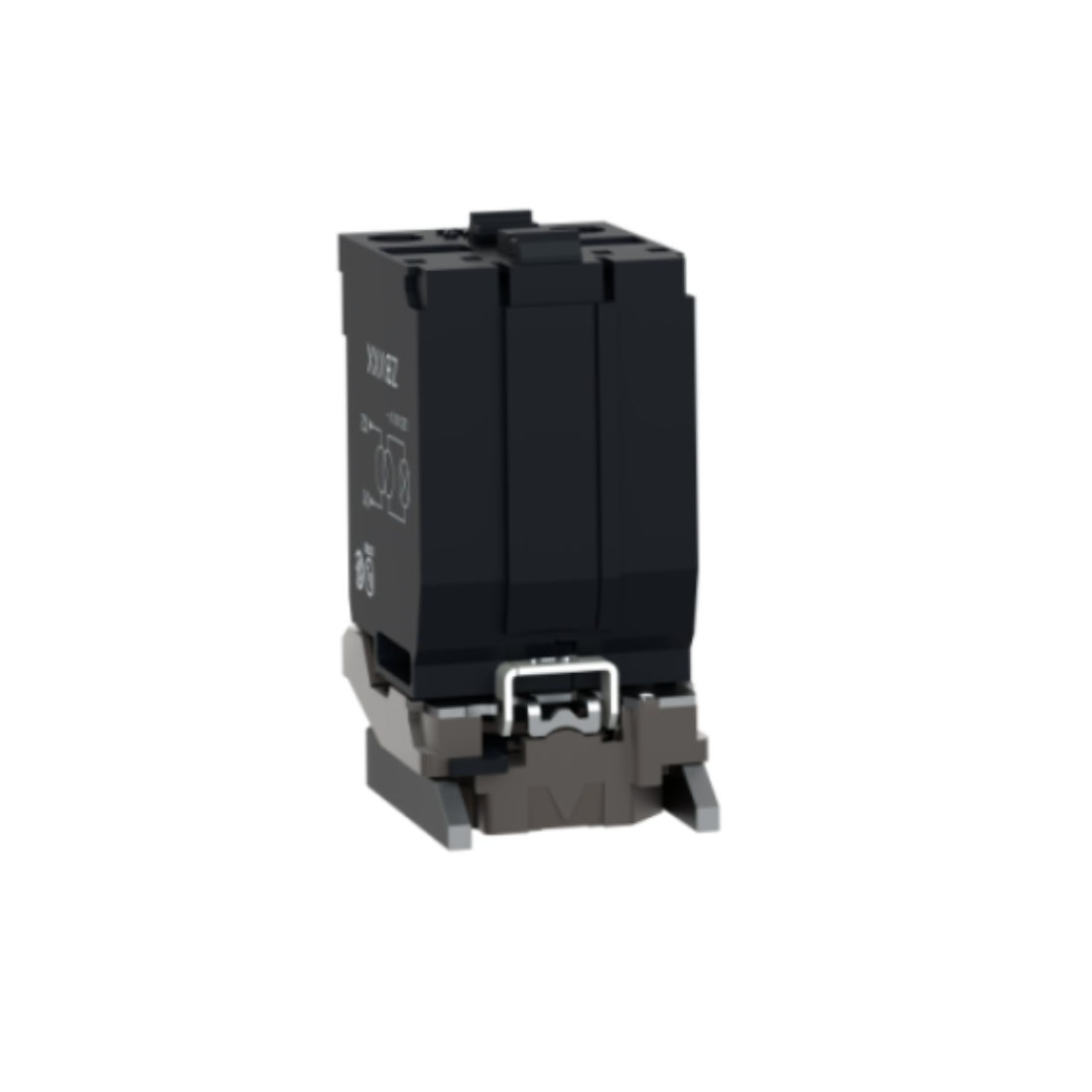

Schneider Electric Harmony XB4 Light Block with Body/Fixing Collar with BA9s Incandescent Bulb 440-480V ZB4BV8
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Light Block
Description
Schneider Electric ZB4BV8 Light Block With Body/Fixing Collar works with integral BA9 base LEDs. It has a metal casing and is compatible with Harmony XB4 pilot lights. This light block allows for quick and easy replacement and setup of the signaling devices. Installation and replacement on compatible illuminated pushbutton or selector switch units is easy using clip assembly and connection is made using simple screw terminal connections.
Schneider Electric ZB4BV8 Light Block With Body/Fixing Collar allows visual differentiation of signaling units through the lighting provided by the integrated LED of the BA9 base. Thanks to its IP20 rating, it protects operators from unexpected contact with live circuits. It is designed to fit standard 22mm signaling and control units, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 55°C allows the product to be used in a variety of ways.
Features
- It has a metal casing and is compatible with Harmony XB4 pilot lights.
- Designed to fit standard 22mm signaling and control units
- Screw terminal connections.
| Brand | Schneider Electric |
| Item Name | Complete Body/Light Body Assembly |
| Model | ZB4BV8 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand | 6 kV conforming to EN 60947-1 |
| Rated Supply Voltage | 440...480 V |
| Bulb Base | BA 9s |
| CAD Overall Depth | 60 mm |
| CAD Overall Height | 47 mm |
| CAD Overall Width | 30 mm |
| Compatibility Code | ZB4 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end, screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| IP Degree of Protection | IP20 |
| Fixing Collar Material | Zamak |
| Light Source | Incandescent |
| Certifications | UL listed, LROS (Lloyds register of shipping), GL, BV, CSA, DNV |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Signalling Type | Steady |
| Light Block Supply | Via integral transformer 1.2 VA 6 V |
| Terminals Description ISO n°1 | (X1-X2)PL |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Electrical Composition Code | P4, M9 |
| Mounting of Block | Front mounting |
| Customizable | 0 |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-5, JIS C8201-1 |
| Device Presentation | Basic sub-assemblies |
| Electrical Shock Protection Class | class I conforming to IEC 60536 |
| Weight | 0.128 kg |
