Schneider Electric Harmony XB4 Key Switch Selector Metal Black Ø22 Key n°455 3 Positions Stay Put 2 NO XB4BG33
AED 124.95
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Cash on
Delivery
7 Days
Returnable
15+
Years Of Trust
15+
Branches
Brand : Schneider Electric
Type : Key Switch Selector
Collections
Description

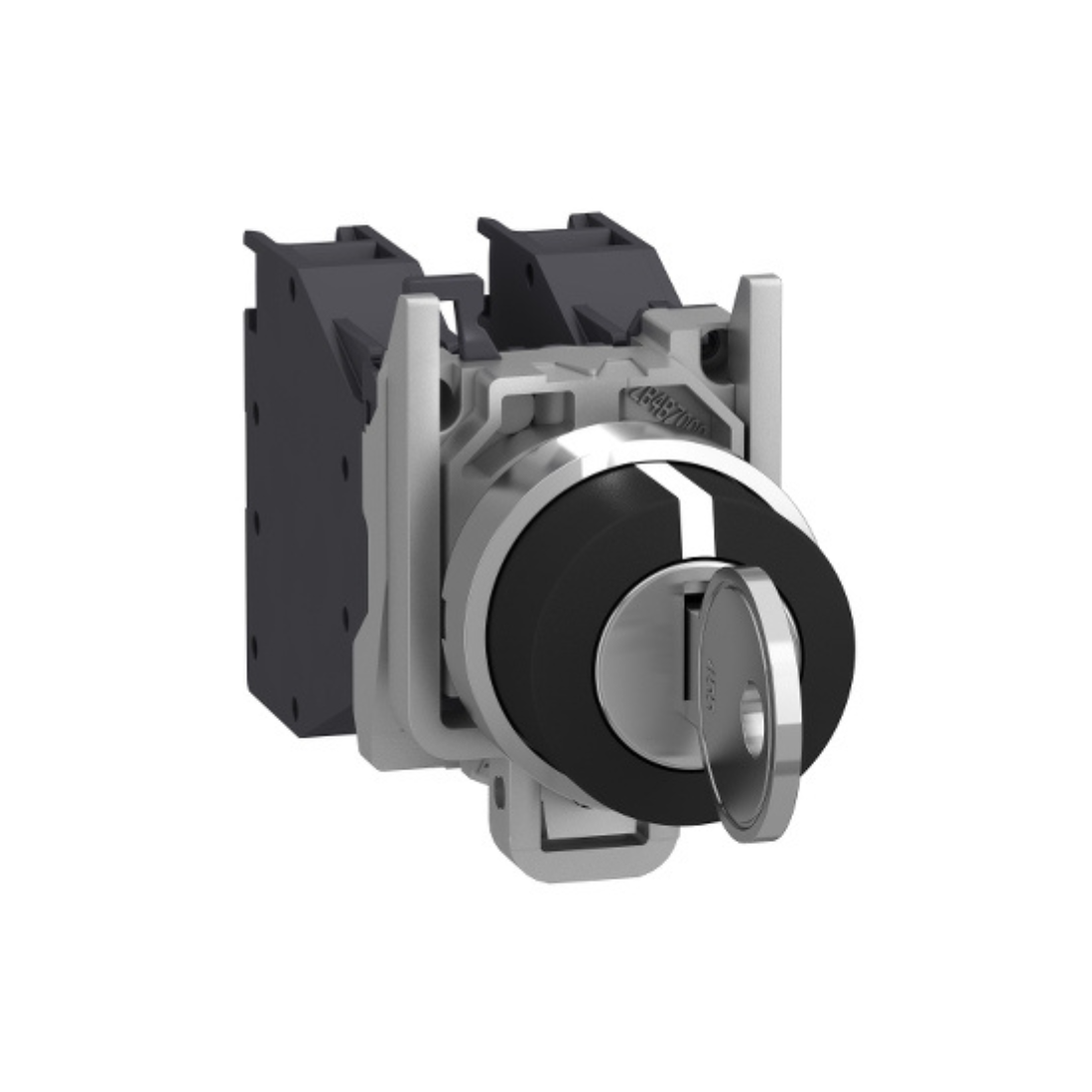

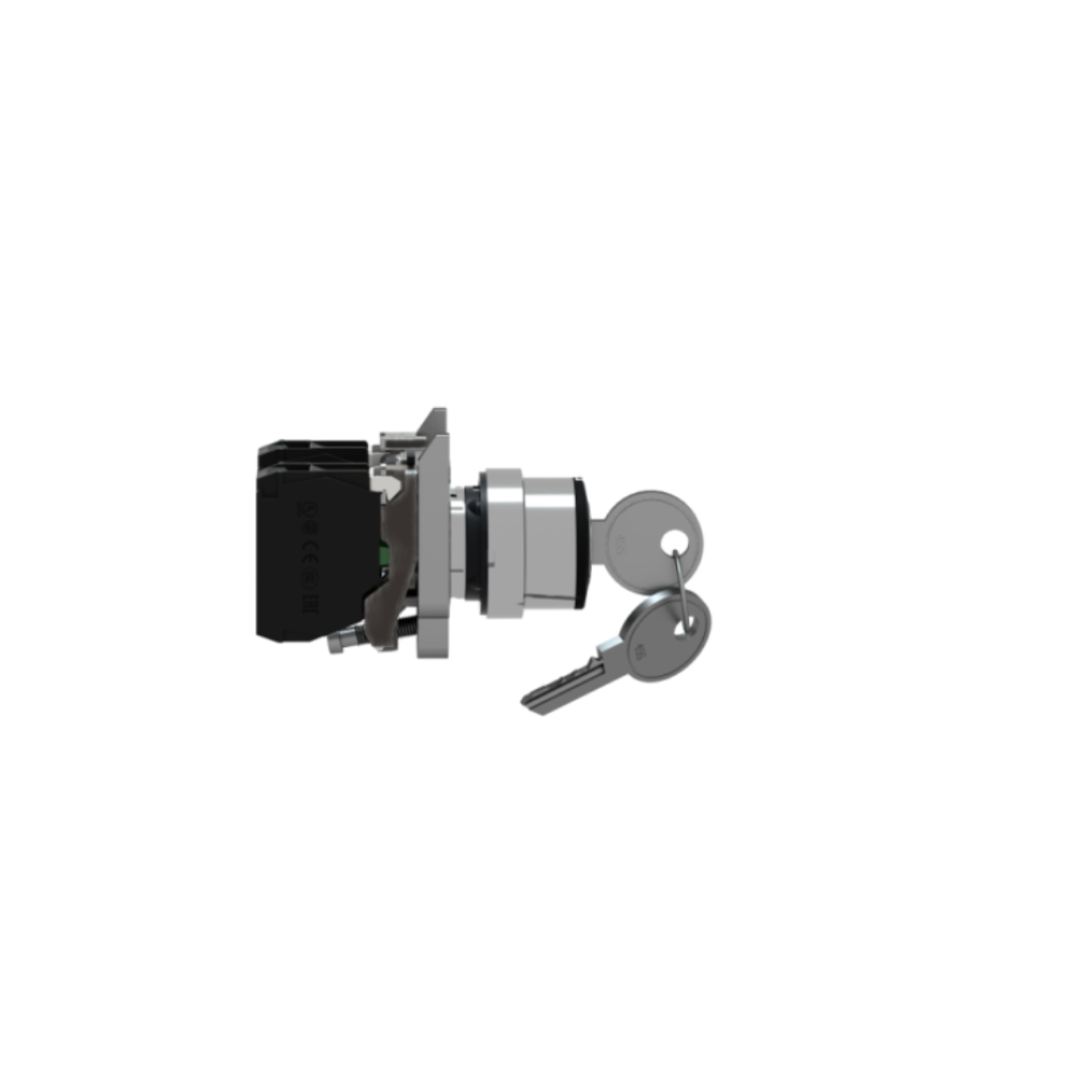

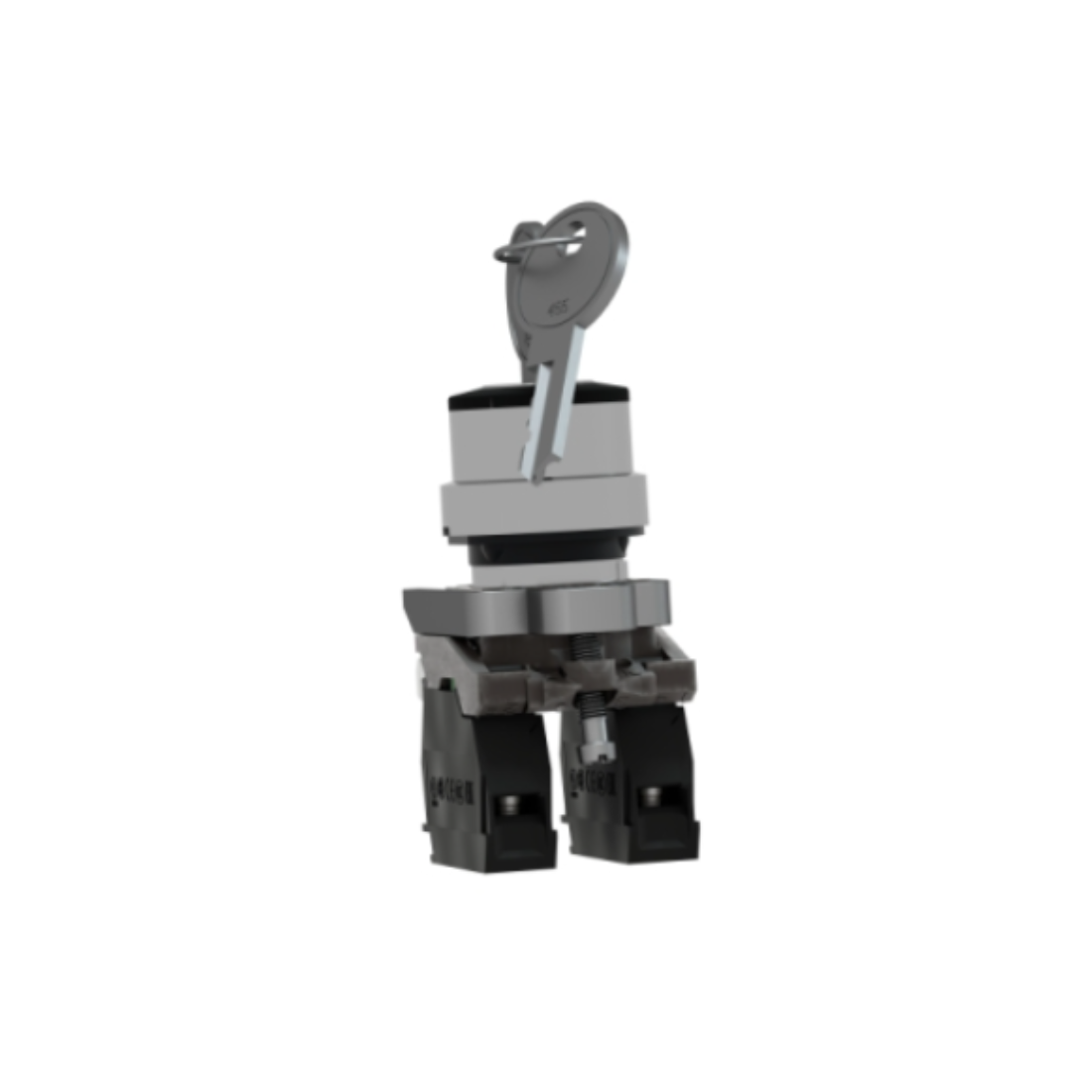

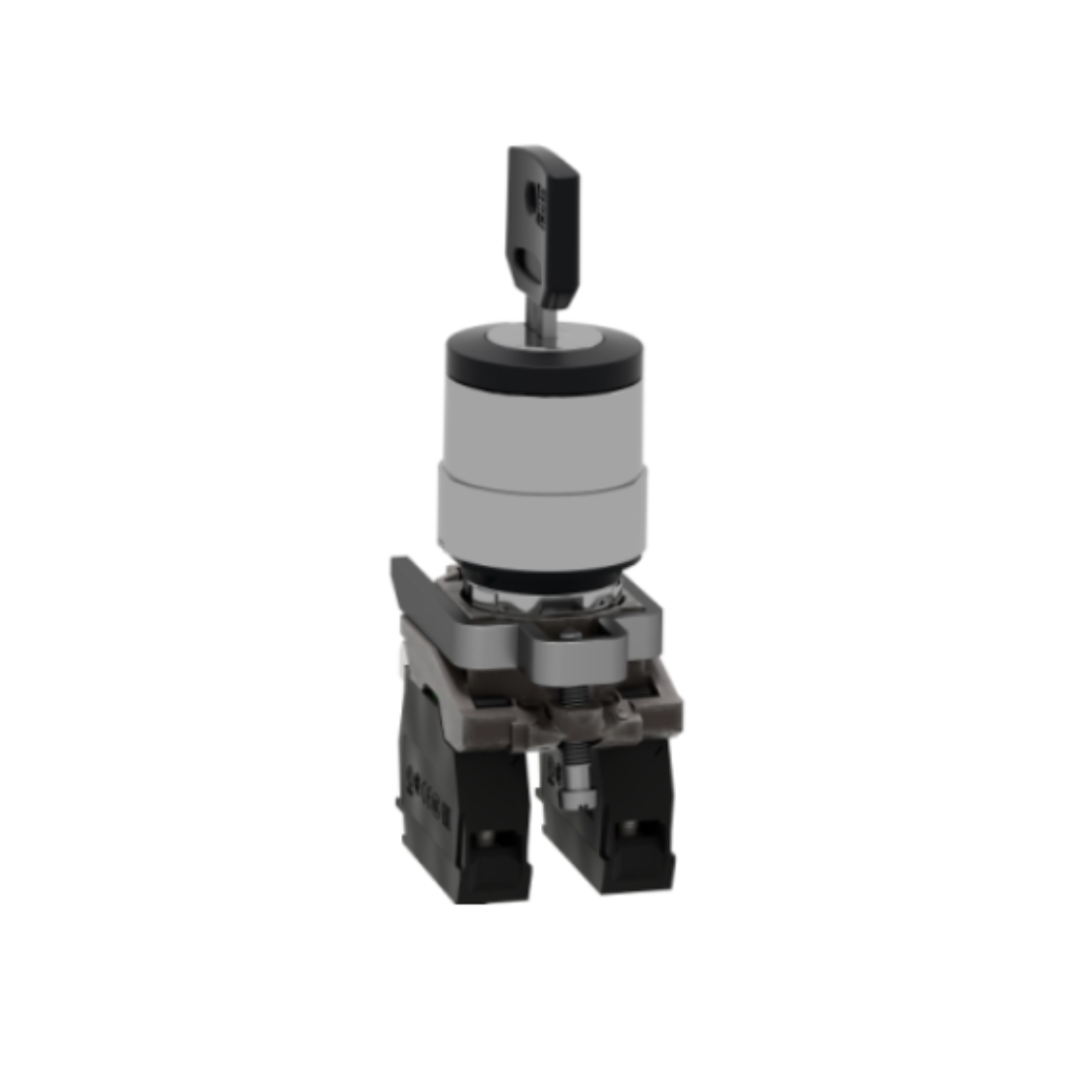

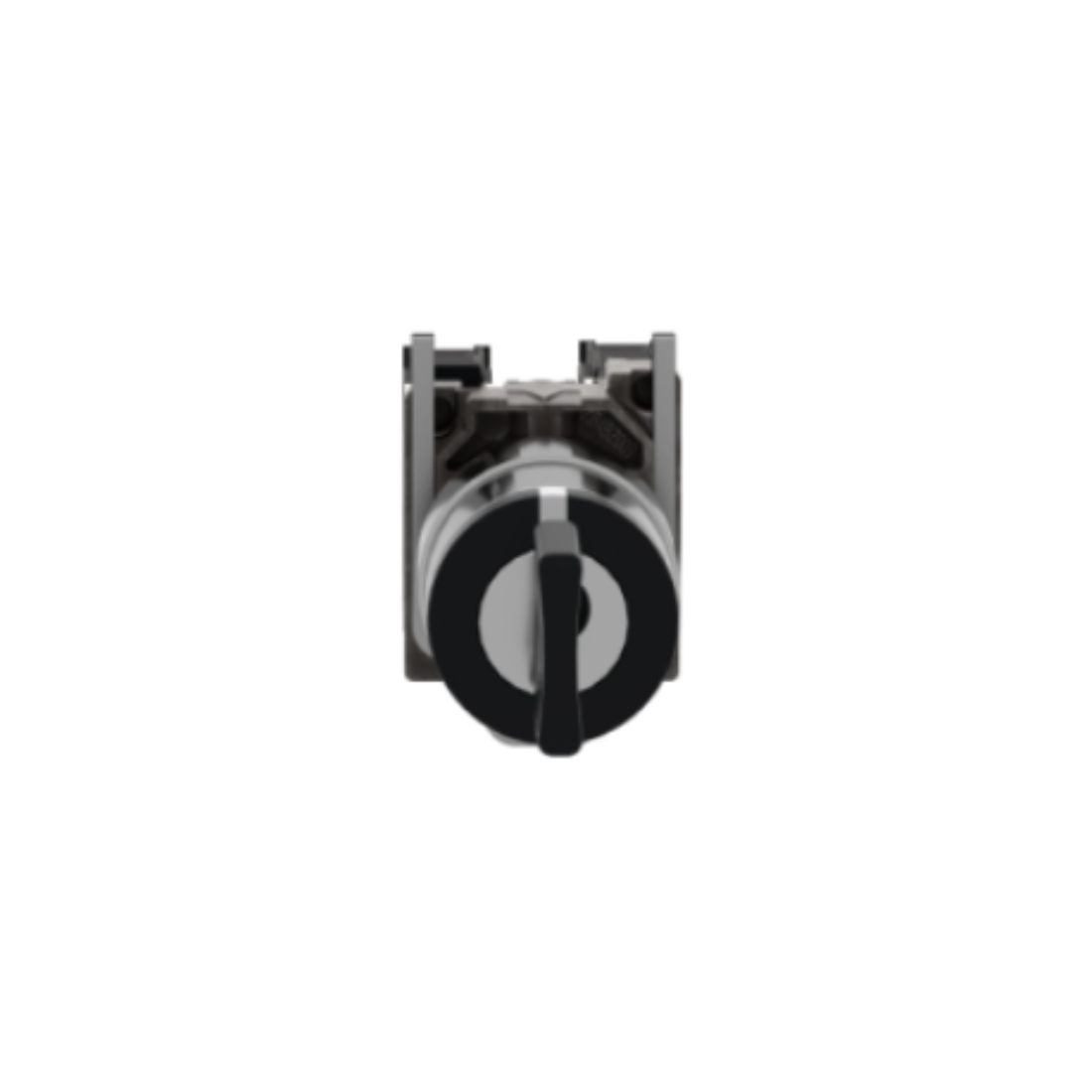

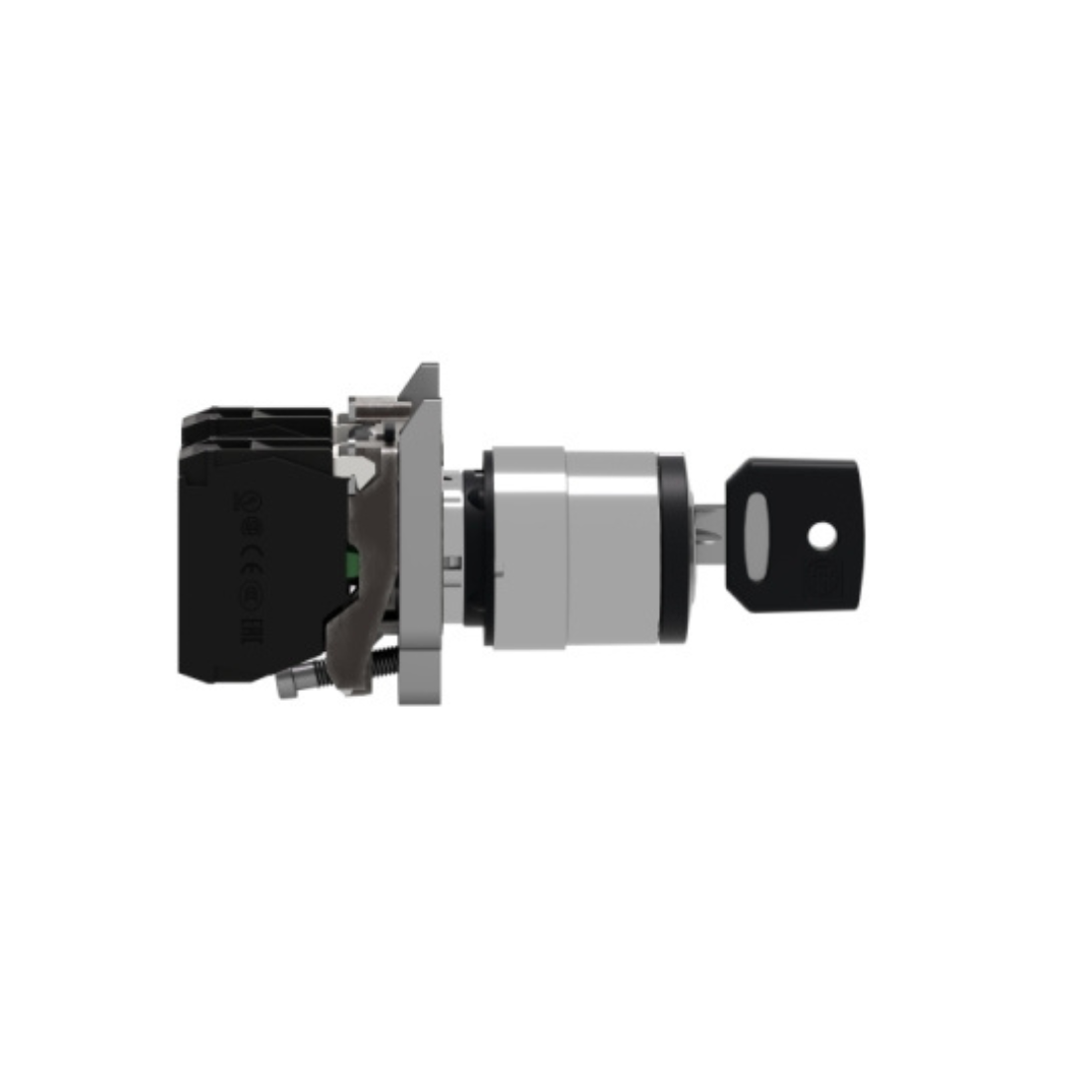

Schneider Electric XB4BG33 Black Key Switch Selector has 3 positions, operates with a stay-put mechanism with key withdrawal on the center position. It has a metal bezel. This key selector switch provides a versatile interface for controlling the machines. Easily installs into standard 22mm diameter cutouts and connects to the control circuits using simple screw terminal connections.
Provides authorized personnel with a secure way to switch between process or machine operating modes. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments.
Features
- Provides a versatile interface for controlling the machines.
- It has a metal bezel
- Connected with simple screw terminal connections.
| Brand | Schneider Electric |
| Item Name | Key Switch Selector |
| Model | XB4BG33 |
| Conventional Free Air Thermal Current | 10 A conforming to EN/IEC 60947-5-1 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand Voltage | 6 kV conforming to EN 60947-1 |
| Rated Supply Voltage | 600V |
| Bezel Material | Chromium plated metal |
| Cap/Operator Or Lens Color | Black |
| Compatibility Code | XB4 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| Contact Operation | Slow-break |
| Contacts Material | Silver alloy (Ag/Ni) |
| Depth | 86 mm |
| Electrical Reliability | λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| Height | 47 mm |
| Fixing Collar Material | Zamak |
| IK Degree Of Protection | IK06 with keyhole cover ZBGP conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Key Withdrawal Position | Center |
| Mechanical Durability | 1000000 cycles |
| Mounting Diameter | 22 mm |
| Operator Position Information | 3 positions +/- 45° |
| Operator Profile | Key switch |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Positive Opening | Without |
| Protective Treatment | TH |
| Certifications | UL, BV, CSA, LROS (Lloyds register of shipping), GL, DNV |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |

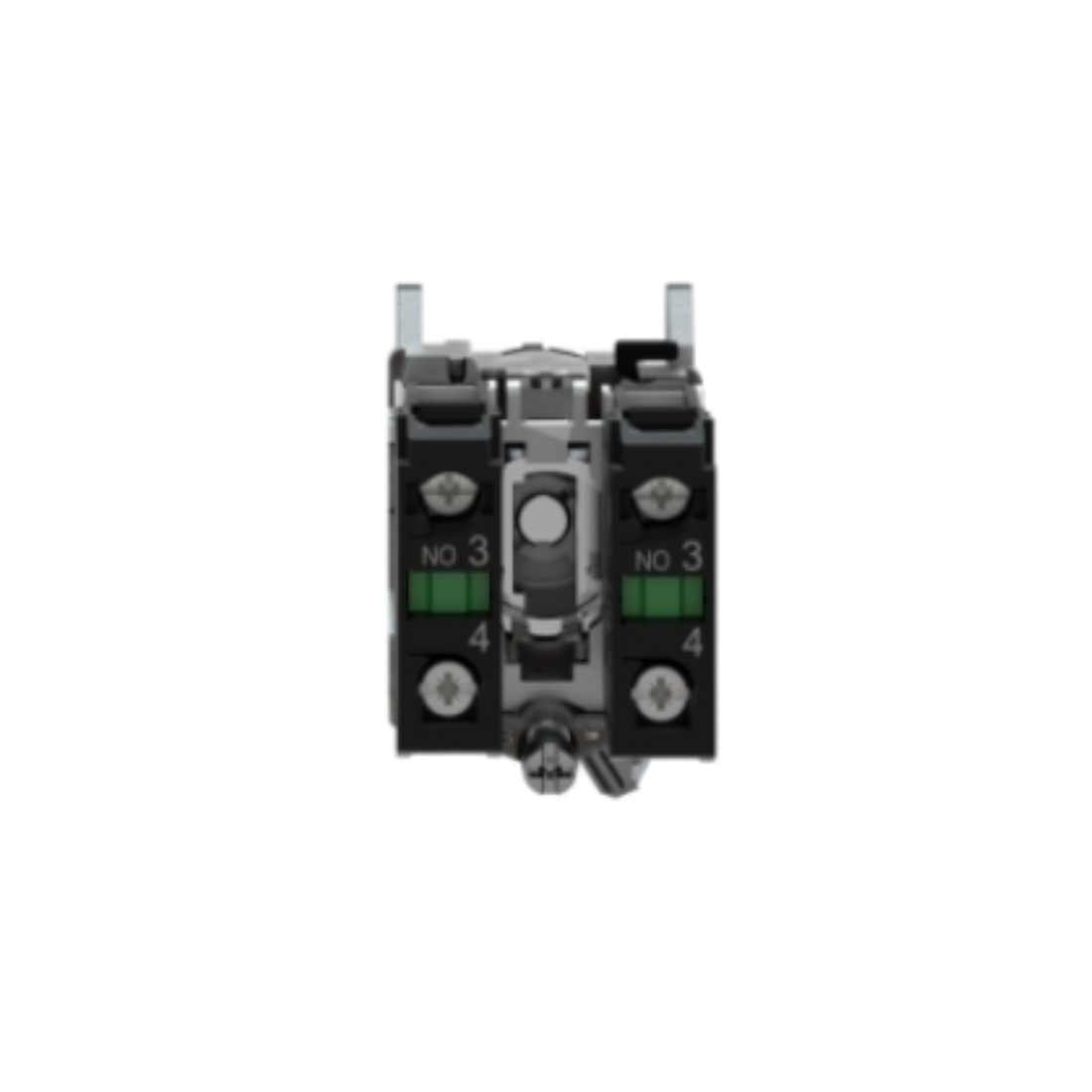

| Terminals Description ISO n°1 | (23-24)NO, (13-14)NO |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Type Of Operator | Stay put |
| Width | 30 mm |
| Contacts Type And Composition | 2 NO |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | No |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts Usage | Standard contacts |
| Torque Value | 0.14 N.m NO changing electrical state |
| Type of Keylock | Key 455 |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-5, UL 508, EN/IEC 60947-5-1, JIS C8201-5-1, JIS C8201-1 |
| Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C |
| Device Presentation | Complete Product |
| Weight | 0.127 kg |
