Schneider Electric Harmony XB4 Key Switch Selector Head Metal Black Ø22 Key n°455 2 Positions Stay Put ZB4BG4

Regular price AED 102.90
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Key Selector Switch
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

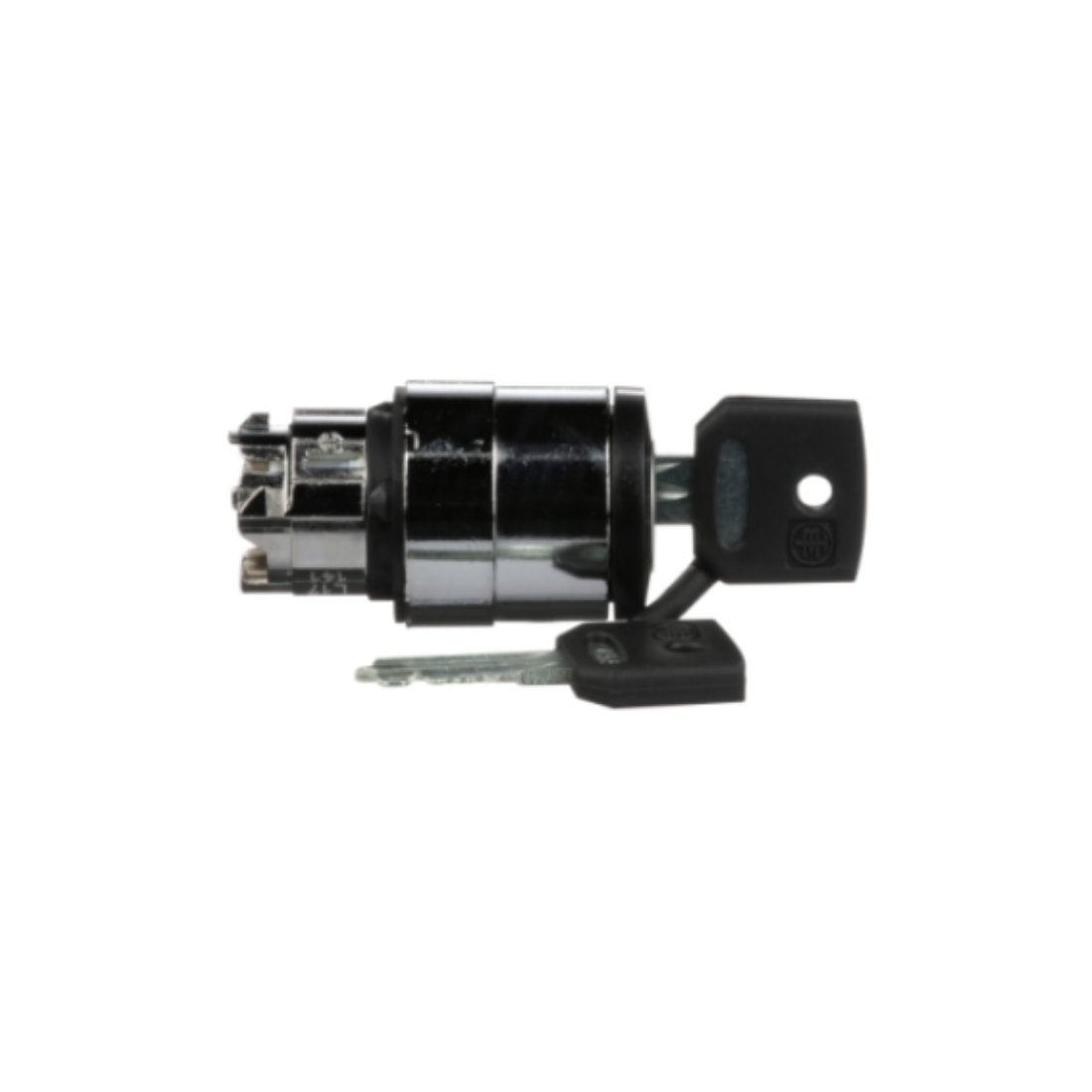

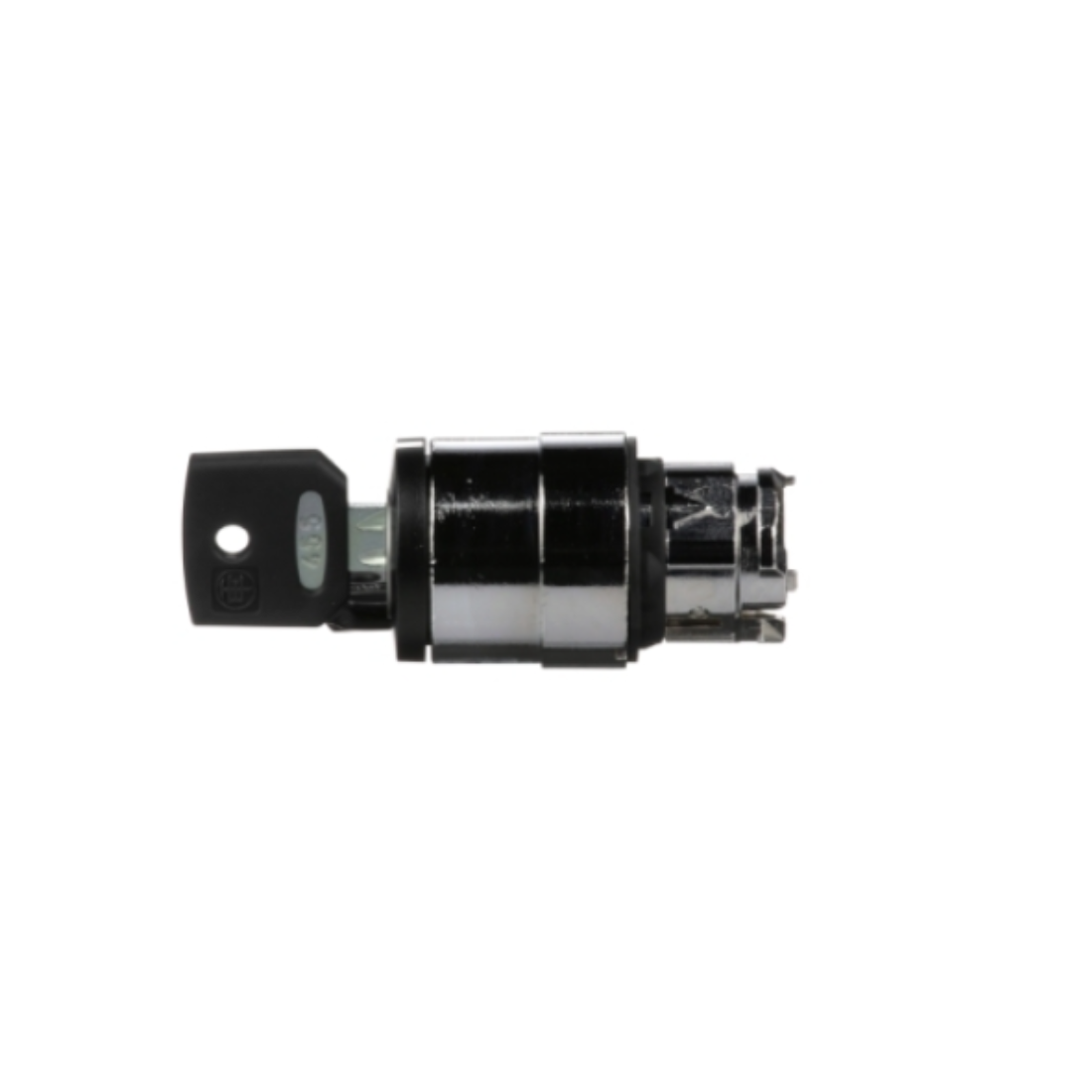

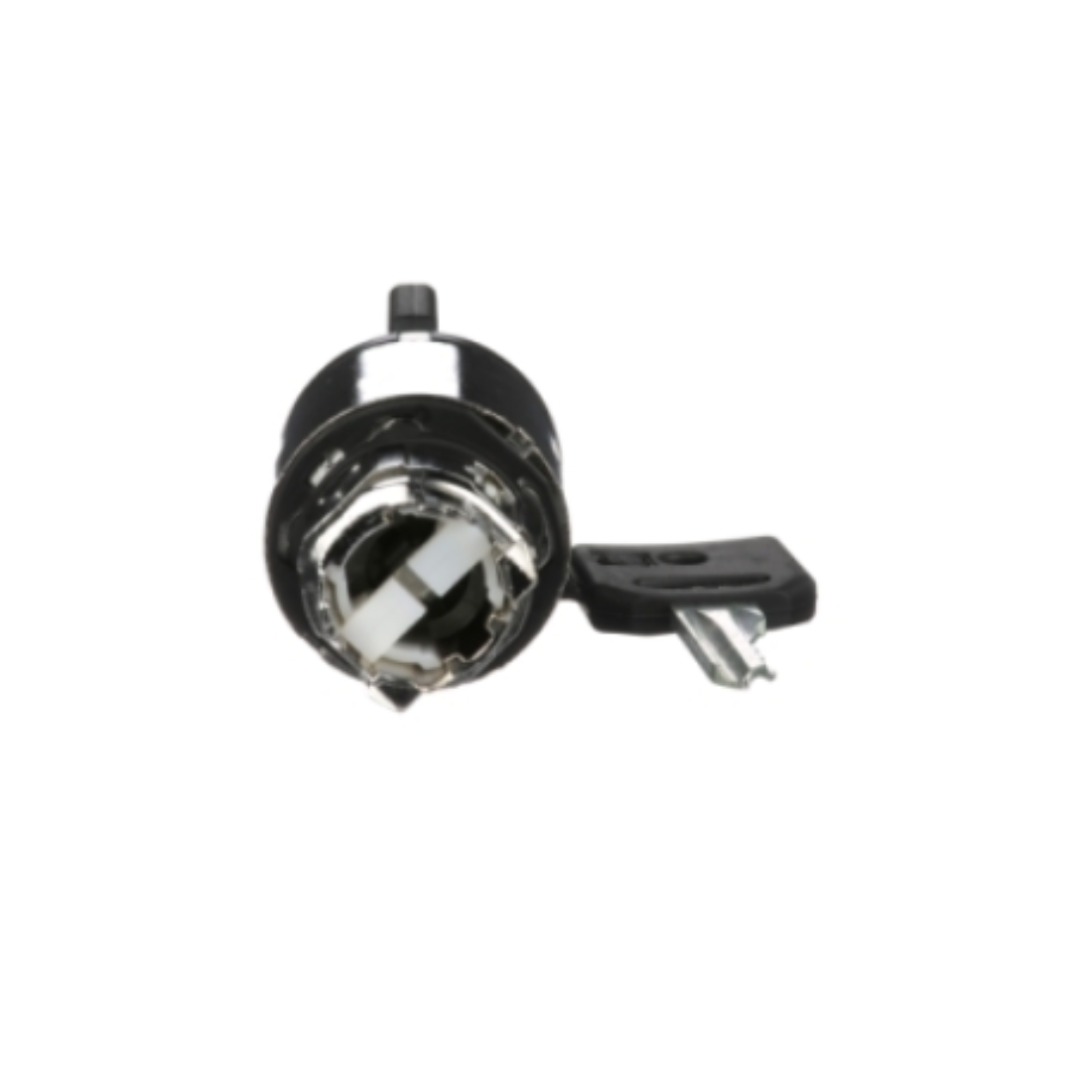

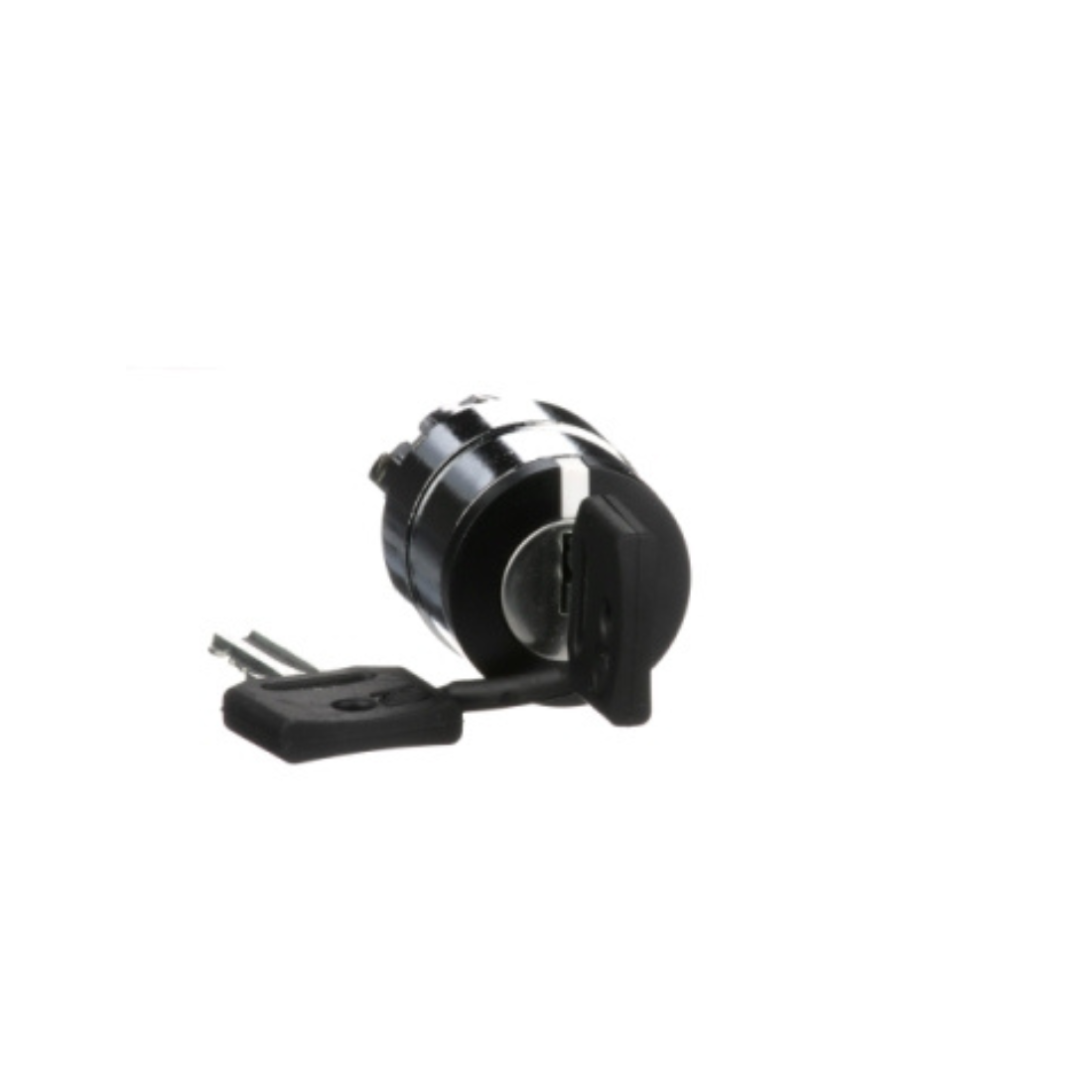

    Schneider Electric ZB4BG4 Black Key Selector Switch Head with key (key no.455) for key selector switch has 2 positions, operates with stay-put mechanism with key withdrawal on left and right position. It provides a versatile interface for controlling the machines. Easily installed and replaced on compatible complete key selector switch units to provide authorized personnel with a safe way to switch between process or machine modes of operation.

    Thanks to IP66, it is shock, dust, water and vibration proof. It has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Secure machine and system operation with key, only available to authorized operators. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.

    Features
    • Quick and easy assembly and disassembly
    • Robustness to withstand harsh environments
    • Various types of connection: screw clamp, connector, Fast on connector or spring terminal
    • Excellent mechanical connection with operator head
    • A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Head For Key Selector Switch

    Model : ZB4BG4

    Bezel Material : Chromium plated metal

    Compatibility Code : ZB4

    CAD Overall Depth : 72 mm

    CAD Overall Height : 29 mm

    CAD Overall Width : 29 mm

    IK Degree Of Protection : IK06 with keyhole cover ZBGP conforming to IEC 50102

    IP Degree Of Protection : IP66 conforming to IEC 60529, IP69, IP69K, IP67

    Key Withdrawal Position : In any position

    Mechanical Durability : 1000000 cycles

    Mounting Diameter : 22 mm

    Operator Position Information : 2 positions 90°

    Operator Profile : Black Key switch

    Overvoltage Category : Class I conforming to IEC 60536

    Positive Opening : Without

    Protective Treatment : TH

    Certifications : GL, UL listed, LROS (Lloyds register of shipping), CSA, DNV, BV

    Range Of Product : Harmony XB4

    Sale Per Indivisible Quantity : 1

    Shape of Signaling Unit Head : Round

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    NEMA Degree Of Protection : NEMA 13, NEMA 4X

    Group Of Product : Key switch

    Customizable : No

    Head Type : Standard

    Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

    Main Group : Selector switch

    Electrical Composition Code : C3 for <6 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting

    Type of Keylock : Key 455

    Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -40-70 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Standards : EN/IEC 60947-1, GB 14048.5, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-5-5, CSA C22.2 No 14

    Device Presentation : Basic Element

    Weight : 0.098 kg
