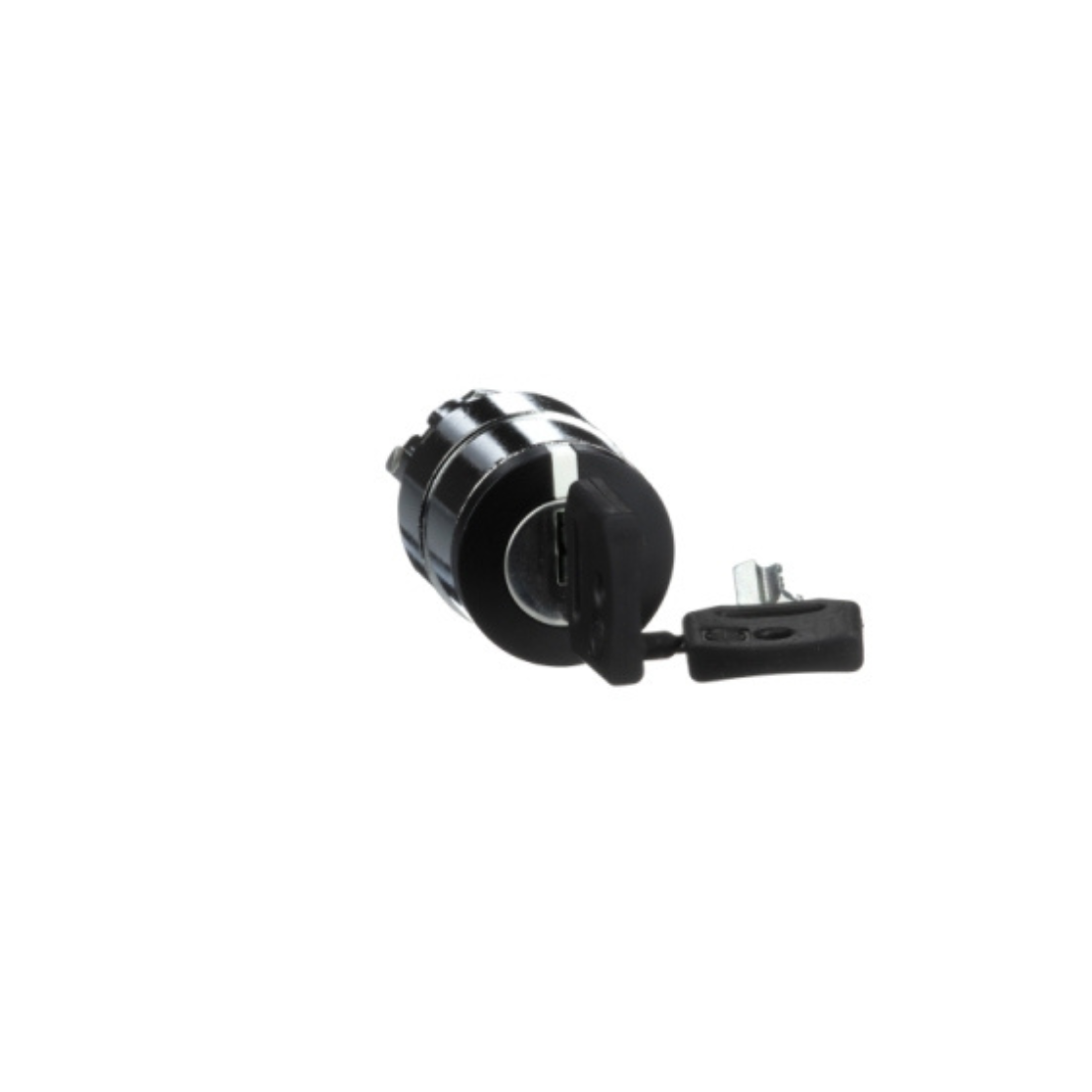

Schneider Electric Harmony XB4 Key Selector Switch Head Metal Black Ø22 Key 455 2 Positions Stay Put ZB4BG2

Name: Schneider Electric Harmony XB4 Key Selector Switch Head Metal Black Ø22 Key 455 2 Positions Stay Put ZB4BG2
Brand: Schneider Electric
Price: 94.5 AED
Availability: InStock

AED 94.50

(Price Inclusive of VAT)

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Key Selector Switch

Description

Schneider Electric ZB4BG2 Black Key Selector Switch Head has 2 positions, operates with stay-put mechanism with key withdrawal on left position. It provides a versatile interface for controlling the machines. Easily installed and replaced on compatible complete key selector switch units to provide authorized personnel with a safe way to switch between process or machine modes of operation. Thanks to IP66, it is shock, dust, water and vibration proof. It has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations.

Schneider Electric ZB4BG2 Black Key Selector Switch Head is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Secure machine and system operation with key, only available to authorized operators. Its wide operating temperature range of -40°C to 70°C allows the key selector switch to be used in a variety of ways. Key removal is only possible in one of the positions, allowing advanced locking between different parts of a machine or process while limiting human error.

Features

Provides a versatile interface for controlling the machines.
IP66 Protection
Shock, dust, water and vibration proof
It has a metal bezel

Specifications

Brand : Schneider Electric

Item Name : Head For Key Selector Switch

Model : ZB4BG2

Bezel Material : Chromium plated metal

Compatibility Code : ZB4

CAD Overall Depth : 72 mm

CAD Overall Height : 29 mm

CAD Overall Width : 29 mm

IK Degree Of Protection : IK06 with keyhole cover ZBGP conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP69, IP69K, IP67

Key Withdrawal Position : In any position

Mechanical Durability : 1000000 cycles

Mounting Diameter : 22 mm

Operator Position Information : 2 positions 90°

Operator Profile : Black Key switch

Overvoltage Category : Class I conforming to IEC 60536

Protective Treatment : TH

Certifications : GL, UL listed, LROS (Lloyds register of shipping), CSA, DNV, BV

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Shape of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Group Of Product : Key switch

Customizable : 0

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

Main Group : Selector switch

Electrical Composition Code : C3 for <6 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting

Type of Keylock : Key 455

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : EN/IEC 60947-1, GB 14048.5, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-5-5, CSA C22.2 No 14

Device Presentation : Basic Element

Weight : 0.098 kg
