Brand : Schneider Electric

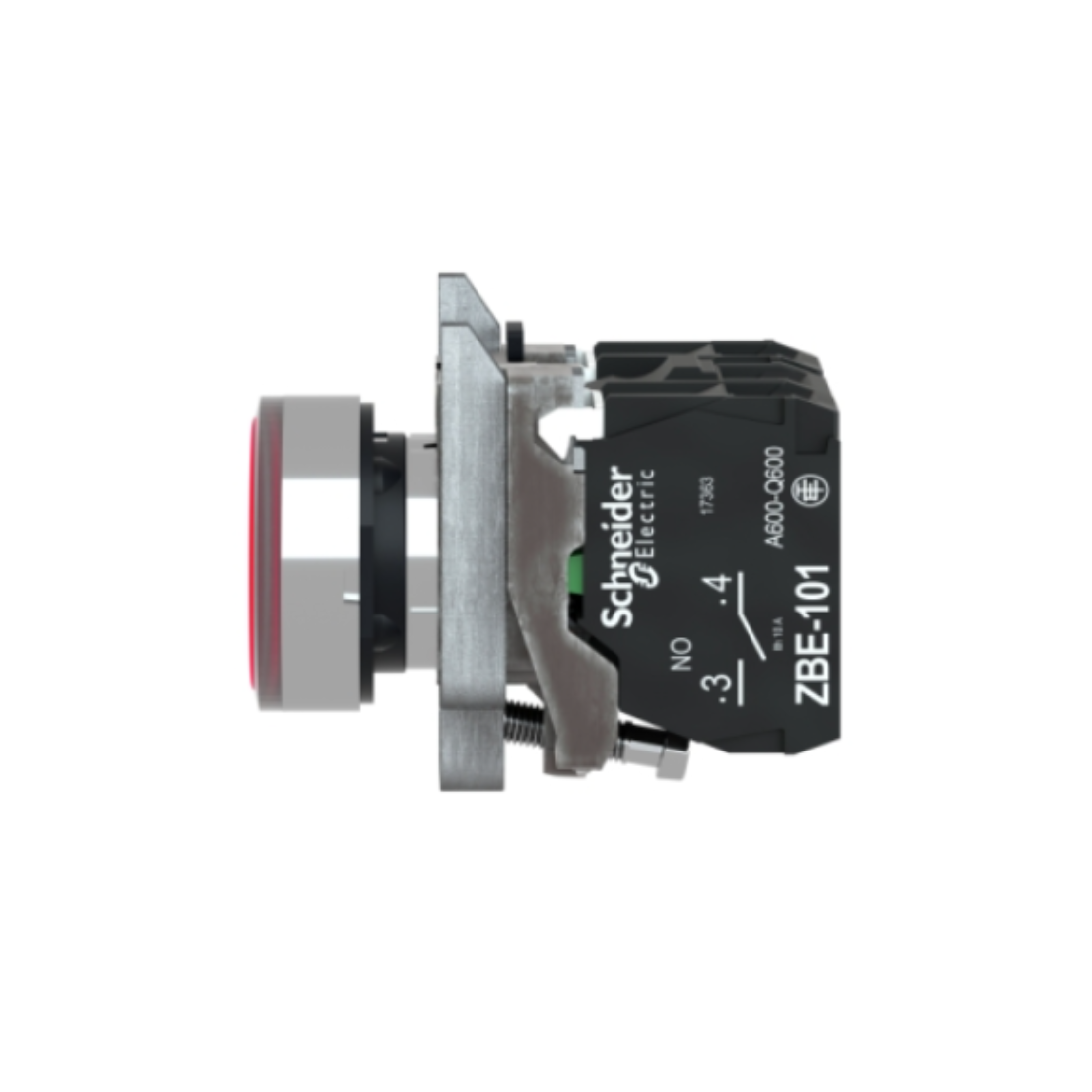

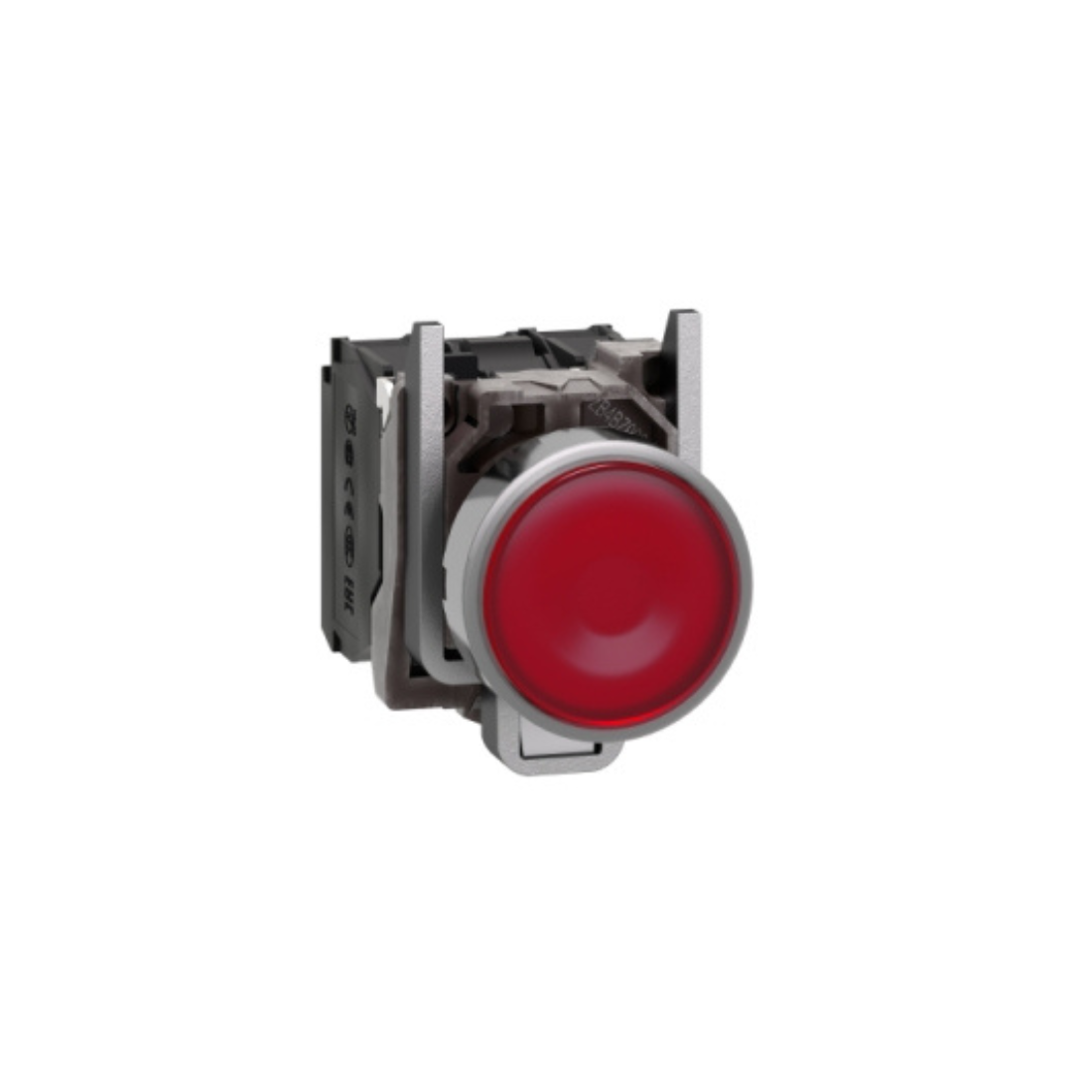

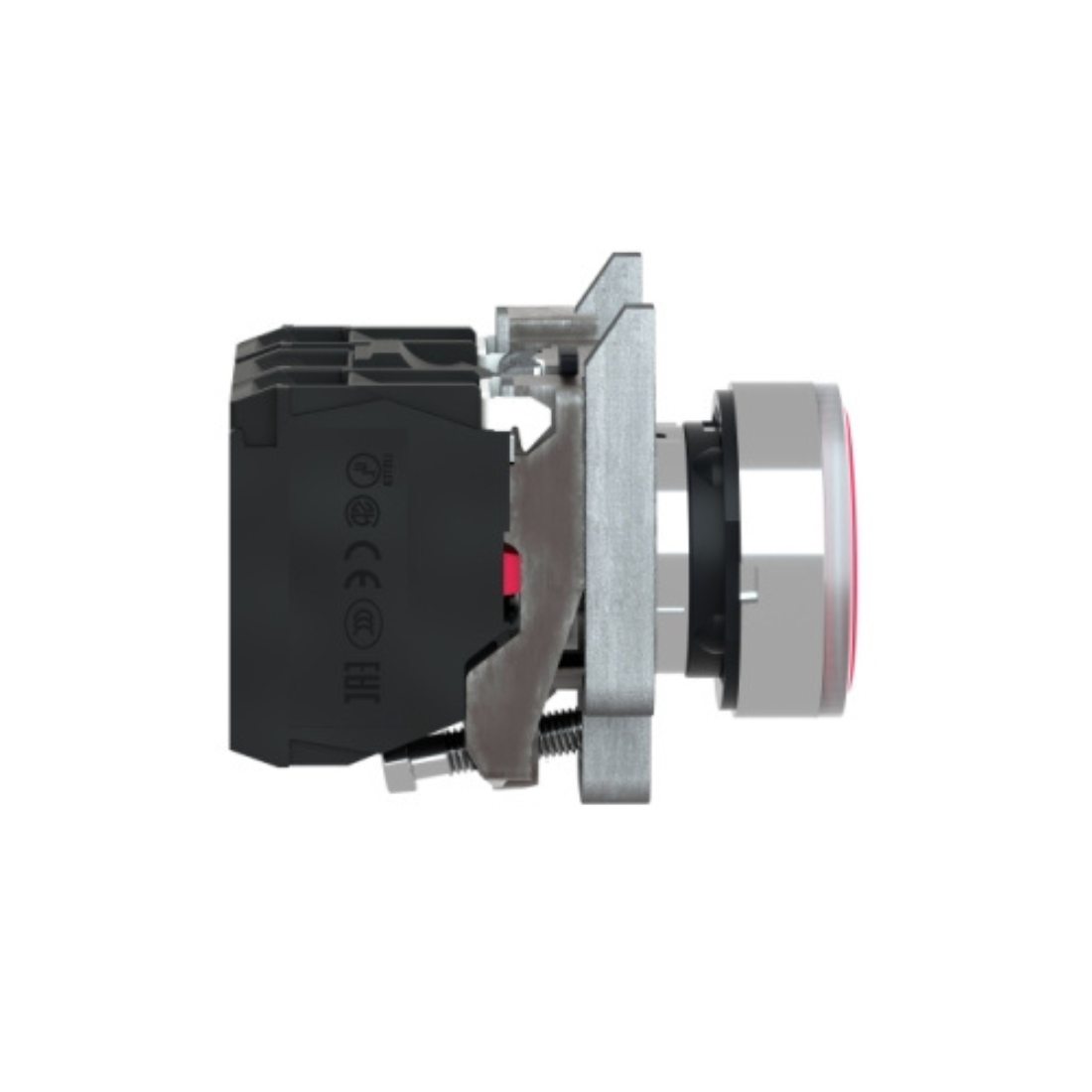

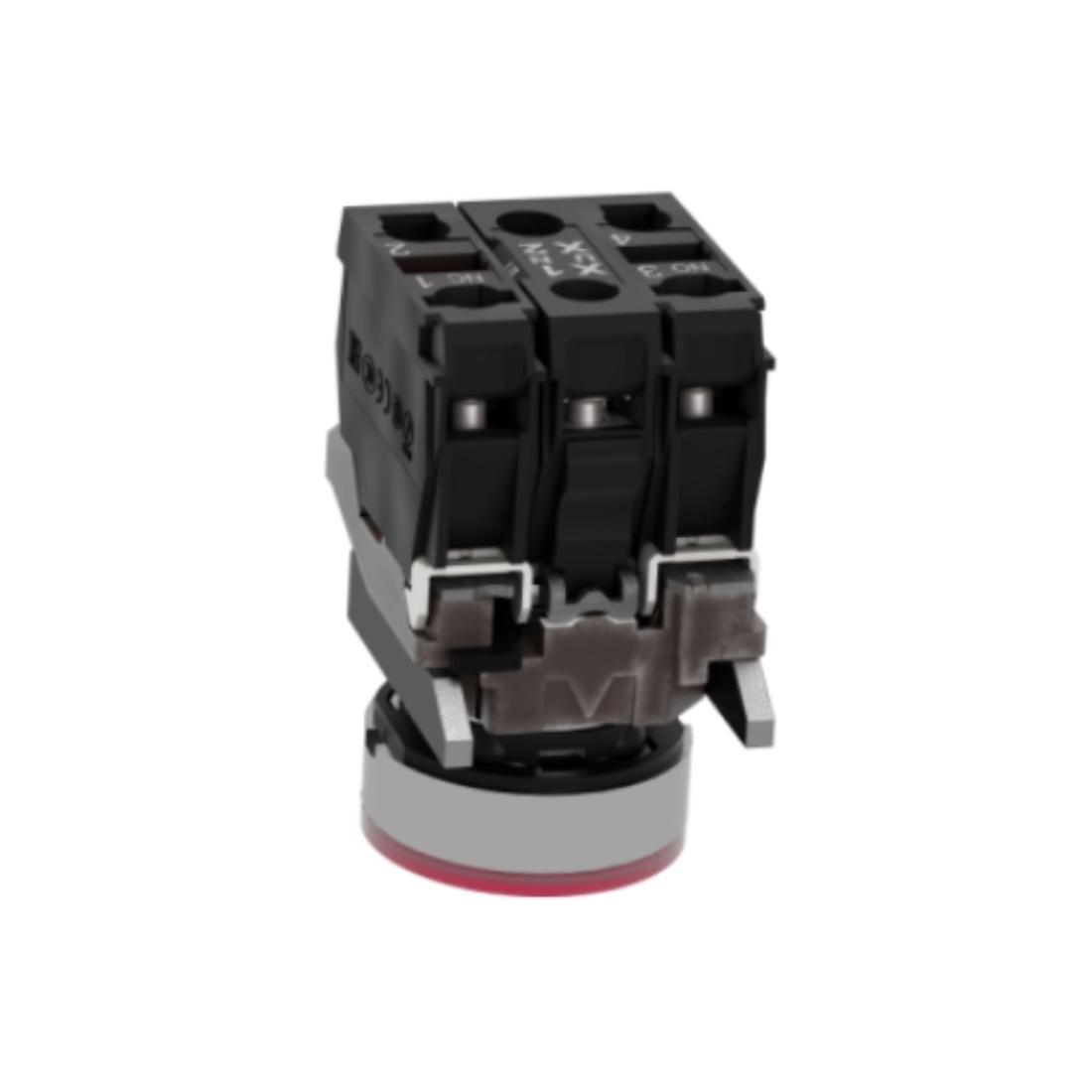

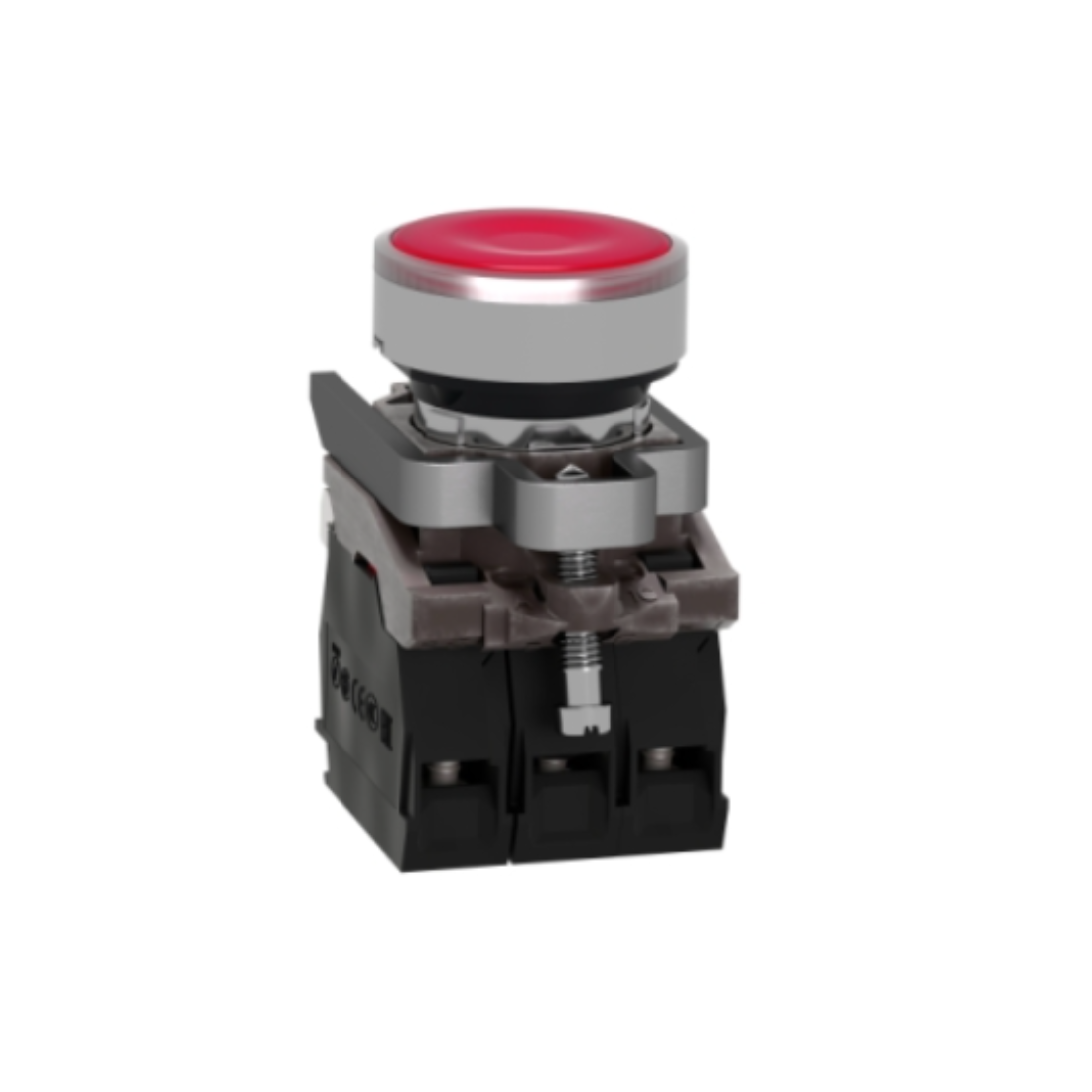

Item Name : Illuminated Push-Button

Model : XB4BW34B5

Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1

Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN/IEC 60947-1

Rated Impulse Withstand : 6 kV conforming to EN/IEC 60947-1

Rated Supply Voltage : 24 V AC/DC at 50/60 Hz

Bezel Material : Chromium plated metal

Bulb Base : Integral LED

Cap/Operator Or Lens Color : Red

Compatibility Code : XB4

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Contact Operation : Slow-break

Contacts Material : Silver alloy (Ag/Ni)

Current Consumption : 18 mA

Depth : 57 mm

Electrical Reliability : λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4

Fixing Collar Material : Zamak

Height : 47 mm

IK Degree of Protection : IK06 conforming to IEC 50102

IP Degree of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

Light Source : Universal LED

Mechanical Durability : 10000000 cycles

Mounting Diameter : 22 mm

Operator Profile : Red flush

Positive Opening : With conforming to EN/IEC 60947-5-1 appendix K

Certifications : BV, UL listed, DNV, CSA, LROS (Lloyds register of shipping), GL

Protective Treatment : TH

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Service Life : 100000 h at rated voltage and 25 °C

Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

Shape of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Signalling Type : Steady

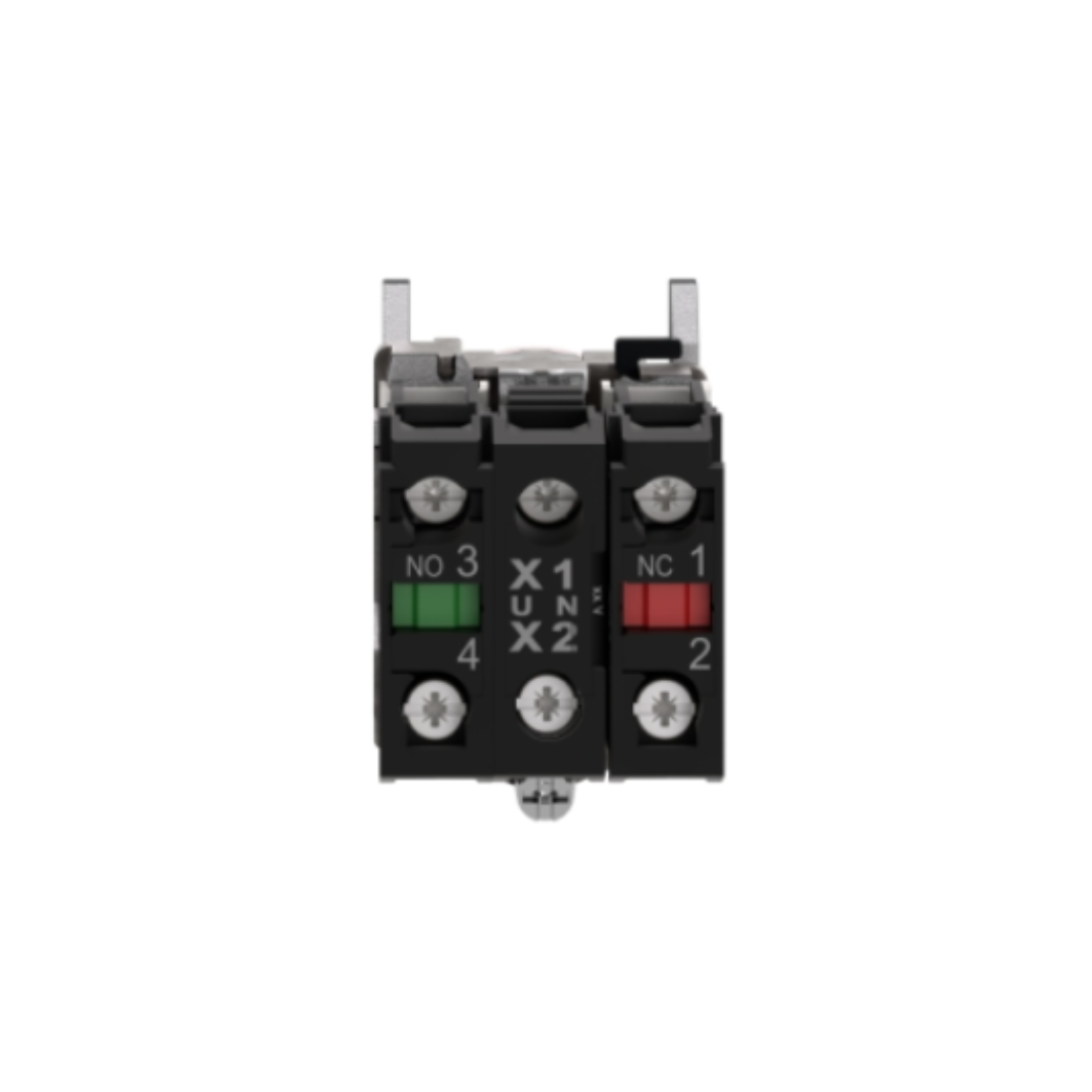

Terminals Description ISO n°1 : (21-22)NC, (13-14)NO

Supply Voltage Limits : 19.2-30 V DC, 21.6-26.4 V AC

Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

Width : 30 mm

Contacts Type And Composition : 1 NO + 1 NC

Type of Operator : Spring Return

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Resistance To Electromagnetic Fields : 10 V/m conforming to IEC 61000-4-3

Operator Additional Information : With plain lens

Customizable : No

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

Contacts Usage : Standard contacts

GCR BRIDGE : XB4BWCUST03

Surge Withstand : 1 kV conforming to IEC 61000-4-5

Resistance To Fast Transients : 2 kV conforming to IEC 61000-4-4

Electromagnetic Emission : Class B conforming to IEC 55011

Contacts Usage : Standard contacts

Operating Force : 3.5 N NC changing electrical state, 3.8 N

Operating Travel : 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel)

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : EN/IEC 60947-5-5, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-5-1, JIS C8201-1

Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Device Presentation : Complete product

Electrical Durability : 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Electrical Shock Protection Class : Class I conforming to IEC 60536

Weight : 0.097 kg
