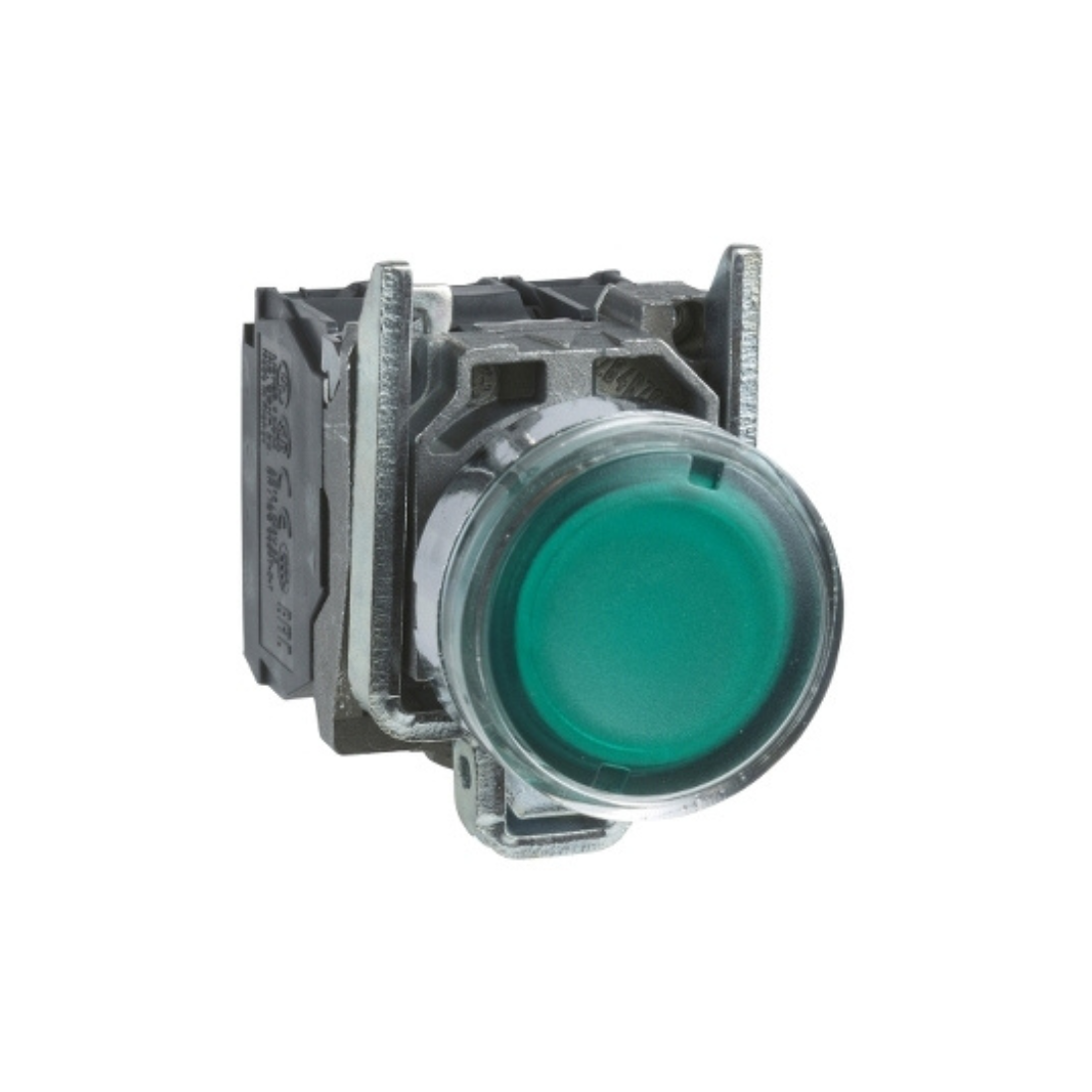

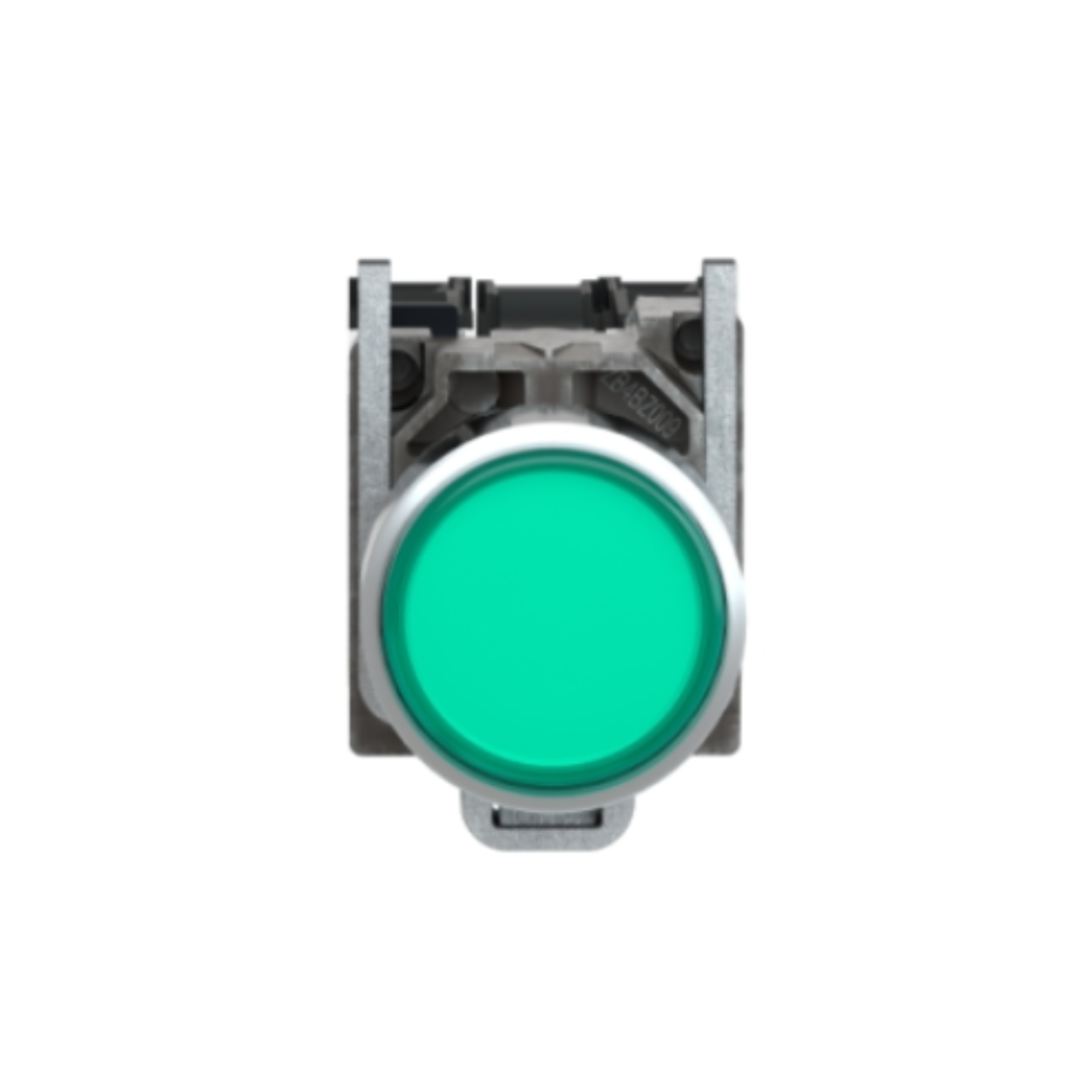

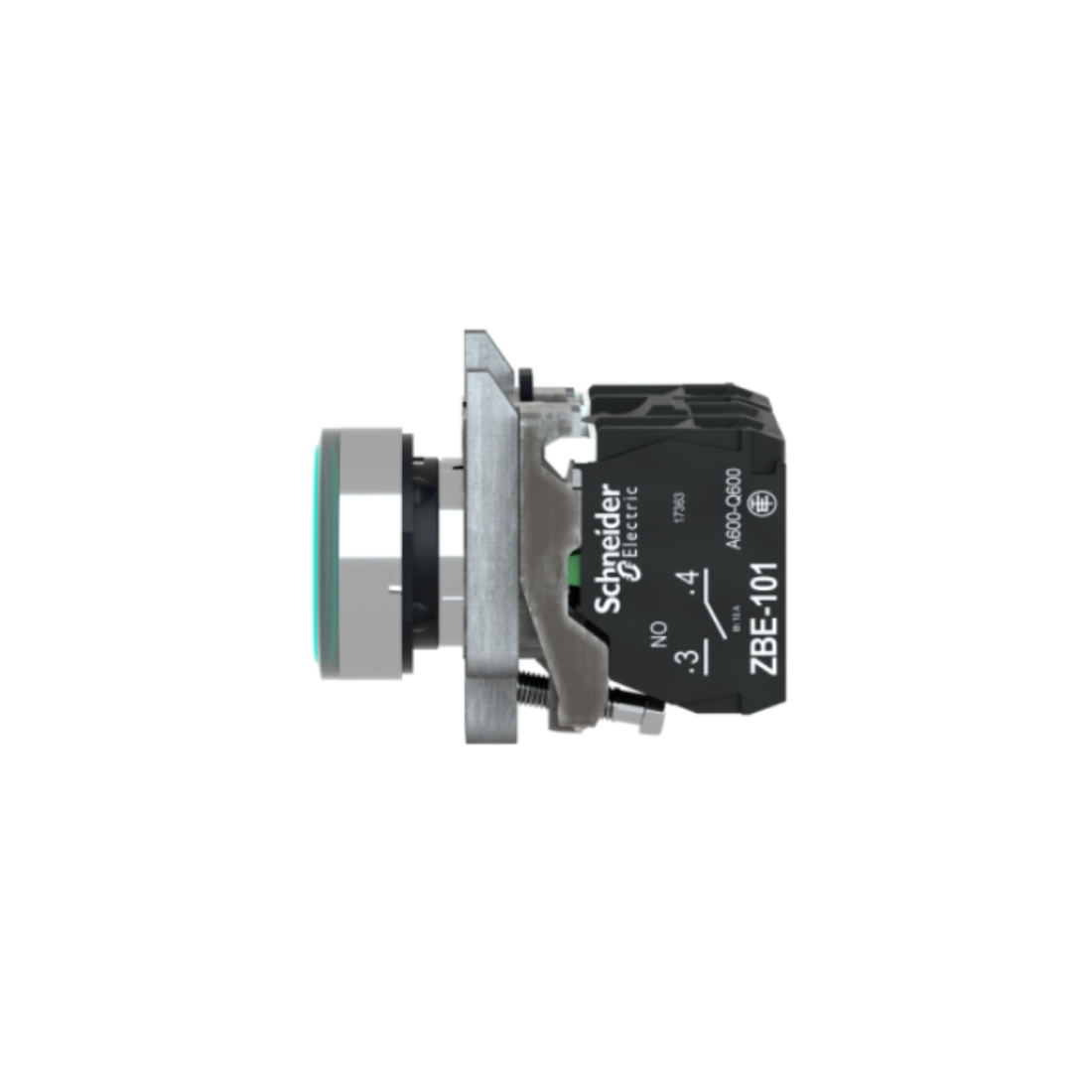

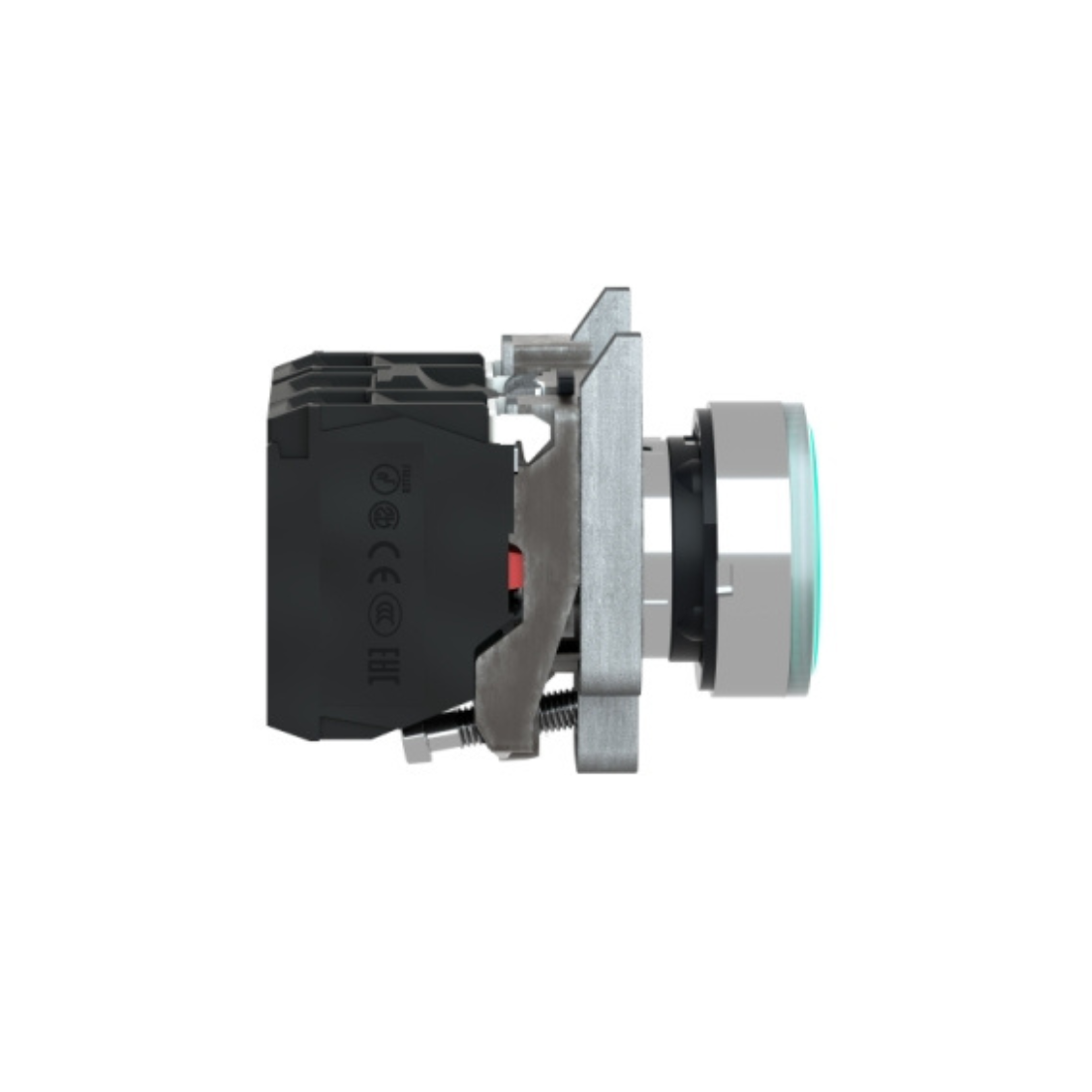

Schneider Electric Harmony XB4 Illuminated Push Button Metal Flush Green Ø22 Spring Return <= 250V 1 NO + 1 NC XB4BW3365

Schneider Electric Harmony XB4 Illuminated Push Button Metal Flush Green Ø22 Spring Return <= 250V 1 NO + 1 NC XB4BW3365

Name: Schneider Electric Harmony XB4 Illuminated Push Button Metal Flush Green Ø22 Spring Return <= 250V 1 NO + 1 NC XB4BW3365
Brand: Schneider Electric
Price: 58.8 AED
Availability: InStock

AED 58.80

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Illuminated Push Button

Description

Schneider Electric XB4BW3365 Green Flush Illuminated Push Button operates with a spring return / impulse mechanism, is supplied with 250V AC/DC. It has a metal bezel. This illuminated push button provides a visual and ergonomic interface to control the machines.

Schneider Electric XB4BW3365 Green Flush Illuminated Push Button can be easily installed into standard 22mm diameter cutouts and connected to control circuits using classic screw terminal connections. Thanks to its illuminated head and light color, it is visually clearly visible from afar. Thanks to IP66/IP67/IP69/IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments.

Features

Operates with a spring return / impulse mechanism, is supplied with 250V AC/DC.
It has a metal bezel
Provides a visual and ergonomic interface to control the machines.
It ideal for use in harsh environments.

Specifications

Brand : Schneider Electric

Item Name : Illuminated Push-Button

Model : XB4BW3365

Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1

Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN/IEC 60947-1

Rated Impulse Withstand : 6 kV conforming to EN/IEC 60947-1

Rated Supply Voltage : <= 250 V

Bezel Material : Chromium plated metal

Bulb Base : BA9s

Cap/Operator Or Lens Color : Green

Compatibility Code : XB4

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Contact Operation : Slow-break

Contacts Material : Silver alloy (Ag/Ni)

Current Consumption : 14 mA

Depth : 57 mm

Electrical Reliability : λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

IK Degree of Protection : IK06 conforming to IEC 50102

IP Degree of Protection : IP66 conforming to IEC 60529, IP69, IP69K, IP67

Light Source : Bulb not included

Fixing Collar Material : Zamak

Height : 47 mm

Mechanical Durability : 10000000 cycles

Mounting Diameter : 22 mm

Operator Profile : Green flush

Positive Opening : With conforming to EN/IEC 60947-5-1 appendix K

Certifications : CSA, BV, GL, DNV, UL listed, LROS (Lloyds register of shipping)

Operator Profile : Green flush, unmarked

Protective Treatment : TH

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

Shape of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Signalling Type : Steady

Supply Voltage Limits : 195-264 V AC

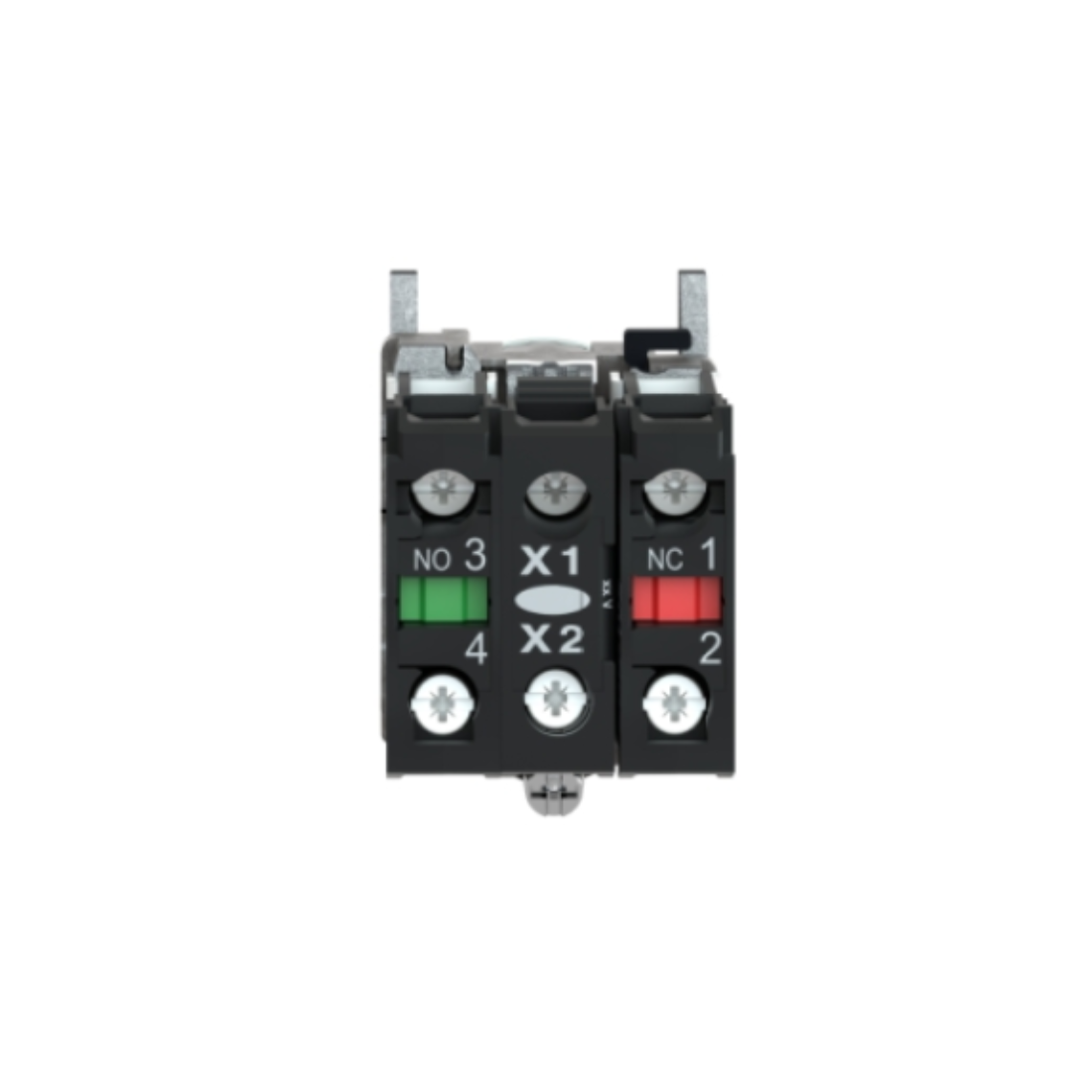

Terminals Description ISO n°1 : (13-14)NO, (21-22)NC

Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

Width : 30 mm

Contacts Type And Composition : 1 NO + 1 NC

Type of Operator : Spring Return

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Resistance To Electromagnetic Fields : 10 V/m conforming to IEC 61000-4-3

Operator Additional Information : With plain lens

Customizable : 0

Light Block Supply : Direct <2.4 W

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

Contacts Usage : Standard contacts

Operating Force : 3.5 N NC changing electrical state, 3.8 N

Operating Travel : 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel)

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-55 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : UL 508, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/IEC 60947-1, CSA C22.2 No 14, JIS C8201-1

Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Device Presentation : Complete product

Electrical Durability : 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Electrical Shock Protection Class : Class I conforming to IEC 60536

Weight : 0.097 kg
