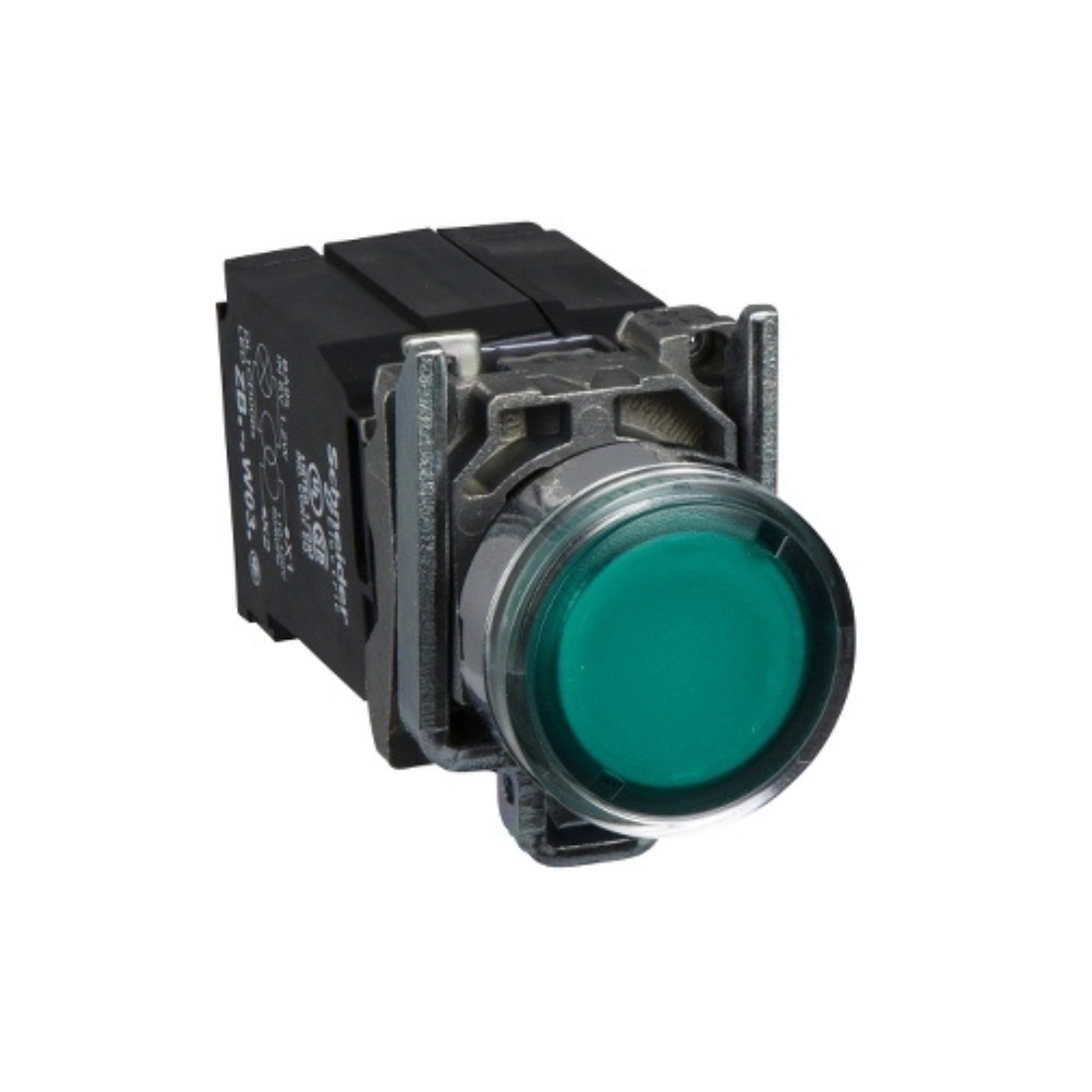

Schneider Electric Harmony XB4 Illuminated Push Button Green Flush 22mm Spring Return 1NO + 1NC 110-120V XB4BW3335

AED 143.85

(Price Includes VAT)

Delivery truck icon

Order Now & Get it by 2 days

Shop logo

Sold by: Marketplace

Free delivery inside Dubai on all orders with no order limit. Pay in 4 interest-free installments for Dubai orders using Tabby.
Cash on delivery payment method icon
Cash on Delivery
7 Days Returnable icon
7 Days Returnable
15+ Years Of Trust icon
15+ Years Of Trust
15+ Branches icon
15+ Branches
Quantity

Brand : Schneider Electric

Type : Illuminated Push Button

Collections

Description

Schneider Electric XB4BW3335 Green Flush Complete Illuminated Push Button operates with a spring return / impulse mechanism, is supplied with 110V to 120V AC/DC, uses an integral transformer with Integral LED. It has a metal bezel. This illuminated pushbutton with integrated transformer provides a visual and ergonomic interface to control the machines.

Schneider Electric XB4BW3335 Green Flush Complete Illuminated Push Button can be easily installed into standard 22mm diameter cutouts and connected to control circuits using classic screw terminal connections. It is clearly visible from a distance thanks to the bright, durable BA9s base and LED lighting. Thanks to IP66/IP67/IP69/IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments.

Features
  • Supplied with 110V to 120V AC/DC
  • It has a metal bezel
  • Provides a visual and ergonomic interface to control the machines.
Specifications
Brand Schneider Electric
Item Name Illuminated Push-Button
Model XB4BW3335
Conventional Free Air Thermal Current 10 A conforming to EN/IEC 60947-5-1
Rated Insulation Voltage 600 V (pollution degree 3) conforming to EN/IEC 60947-1
Rated Impulse Withstand 6 kV conforming to EN/IEC 60947-1
Rated Supply Voltage 110...120 V
Bezel Material Chromium Plated Metal
Bulb Base BA 9s
Cap/Operator Or Lens Colour Green
Compatibility Code XB4
Connections - Terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
Contact Operation Slow-break
Contacts Material Silver alloy (Ag/Ni)
Depth 101 mm
Electrical Reliability λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4
Fixing Collar Material Zamak
Height 47 mm
IK Degree Of Protection IK06 conforming to IEC 50102
IP Degree Of Protection IP66 conforming to IEC 60529, IP69, IP69K, IP67
Light Source Incandescent
Mechanical Durability 10000000 cycles
Mounting Diameter 22 mm
Operator Profile Green flush
Positive Opening With conforming to EN/IEC 60947-5-1 appendix K
Certifications GL, BV, CSA, UL listed, DNV, LROS (Lloyds register of shipping)
Protective Treatment TH
Range Of Product Harmony XB4
Sale Per Indivisible Quantity 1
Shape Of Screw Head Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver
Shape of Signaling Unit Head Round
Shock Resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Short-Circuit Protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Signalling Type Steady
Terminals Description (13-14)NO, (21-22)NC
Tightening Torque 0.8-1.2 N.m conforming to EN 60947-1
Width 30 mm
Contacts Type And Composition 1 NO + 1 NC
Type of Operator Spring Return
NEMA Degree Of Protection NEMA 13, NEMA 4X
Resistance To Electromagnetic Fields 10 V/m conforming to IEC 61000-4-3
Light Block Supply Via integral transformer 1.2 VA 6 V
Operator Additional Information With plain lens
Customizable 0
Head Type Standard
Resistance To High Pressure Washer 7000000 Pa at 55 °C, distance : 0.1 m
Contacts Usage Standard contacts
Operating Force 3.5 N NC changing electrical state, 3.8 N
Operating Travel 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel)
Vibration Resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Ambient Air Temperature For Operation -40-55 °C
Ambient Air Temperature For Storage -40-70 °C
Standards EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-5, UL 508, JIS C8201-1
Rated Operational Current 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Device Presentation Complete product
Electrical Durability 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Electrical Shock Protection Class Class I conforming to IEC 60536
Weight 0.169 kg
