Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353
Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353
Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353
Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353
Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353
Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353
Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353
Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353
Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353
Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353
Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353

Schneider Electric Harmony XB4 Head for Illuminated Push Button Metal Orange Flush 22mm Universal LED Spring Return Plan Lens ZB4BW353

Regular price AED 35.70
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Illuminated Pushbutton Head
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

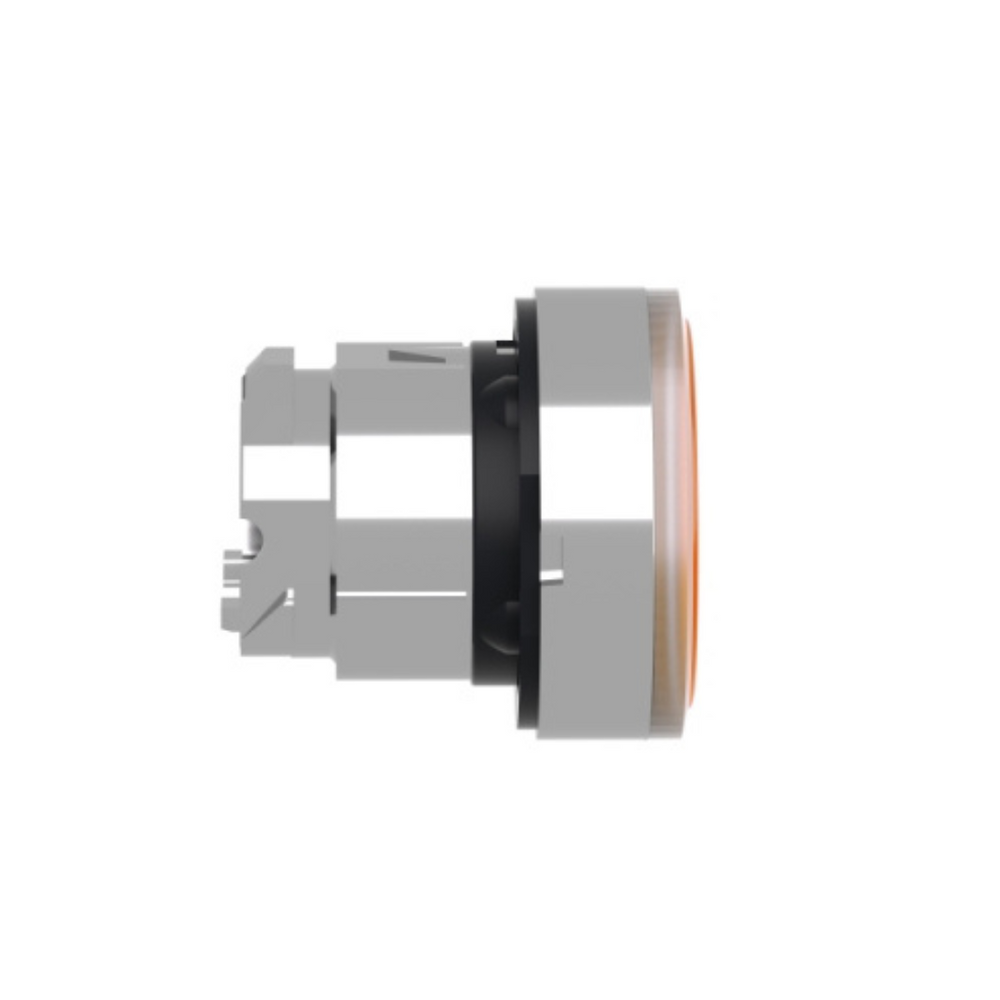

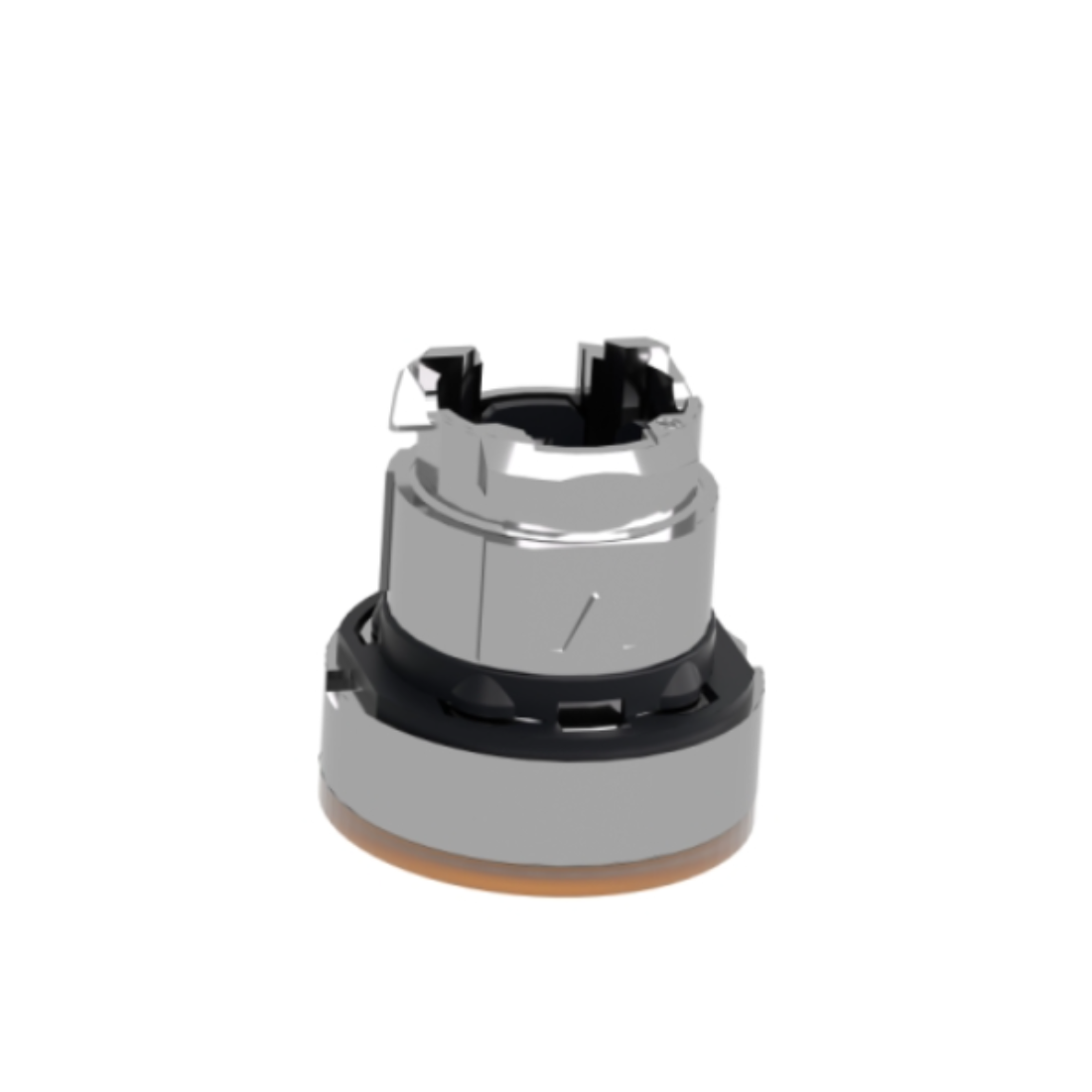

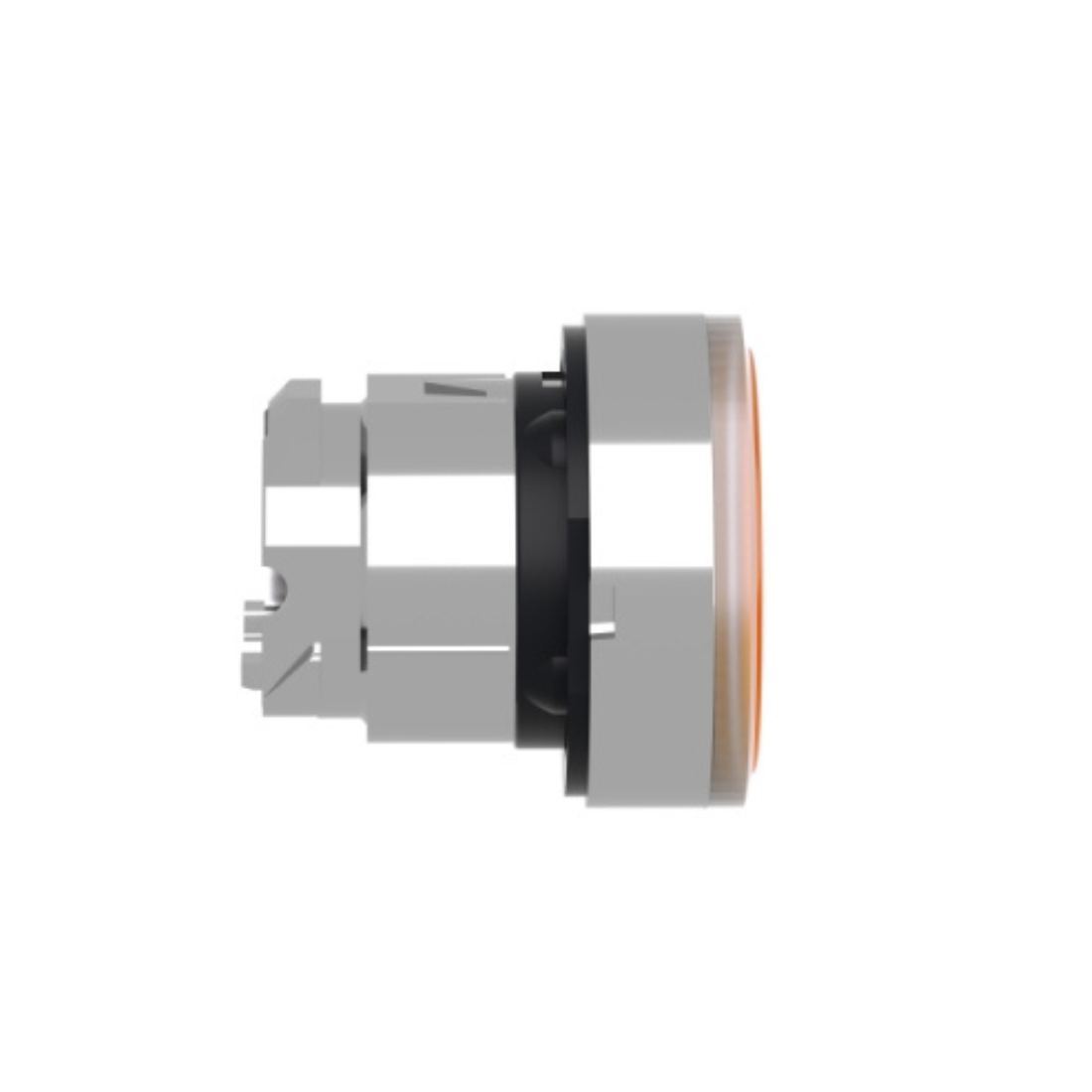

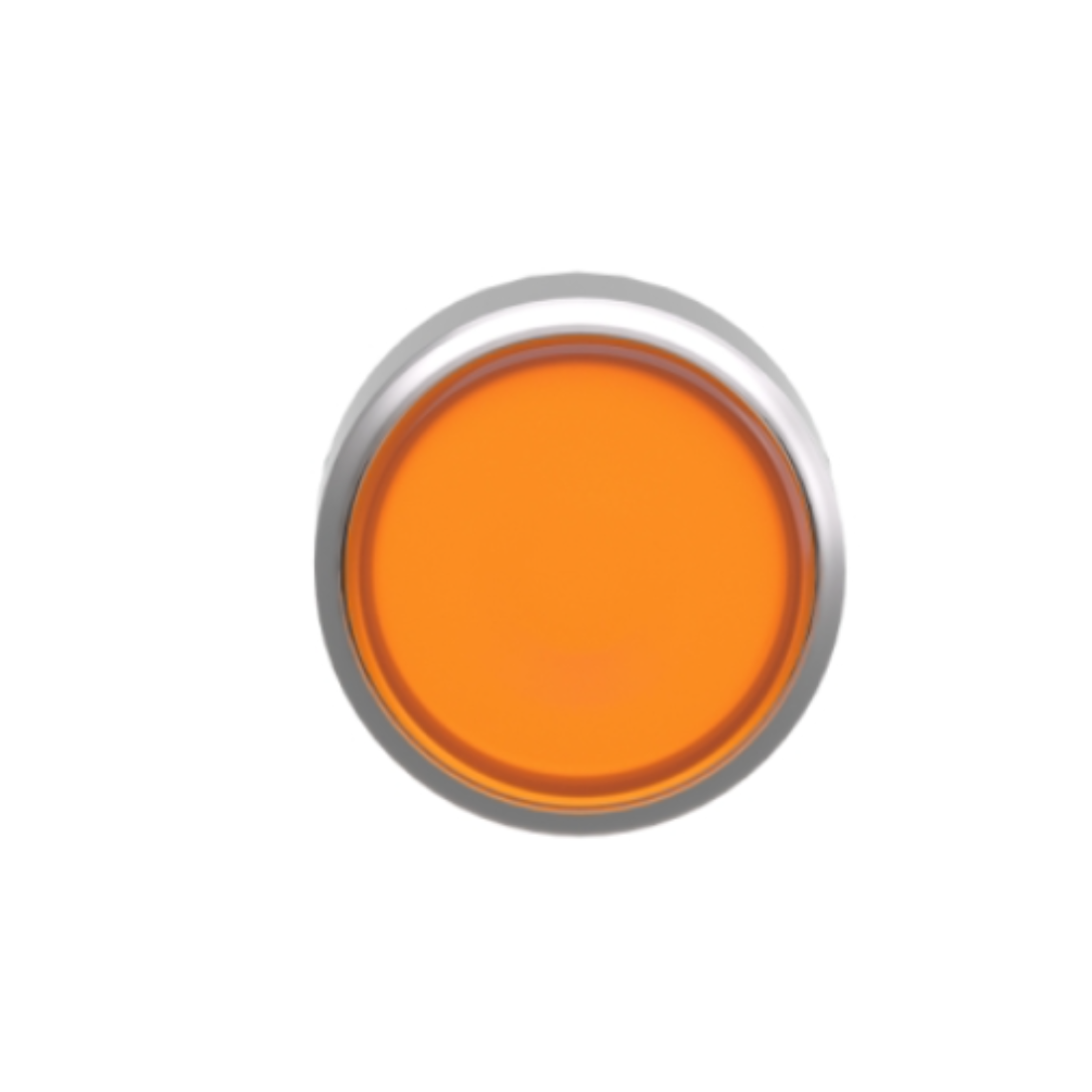

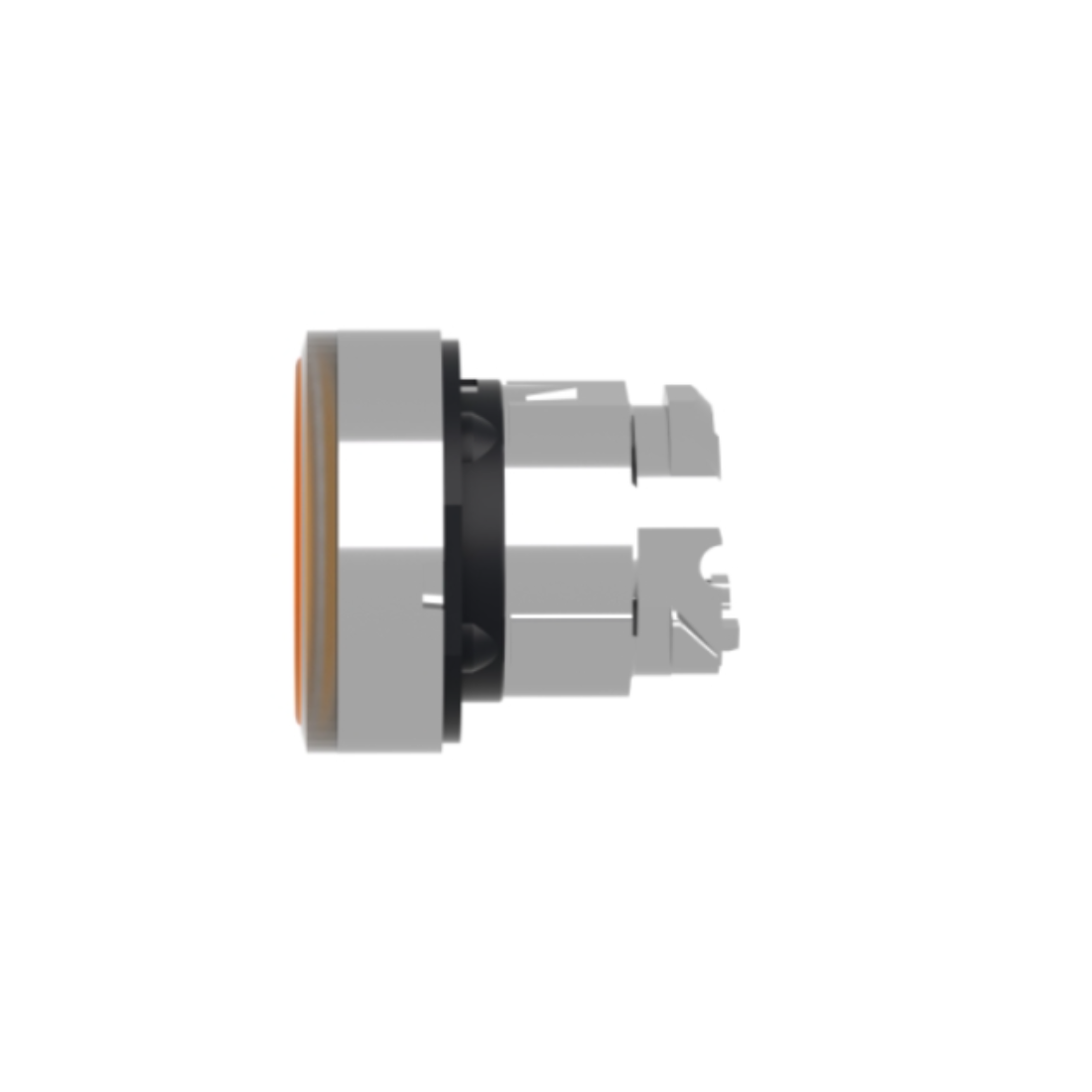

    Schneider Electric ZB4BW353 Orange Flush Illuminated Pushbutton Head provides a versatile interface for controlling the machines. Installation and replacement on compatible pushbutton units and complete contact blocks is simply snap-on. It is clearly visible from afar thanks to the light illuminated color and also tactile thanks to the recessed element, minimizing errors in machine control. Thanks to IP66, it is shock, dust, water and vibration proof.

    Illuminated Pushbutton has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways. Offers high brightness for easy identification of function and operating mode, even in brightly lit environments.

    Features
    • Compatible with universal LED block to be used for all colors
    • Improved color intensity and brightness
    • Quick and easy assembly and disassembly
    • Robustness to withstand harsh environments
    • A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Head For Illuminated Push-Button

    Model : ZB4BW353

    Bezel Material : Chromium plated metal

    CAD Overall Depth : 30 mm

    CAD Overall Height : 29 mm

    CAD Overall Width : 29 mm

    Cap/Operator Or Lens Colour : Orange

    Compatibility Code : ZB4

    IK Degree Of Protection : IK06 conforming to EN 50102

    IP Degree Of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

    Marking : Unmarked

    Mechanical Durability : 10000000 cycles

    Mounting Diameter : 22 mm

    Operator Profile : Orange flush, unmarked

    Overvoltage Category : Class I conforming to IEC 60536

    Protective Treatment : TH

    Certifications : GL, UL listed, DNV, LROS (Lloyds register of shipping), CSA, BV

    Range Of Product : Harmony XB4

    Sale Per Indivisible Quantity : 1

    Shape of Signaling Unit Head : Round

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Type of Operator : Spring Return

    NEMA Degree Of Protection : NEMA 13, NEMA 4X

    Group Of Product : Flush push integral LED

    Operator Additional Information : With plain lens

    Customizable : 1

    Head Type : Standard

    Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

    GCR BRIDGE : ZB4BWCUST04

    Main Group : Illum Push-button

    Electrical Composition Code : M1 for <6 contacts using single blocks in front mounting with integral LED, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M10 for <2 contacts using single blocks in front mounting with integral LED

    Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -40-70 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Standards : UL 508, EN/IEC 60947-5-5, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1

    Compatibility : Universal LED

    Device Presentation : Basic sub-assemblies

    Weight : 0.26 kg
