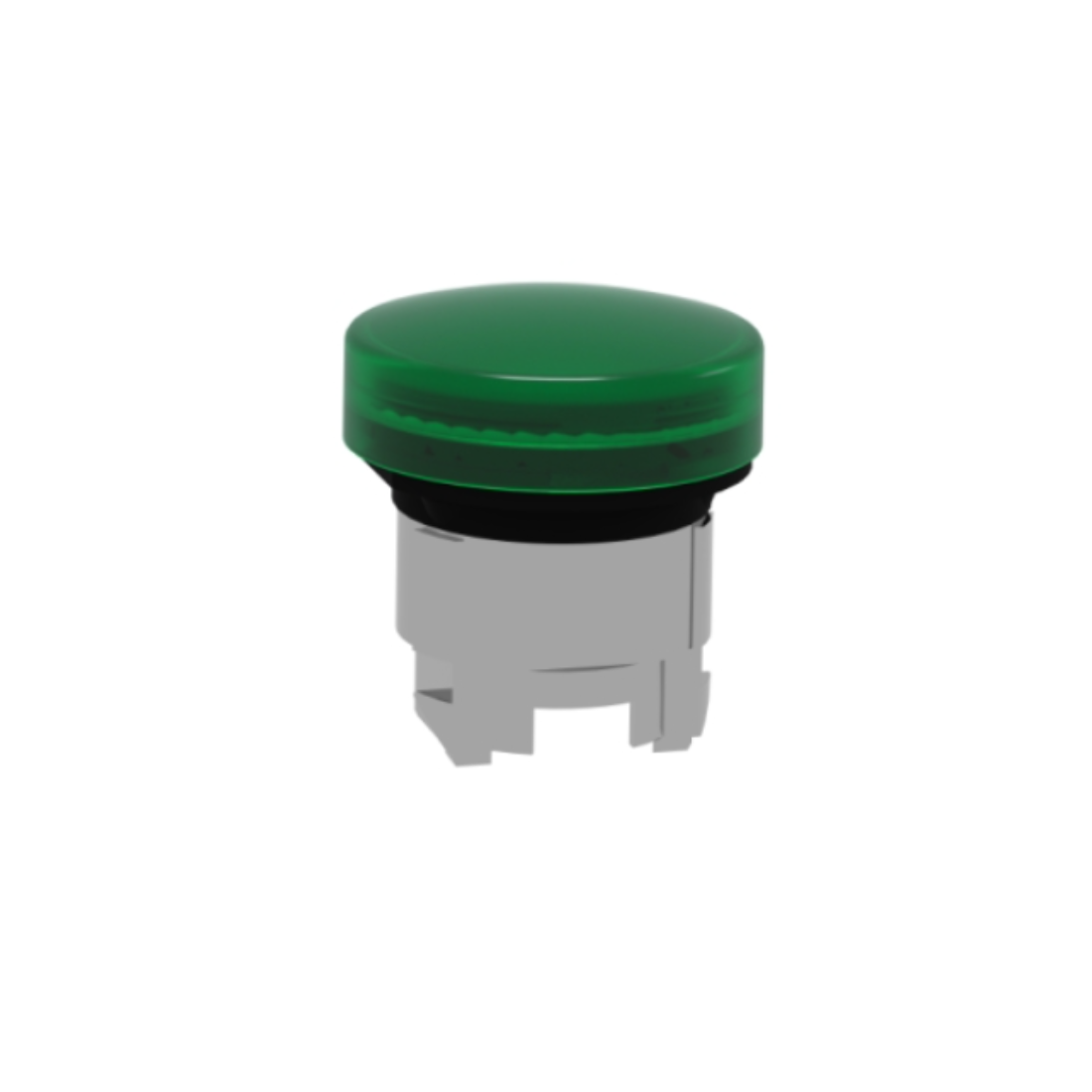

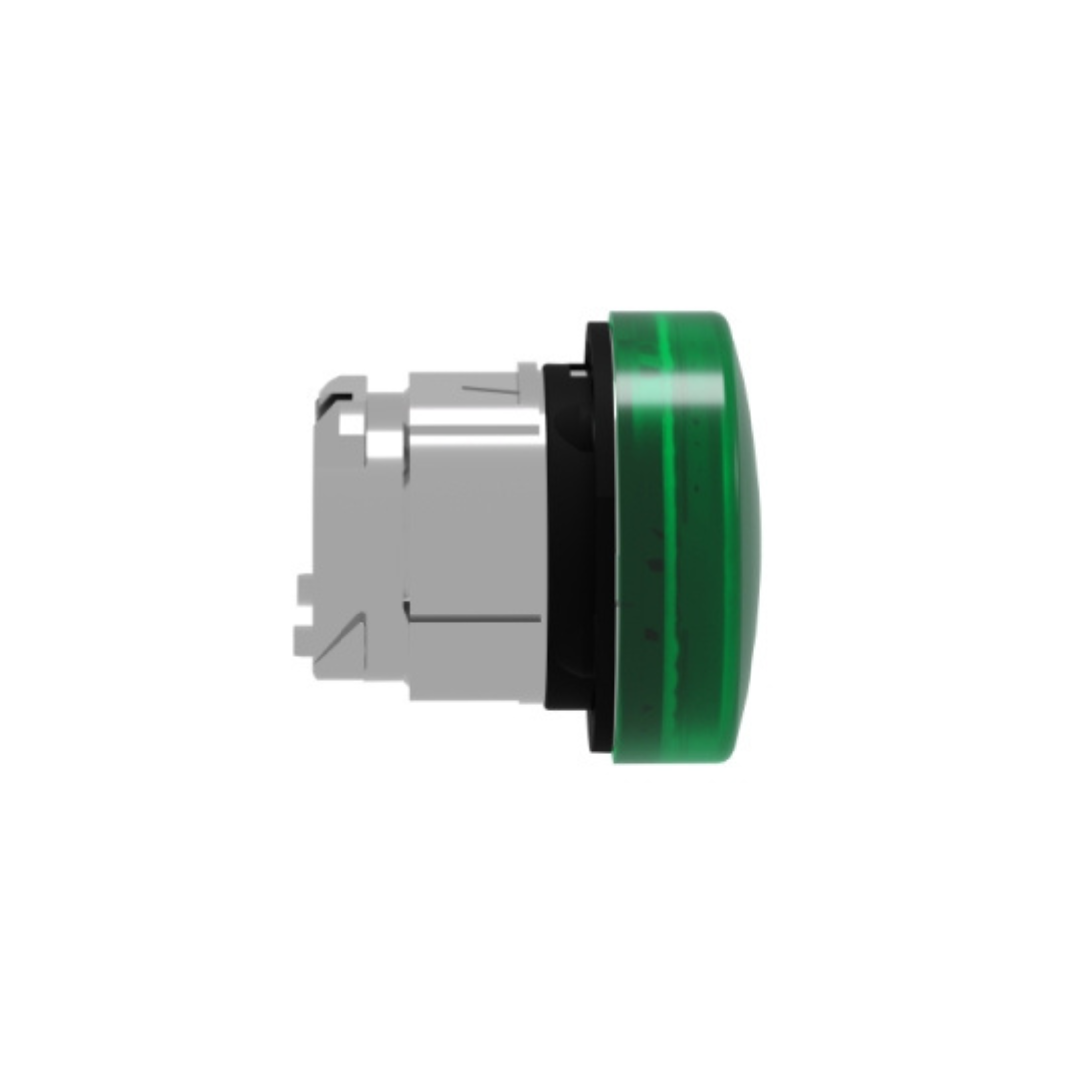

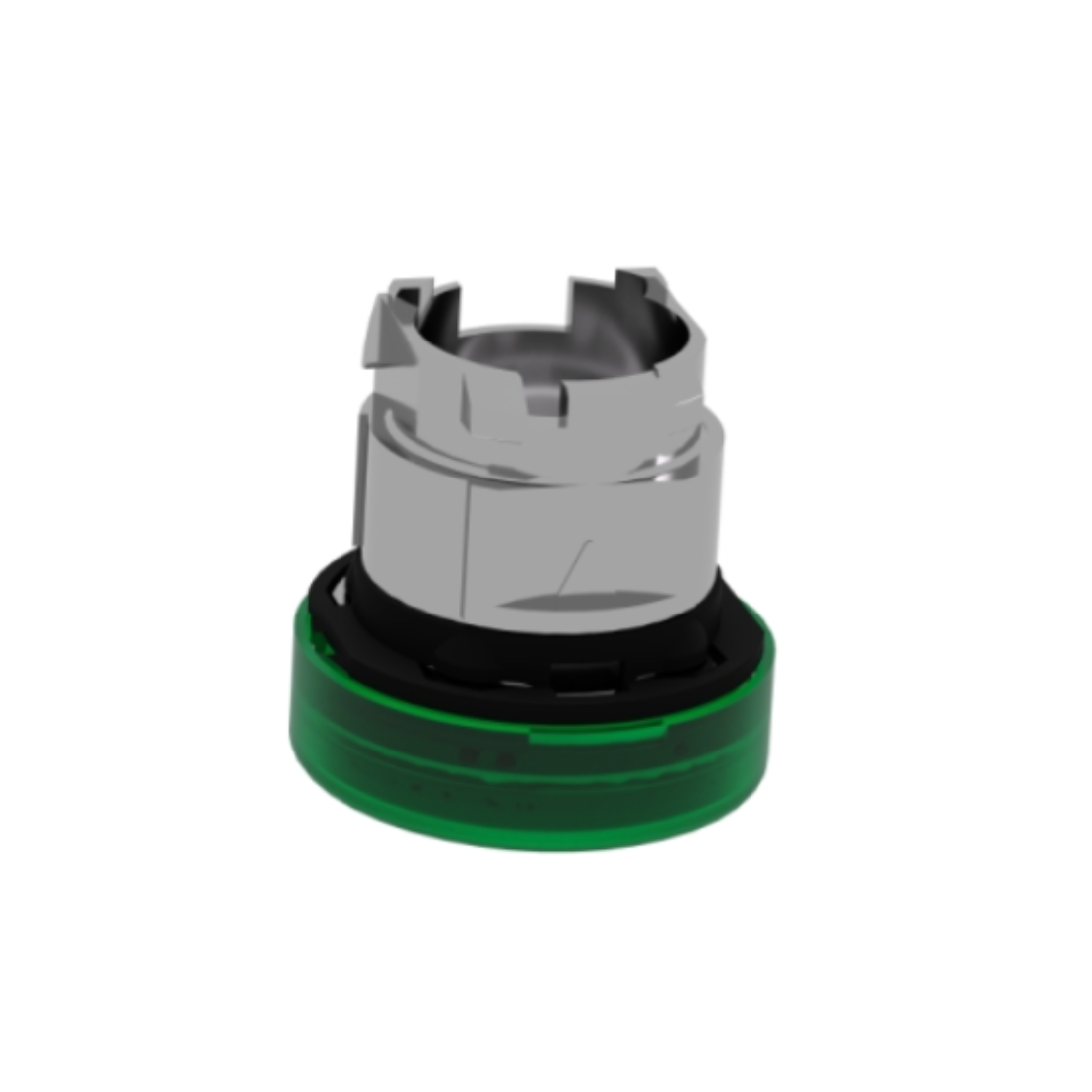

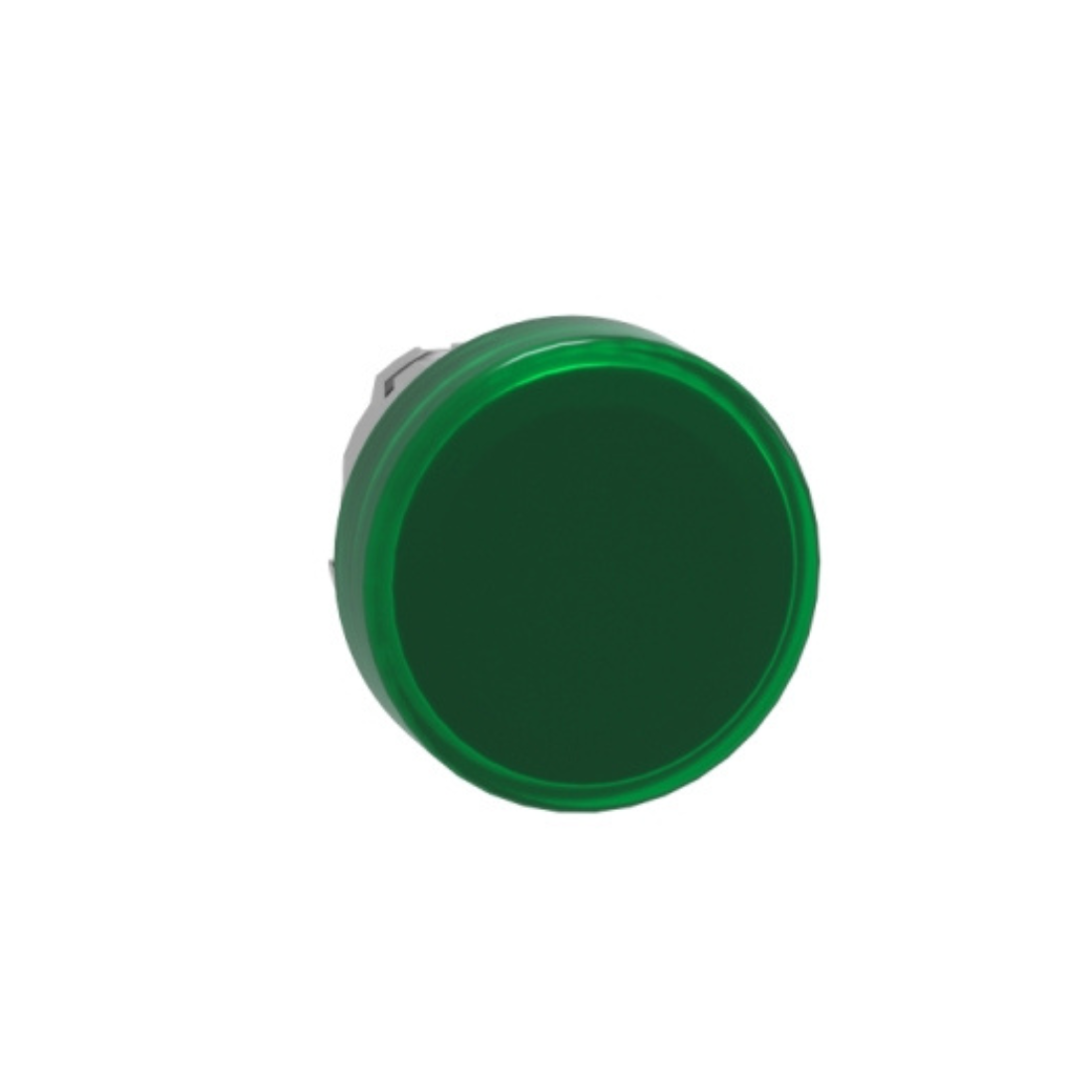

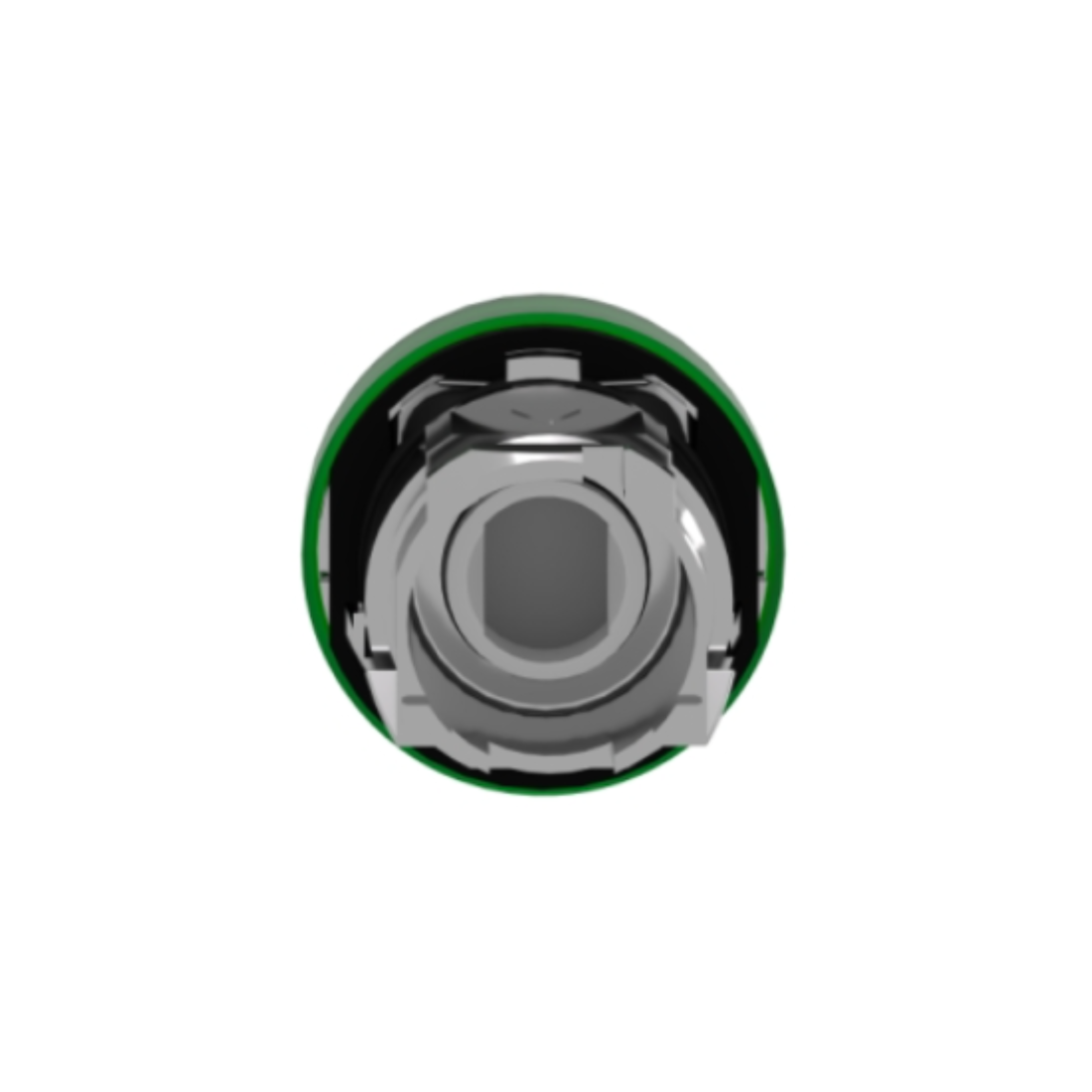

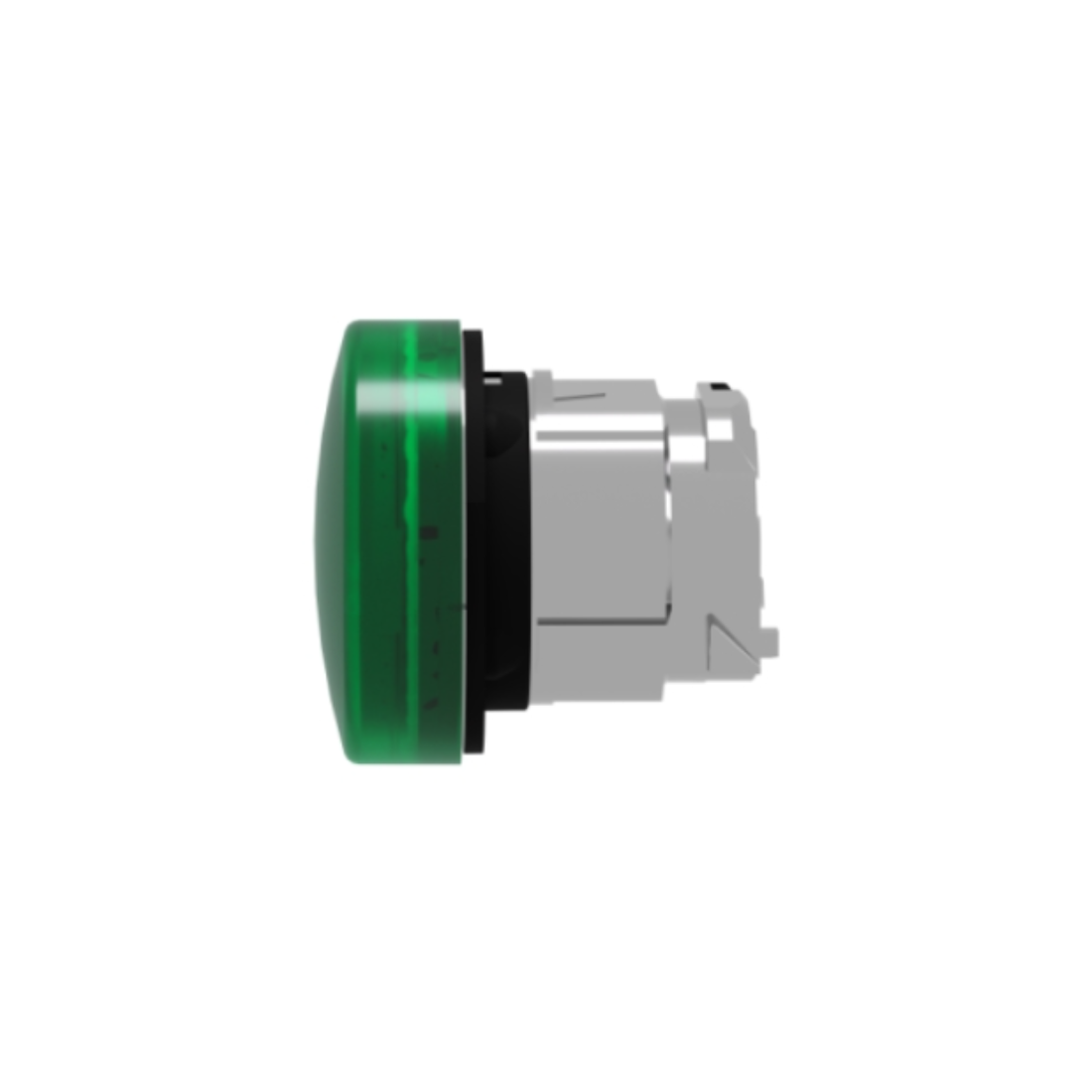

Schneider Electric Harmony XB4 Green Pilot Light Head Ø22 Plain Lens for Integral LED ZB4BV033
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Pilot Light Head
Description
Schneider Electric ZB4BV033 Green Pilot Light Head is designed to be maintenance-free and provide a bright indication of process and machine operation. Thanks to the light color of the lens, it is easily visible even from afar, allowing complex machine states to be read at a glance. Thanks to IP66, it is shock, dust, water and vibration proof. It has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations.
Schneider Electric ZB4BV033 Green Pilot Light Head is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.
Features
- Maintenance-free and provide a bright indication of process and machine operation.
- IP66 Protection
- It has a metal bezel
| Brand | Schneider Electric |
| Item Name | Pilot Light Head |
| Model | ZB4BV033 |
| Bezel Material | Chromium plated metal |
| Cap/Operator Or Lens Color | Green |
| CAD Overall Depth | 30 mm |
| CAD Overall Height | 29 mm |
| CAD Overall Width | 29 mm |
| Compatibility Code | ZB4 |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Mounting Diameter | 22 mm |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Signalling Type | Steady |
| Group of Product Lens | Fitted integral LED |
| Operator Additional Information | With plain lens |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | 1 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | ZB4BVCUST01 |
| Light Source Color | Red |
| Main Group | Pilot light |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Electrical Composition Code | P1 in front mounting with integral LED, P2 in front mounting with integral LED and transformer |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1 |
| Compatibility | Universal LED |
| Device Presentation | Basic Element |
| Weight | 0.026 kg |
