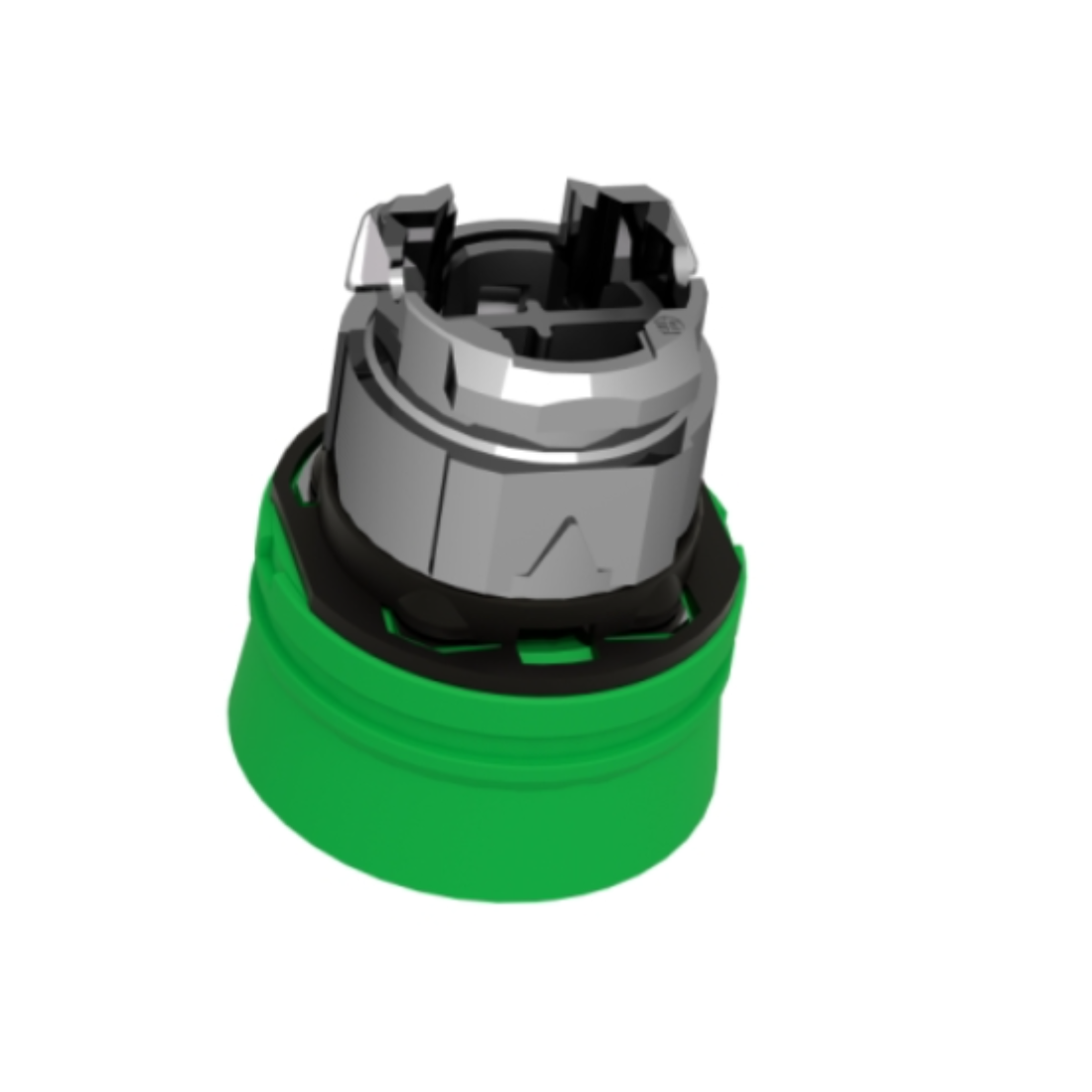

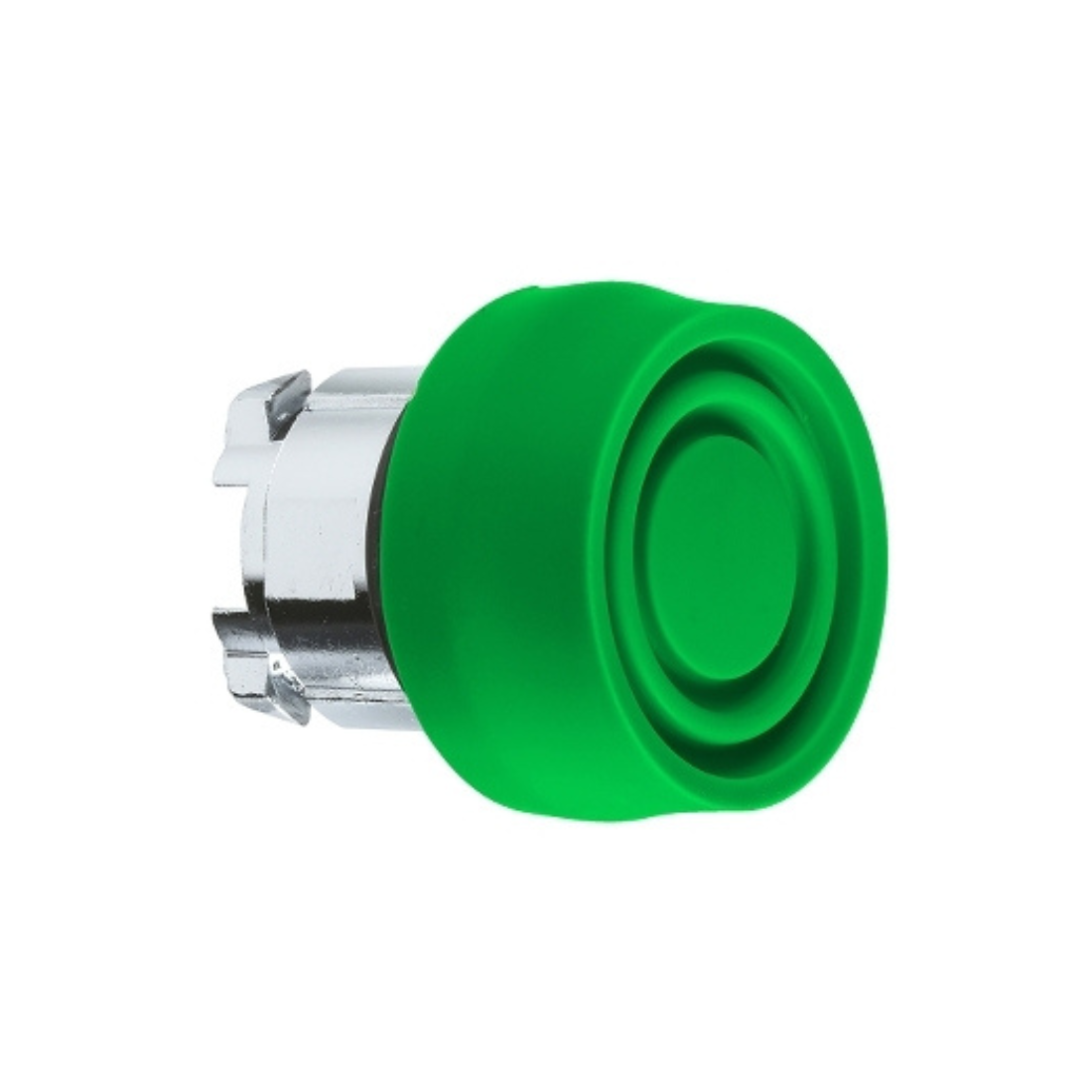

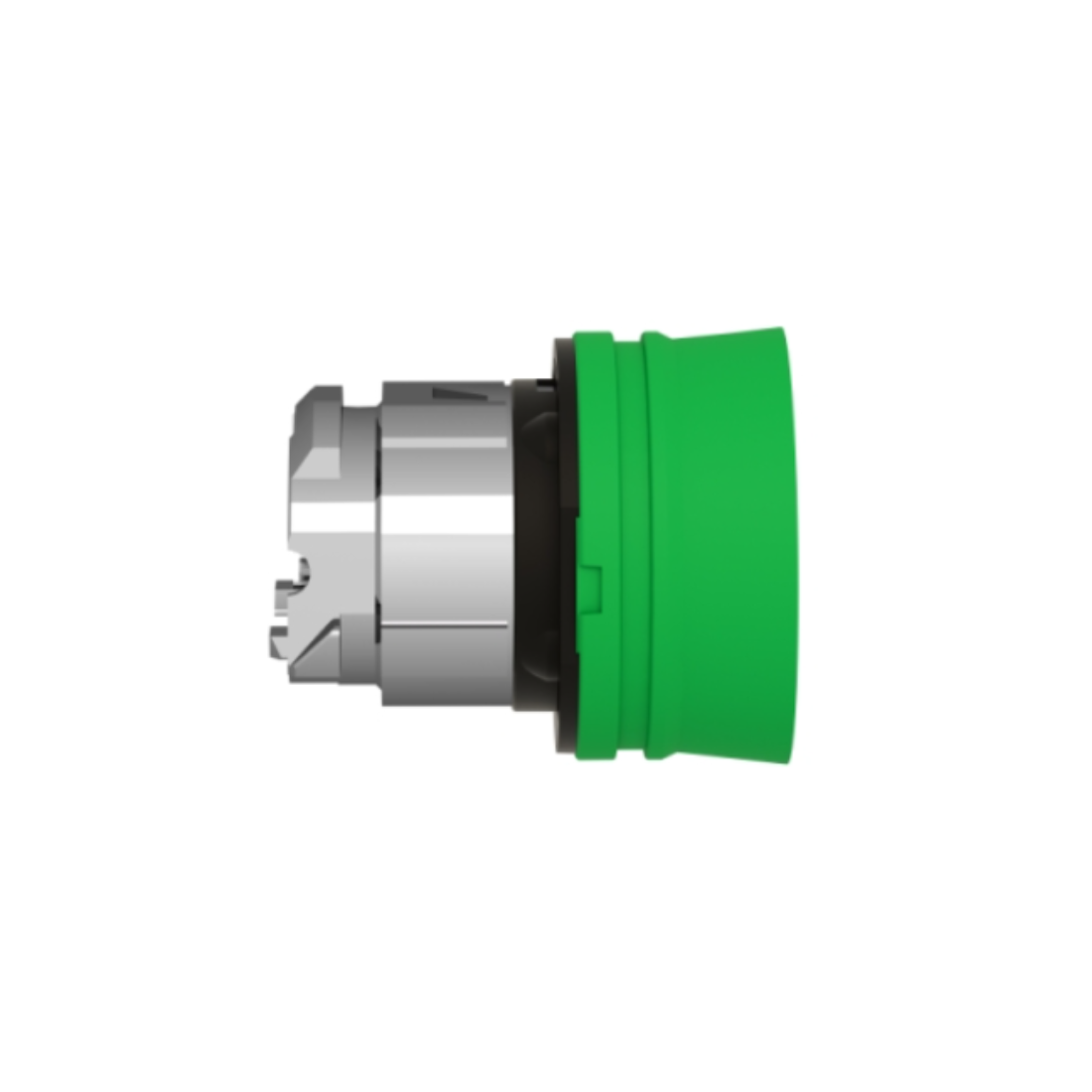

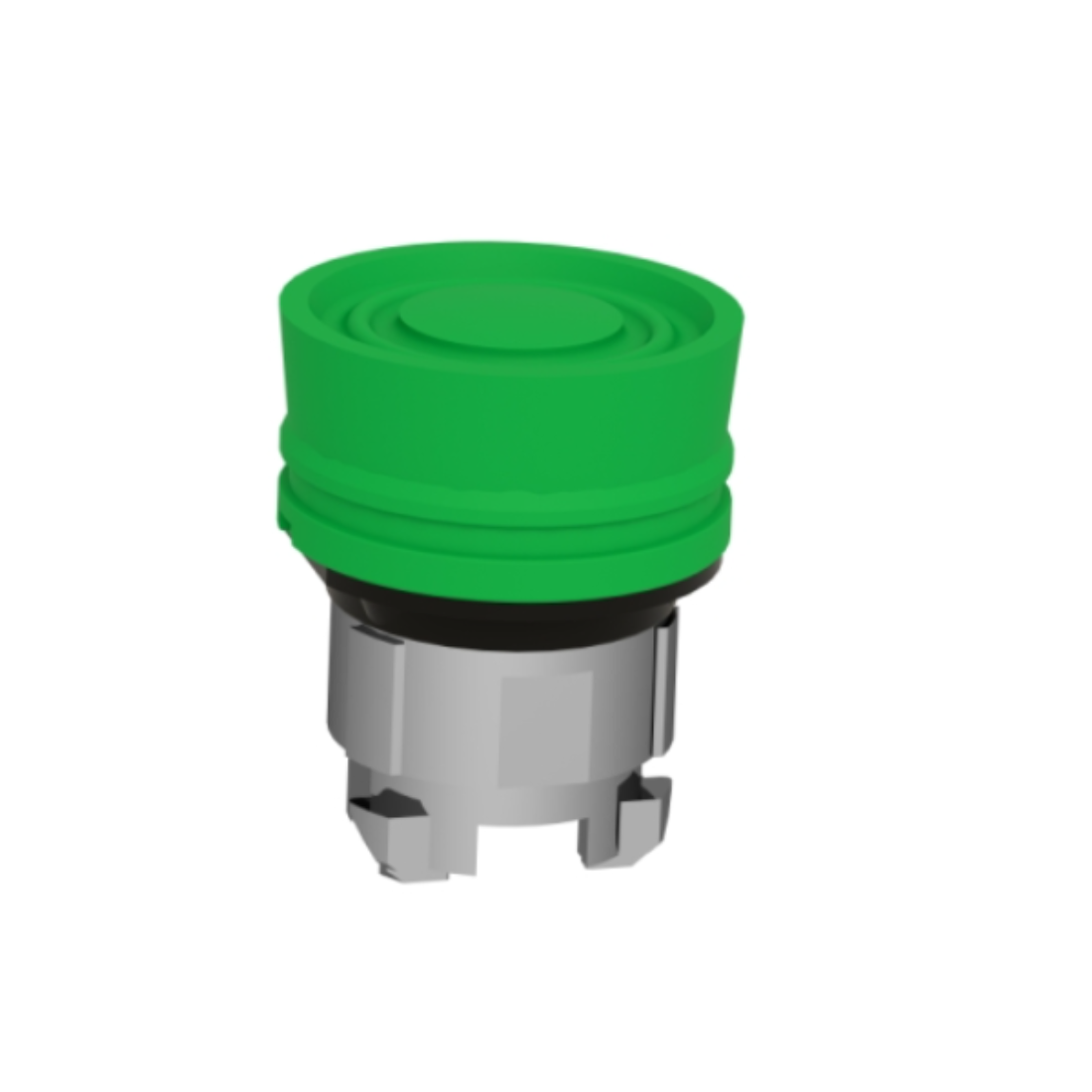

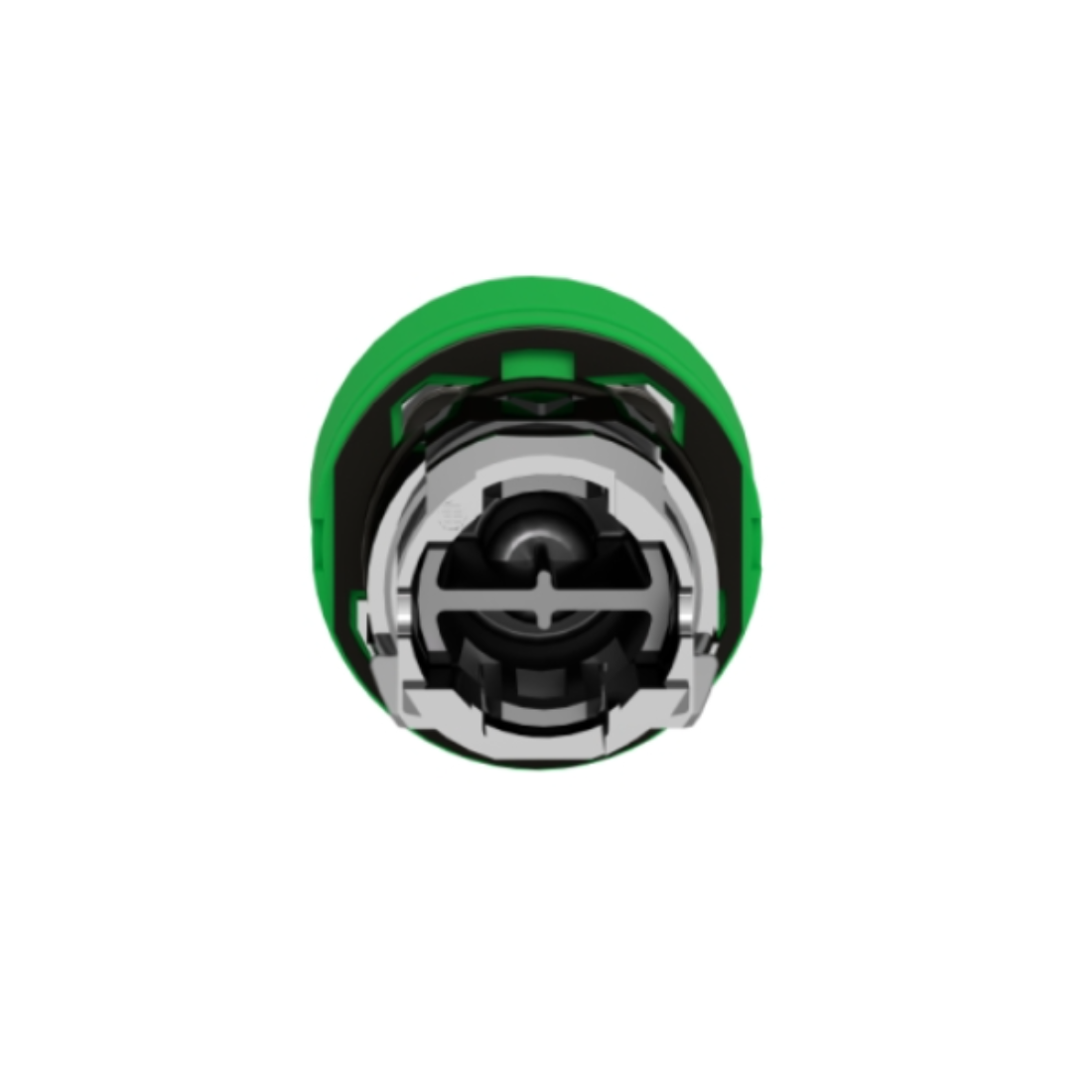

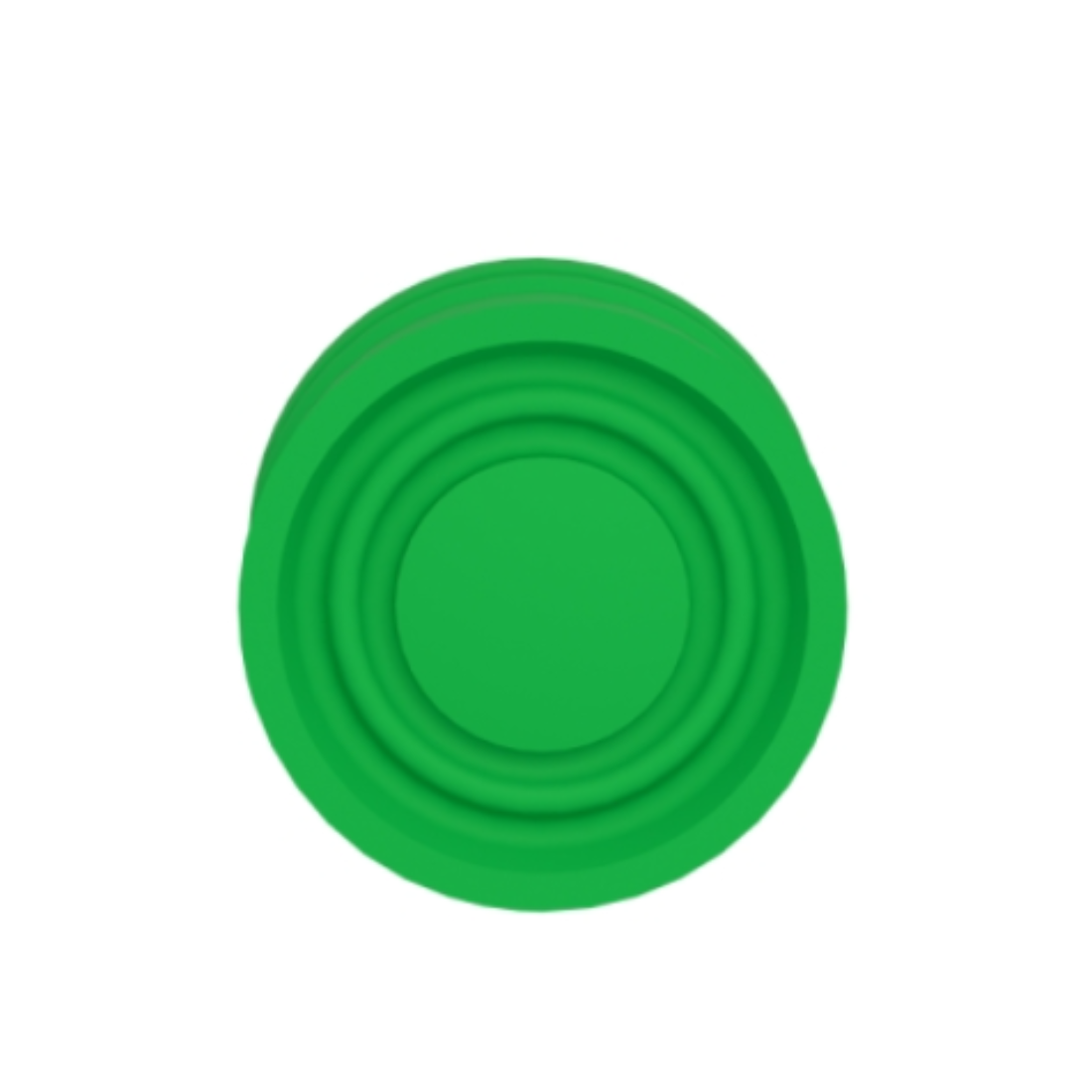

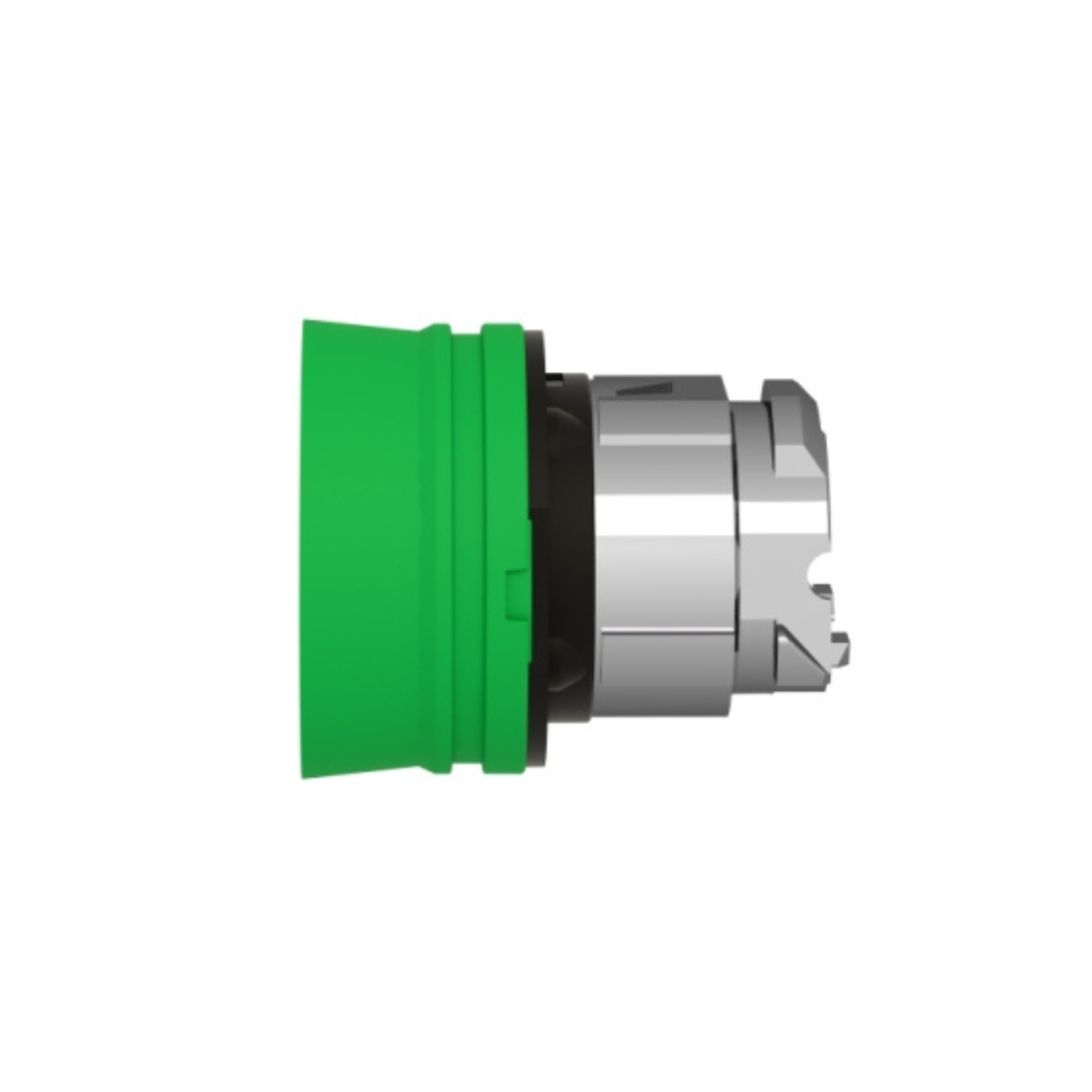

Schneider Electric Harmony XB4 Green Flush Push Button Head Ø22 Spring Return Unmarked ZB4BP3S
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Push Button
Description
Schneider Electric ZB4BP3S Green Flush Push Button Head provides an ergonomic interface for controlling the machine and a simple solution for avoiding dirt and other contaminants. Installation and replacement on compatible pushbutton units and complete contact blocks is simply snap-on. Thanks to IP69K, it is shock, dust, water and vibration proof. It has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations.
Schneider Electric ZB4BP3S Green Flush Push Button Head is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways. The transparent protection prevents the growth of bacteria in joints and cracks, making this product ideal for environments with high hygiene standards.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Various types of connection: screw clamp, connector, Faston connector or spring terminal
- Excellent mechanical connection with operator head
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
| Brand | Schneider Electric |
| Item Name | Push-Button |
| Model | ZB4BP3S |
| Bezel Material | Chromium Plated Metal |
| CAD Overall Depth | 33 mm |
| CAD Overall Height | 30 mm |
| CAD Overall Width | 30 mm |
| Cap/Operator Or Lens Color | Green |
| Compatibility Code | ZB4 |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Marking | Unmarked |
| Mechanical Durability | 10000000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Green flush, Unmarked |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Certifications | DNV, UL listed, CSA, GL, LROS (Lloyds register of shipping), BV |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Type of Operator | Spring Return |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Group Of Product | Silicone boot push |
| Operator Additional Information | Colored boot |
| Customizable | 0 |
| Head Type | Standard |
| Main Group | Push-button |
| Electrical Composition Code | C1 for <9 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | JIS C8201-5-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-5, JIS C8201-1 |
| Device Presentation | Basic element |
| Compatibility | Legend holder |
