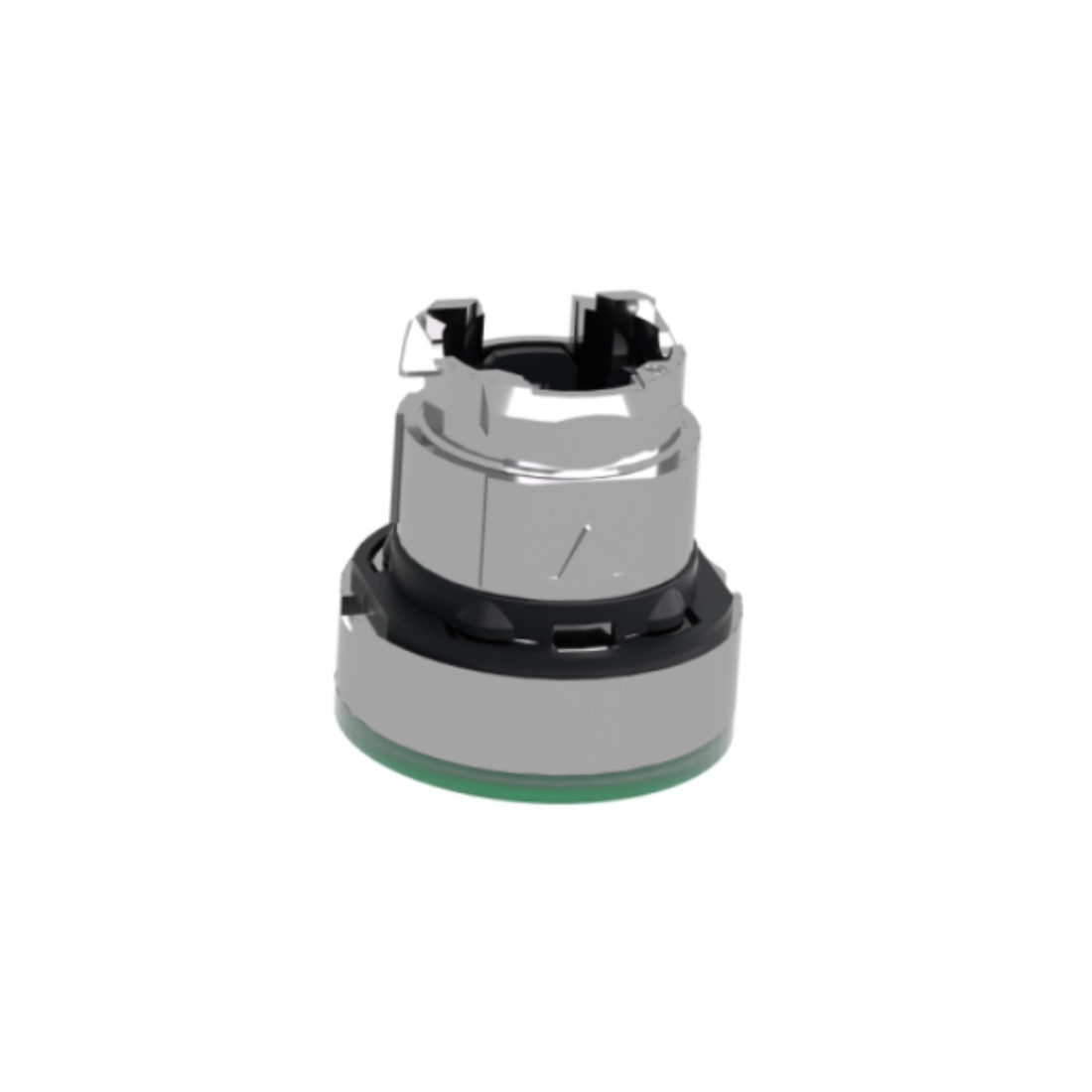

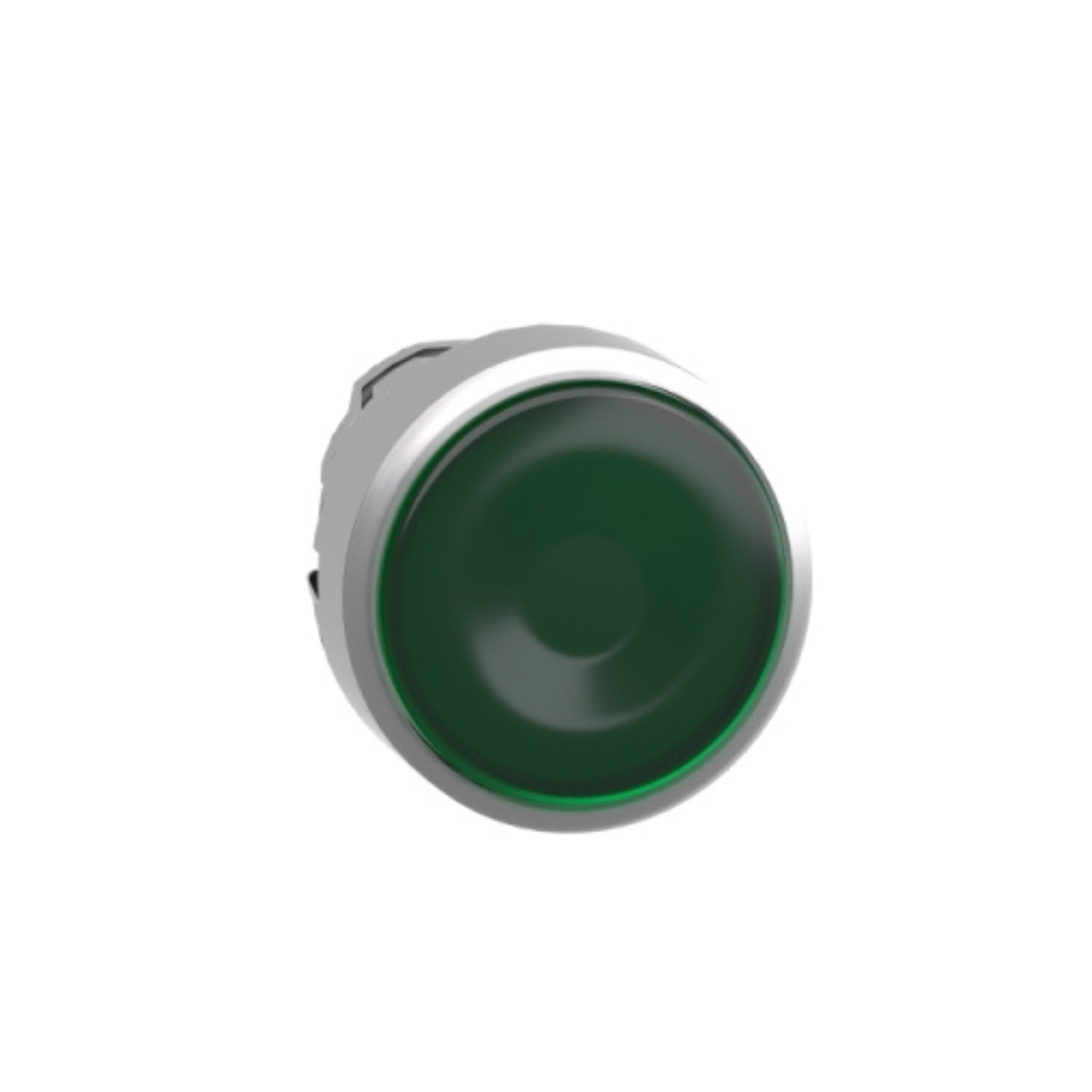

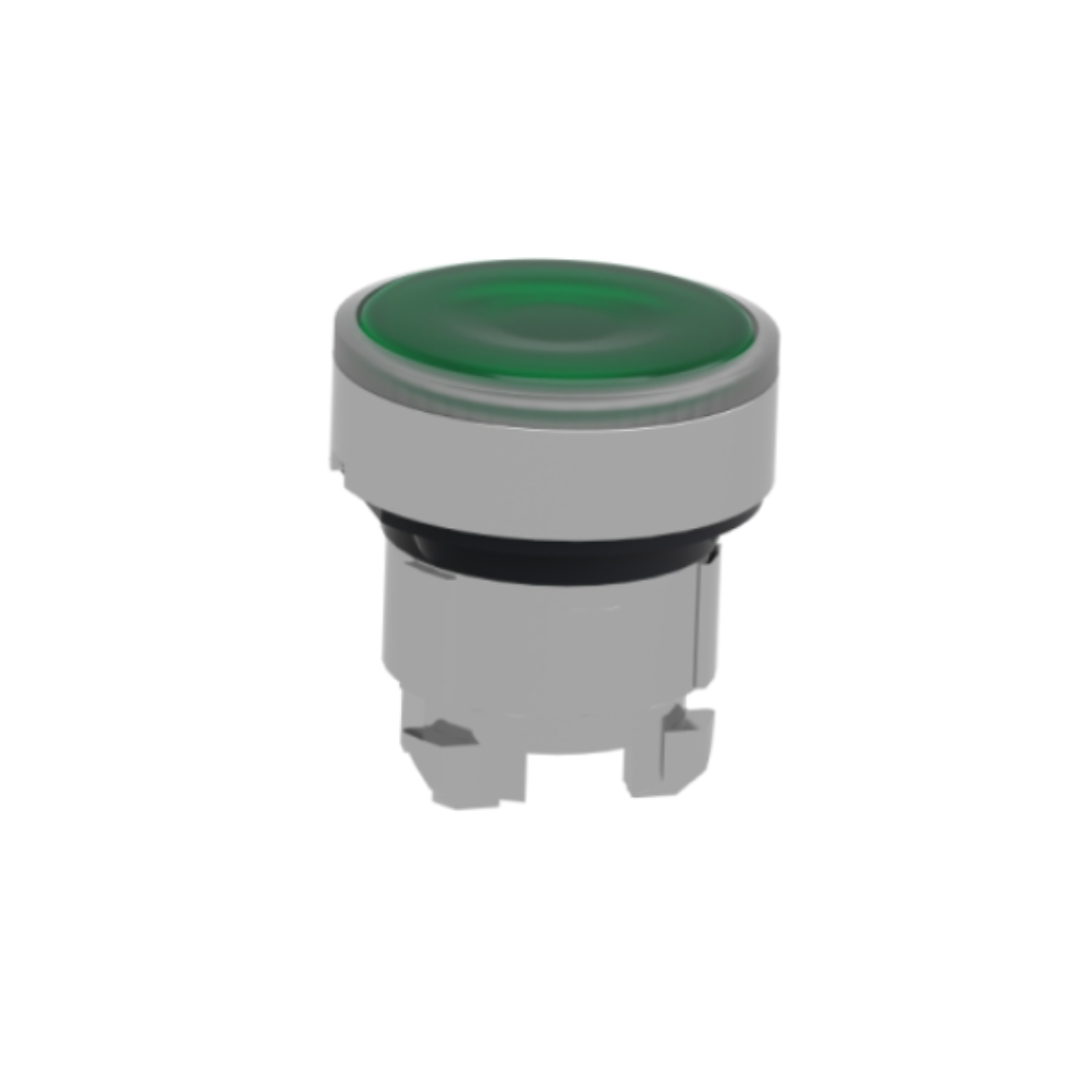

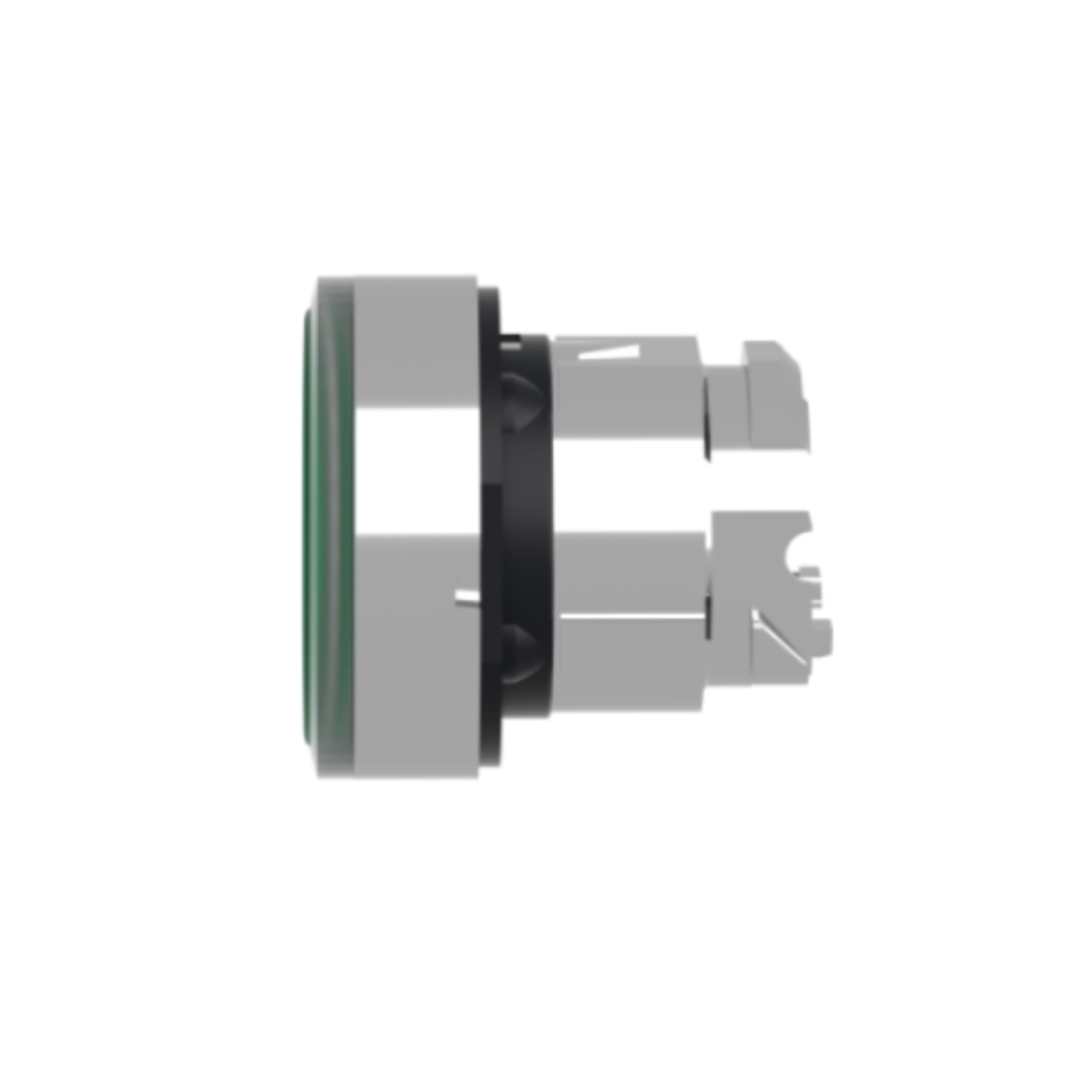

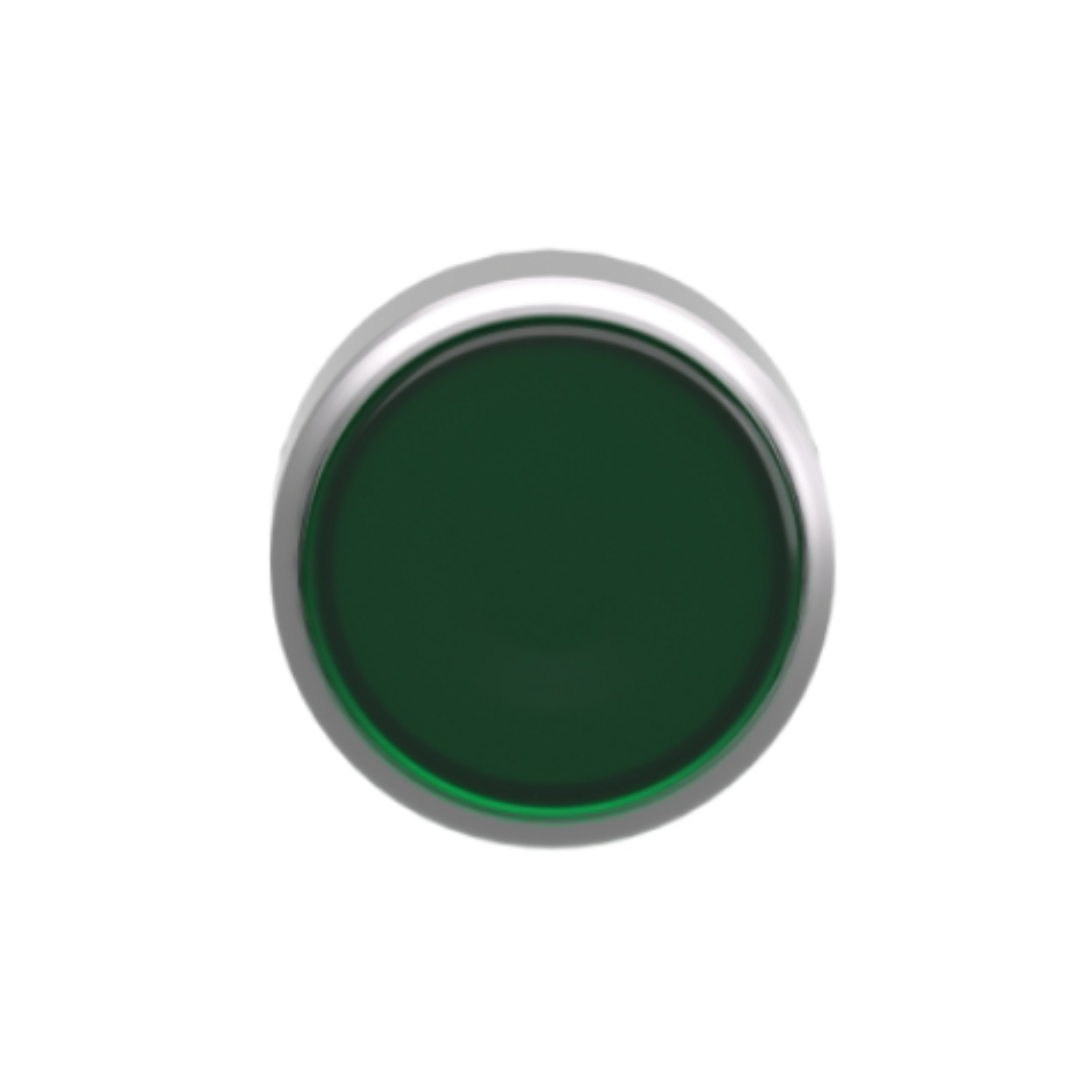

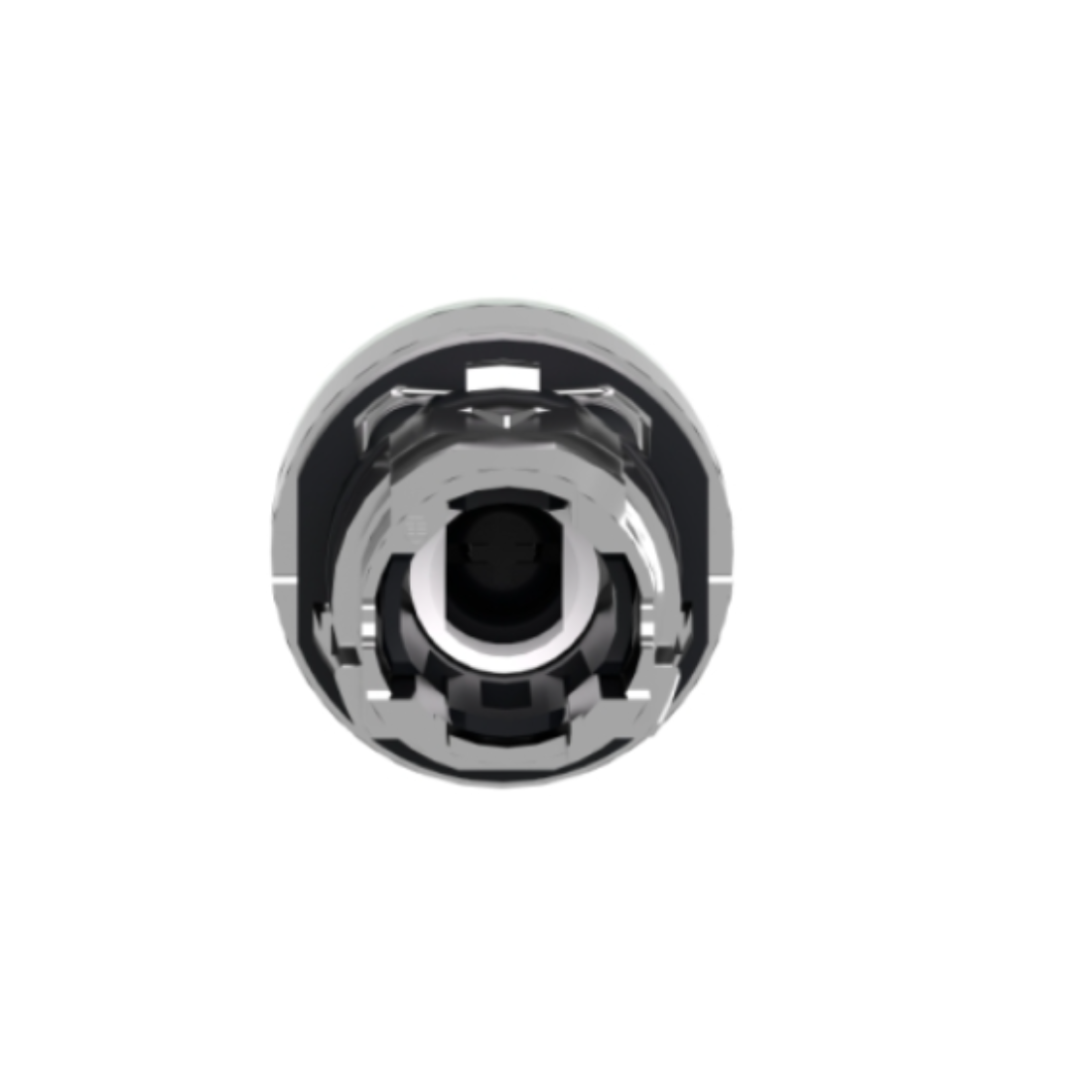

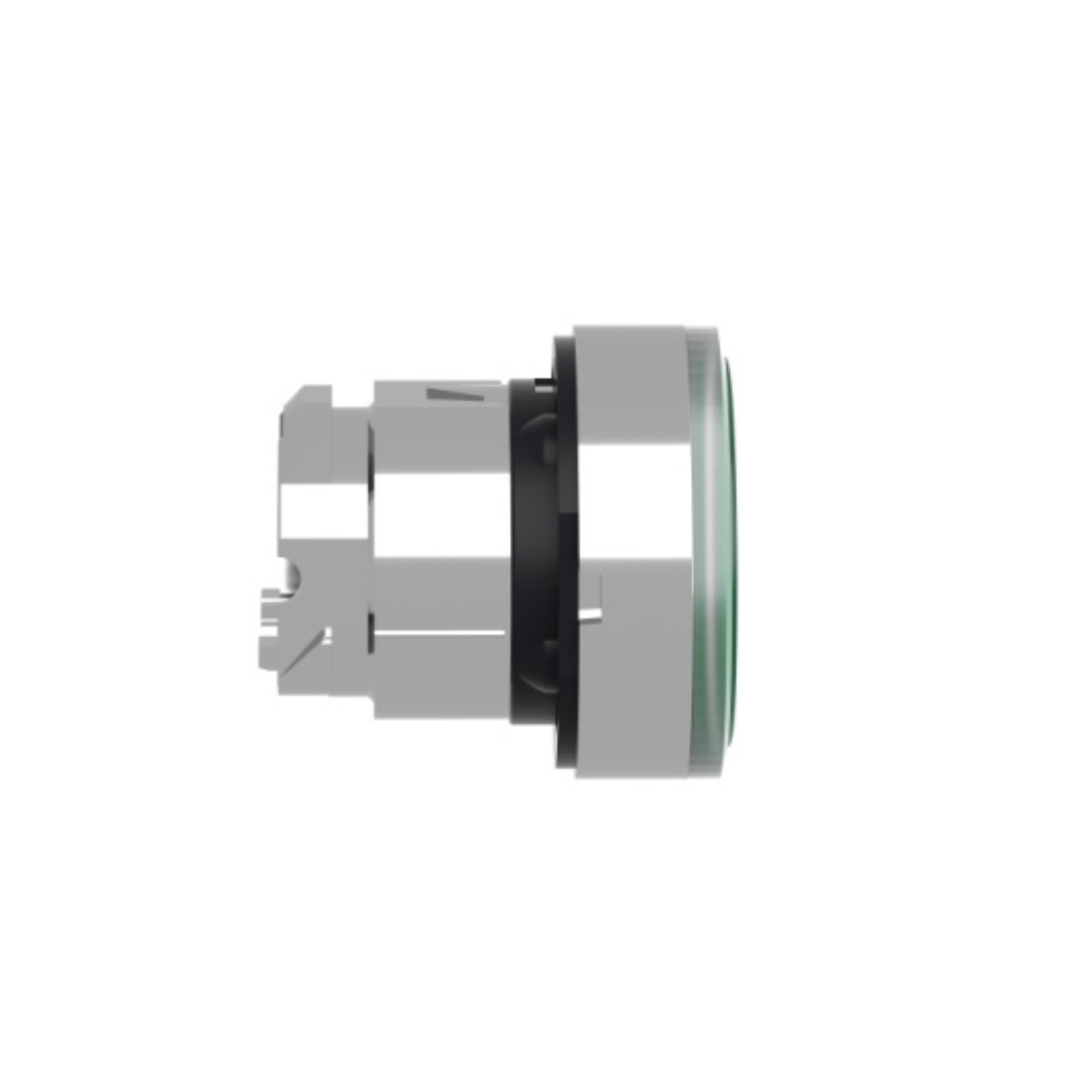

Schneider Electric Harmony XB4 Green Flush Illuminated Push Button Head Ø22 Spring Return for Integral LED ZB4BW333
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Illuminated Pushbutton Head
Description
Schneider Electric ZB4BW333 Green Flush Illuminated Pushbutton Head and integrated LED lighting operates with a spring/pulse return mechanism. This illuminated button head with integrated LED provides a versatile interface for controlling the machines. Installation and replacement on compatible pushbutton units and complete contact blocks is simply snap-on. It is clearly visible from afar thanks to the light illuminated color and also tactile thanks to the recessed element, minimizing errors in machine control.
Thanks to IP66, it is shock, dust, water and vibration proof. Schneider Electric ZB4BW333 Green Flush Illuminated Pushbutton Head has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the pushbutton head to be used in a variety of ways. Offers high brightness for easy identification of function and operating mode, even in brightly lit environments.
Features
- Uses a spring return/pulse mechanism.
- Provides a versatile interface for controlling the machines.
- It has a metal bezel
- IP66 Protection
| Brand | Schneider Electric |
| Item Name | Head For Illuminated Push-Button |
| Model | ZB4BW333 |
| Bezel Material | Chromium plated metal |
| CAD Overall Depth | 30 mm |
| CAD Overall Height | 29 mm |
| CAD Overall Width | 29 mm |
| Cap/Operator Or Lens Colour | Green |
| Compatibility Code | ZB4 |
| IK Degree Of Protection | IK06 conforming to EN 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Marking | Unmarked |
| Mechanical Durability | 10000000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Green flush, unmarked |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Protective Treatment | TH |
| Certifications | GL, BV, LROS (Lloyds register of shipping), DNV, UL listed, CSA |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Type of Operator | Spring Return |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Group Of Product | Flush push integral LED |
| Operator Additional Information | With plain lens |
| Customizable | 1 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | ZB4BWCUST04 |
| Main Group | Illum Push-button |
| Electrical Composition Code | M1 for <6 contacts using single blocks in front mounting with integral LED, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M10 for <2 contacts using single blocks in front mounting with integral LED |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60947-5-5, UL 508, JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-1 |
| Compatibility | Universal LED |
| Device Presentation | Basic sub-assemblies |
| Weight | 0.26 kg |
