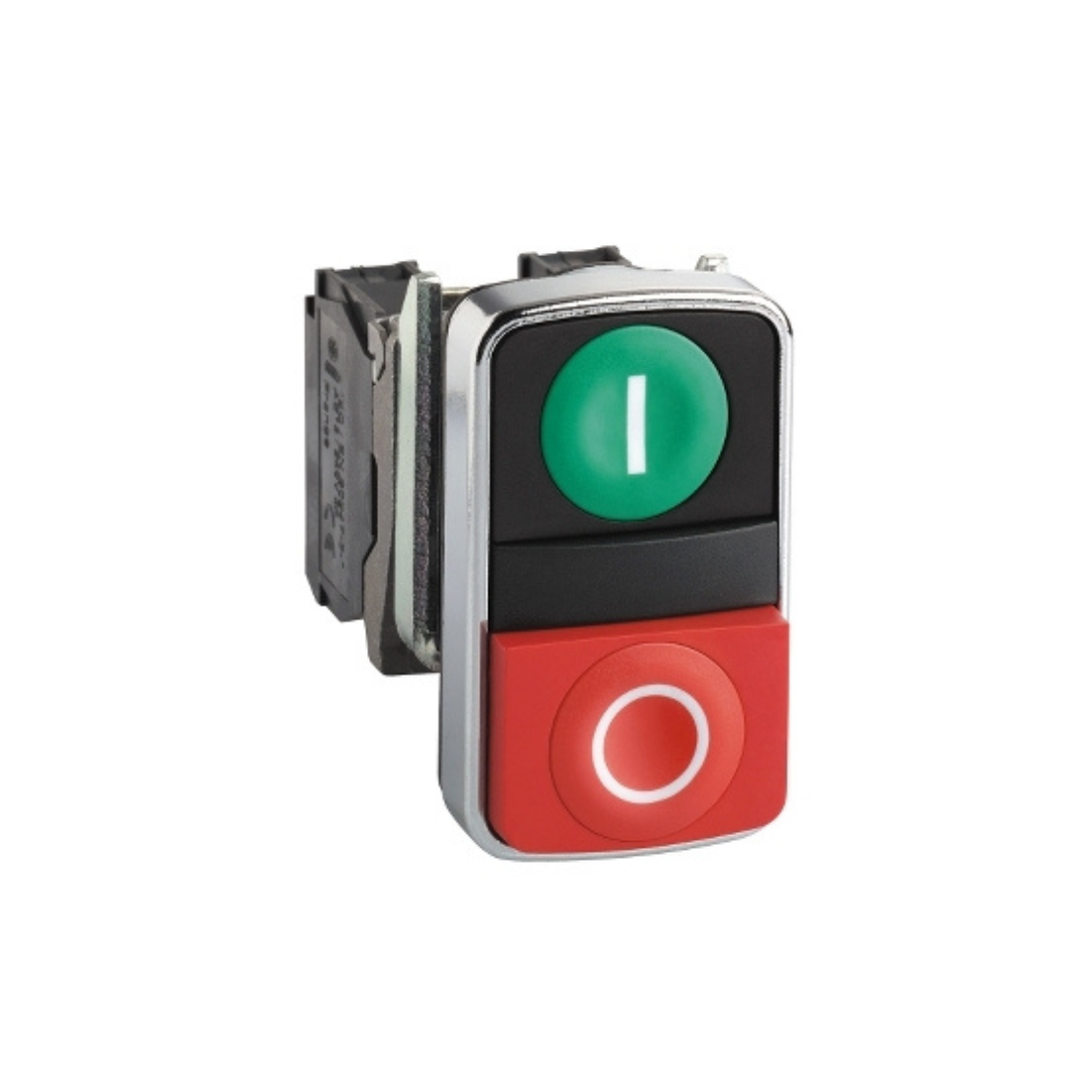

Schneider Electric Harmony XB4 Double-Headed Push Button Metal Ø22 1 Green Flush Marked I + 1 Red Projecting Marked O 1 NO + 1 NC XB4BL73415
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Double-Headed Push Button
Description

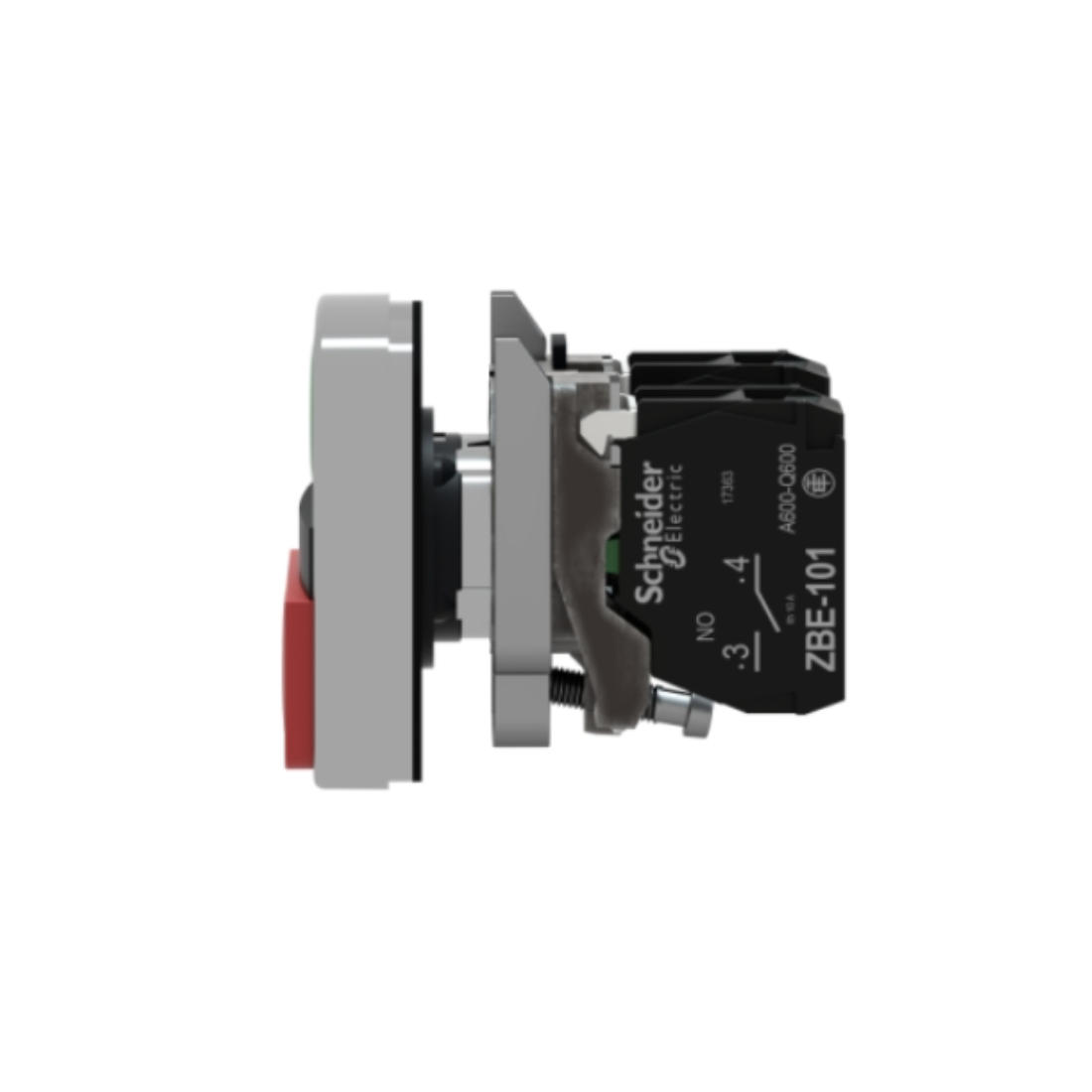

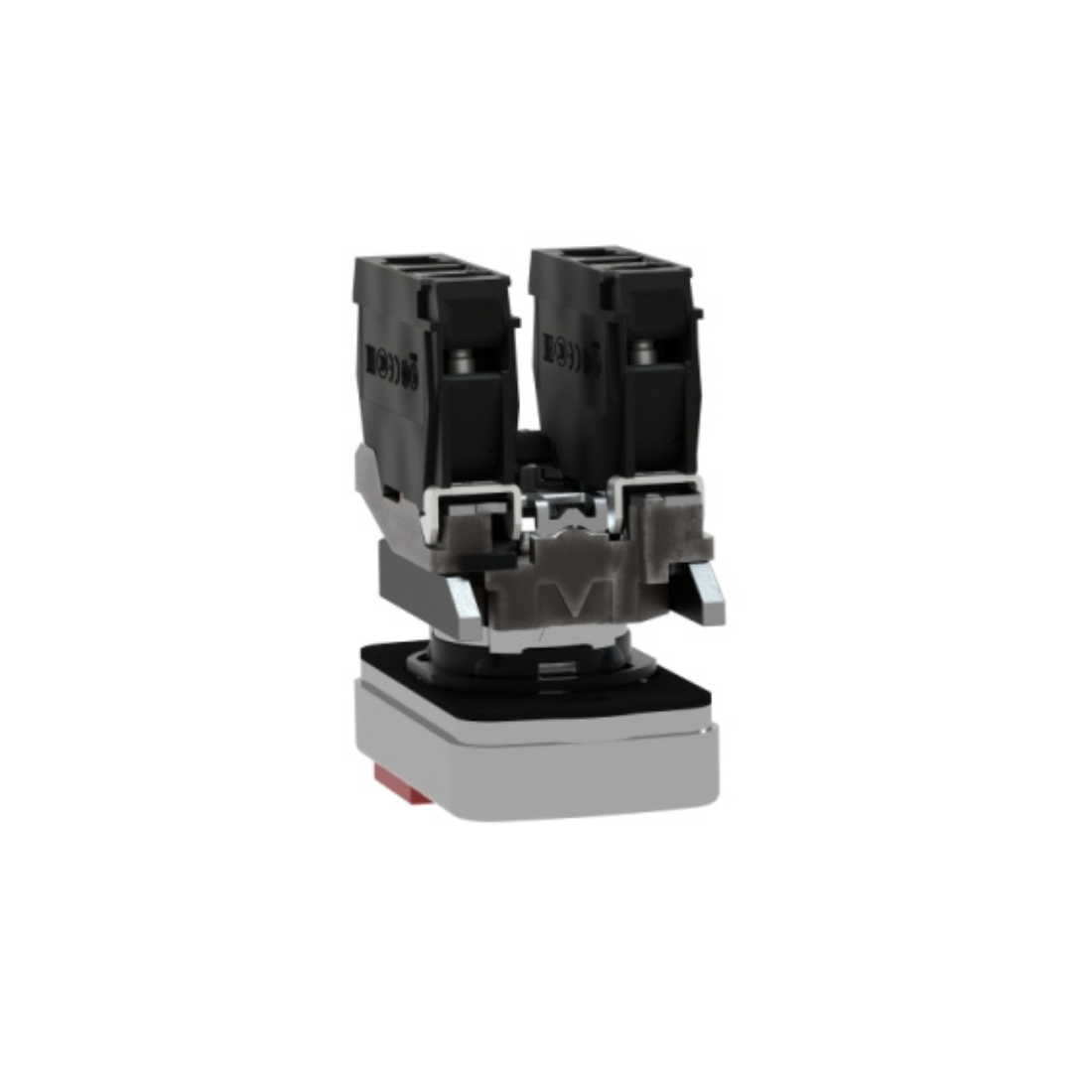

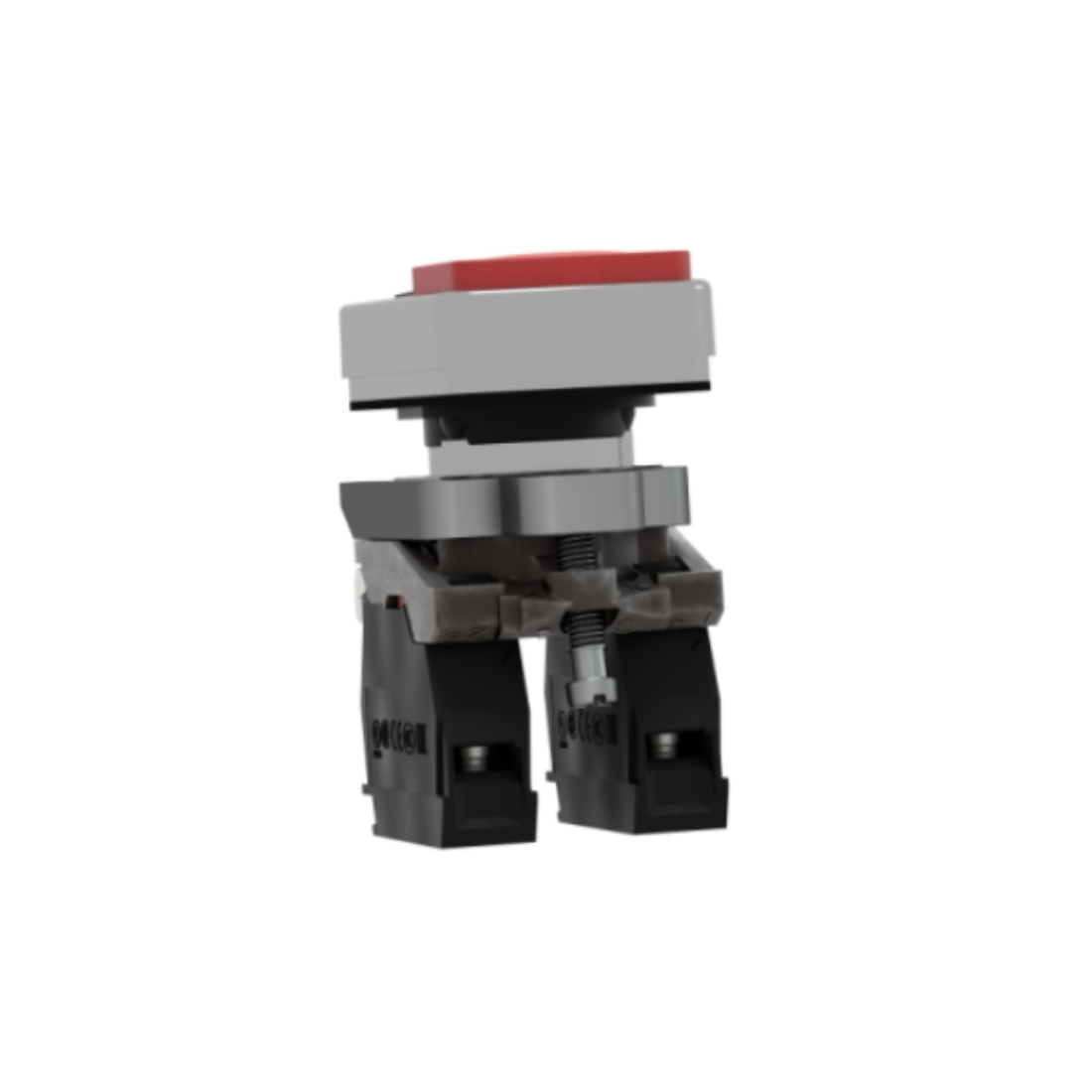

Schneider Electric XB4BL73415 Double-Headed Push Button has 1 red and 1 green button, operates with a spring return mechanism. It has a metal bezel. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to the machines with a single panel cut-out.
Schneider Electric XB4BL73415 Green Flush And Red Projecting Double-Headed Push Button is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Various types of connection: screw clamp, connector, Faston connector or spring terminal
- Excellent mechanical connection with operator head
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
| Brand | Schneider Electric |
| Item Name | Double-Headed Push Button |
| Model | XB4BL73415 |
| Conventional Free Air Thermal Current | 10 A conforming to EN/IEC 60947-5-1 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand | 6 kV conforming to EN/IEC 60947-1 |
| Rated Supply Voltage | 24V |
| Bezel Material | Chromium plated metal |
| Cap/Operator Or Lens Color | Green, Red |
| Compatibility Code | XB4 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| Contact Operation | Slow-break |
| Contacts Material | Silver alloy (Ag/Ni) |
| Electrical Reliability | λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| Fixing Collar Material | Plastic |
| Height | 50 mm |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| IP Degree Of Protection | IP67 conforming to IEC 60529, IP69, IP69K |
| Mechanical Durability | 10000000 cycles |
| Mounting Diameter | 22 mm |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Operator Profile | 1 flush - 1 projecting push-buttons |
| Positive Opening | With conforming to EN/IEC 60947-5-1 appendix K |
| Certifications | BV, GL, LROS (Lloyds register of shipping), DNV, CSA, UL listed |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shape Of Screw Head | Cross compatible with JIS No 1 screwdriver, cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Shape of Signaling Unit Head | Rectangular |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |

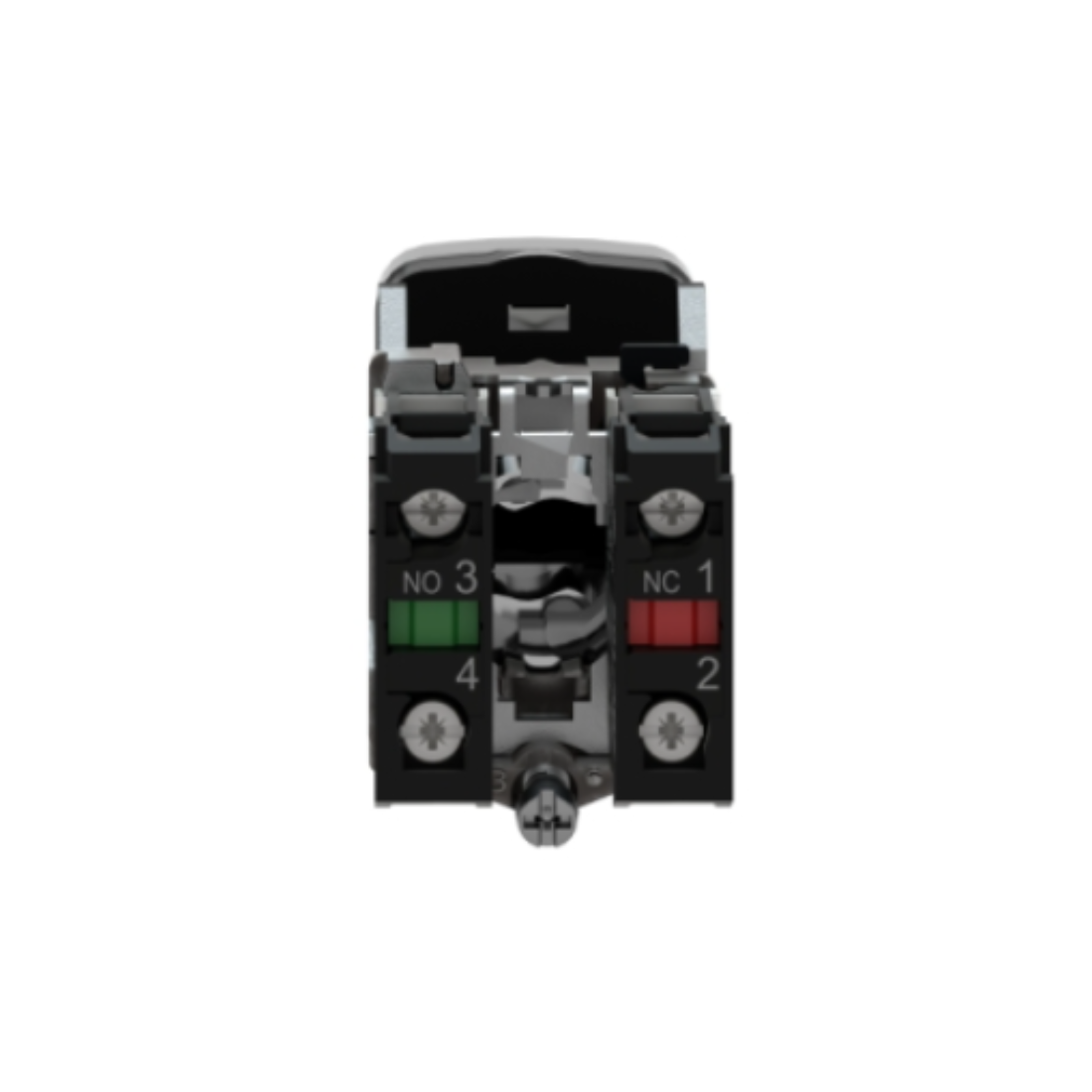

| Terminals Description | (13-14)NO, (21-22)NC |
| Contacts Type And Composition | 1 NO + 1 NC |
| Type of Operator | Spring return |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | 0 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts Usage | Standard contacts |
| Color of Marking | Black marking when white caps, white marking when green, red or black caps |
| Operating Force | 3.5 N NC changing electrical state, 3.8 N |
| Operating Travel | 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel) |

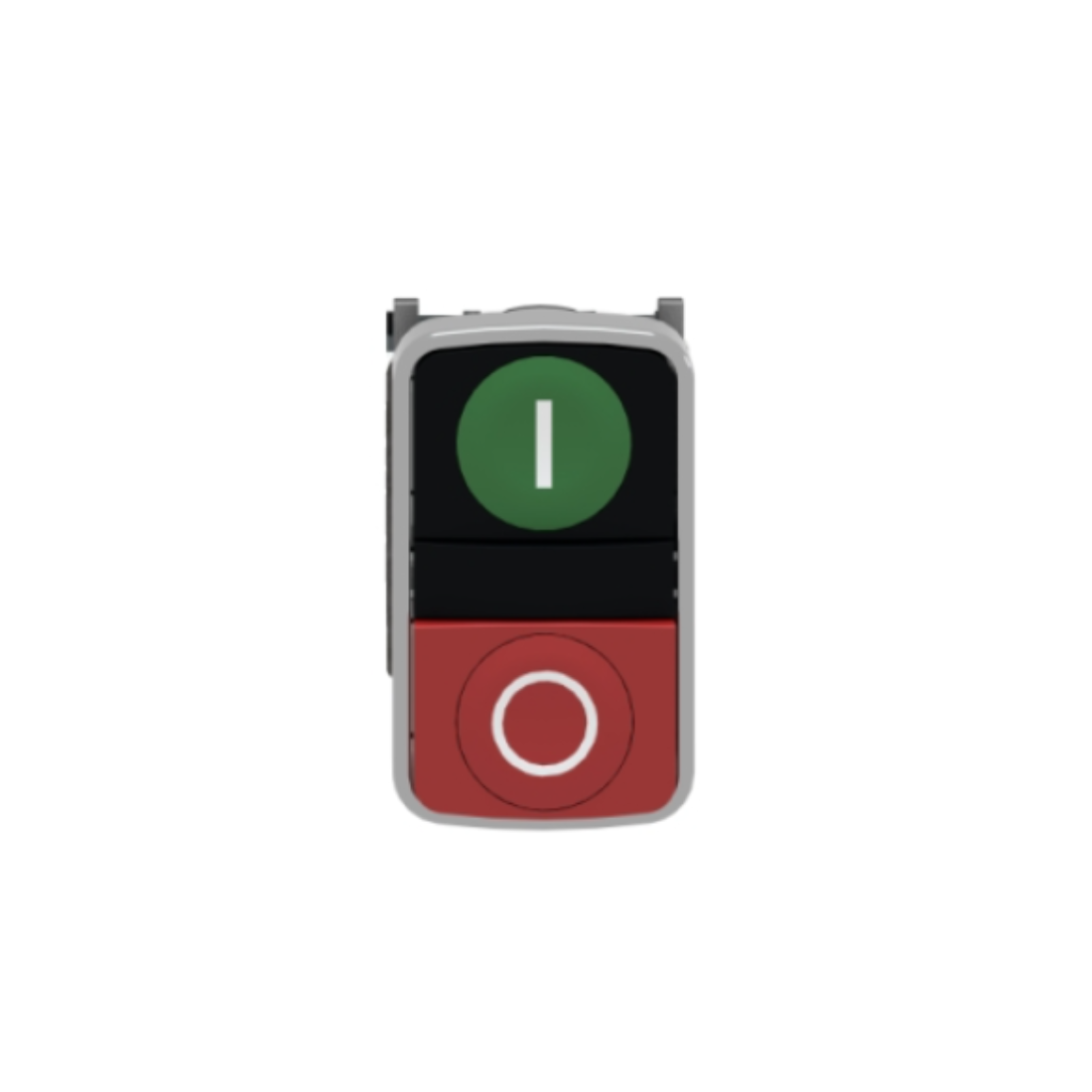

| Operators Description | Green ''I'' - red ''O'' |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | UL 508, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1 |
| Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Device Presentation | Complete product |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Electrical Shock Protection Class | Class I conforming to IEC 60536 |
| Weight | 0.116 kg |
