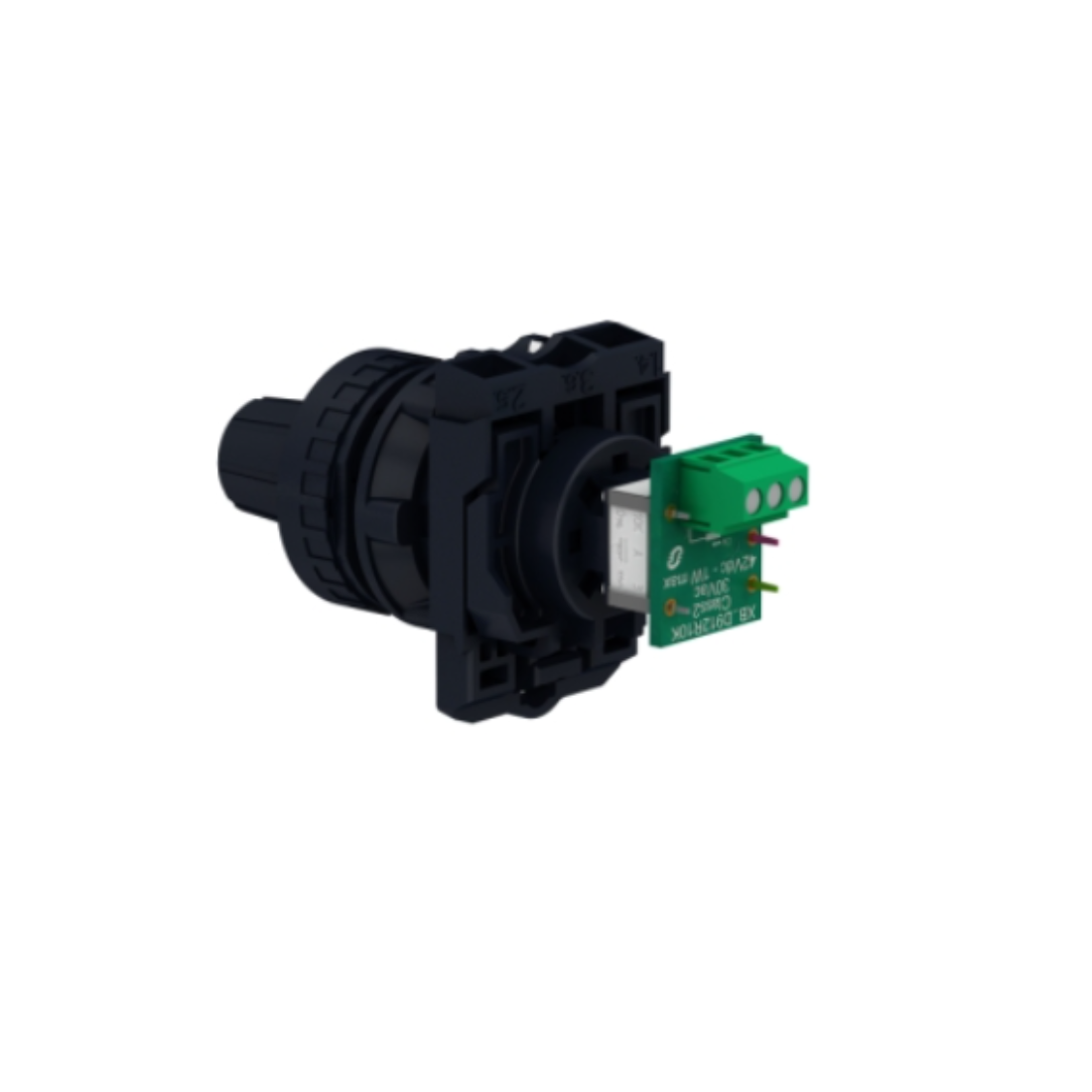

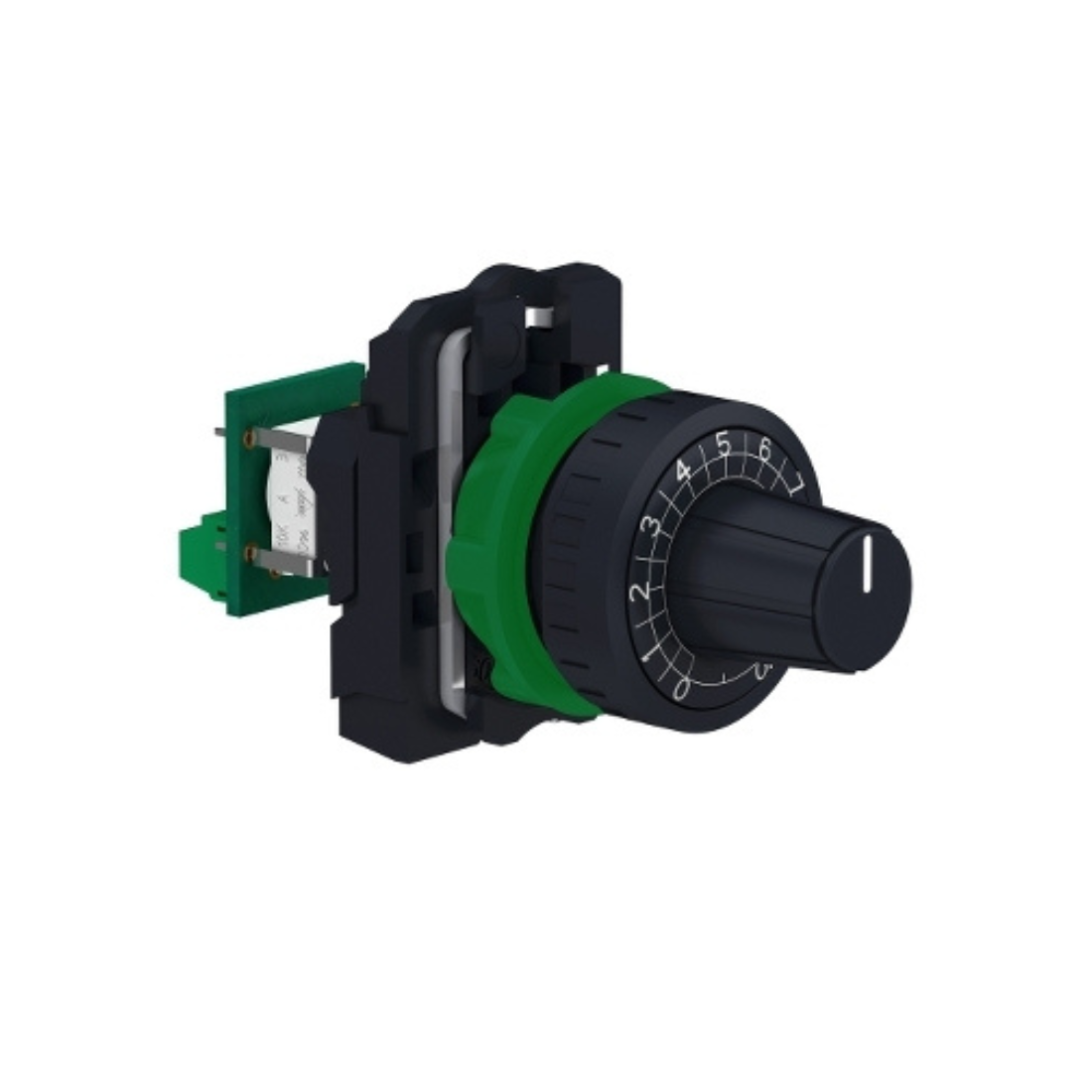

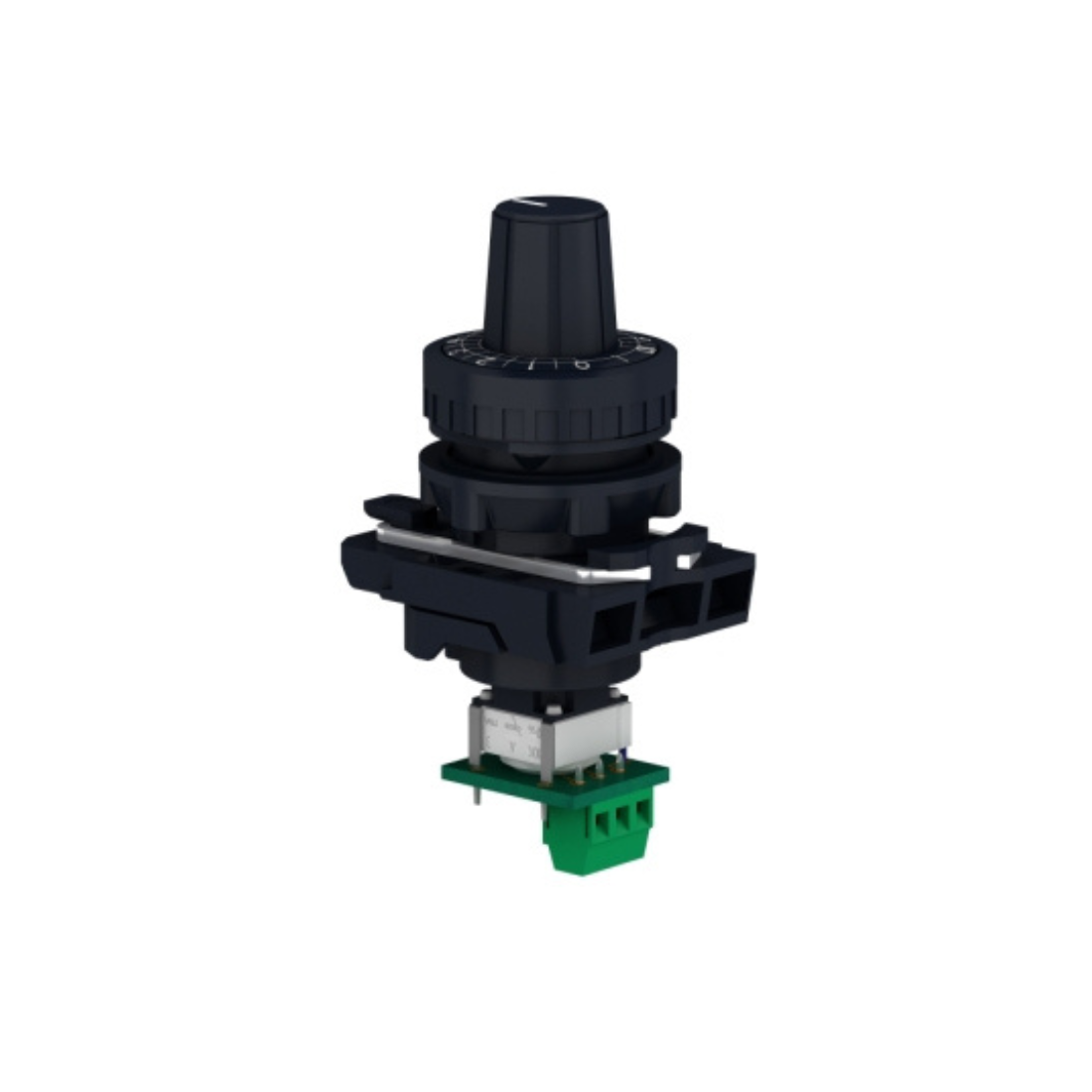

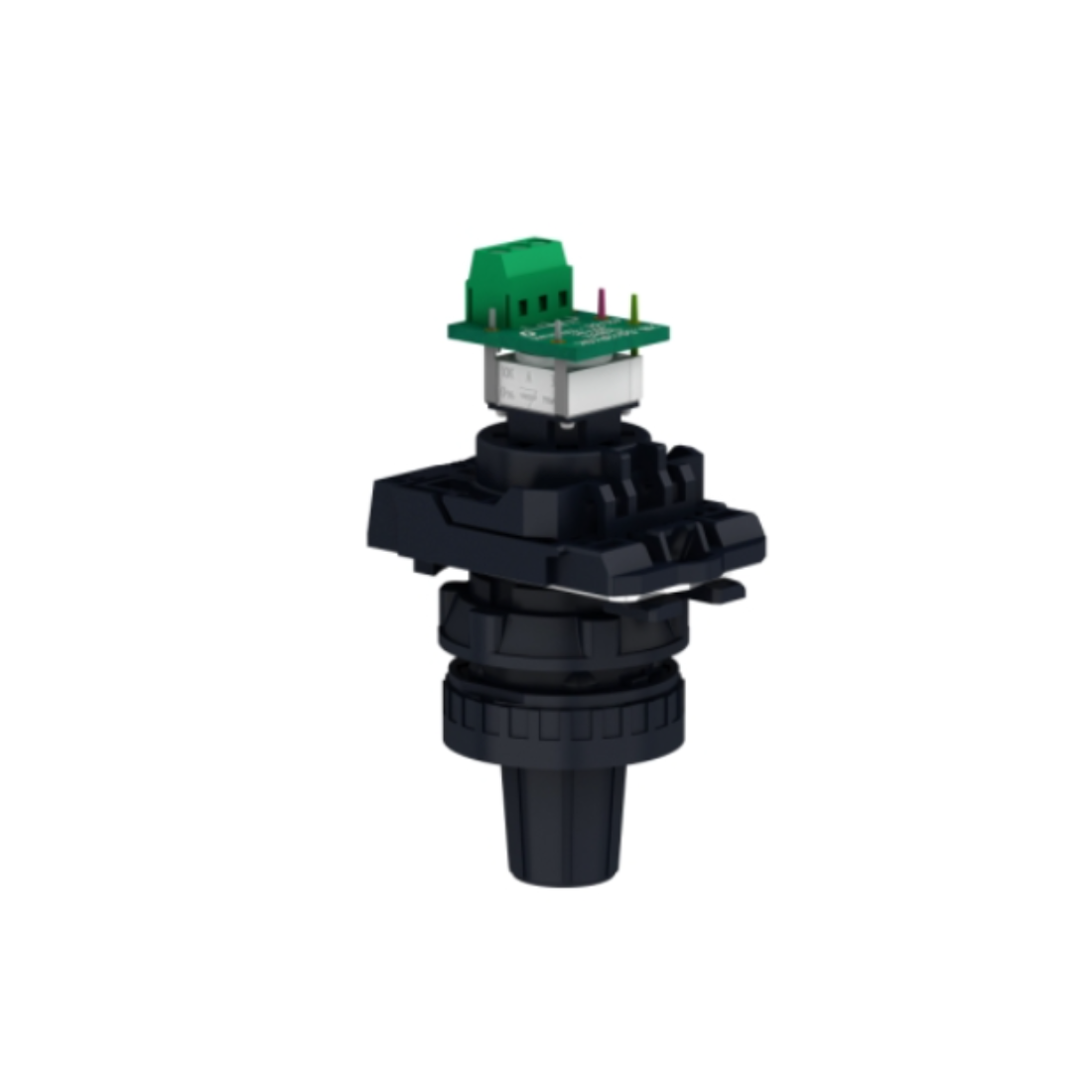

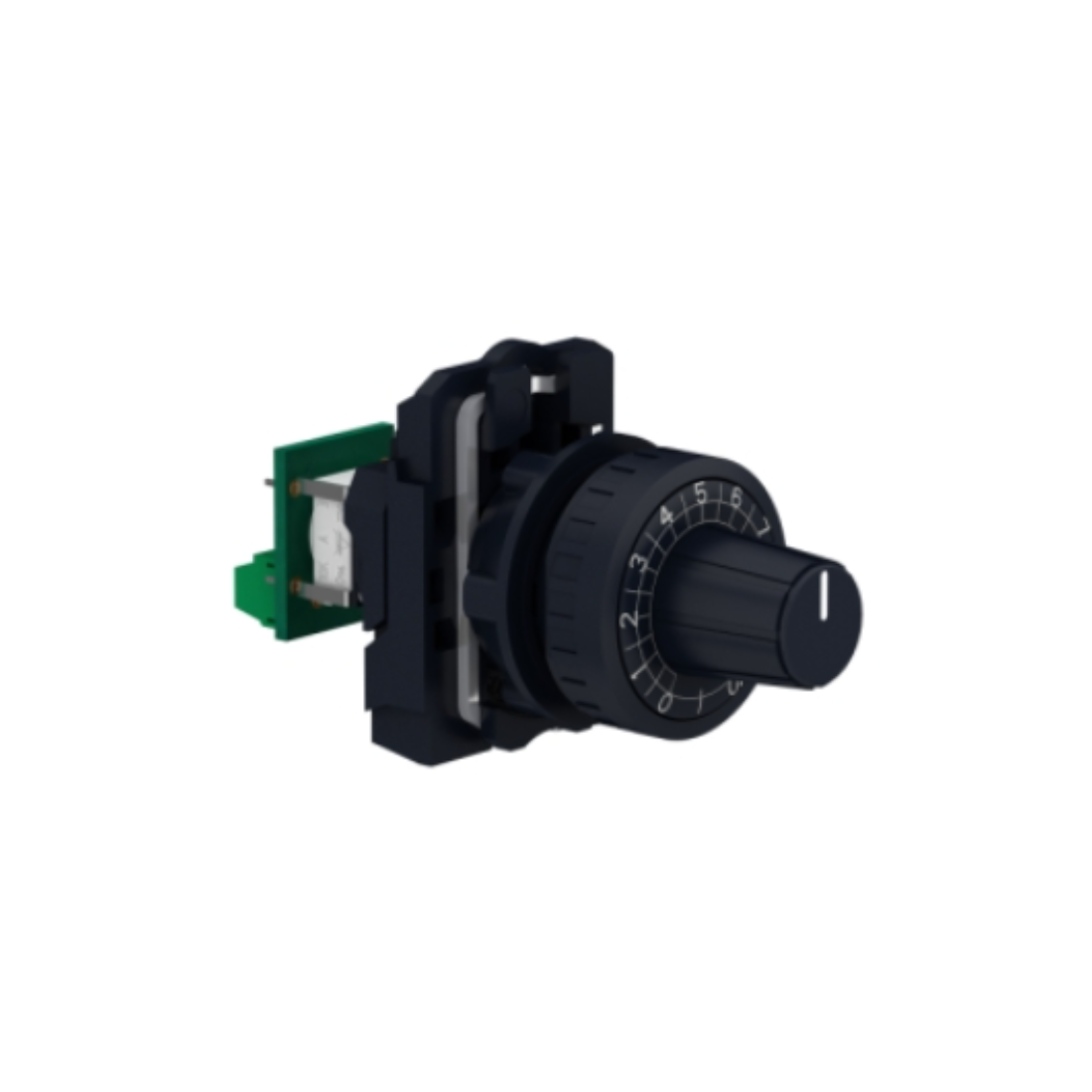

Schneider Electric Harmony XB4 Complete Potentiometer Metal Ø22 10K XB4BD912R10K
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Potentiometer
Description
Schneider Electric XB4BD912R10K Potentiometer has a 10kΩ resistance and uses screw terminals. This potentiometer provides an external interface to control important parameters of automation components such as drives and inverters. Easily installs into standard 22mm diameter cutouts and connects with simple screw clamp connections.
Thanks to IP66 IP69 IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. It is ideal for analog control (for example, speed control of a motor) using the voltage or resistance input of variable speed drives. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines.
Features
- Used for potentiometer applications
- Ideal for analog control using the voltage or resistance input of variable speed drives.
| Brand | Schneider Electric |
| Item Name | Potentiometer |
| Model | XB4BD912R10K |
| Bezel Material | Chromium plated metal |
| Compatibility Code | XB4 |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to IEC 60529 |
| Mechanical Durability | 50000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Knurled knob, with (white) |
| Certifications | CSA, BV, UL listed |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Group Of Product | Potentiometer knurled knob |
| Customizable | 0 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Color of Marking | White |
| Main Group | Potentiometer |
| Precision Of Internal Conversion Resistor | -0.1 |
| Ohmic Value | 10000 Ohm |
| Potentiometer Characteristic | Linear |
| Electrical Composition Code | C7 for <4 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C10 for <4 contacts using single and double blocks in front mounting |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | UL 508, EN/IEC 60947-1, CSA C22.2 No 14 |
| Compatibility | Ø 6 mm shaft |
| Device Presentation | Complete Product |
| Electrical Shock Protection Class | Class II conforming to IEC 60536 |
| Material | Cermet |
| Weight | 0.095 kg |
