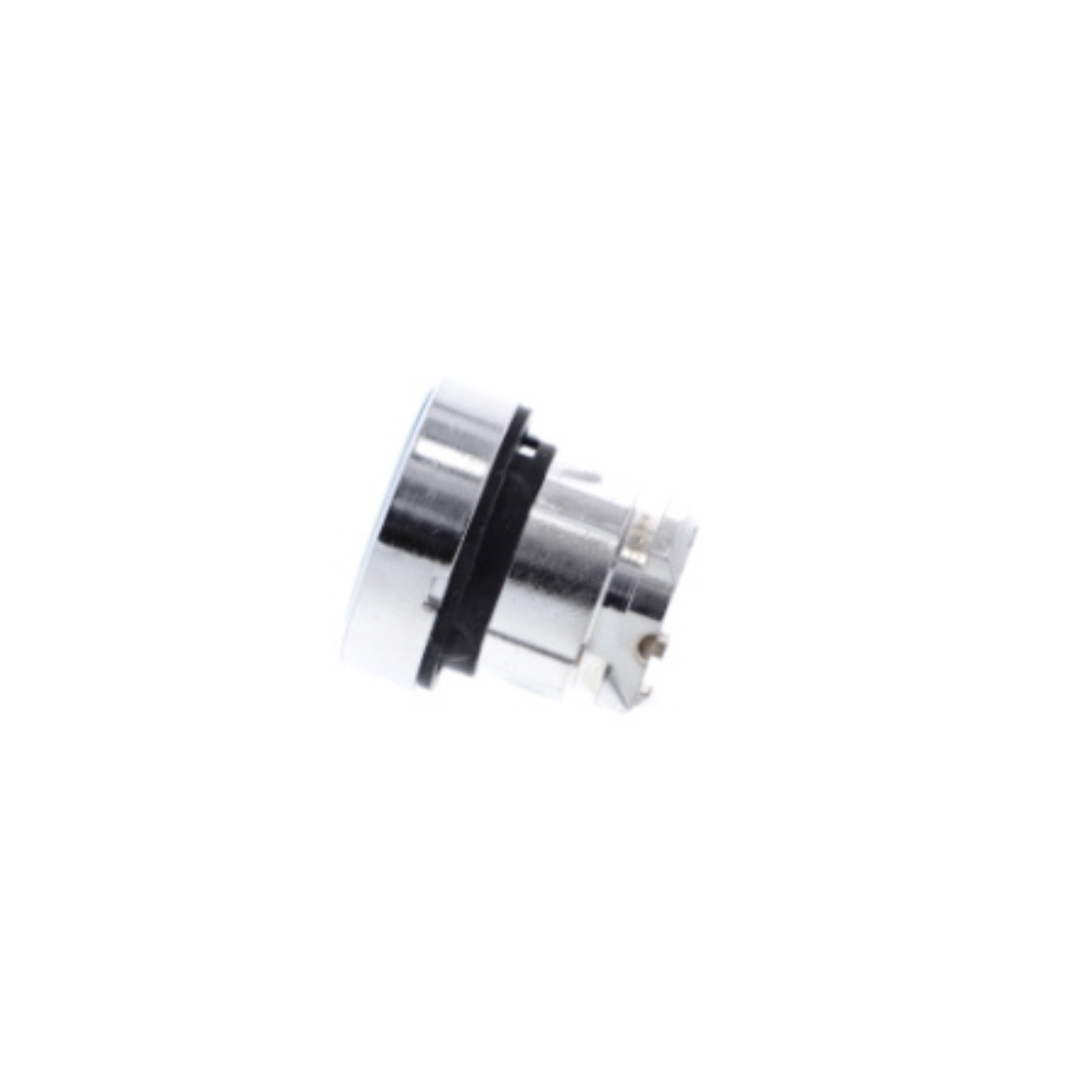

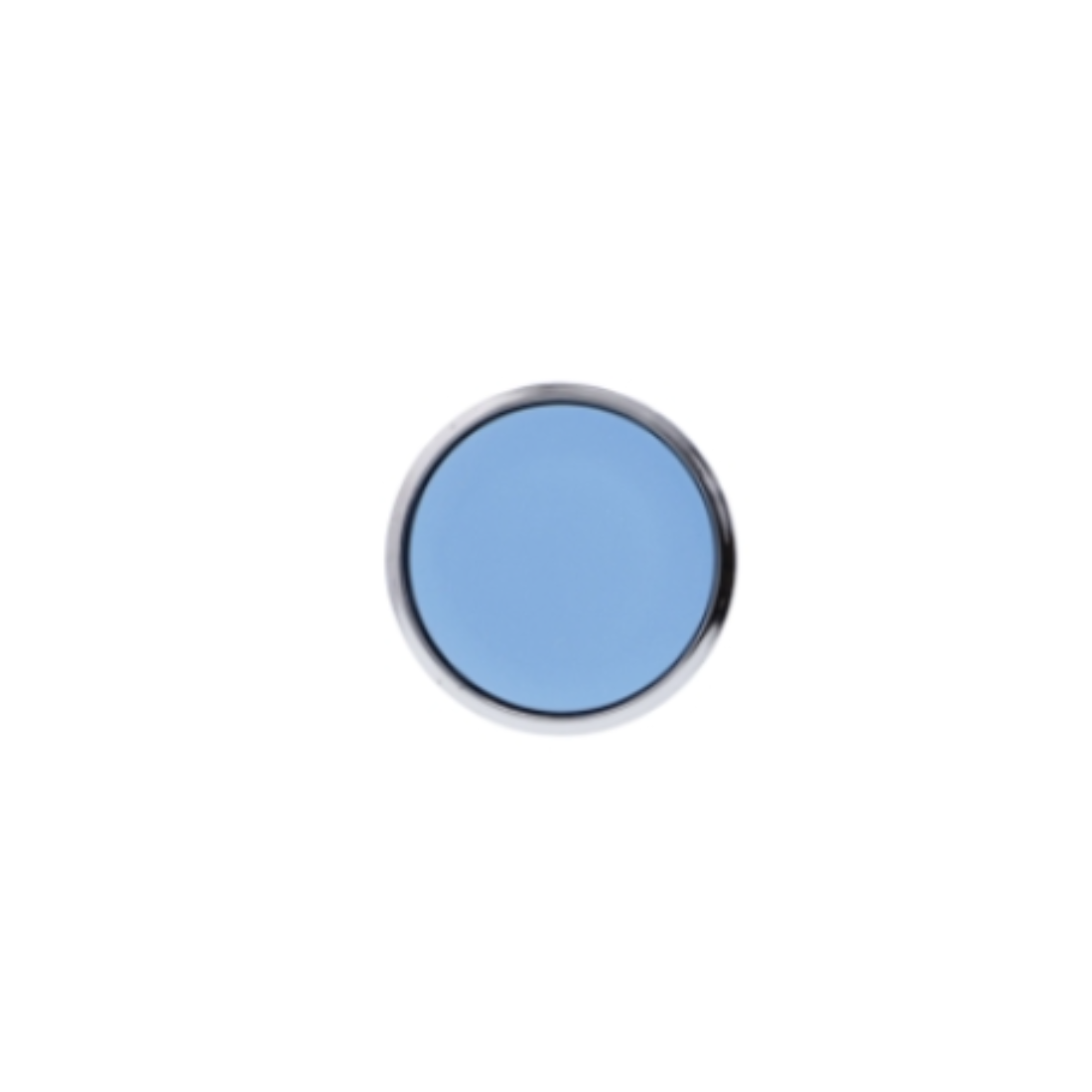

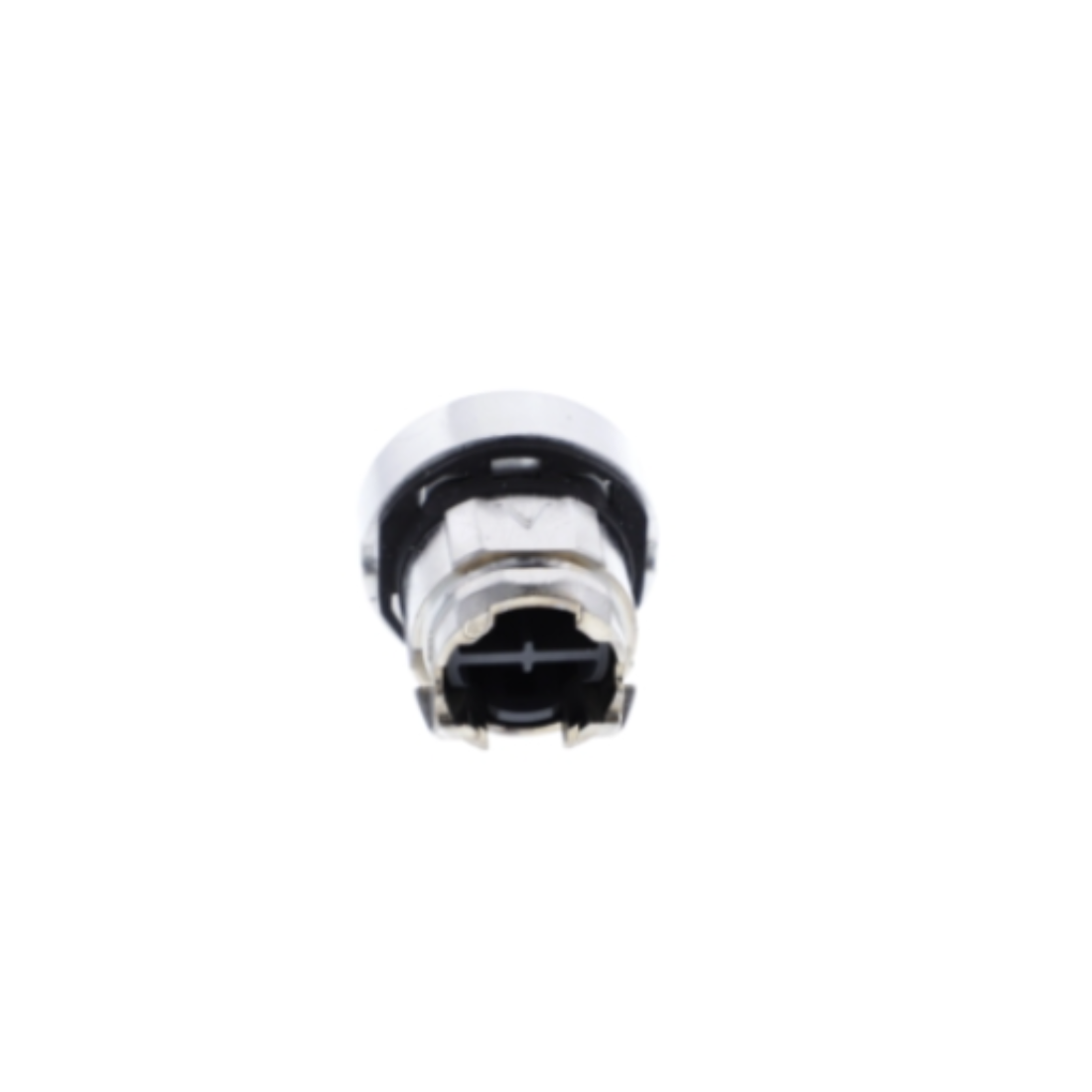

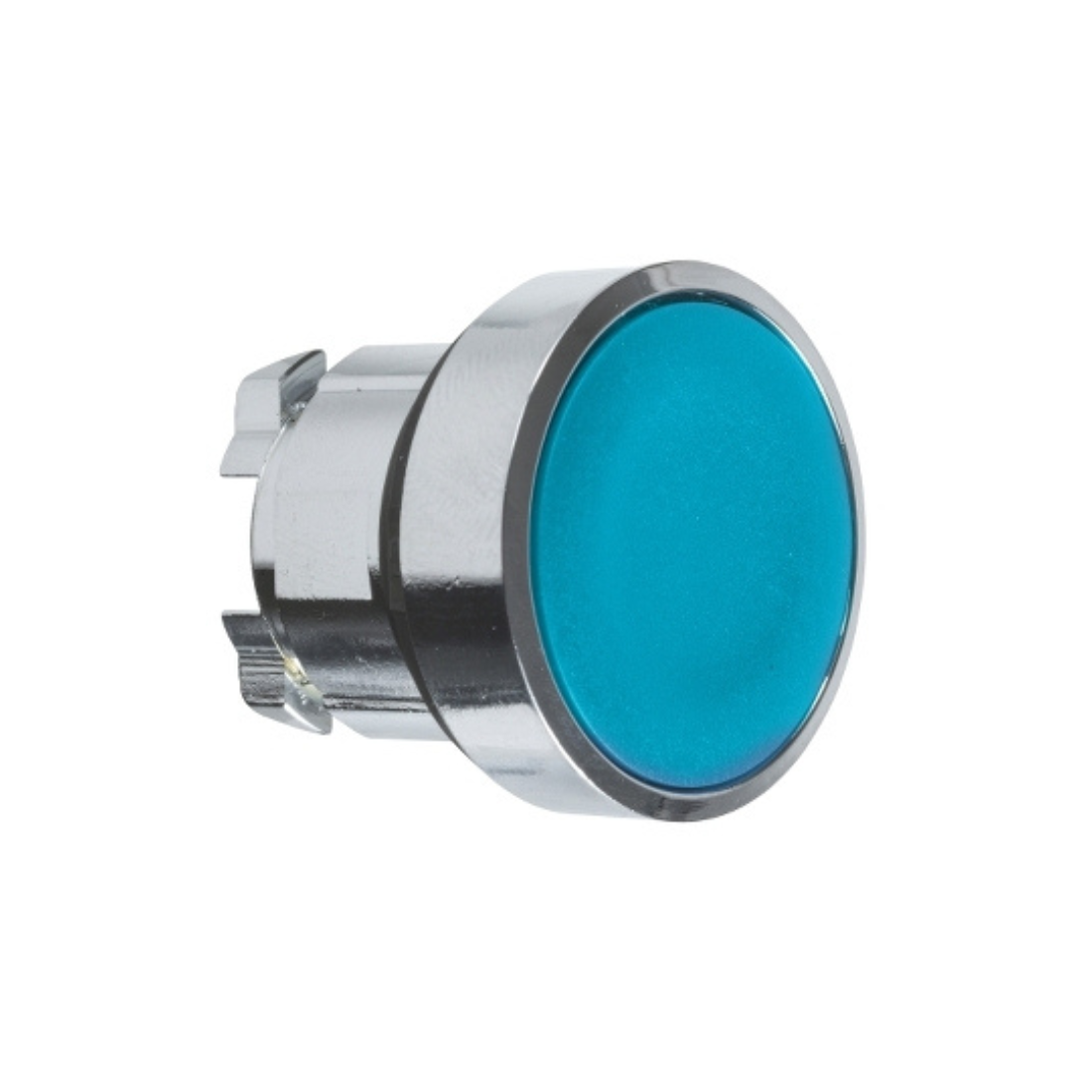

Schneider Electric Harmony XB4 Blue Flush Pushbutton Head Ø22 Spring Return Unmarked ZB4BA6

Schneider Electric Harmony XB4 Blue Flush Pushbutton Head Ø22 Spring Return Unmarked ZB4BA6

Name: Schneider Electric Harmony XB4 Blue Flush Pushbutton Head Ø22 Spring Return Unmarked ZB4BA6
Brand: Schneider Electric
Price: 22.05 AED
Availability: InStock

AED 22.05

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Pushbutton Head

Description

Schneider Electric ZB4BA6 Blue Flush Pushbutton Head features a spring return mechanism. This button head provides an ergonomic interface to control the machines. Installation and replacement on compatible pushbutton units and complete contact blocks is simply snap-on. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof. It has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations.

Schneider Electric ZB4BA6 Blue Flush Pushbutton Head is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.

Features

Spring return mechanism
Provides an ergonomic interface to control the machines.
Shock, dust, water and vibration proof

Specifications

Brand : Schneider Electric

Item Name : Head For Non-illuminated Push-Button

Model : ZB4BA6

Bezel Material : Chromium plated metal

CAD Overall Depth : 28 mm

CAD Overall Height : 29 mm

CAD Overall Width : 29 mm

Cap/Operator Or Lens Colour : Blue

Compatibility Code : ZB4

IK Degree Of Protection : IK06 conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

Marking : Unmarked

Mechanical Durability : 10000000 cycles

Mounting Diameter : 22 mm

Operator Profile : Blue flush, unmarked

Overvoltage Category : Class I conforming to IEC 60536

Protective Treatment : TH

Certifications : GL, BV, DNV, LROS (Lloyds register of shipping), CSA, UL listed

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Shape of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Type of Operator : Spring Return

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Group Of Product : Flush push non illuminated

Operator Additional Information : With plain lens

Customizable : 1

Head Type : Standard

GCR BRIDGE : ZB4BACUST01

Main Group : Illum Push-button

Electrical Composition Code : C1 for <9 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, UL 508, JIS C8201-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, JIS C8201-1

Device Presentation : Basic element

Weight : 0.26 kg
