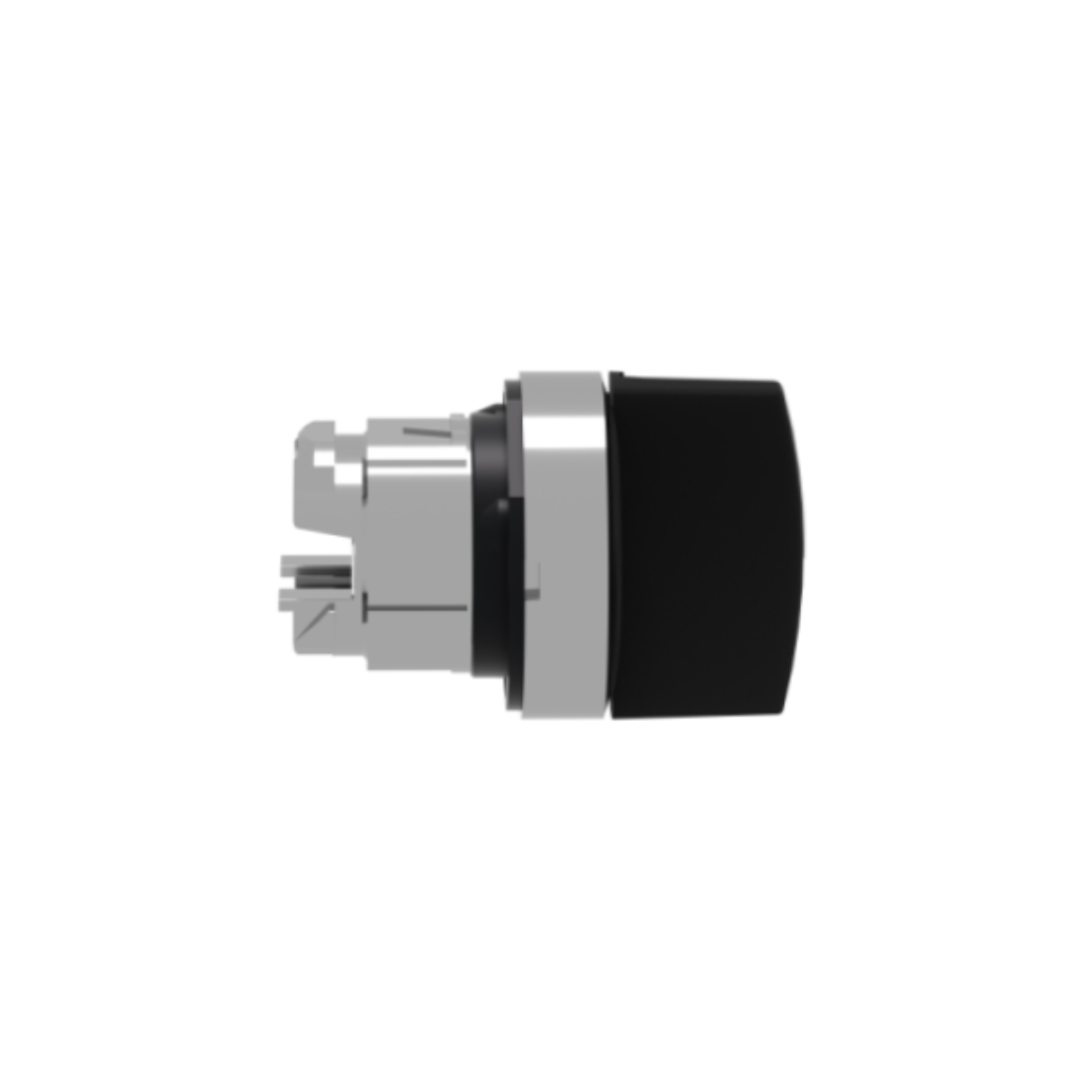

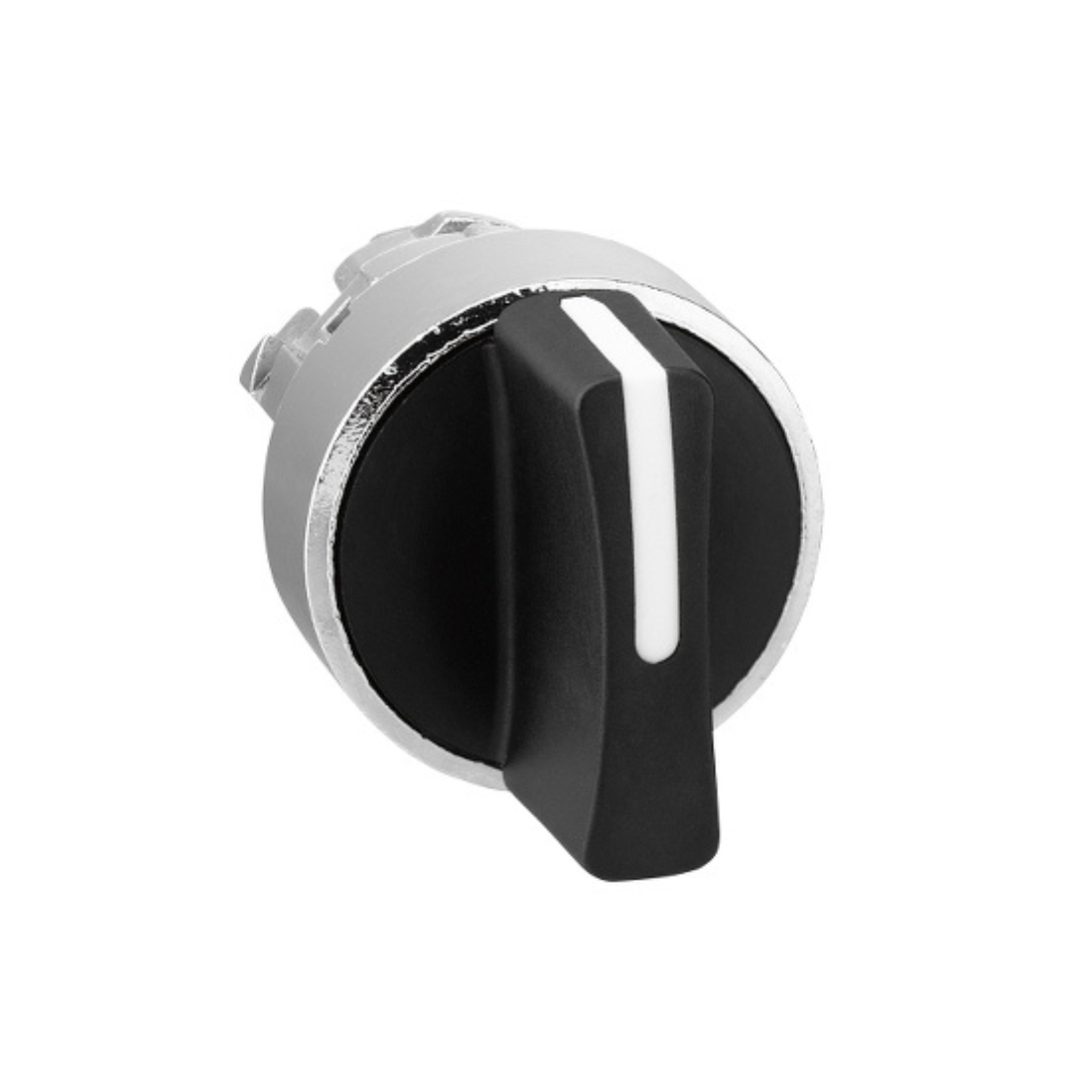

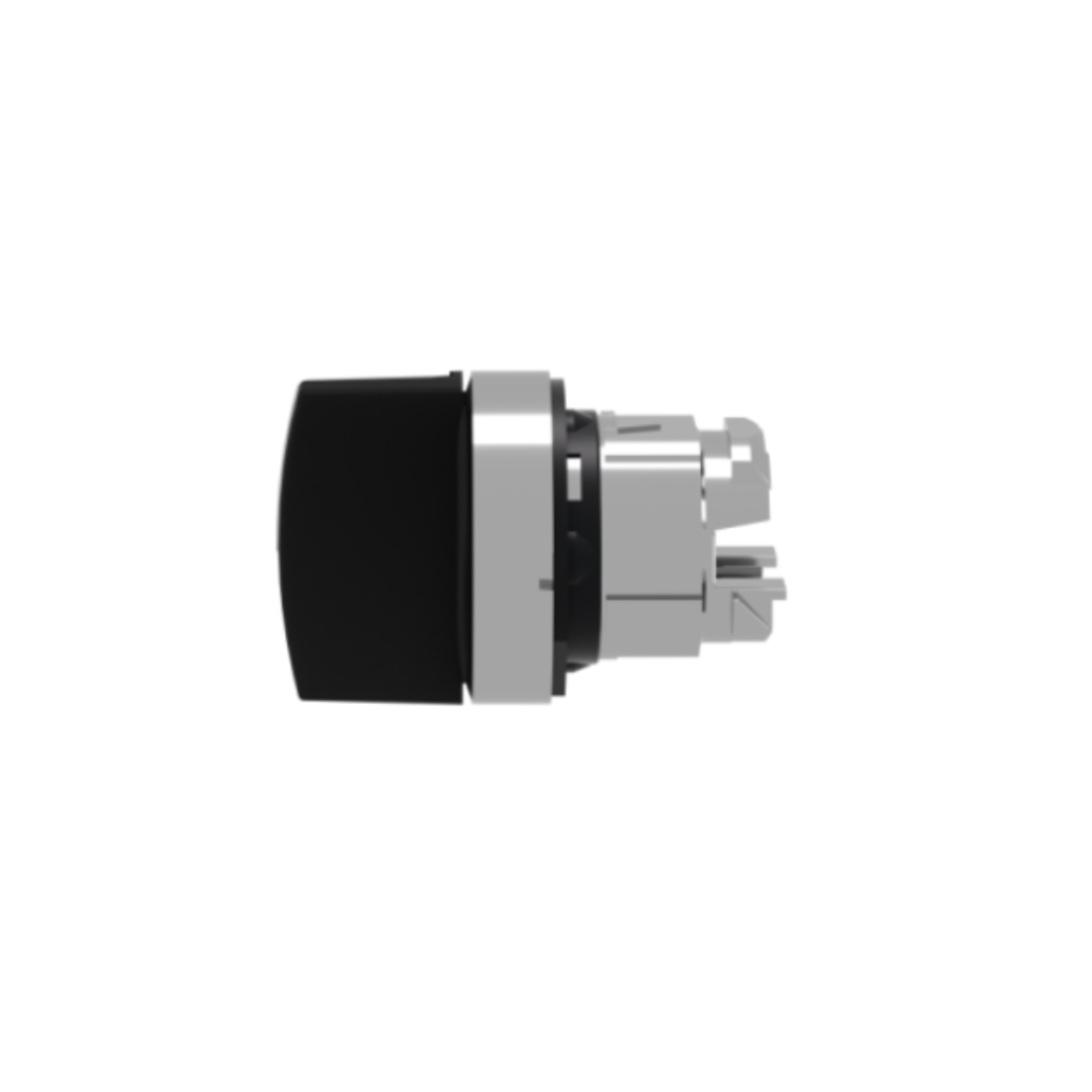

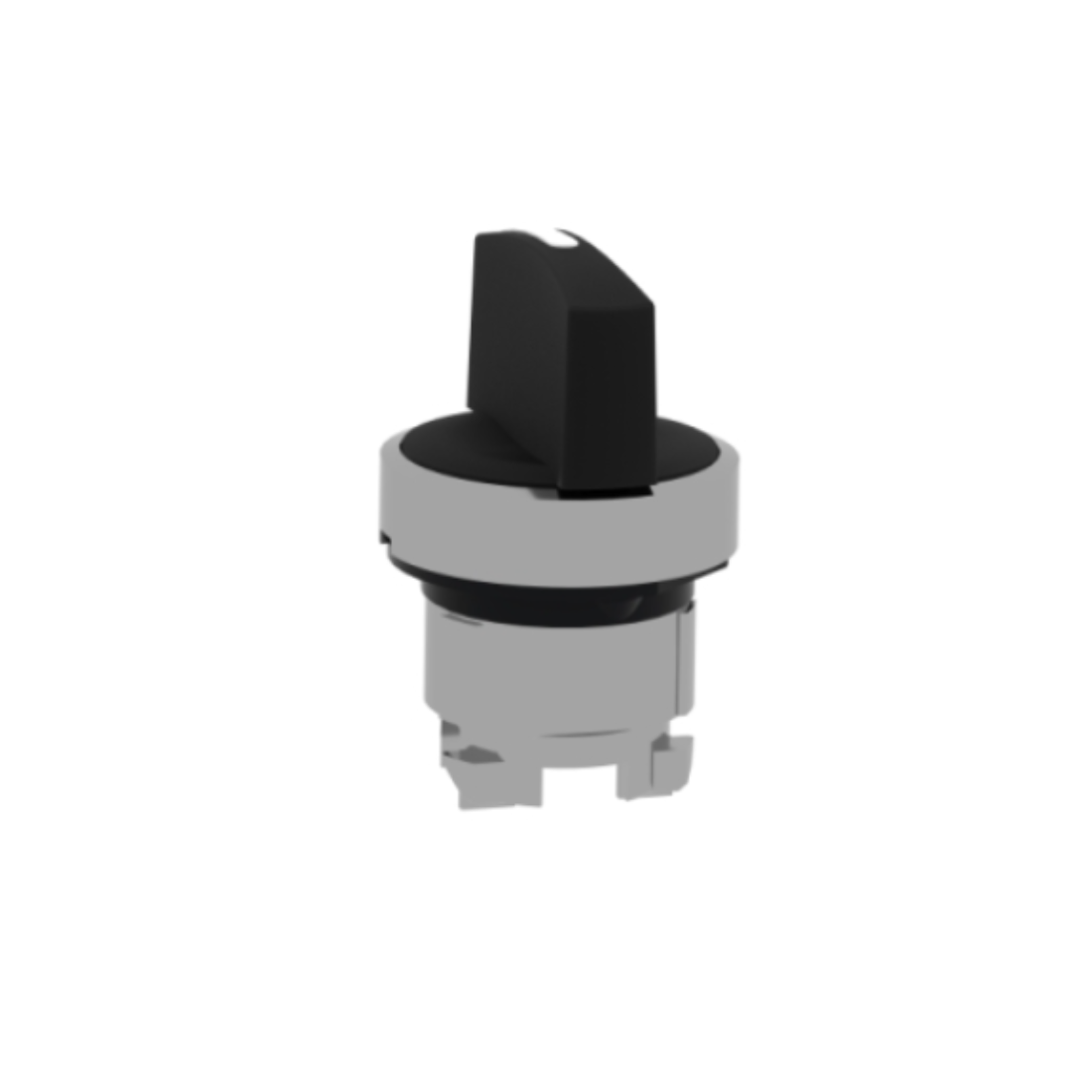

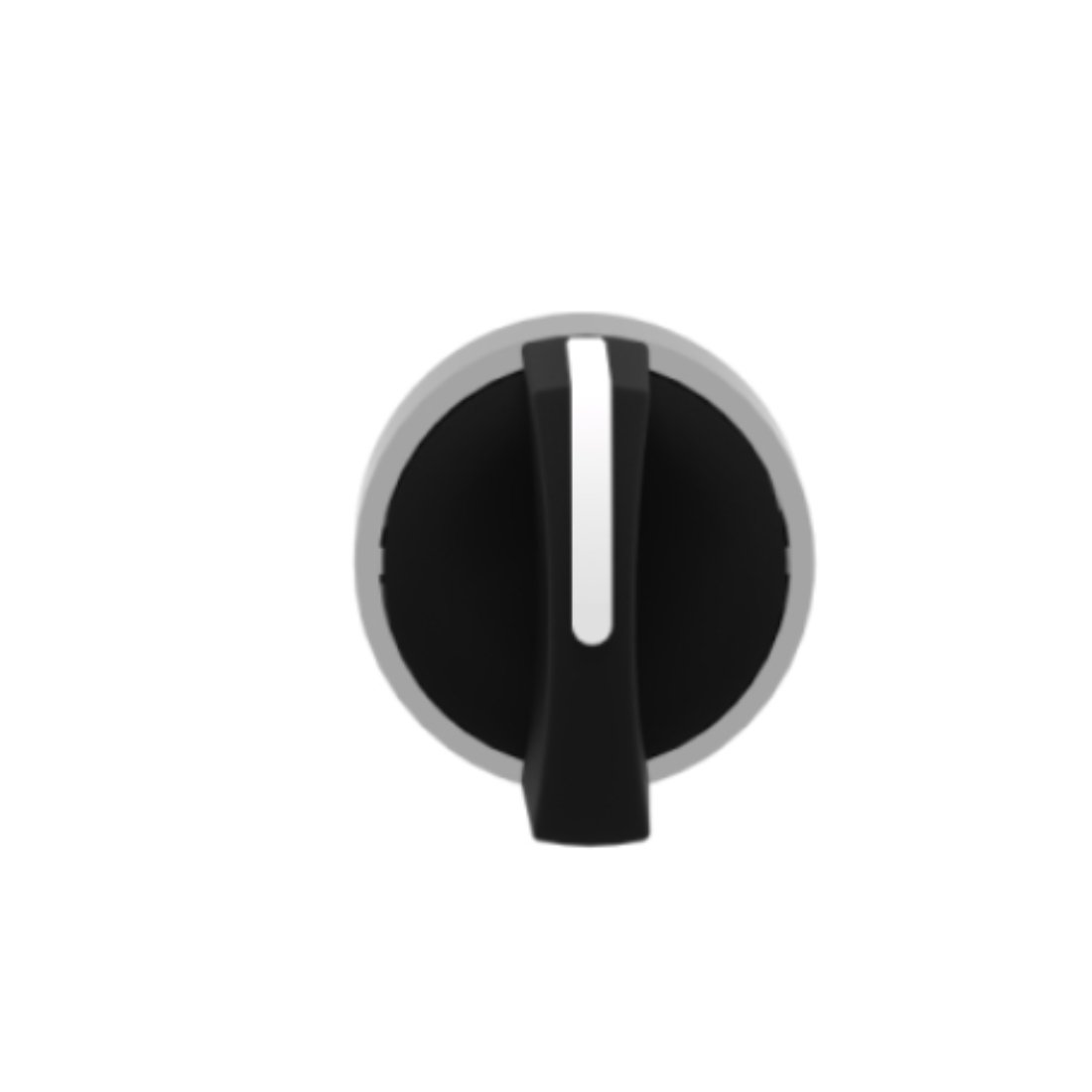

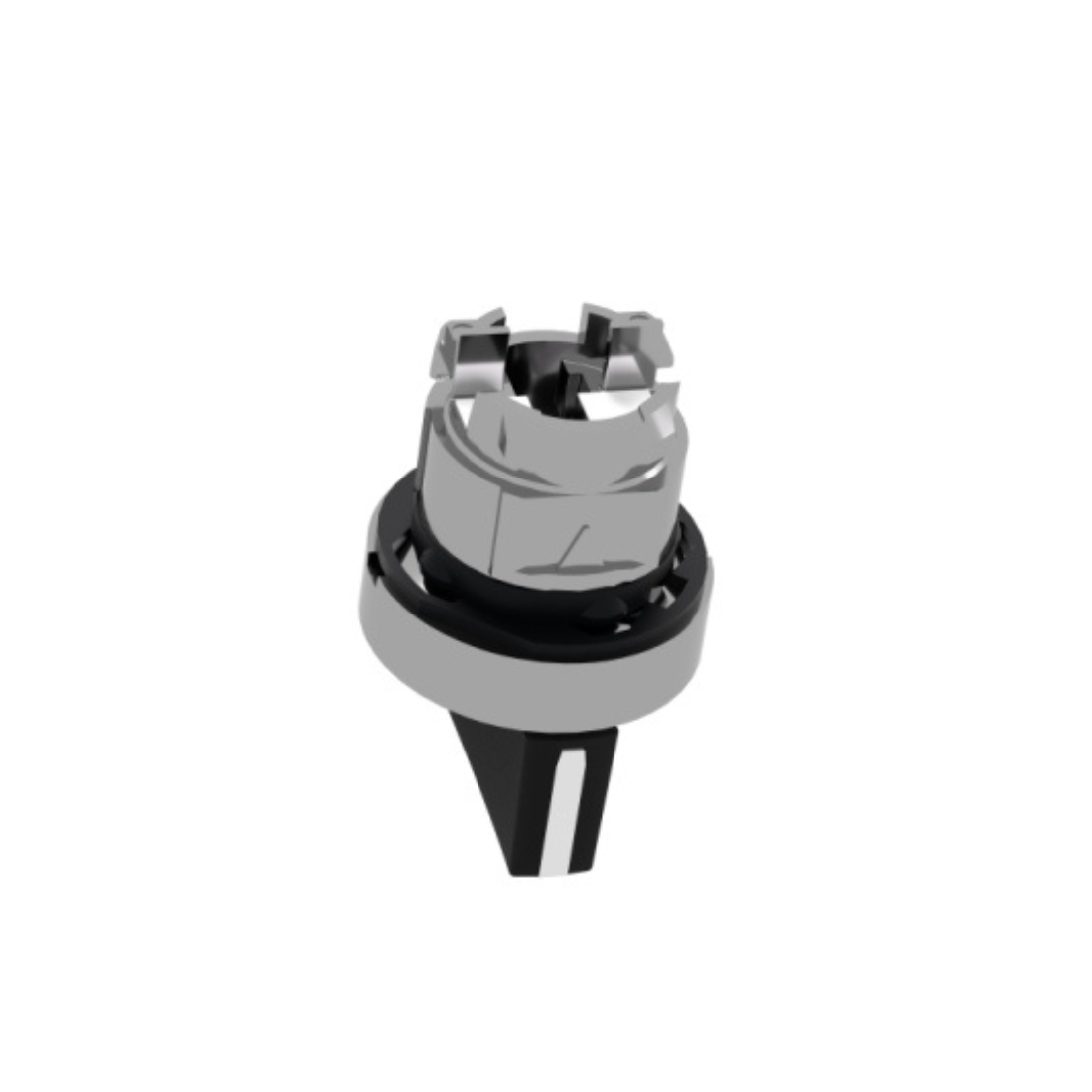

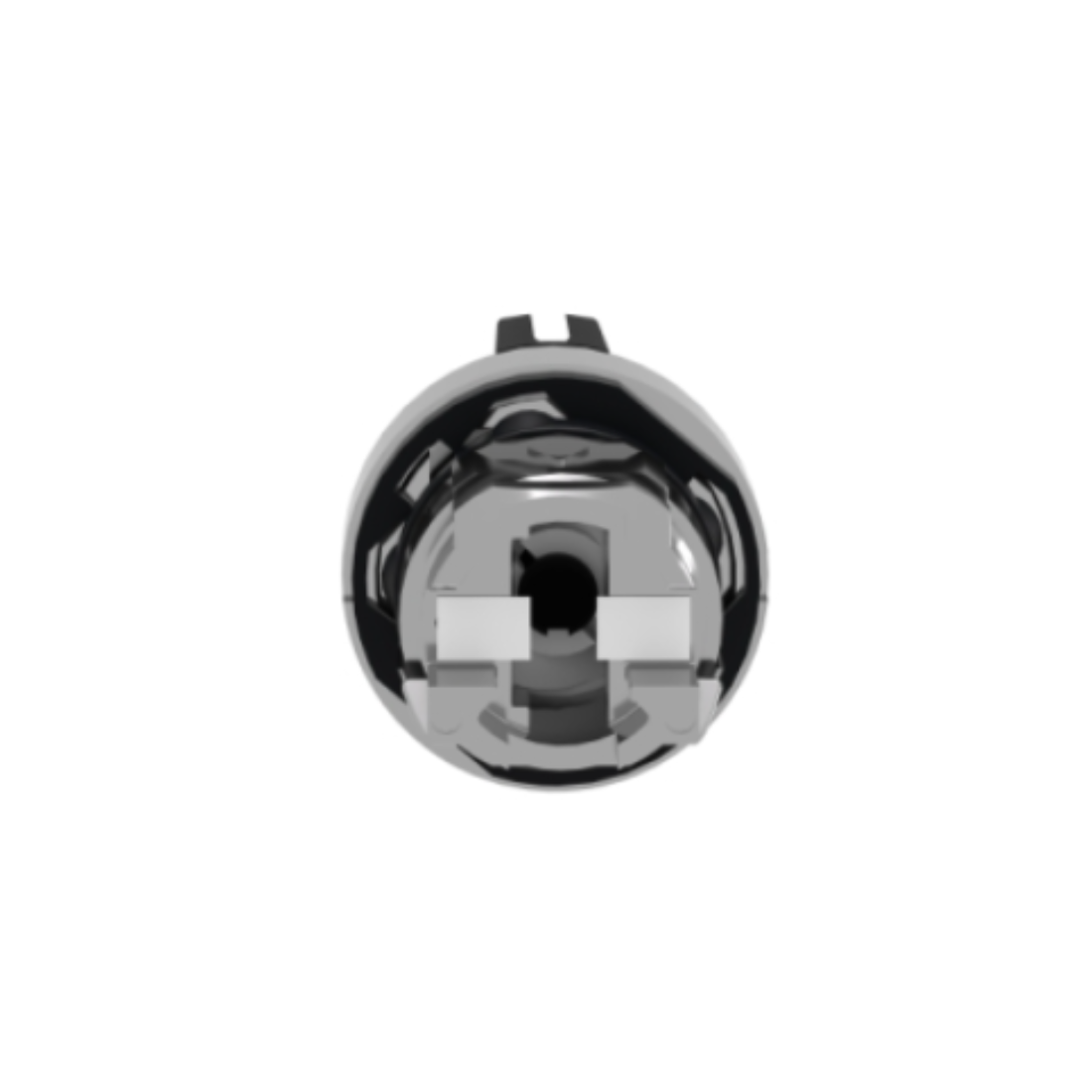

Schneider Electric Harmony XB4 Black Selector Switch Head Ø22 3-Position Spring Return ZB4BD8

Schneider Electric Harmony XB4 Black Selector Switch Head Ø22 3-Position Spring Return ZB4BD8

Name: Schneider Electric Harmony XB4 Black Selector Switch Head Ø22 3-Position Spring Return ZB4BD8
Brand: Schneider Electric
Price: 34.65 AED
Availability: InStock

AED 34.65

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Selector Switch Head

Description

Schneider Electric ZB4BD8 Black Selector Switch Head with standard handle has 3 positions, operates with spring return from right to center mechanism. It provides an ergonomic interface to control the machines. It can be easily installed on compatible selector switch units and provides an efficient way to set your machine to different operating modes. Thanks to IP69K, it is shock, dust, water and vibration proof.

Schneider Electric ZB4BD8 Black Selector Switch Head has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the selector switch head to be used in a variety of ways.

Features

Ergonomic interface for controlling the machines.
It is shock, dust, water and vibration proof
Ideal for use in harsh environments.

Specifications

Brand : Schneider Electric

Item Name : Selector Switch Head

Model : ZB4BD8

Bezel Material : Chromium plated metal

CAD Overall Depth : 44 mm

CAD Overall Height : 29 mm

CAD Overall Width : 29 mm

Cap/Operator Or Lens Color : Black

Compatibility Code : ZB4

IK Degree Of Protection : IK06 Conforming to IEC 50102

IP Degree Of Protection : IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K

Mechanical Durability : 1000000 cycles

Mounting Diameter : 22 mm

Operator Position Information : 3 positions +/- 45°

Operator Profile : Black Standard Handle

Overvoltage Category : Class I conforming to IEC 60536

Protective Treatment : TH

Certifications : CSA, DNV, LROS (Lloyds register of shipping), UL listed, GL, BV

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Shape Of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Type of Operator : Right to centre spring return

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Group Of Product : Non illuminated

Customizable : 0

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

Main Group : Selector switch

Electrical Composition Code : C3 for <6 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, SF1 for <3 contacts using single blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : EN/IEC 60947-1, UL 508, EN/IEC 60947-5-5, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, JIS C8201-1

Device Presentation : Basic element

Weight : 0.04 kg
