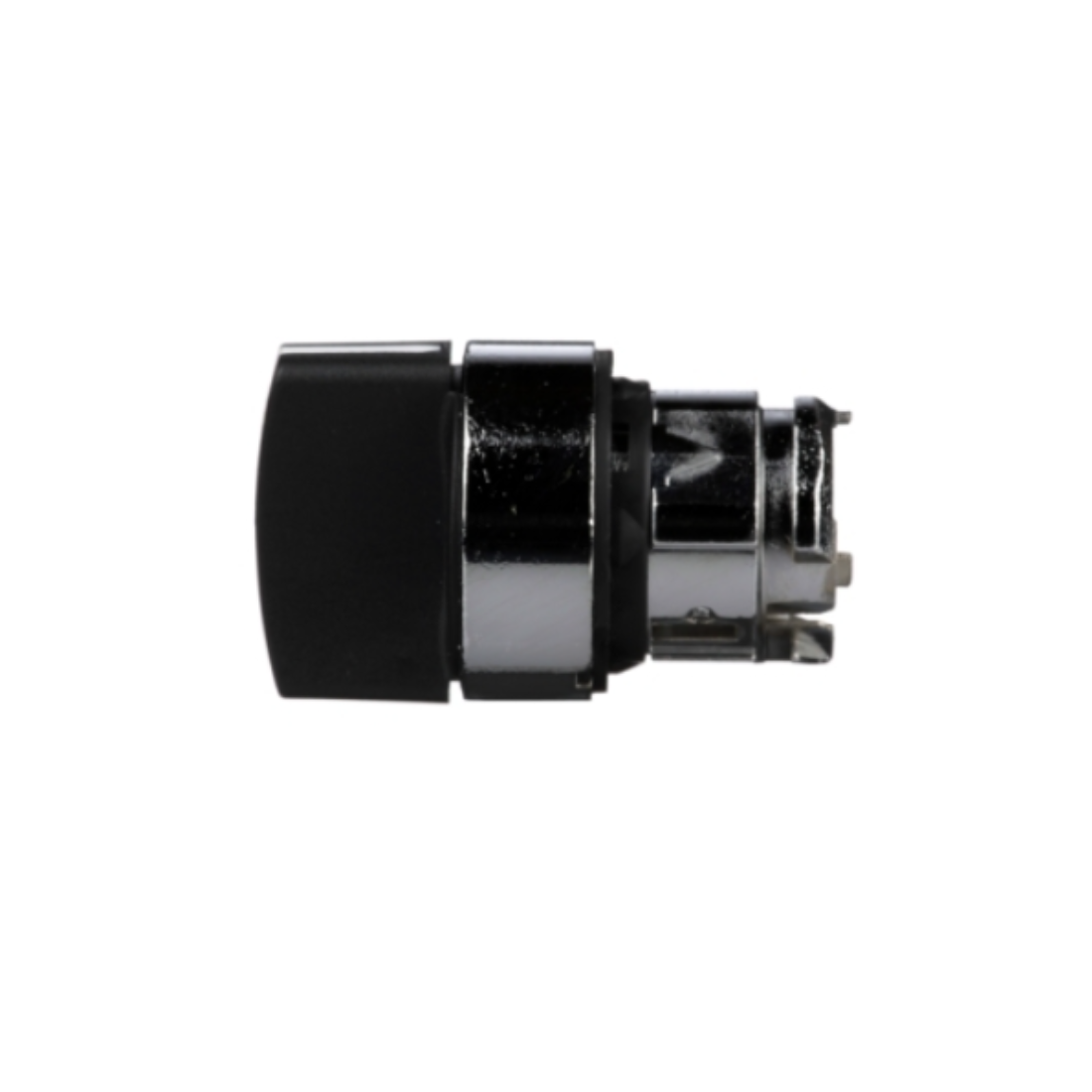

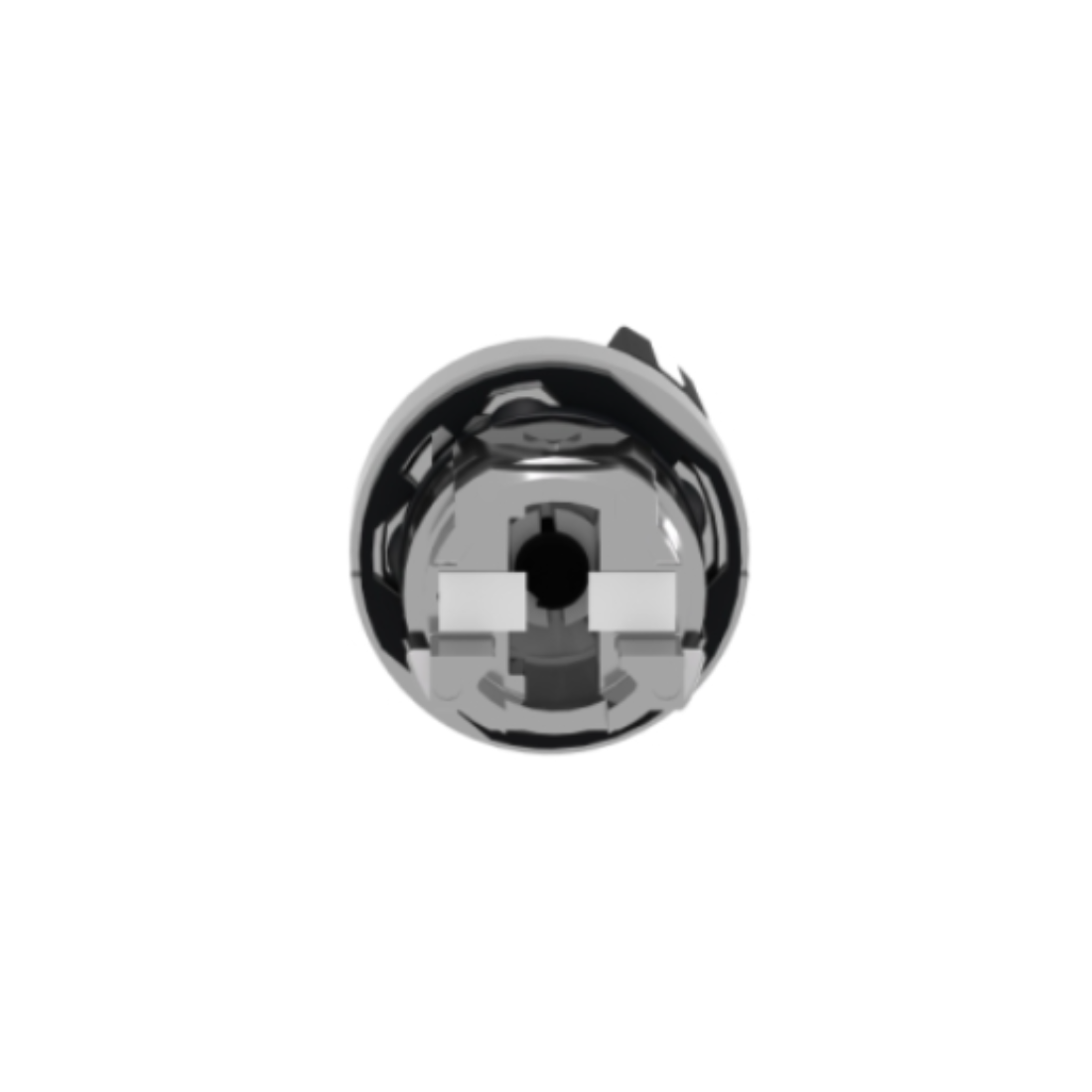

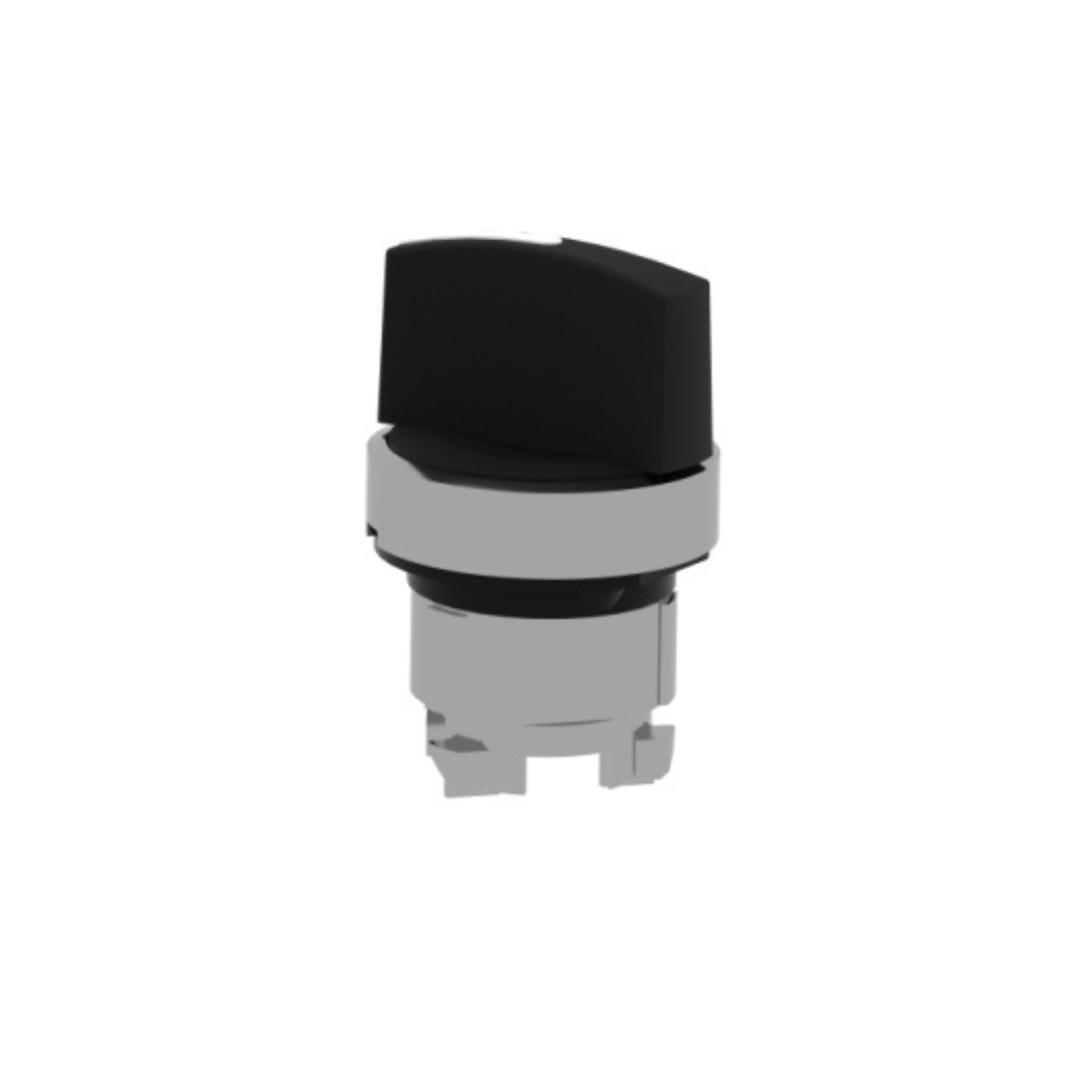

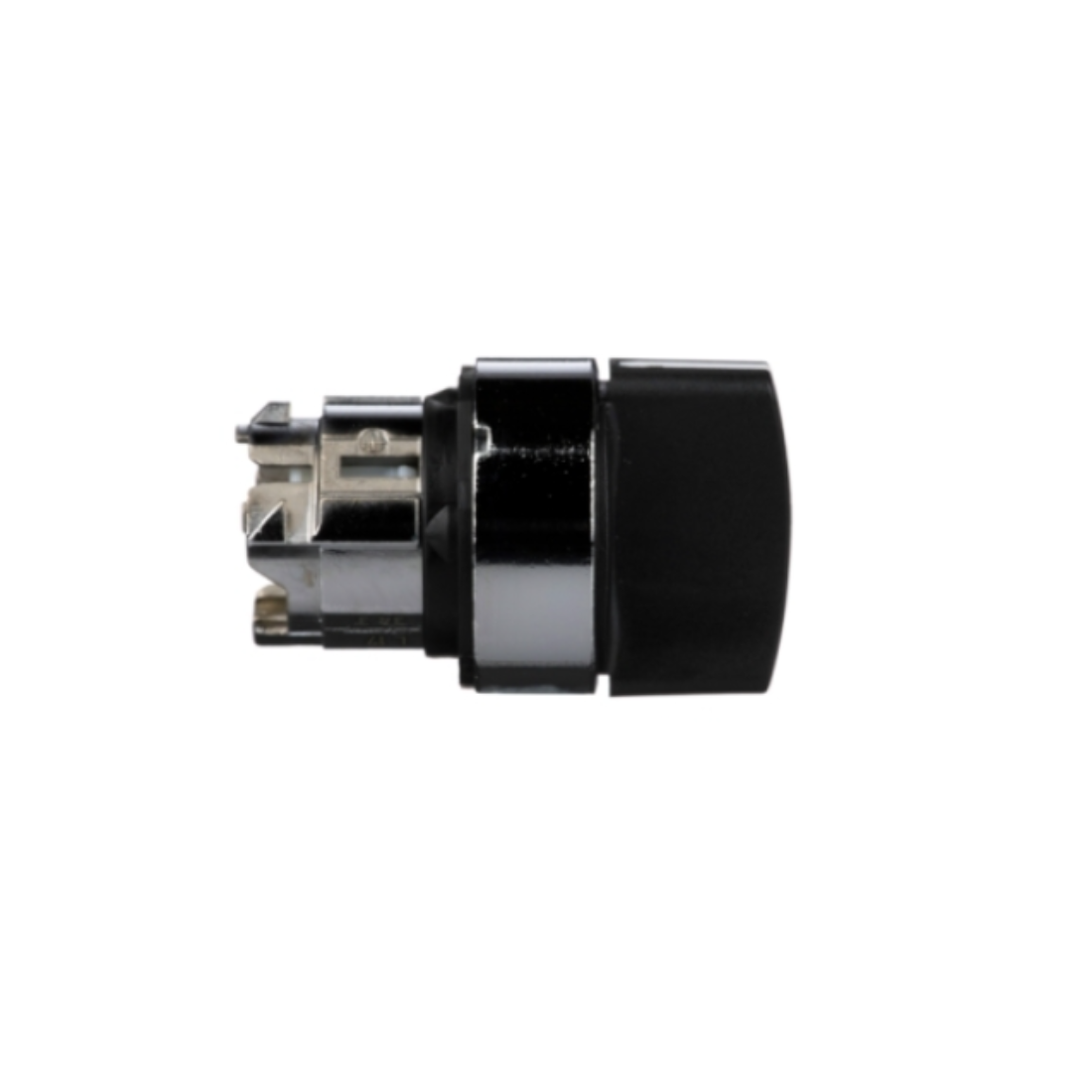

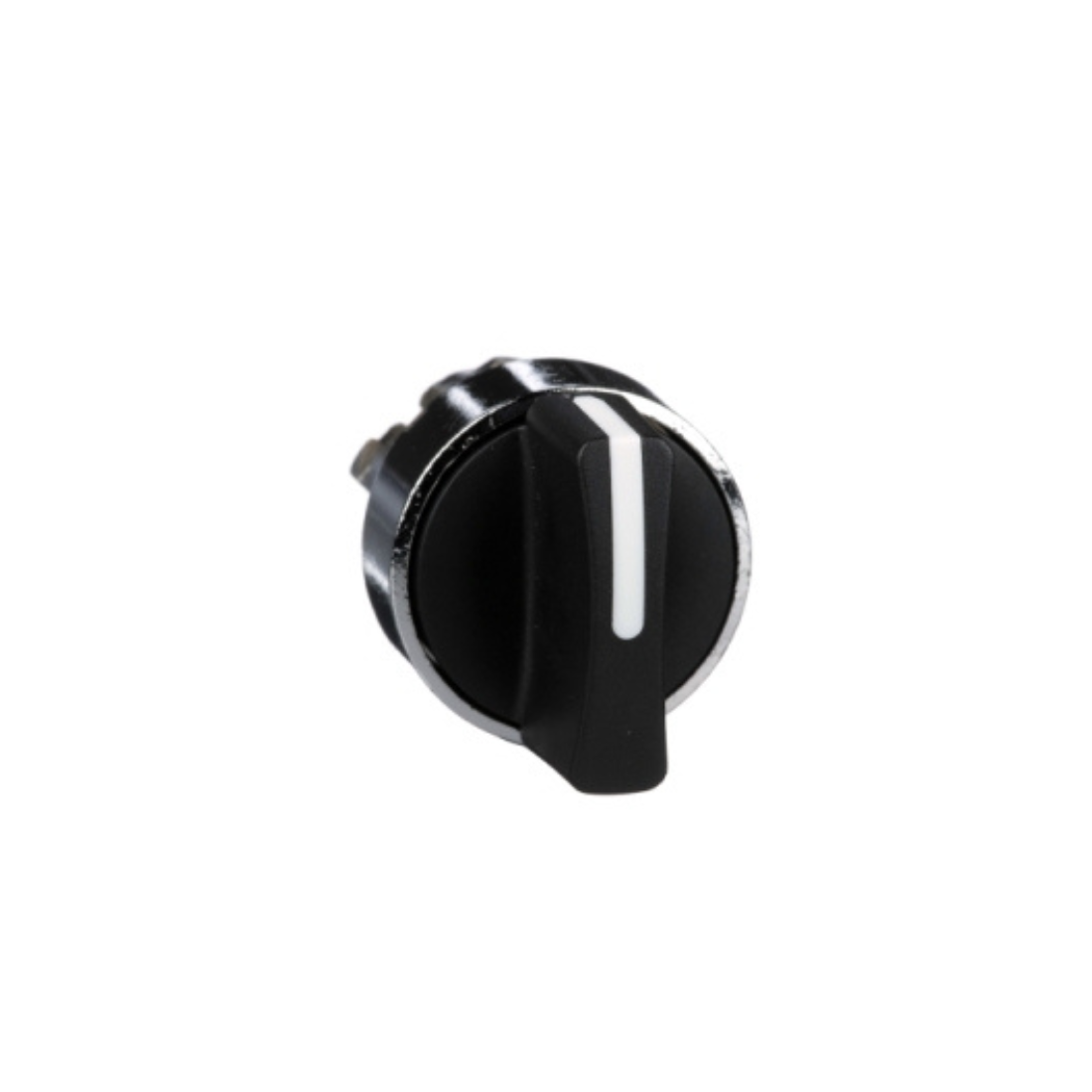

Schneider Electric Harmony XB4 Black Selector Switch Head Ø22 2-Position Stay Put ZB4BD2
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Selector Switch Head
Description
Schneider Electric ZB4BD2 Black Selector Switch Head has 2 positions and operates with a detent mechanism. This standard handle switch head provides an ergonomic interface to control the machines. It can be easily installed on compatible selector switch units and provides an efficient way to set the machine to different operating modes. Thanks to IP69K, it is shock, dust, water and vibration proof.
Schneider Electric ZB4BD2 Black Selector Switch Head has a metal bezel that makes it ideal for applications that require high resistance to shocks and vibrations. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.
Features
- Provides an ergonomic interface to control the machines.
- It is shock, dust, water and vibration proof
- It has a plastic frame
| Brand | Schneider Electric |
| Item Name | Selector Switch Head |
| Model | ZB4BD2 |
| Bezel Material | Chromium plated metal |
| CAD Overall Depth | 46 mm |
| CAD Overall Height | 29 mm |
| CAD Overall Width | 29 mm |
| Cap/Operator Or Lens Color | Black |
| Compatibility Code | ZB4 |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| IP Degree Of Protection | IP67 conforming to IEC 60529, IP69, IP69K |
| Mechanical Durability | 1000000 cycles |
| Mounting Diameter | 22 mm |
| Operator Position Information | 2 positions 90° |
| Operator Profile | Black Standard Handle |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Protective Treatment | TH |
| Certifications | BV, LROS (Lloyds register of shipping), DNV, UL listed, CSA, GL |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Group Of Product | Non Illuminated |
| Customizable | 0 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Main Group | Selector switch |
| Electrical Composition Code | C3 for <6 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-5, UL 508, JIS C8201-1 |
| Device Presentation | Basic element |
| Weight | 0.04 kg |
