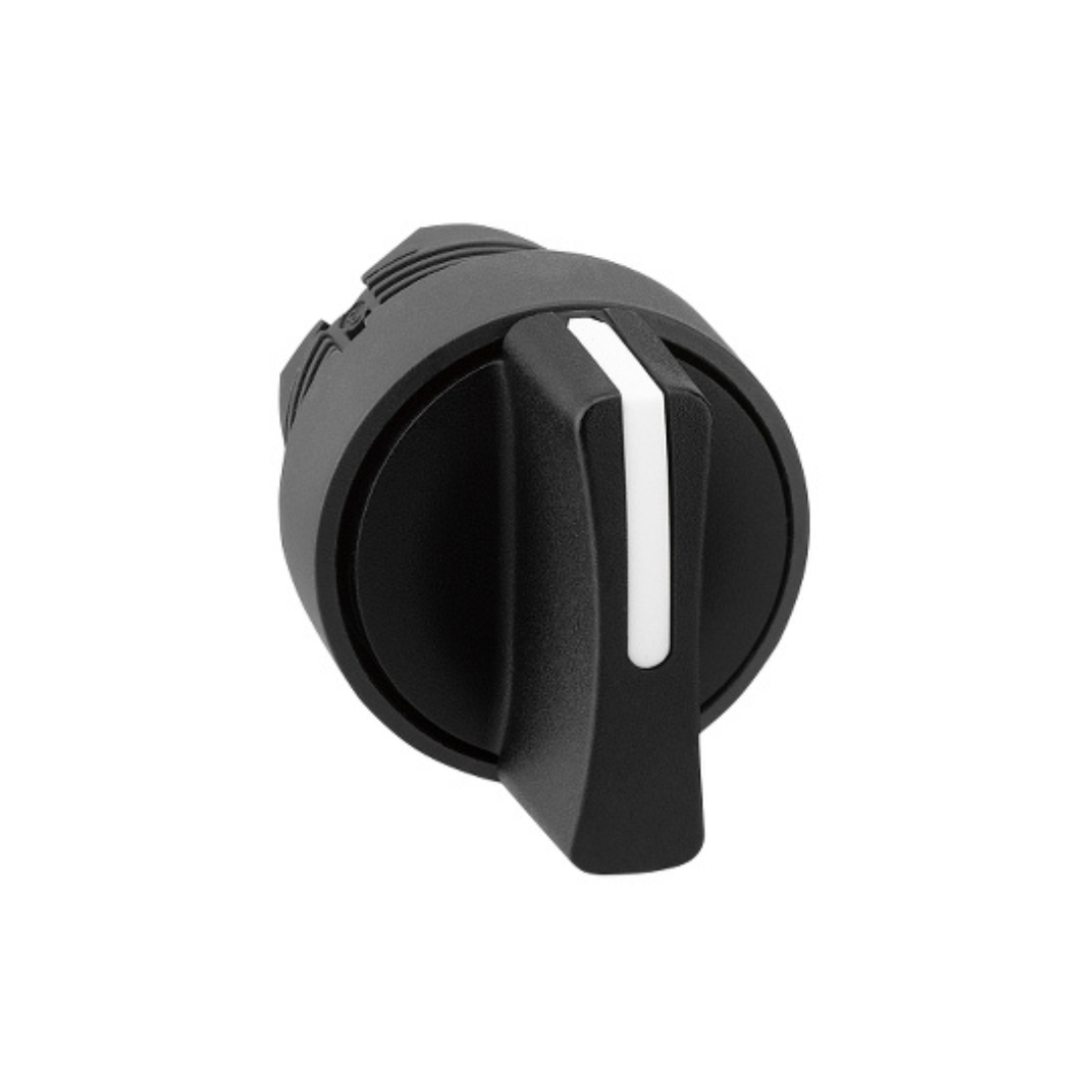

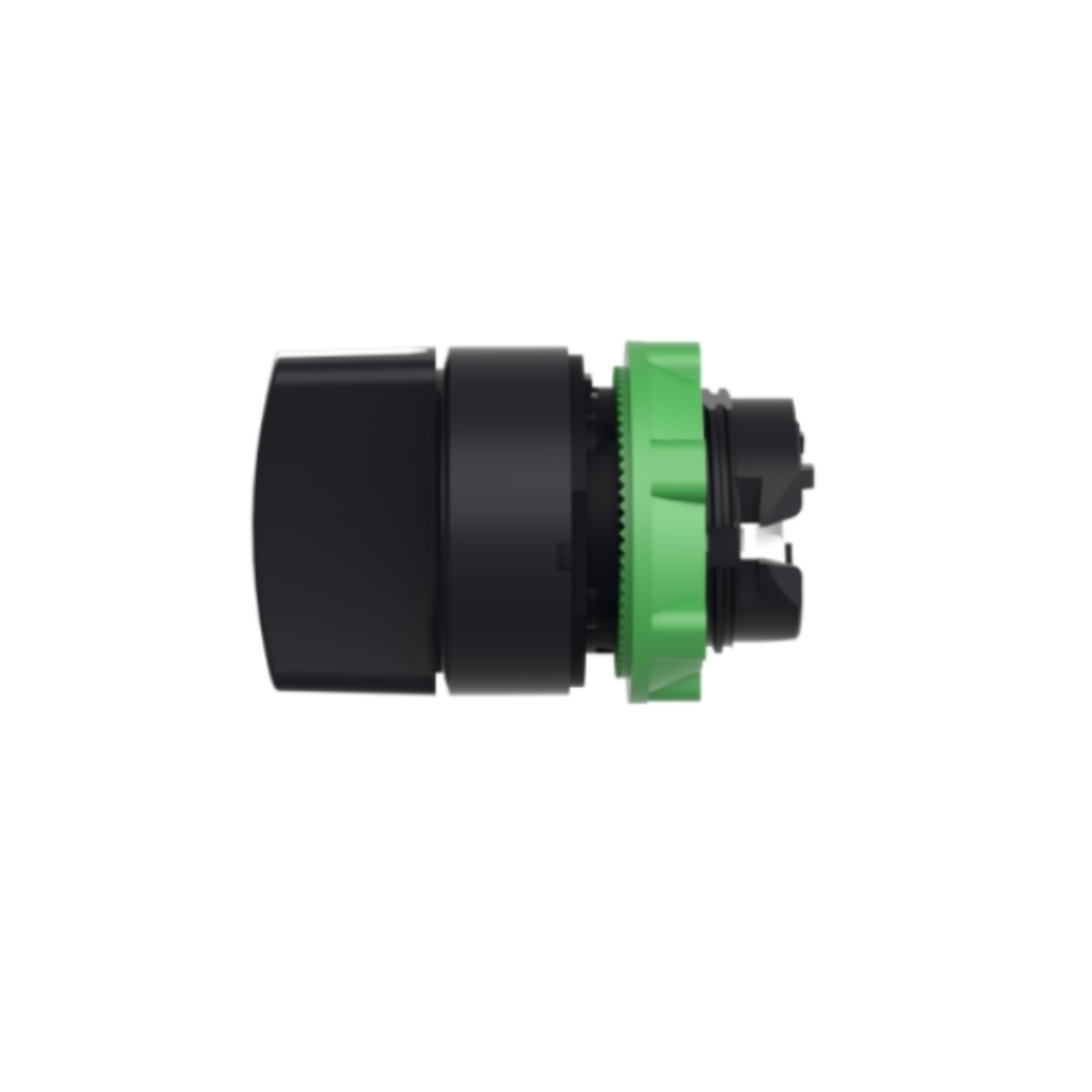

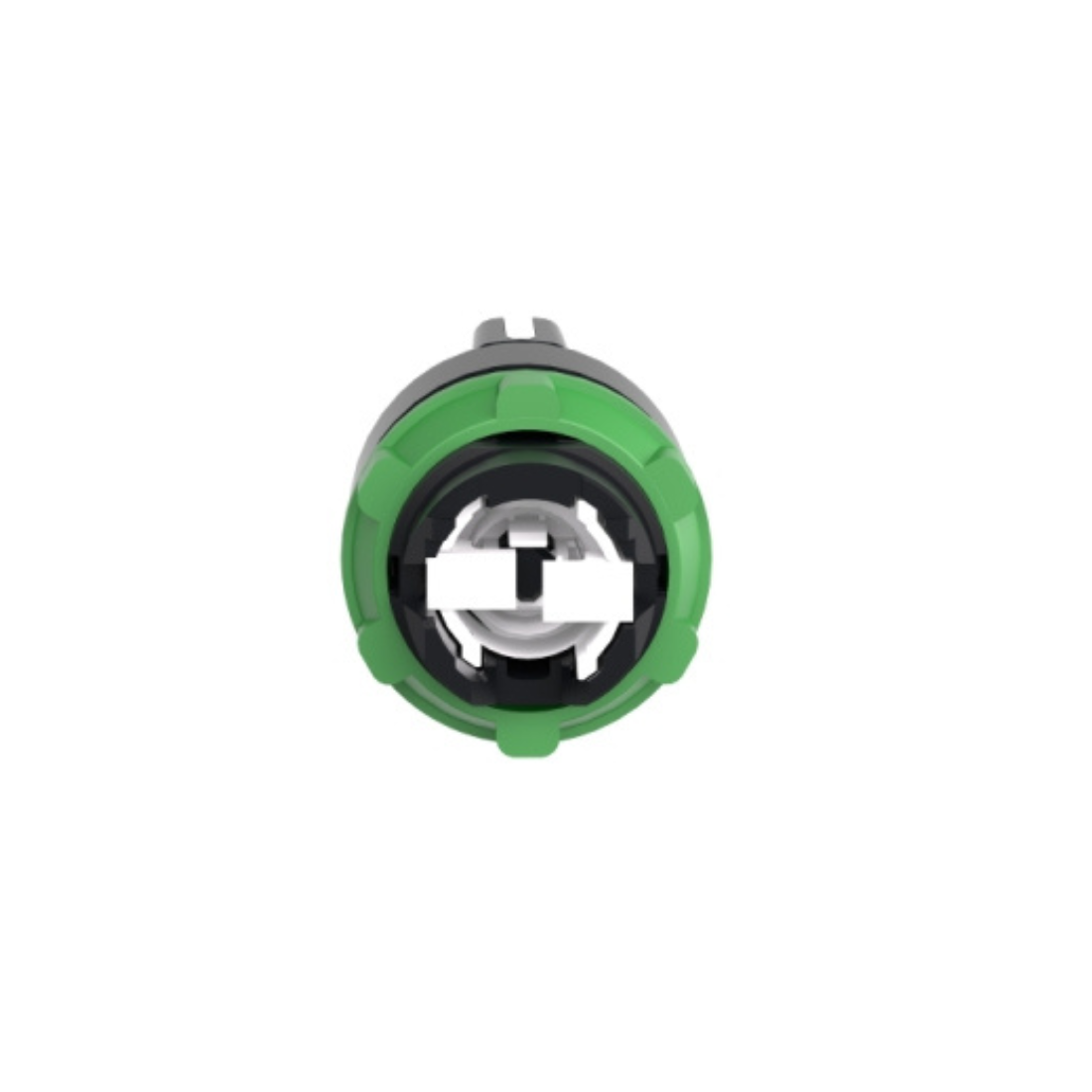

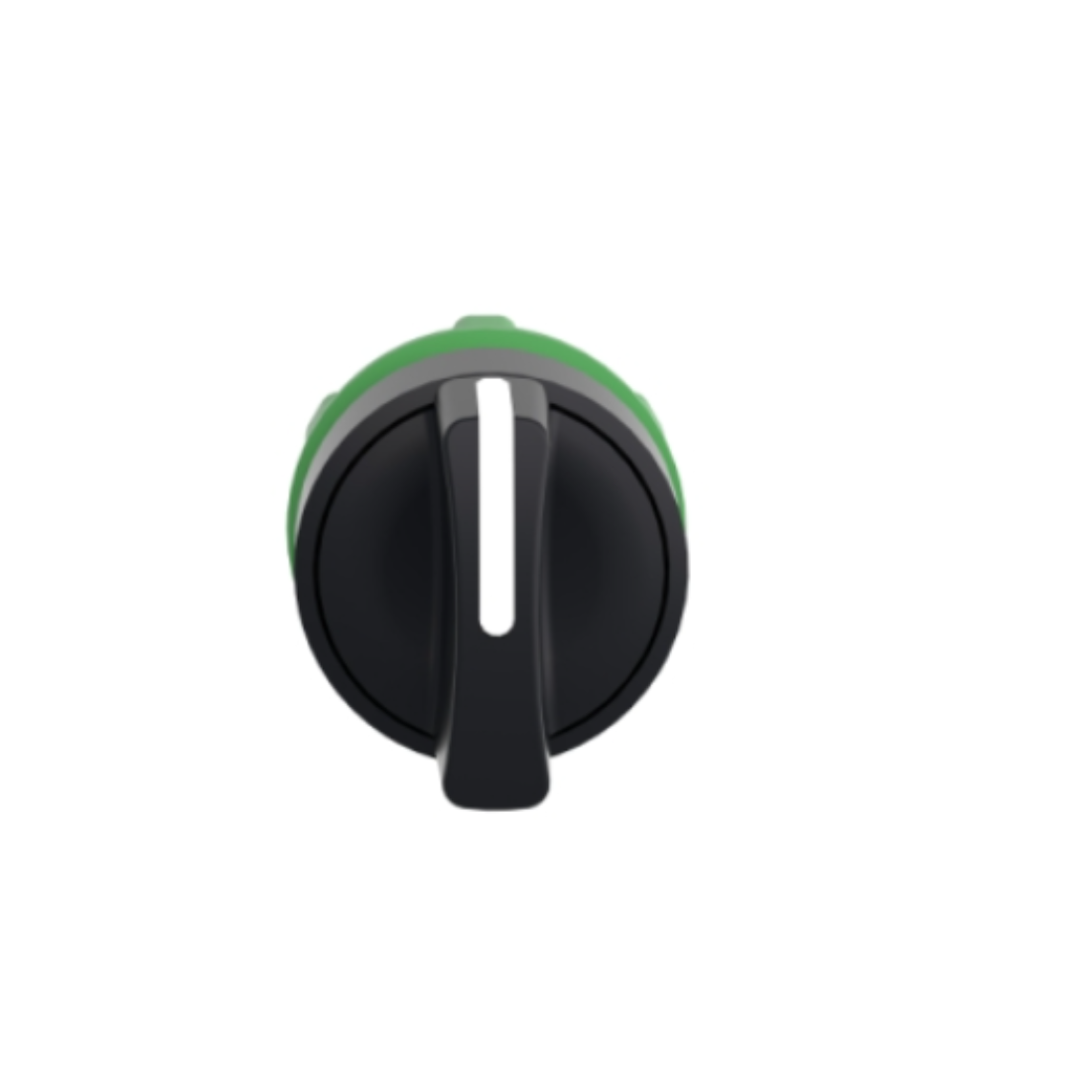

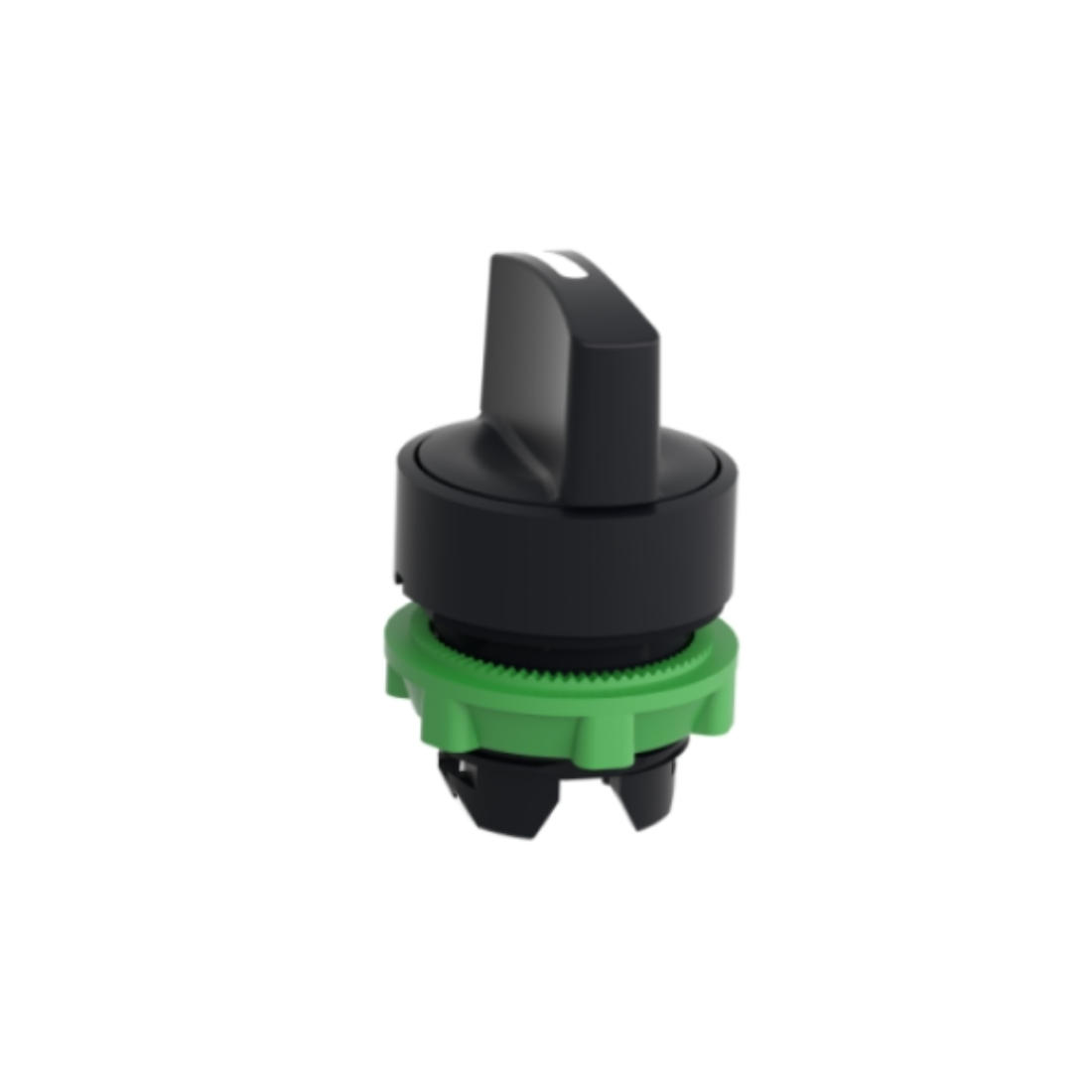

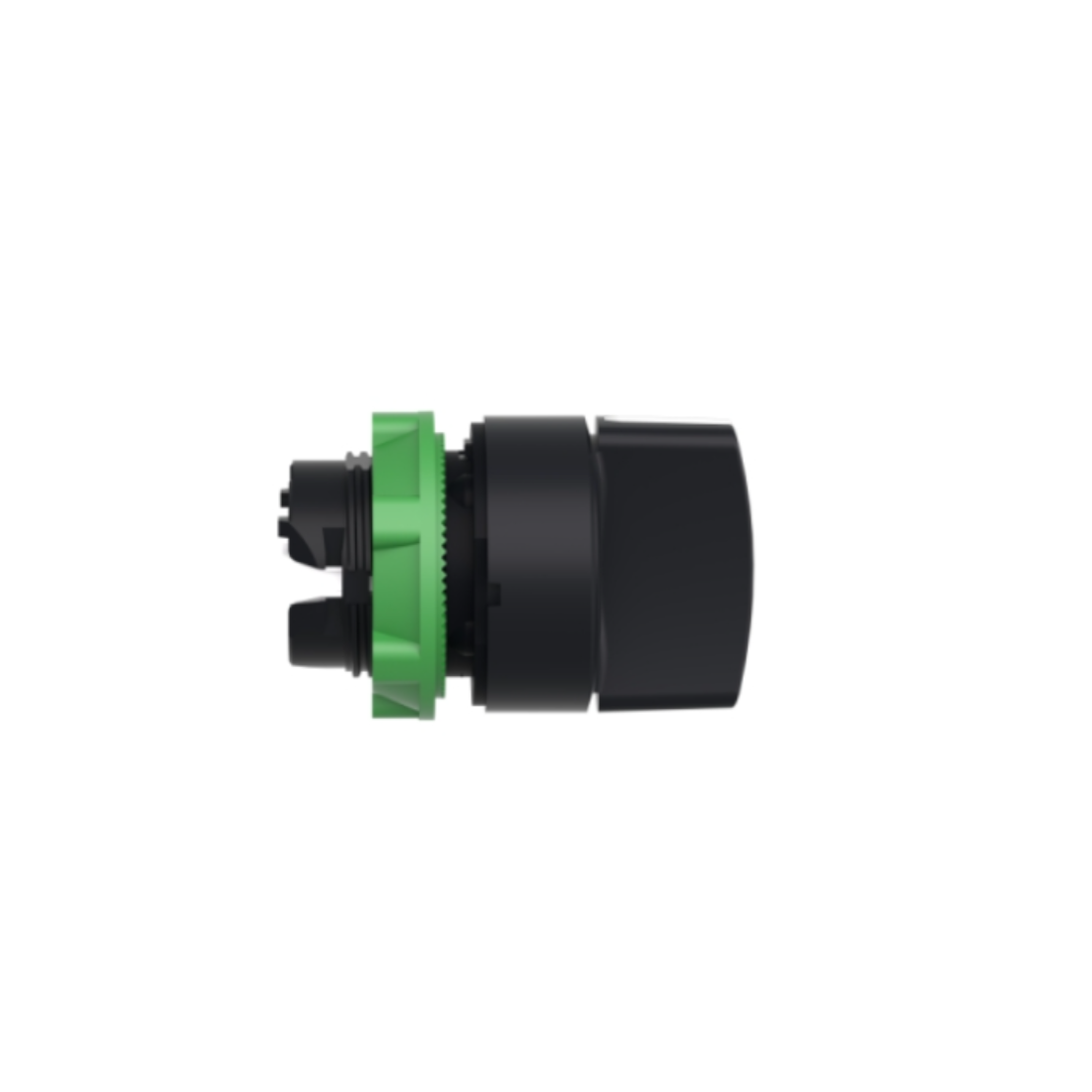

Schneider Electric Harmony XALF XB5 Black Selector Switch Head Ø22 3-Position Spring Return ZB5AD5

Schneider Electric Harmony XALF XB5 Black Selector Switch Head Ø22 3-Position Spring Return ZB5AD5

Name: Schneider Electric Harmony XALF XB5 Black Selector Switch Head Ø22 3-Position Spring Return ZB5AD5
Brand: Schneider Electric
Price: 35.7 AED
Availability: InStock

AED 35.70

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Selector Switch Head

Description

Schneider Electric ZB5AD5 Black Selector Switch Head with standard handle has 3 positions, operates with spring return to center mechanism. It provides an ergonomic interface to control the machines. It can be easily installed on compatible selector switch units and provides an efficient way to set the machine to different operating modes. Thanks to IP69K, it is shock, dust, water and vibration proof.

Schneider Electric ZB5AD5 Black Selector Switch Head has a plastic frame, making it ideal for applications requiring good chemical resistance and/or double electrical insulation. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.

Features

Plastic bezel making it ideal for applications requiring good resistance to chemical agents and/or electrical insulation
Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists
Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery
Wide range of operating temperatures from -40 to +70 °C/-40 to +158 °F

Specifications

Brand : Schneider Electric

Item Name : Selector Switch Head

Model : ZB5AD5

Bezel Material : Dark Grey Plastic

CAD Overall Depth : 46 mm

CAD Overall Height : 29 mm

CAD Overall Width : 29 mm

Cap/Operator Or Lens Color : Black

Compatibility Code : ZB5

IK Degree Of Protection : IK06 Conforming to IEC 50102

IP Degree Of Protection : IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K

Mechanical Durability : 1000000 cycles

Mounting Diameter : 22 mm

Operator Position Information : 3 positions +/- 45°

Operator Profile : Black Standard Handle

Overvoltage Category : Class II Conforming To IEC 60536

Protective Treatment : TH

Certifications : GL, BV, CSA, LROS (Lloyds register of shipping), DNV, UL listed

Range Of Product : Harmony XALF, Harmony XB5

Sale Per Indivisible Quantity : 1

Shape Of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Type Of Operator : To Centre spring return

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Group Of Product : Non illuminated

Customizable : 0

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

Main Group : Selector switch

Electrical Composition Code : C3 for <6 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, SF1 for <3 contacts using single blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting

Station Name : XALD 1...5 cut-outs, XALK 2...5 cut-outs

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : UL 508, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-5-1, JIS C8201-1

Device Presentation : Basic element

Weight : 0.017 kg
