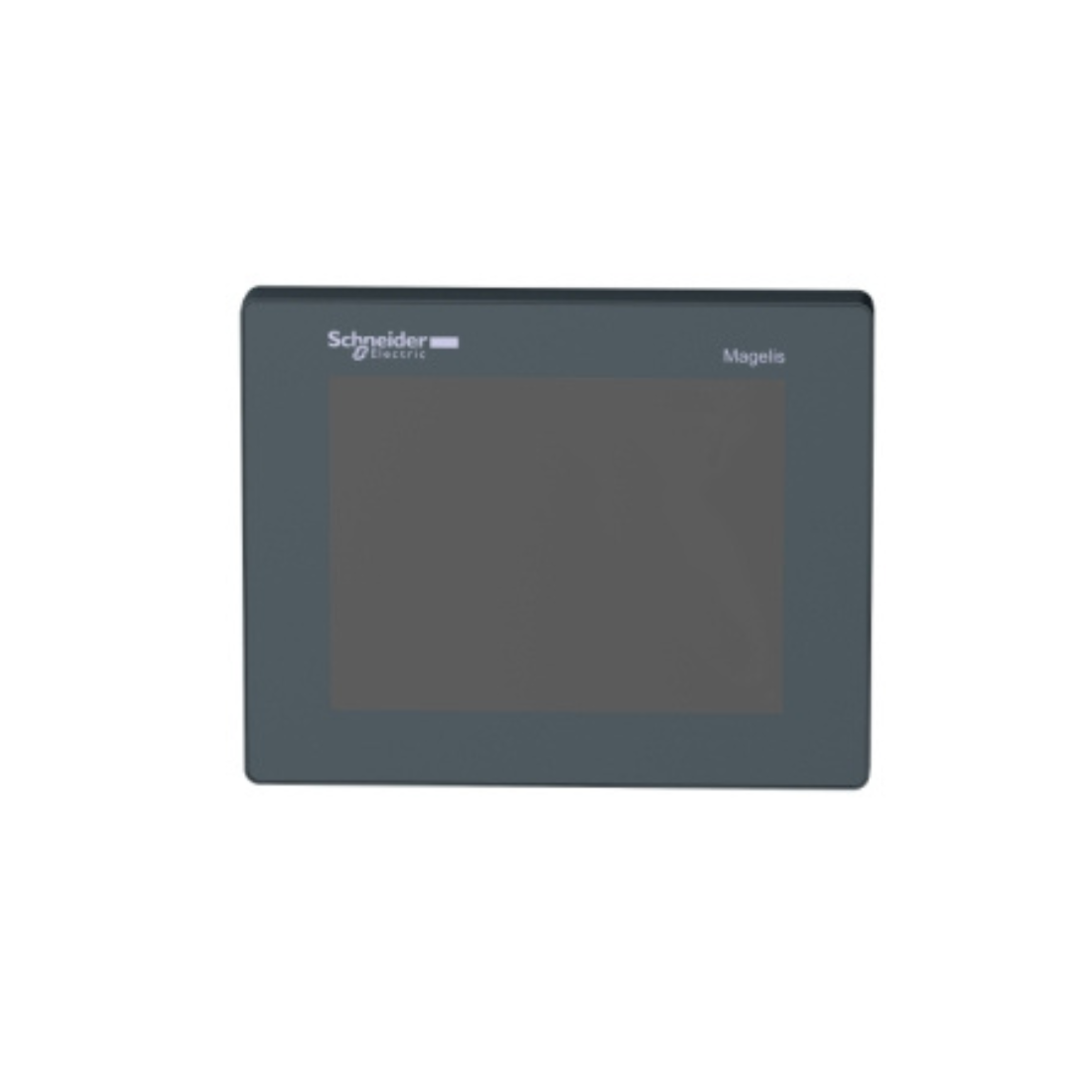

Schneider Electric Harmony STO & STU Touch Panel Screen 5.7 Inch Color HMISTU855
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Touch Panel Screen
Description
Schneider Electric HMISTU855 Harmony STO & STU Touch Panel Screen operates on 24V DC and features a 5.7-inch, 320 x 240 pixel (QVGA) color TFT LCD display and 32MB EPROM. It also has 1 host port and 1 USB Mini-B port. 1 RS232C/RS485 port and 1 Ethernet TCP/IP port.
Schneider Electric HMISTU855 Harmony STO & STU Touch Panel Screen is ideal for optimizing information and communication with automation systems in industry and infrastructure, such as compact machines, handling systems, food and beverage machines, and the pharmaceutical industry. The screen displays graphic pages with a monochrome display. Thanks to the fixation with a 22 mm diameter hole, it is not necessary to make a rectangular cut in the plate. Thanks to its RS485 host connection, it is ideal for monitoring and controlling simple systems and machines.
Features
- Operates on 24 V DC and features a 5.7-inch, 320 x 240 pixel (QVGA) color TFT LCD display and 32MB EPROM.
- Monochrome display
| Brand | Schneider Electric |
| Item Name | Touch Screen Panel |
| Model | HMISTU855 |
| Rated Supply Voltage | 24 V DC |
| Depth | 56.5 mm |
| Fixing Mode | Ø 22 mm hole |
| Ambient Air Temperature For Storage | -20-60 °C |
| Height | 129.15 mm |
| Inrush Current | 30 A |
| IP Degree Of Protection | IP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529 |
| Marking | With Schneider logo, CE |
| Operating Altitude | <= 2000 m |
| Certifications | UL class 1 Div2 T4A ou T5, C-Tick, cULus, Marine, UKCA |
| Range Of Product | Harmony STO & STU |
| Relative Humidity | 0-85 % without condensation |
| Shock Resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Supply Voltage Limits | 20.4-28.8 V |
| Width | 163 mm |
| Supply | External Source |
| Display Resolution | 320 x 240 pixels QVGA |
| NEMA Degree Of Protection | NEMA 4X front panel (indoor use) |
| Enclosure Material | PC/PBT and PAA |
| Software Designation | Vijeo Designer |
| Brightness | 16 levels |
| Backlight Lifespan | 50000 hours |
| Touch Panel | Analogue |
| Display Size | 5.7 inch |
| Display Color | 65536 colours |
| Downloadable Protocols | Uni-TE, Modbus TCP/IP, third party protocols, Modbus |
| Character Font | Taiwanese (traditional Chinese), Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII, Korean |
| Memory Description | Application memory 16 MB, back up of data 64 kB |
| Immunity To Microbreaks | 7 ms |
| Resistance To Electromagnetic Fields | 10 V/m conforming to IEC 61000-4-3 |
| Realtime Clock | Access to the PLC real-time clock |
| Processor Name | CPU ARM9 |
| Number of Pages | Limited by internal memory capacity |
| Processor Frequency | 333 MHz |
| Vibration Resistance | +/- 3.5 mm (f = 5-9 Hz) conforming to IEC 60068-2-6, 1 gn (f = 9-150 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | 0-50 °C |
| Display Type | QVGA TFT colour touchscreen |
| Integrated Connection Type | 1 USB 2.0 type mini B, 1 USB 2.0 type A, COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s), power supply - removable screw terminal block, 1 Ethernet - RJ45 |
| Standards | UL 1604, FCC Class A, IEC 61000-6-2, EN 61131-2, UL 508 |
