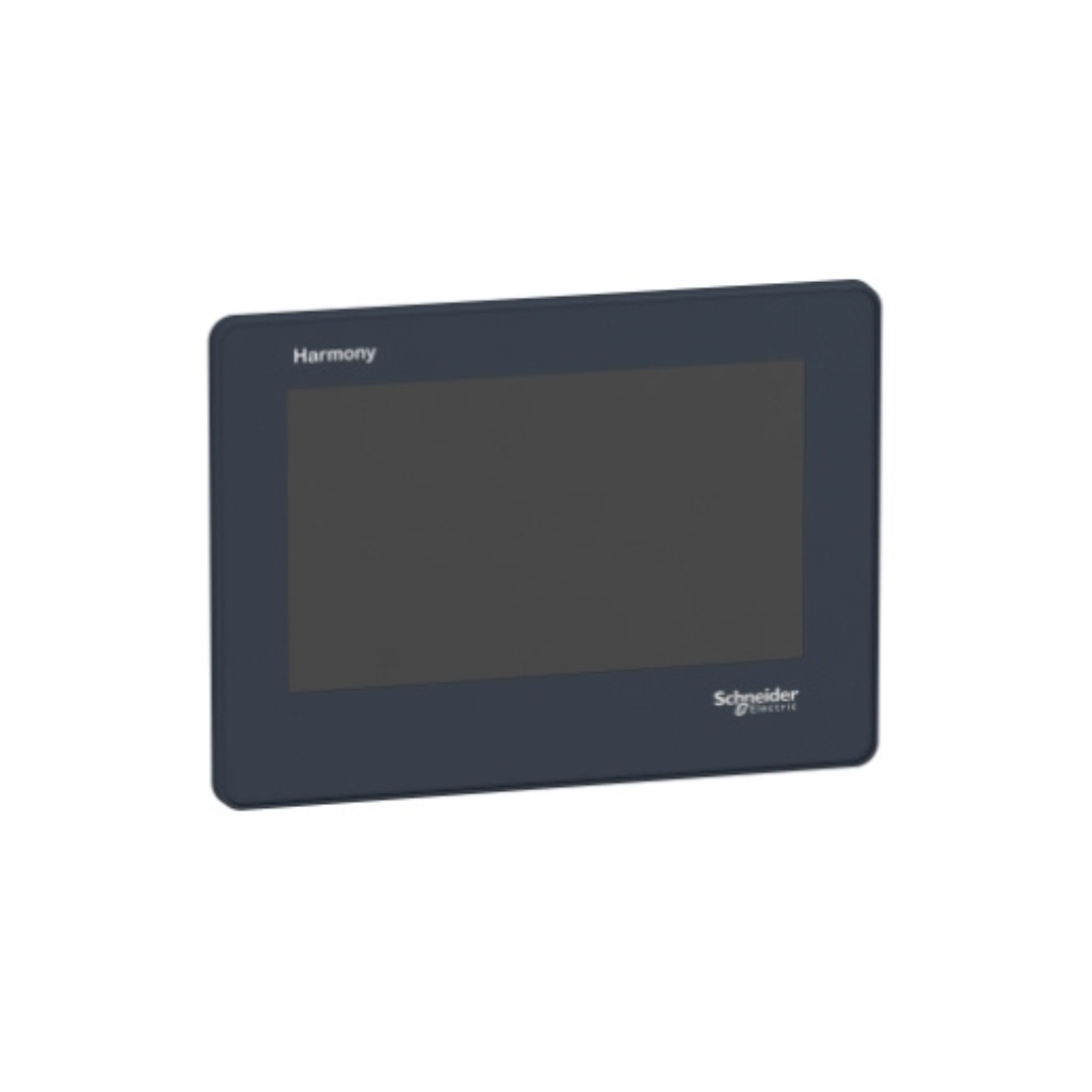

Schneider Electric Harmony STO & STU Touch Panel Screen 4.3 Inch Wide RS 232 Terminal Block HMISTO705
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Touch Panel Screen
Description
Schneider Electric HMISTO705 Harmony STO & STU Touch Panel Screen operates on 12V to 24V DC, features a 4.3 inch, 480 x 272-pixel color TFT LCD, and 26MB EPROM. It also has 1 host port + 1 USB Mini-B and 1 RS232C/RS485 port. Ideal for optimized information and communication with automation systems in industry and infrastructure, such as compact machines, handling systems, food and beverage machines, and the pharmaceutical industry. The screen displays color graphic pages. The RS485 host connection makes it ideal for monitoring and controlling simple systems and machines.
Features
- Operates on 12V to 24V DC, features a 4.3 inch, 480 x 272 pixel, color TFT LCD and 26MB EPROM.
- Displays color graphic pages.
- RS485 host connection
| Brand | Schneider Electric |
| Item Name | Touch Screen Panel |
| Model | HMISTO705 |
| Rated Supply Voltage | 12...24 V DC - 10...20 % |
| Fixing Mode | By 2 installation fasteners, mounting on 1.5 to 6 mm thick panel |
| IP Degree Of Protection | IP65f (front panel), IP20 (rear panel) |
| Ambient Air Temperature For Storage | -20-60 °C |
| Operating Altitude | 2000 m |
| Certifications | KCC, CE, UL, C-Tick, ATEX zone 2/22, cUL, UKCA |
| Range Of Product | Harmony STO & STU |
| Relative Humidity | 10-90 % without condensation |
| Shock Resistance | 15 gn for 11 ms conforming to IEC 61131-2 |
| Supply Voltage Limits | 20.4-28.8 V |
| Supply | External Source |
| Display Resolution | 480 x 272 pixels |
| NEMA Degree Of Protection | NEMA 4X/13 front panel (indoor use) |
| Operating System | Harmony |
| Enclosure Material | PPT |
| Front Material | Plastic |
| Software Designation | EcoStruxure Operator Terminal Expert |
| Brightness | 16 levels via touch pane |
| Backlight Lifespan | 50000 hours with white |
| Touch Panel | Analogue |
| Display Size | 4.3 inch |
| Display Color | 65536 colours |
| Downloadable Protocols | Third party protocols, Modbus |
| Character Font | Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII (European characters), Taiwanese (traditional Chinese), Korean, Cyrillic |
| Memory Description | Back up of data 512 kB, application memory 26 MB |
| Cut-out Dimensions | 77.5 x 112.5 mm, 66 x 105 mm with mounting adaptor |
| Number of Pages | 8999 |
| Vibration Resistance | 1 gn (f = 5-150 Hz) conforming to IEC 61131-2, 3.5 mm constant amplitude (f = 5-150 Hz) conforming to IEC 61131-2 |
| Electromagnetic Compatibility | Resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz), resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2, resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2 |
| Ambient Air Temperature For Operation | 0-50 °C |
| Display Type | Colour TFT LCD |
| Integrated Connection Type | 1 USB 2.0 type mini B, 1 USB 2.0 type A, 1 serial link - 9-pin terminal block - RS232C (rate: 2400...115200 bps) |
| Standards | ANSI/ISA 12.12.01, CSA C22.2 No 142, EN 61000-6-2, CSA C22.2 No 213, UL 61010-1, EN 61131-2, EN 61000-6-4, UL 61010-2-201 |
| Range Compatibility | MitsubishI, Siemens, Omron, Allen-Bradley |
