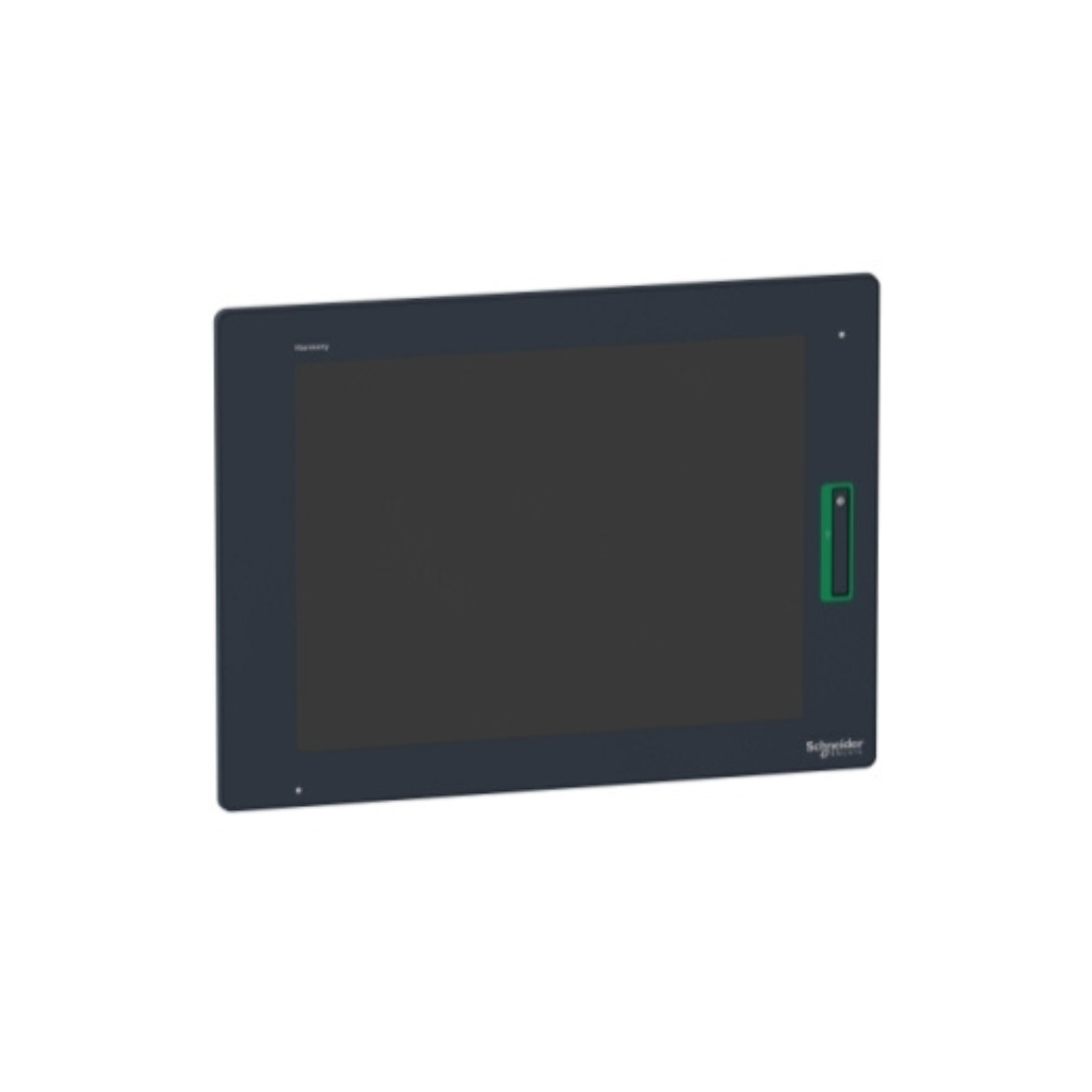

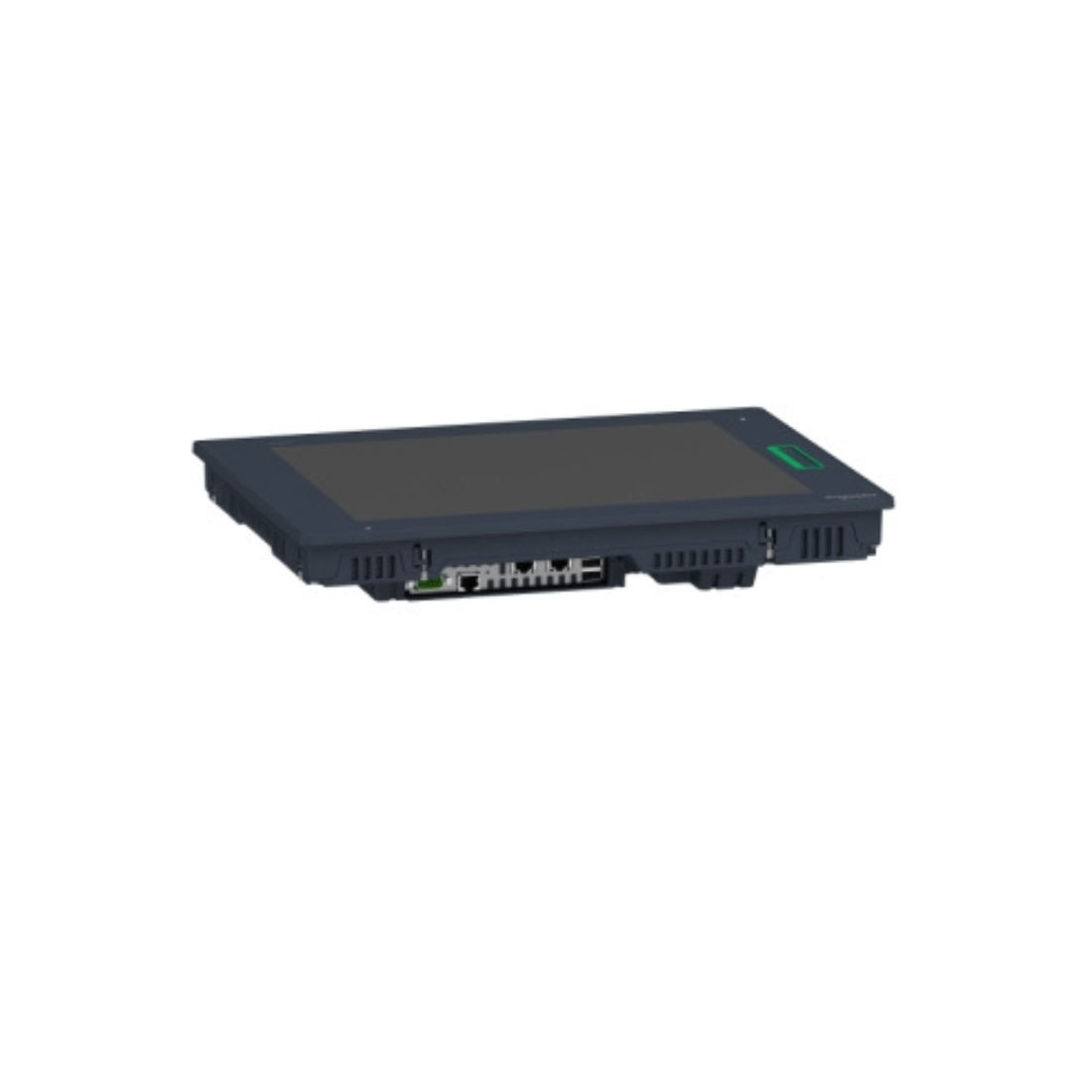

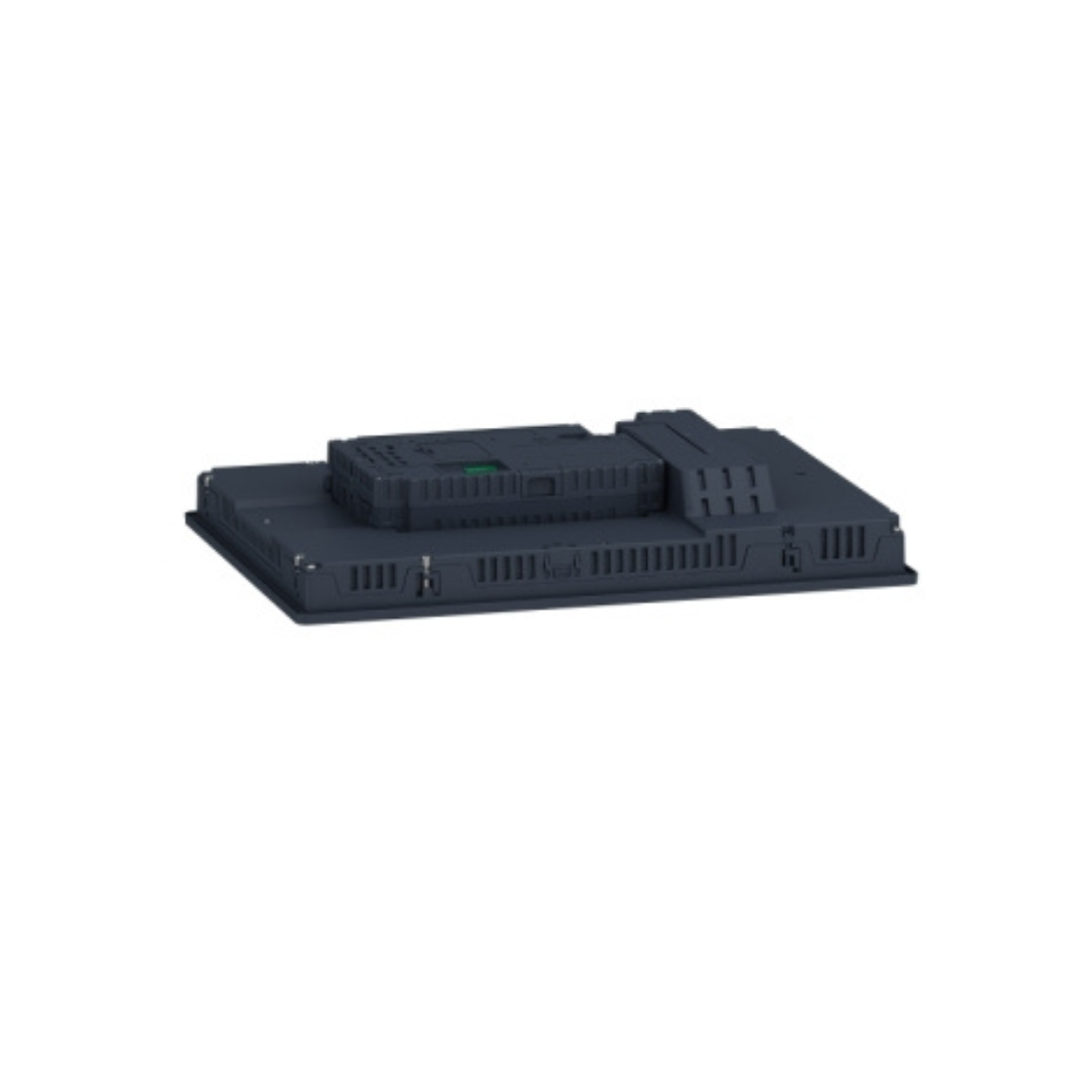

Schneider Electric Harmony GTU Touch Smart Display 15 Inch XGA
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Touch Smart Display
Description
Schneider Electric HMIDT732 Harmony GTU Touch Smart Display operates on 12V to 24V DC and features a 15-inch TFT LCD color display with 1024 x 768 pixels and 16 million colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communications thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipment, hazardous areas, and marine applications.
The screen displays text messages, graphic objects, and dummy diagrams, as well as data control and configuration, and has removable storage, two LANs, and two communication interfaces. It withstands a sustained temperature of 60°C, making it ideal for installation in areas where cabinet ventilation is not possible or risky.
Features
- Operates on 12V to 24V DC
- Features a 15-inch TFT LCD color display with 1024 x 768 pixels and 16 million colors.
- Ideal for high-performance monitoring and communications
| Brand | Schneider Electric |
| Item Name | Touch Smart Display |
| Model | HMIDT732 |
| Rated Supply Voltage | 12...24 V DC power supply |
| Depth | 67 mm |
| Ambient Air Temperature For Storage | -20-60 °C |
| Height | 296 mm |
| Inrush Current | 30 A |
| IP Degree Of Protection | Front panel: IP66, front panel: IP67 |
| Operating Altitude | 2000 m |
| Certifications | cULus, RCM, KC, CE, UKCA, UKEX |
| Range Of Product | Harmony GTU |
| Relative Humidity | 10-90 % non-condensing |
| Shock Resistance | 147 m/s² conforming to EN/IEC 61131-2 |
| Supply Voltage Limits | 10.8-28.8 V |
| Width | 397 mm |
| Supply | External Source |
| Display Resolution | 1024 x 768 pixels XGA |
| Terminal Type | Touchscreen display |
| NEMA Degree Of Protection | NEMA 4X front panel |
| Backlight Lifespan | 50000 hours |
| Type Of Cooling | Natural convection |
| Touch Panel | Multi-touch analogue resistive |
| Display Size | 15 inch |
| Display Color | 16 million colours |
| Pixel Resolution | 1024 x 768 |
| Touchscreen Resolution | 1024 x 1024 |
| Aspect Ratio | 04:03 |
| Cut-out Dimensions | 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm |
| Vibration Resistance | 3.5 mm constant amplitude (f = 5-9 Hz) conforming to EN/IEC 61131-2, 9.8 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2 |
| Electromagnetic Compatibility | Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 |
| Ambient Air Temperature For Operation | 0-60 °C conforming to EN 61131-2 |
| Display Type | Colour TFT LCD |
| Integrated Connection Type | USB 2.0 type A, USB 2.0 type mini B |
| Function Available | Brightness sensor |
| Standards | UL 508, ANSI/ISA 12-12-01, class I division 2 CSA C22.2 No 213, CSA C22.2 No 142, IEC 61132-2 |
| Type Of Installation | Indoor Installation |
| Weight | 4.5 kg |
