Schneider Electric Harmony GTU Open BOX For Universal Panel HMIG5U2
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Base Unit
Description

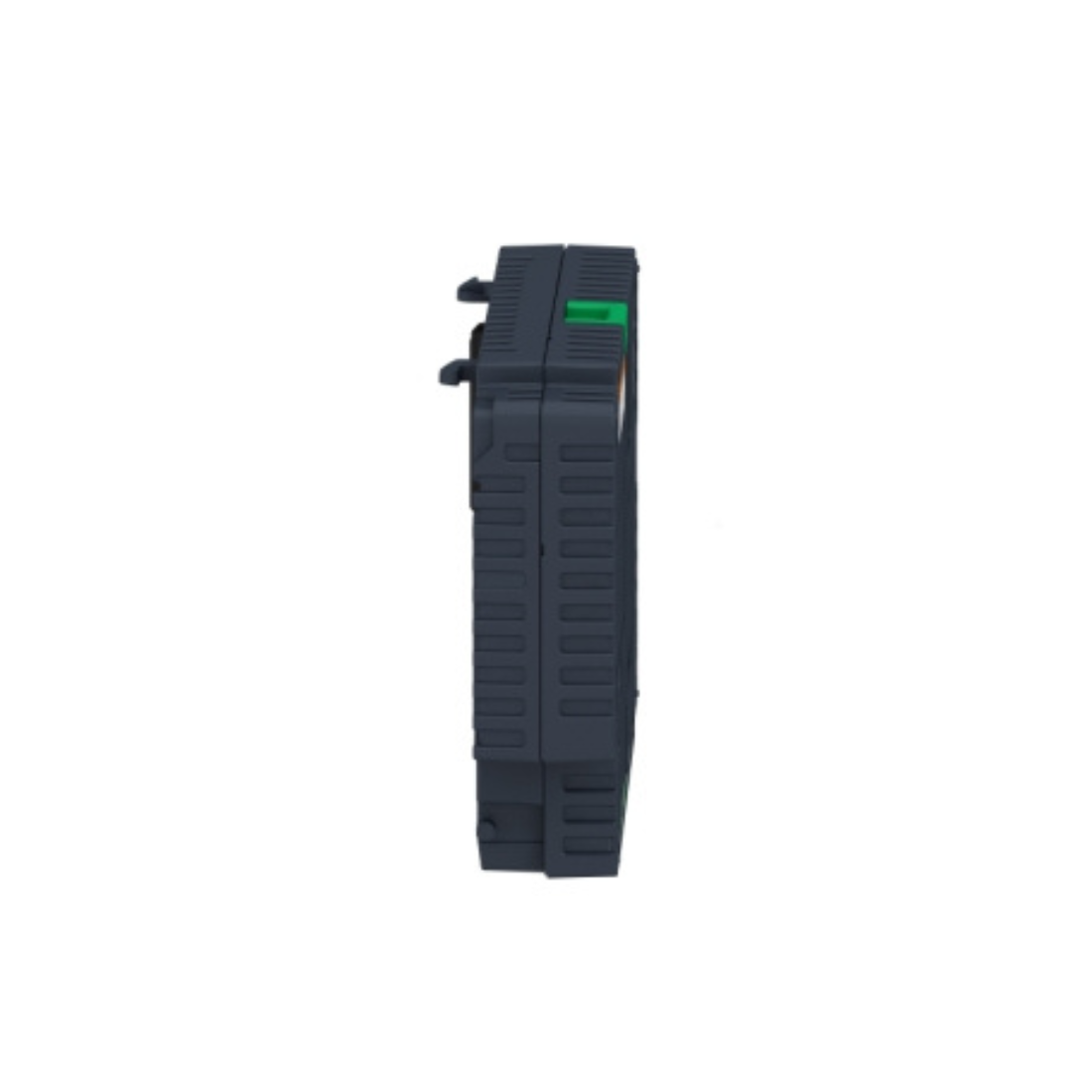

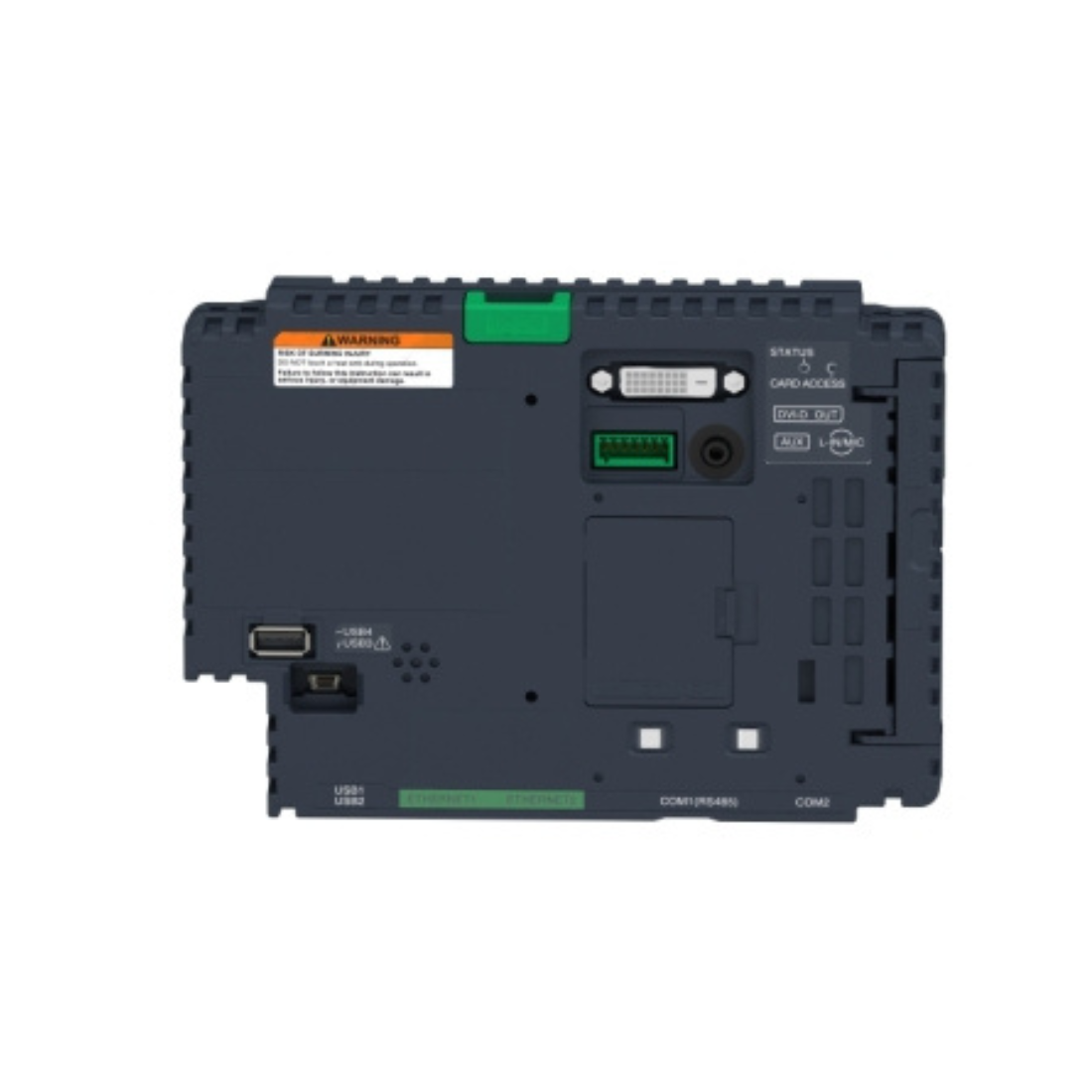

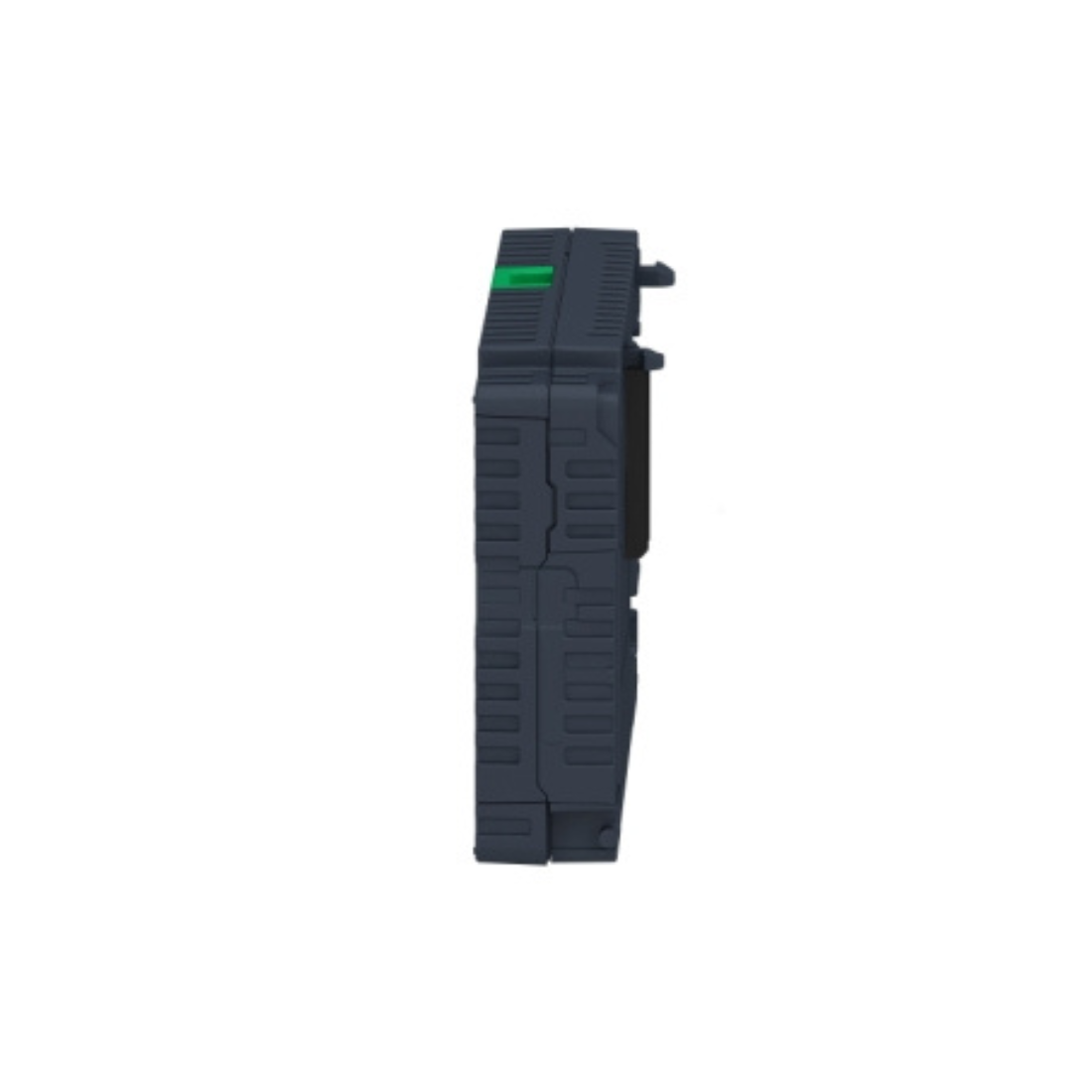

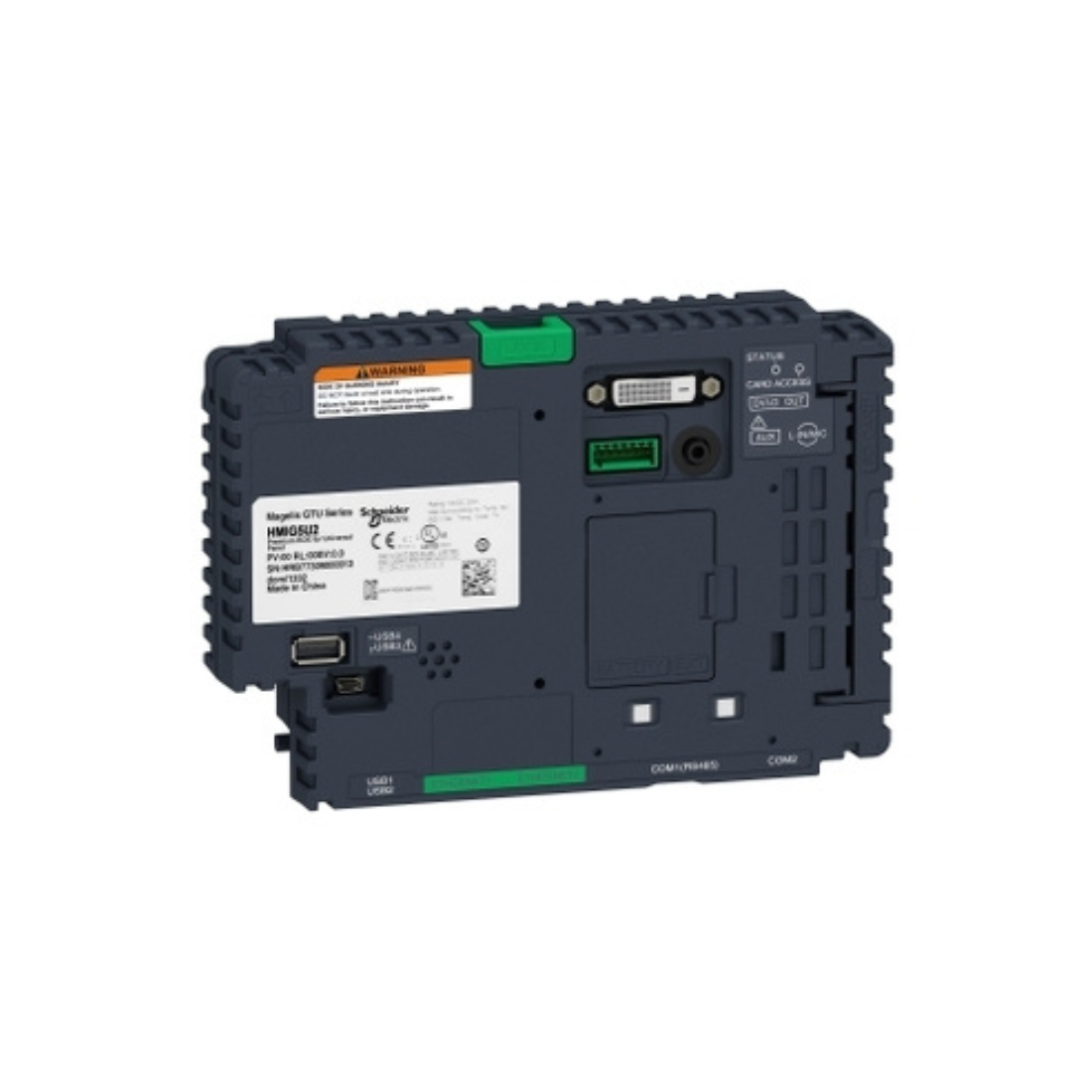

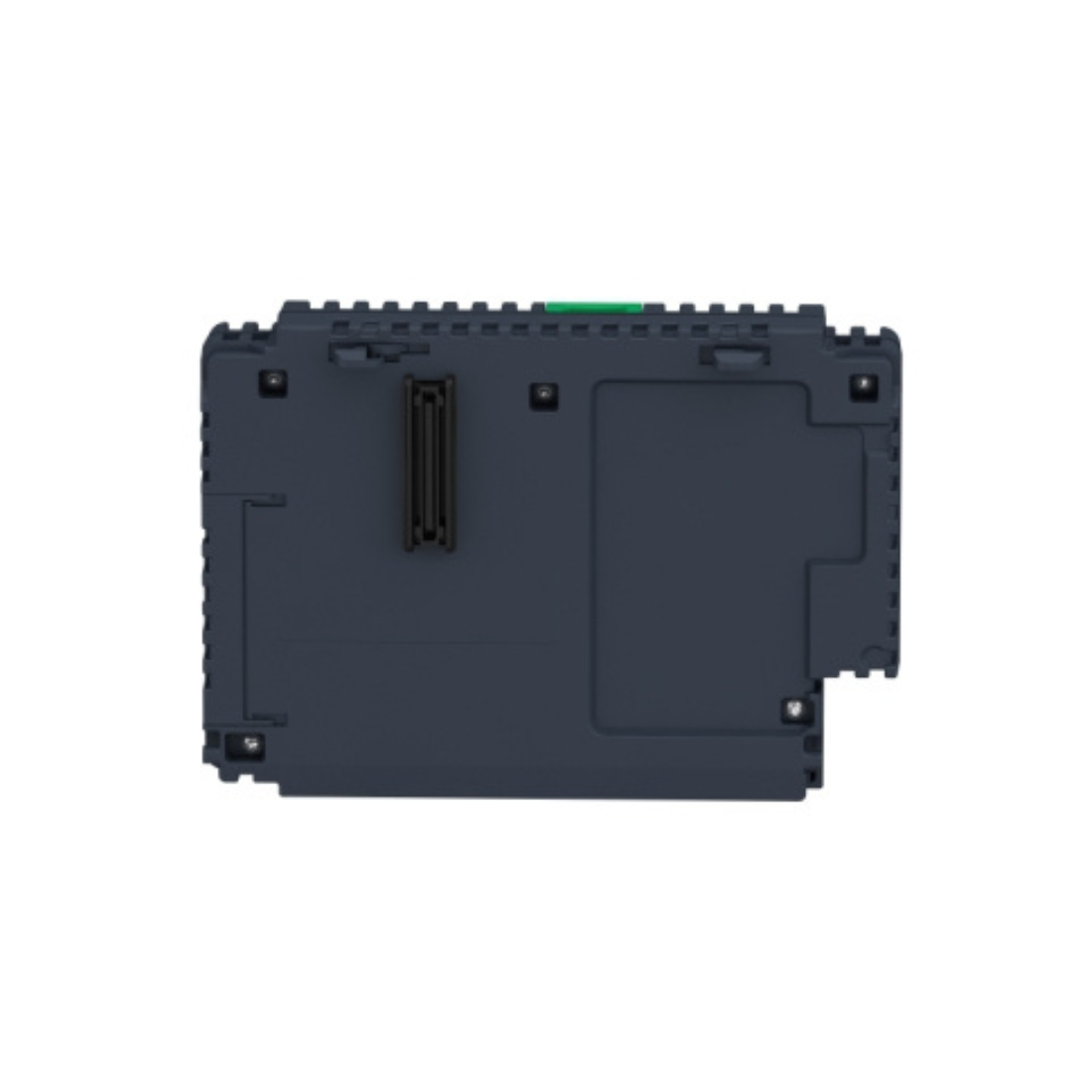

Schneider Electric HMIG5U2 Open BOX For Universal Panel is part of the Harmony GTU range, a range of high-performance, IoT-ready, modular HMI panels with displays ranging from 7 to 19 inches (width). The open box has a 1.33 GHz Intel X86 processor and 32 GB CFast card data storage, suitable for universal panels. It comes with a backup storage of 512 KB NVRAM and an internal storage of 2 GB RAM. This open box supports the Windows Embedded 7 operating system.
Schneider Electric HMIG5U2 Harmony GTU Open BOX For Universal Panel is equipped with a 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. The communication port protocols are Modbus, Modbus TCP/IP, and Uni-Telway. Its dimensions are 188 mm (width) x 45 mm (depth) x 131 mm (height) and it weighs 0.9 kg. It is ATEX, CE, CULus, IEC, CUL, GL, LR, BV, RCM, and EAC certified. Complies with CSA C22.2 No. 142, ANSI/ISA 12-12-01, UL 508, Class I Division 2 CSA C22.2 No. 213, and IEC 61132-2 standards.
Harmony GTU (previously known as Magelis GTU) are universal panels that feature a smartphone-like interface and wireless technology. They offer unsurpassed ease of use without compromising performance and openness.
Features
- Ideal for low-power remote stations with low consumption x86 CPU
- Modular design allows easy installation and maintenance
- Supports Windows 7 Embedded OS
- Powered by Vijeo Designer
- Natural convection cooling
| Brand | Schneider Electric |
| Item Name | Base Unit |
| Model | HMIG5U2 |
| Rated Supply Voltage | 12...24 V DC power supply |
| Ambient Air Temperature For Storage | -20-60 °C |
| Depth | 45 mm |
| Device Short | Name Open Box |
| Operating Altitude | 2000 m |
| Pollution Degree | 2 conforming to EN 61131-2 Ed.3 |
| Certifications | CE, cULus, ATEX, IEC-Ex, RCM, GL, KC, cUL, EAC, ABS, BV, CCS, DNV, LR, RINA, UKCA, UKEX |
| Range Of Product | Harmony GTU |
| Relative Humidity | 10-90 % non-condensing |
| Width | 188 mm |
| Operating System | Windows Embedded 7 |
| Type Of Cooling | Natural convection |
| Data Storage Equipment | 32 GB CFast card |
| Memory Description | 512 kB NVRAM backup memory, 2 GB RAM internal |
| Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Software Package | Internet Explorer, Vijeo Citect web client, Vijeo Designer run time, .NET framework 4.0, Adobe PDF reader, multimedia player, Office reader, VNC client/server |
| Processor Name | Intel X86 1.33 GHz |
| Vibration Resistance | 3.5 mm constant amplitude (f = 5-9 Hz) conforming to EN/IEC 61131-2, 9.8 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2 |
| Ambient Air Temperature For Operation | 0-60 °C |
| Standards | CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, class I division 2 CSA C22.2 No 213, IEC 61132-2 |
| Communication Port Protocol | Modbus, Modbus TCP/IP, Uni-Telway |
| Range Compatibility | Harmony GTU |
