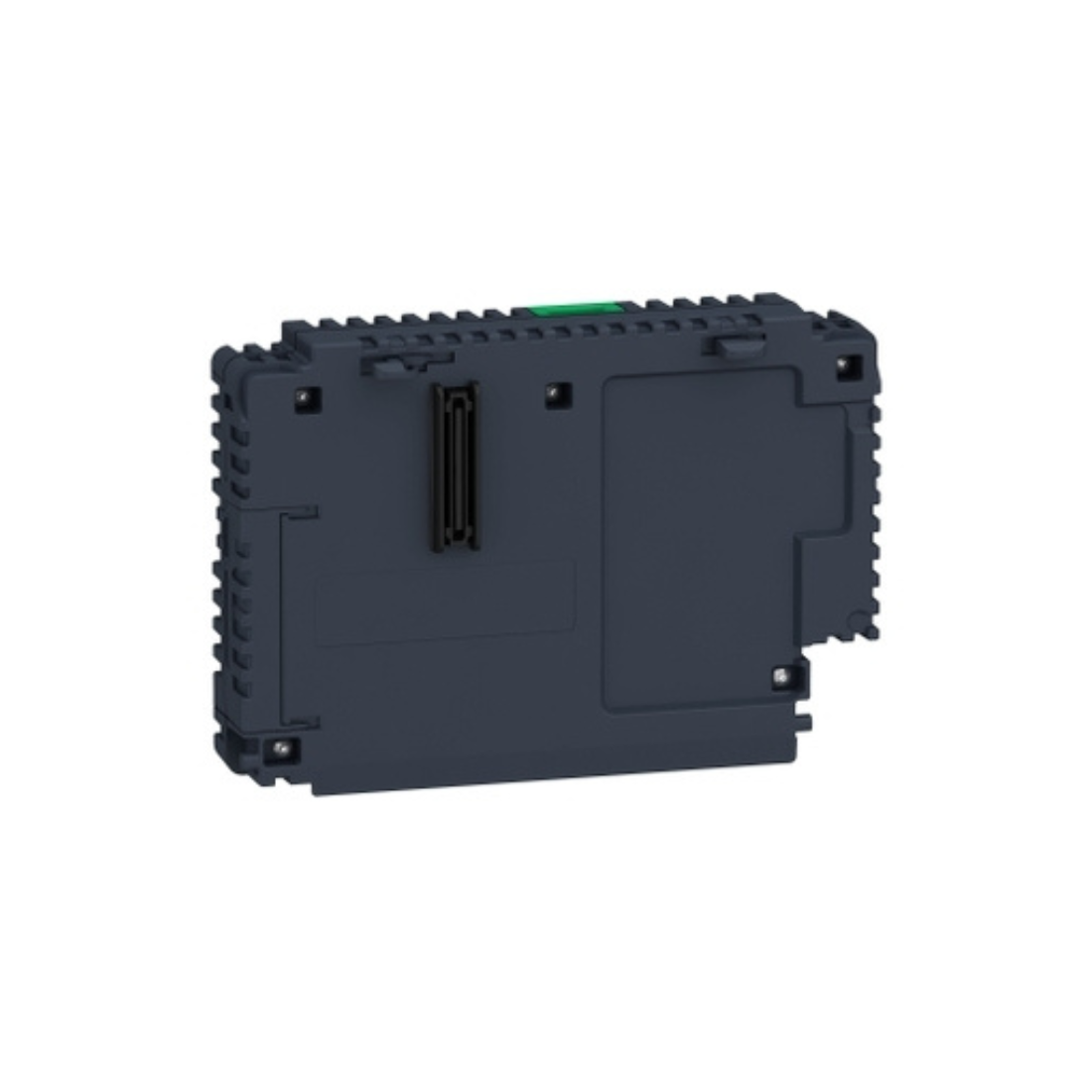

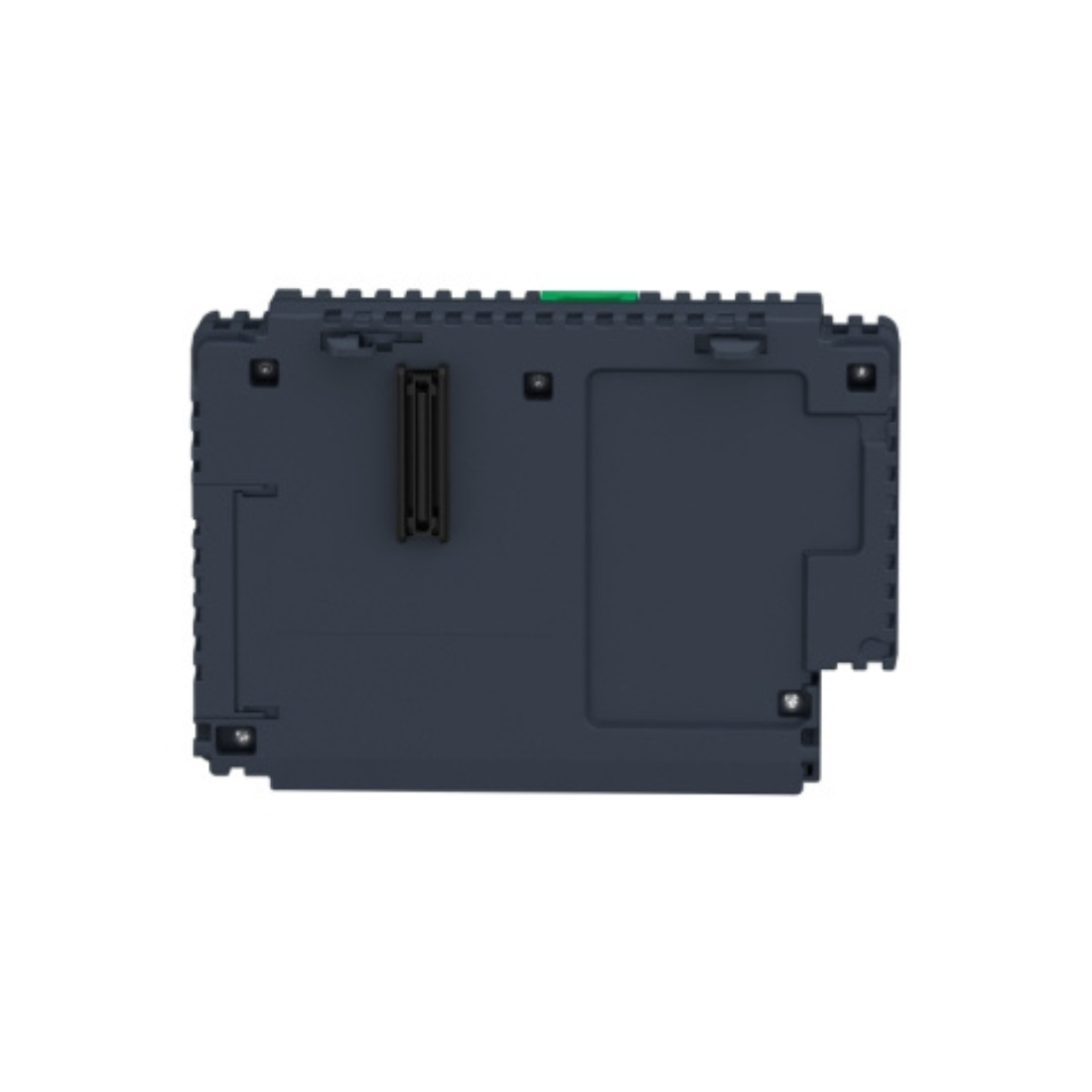

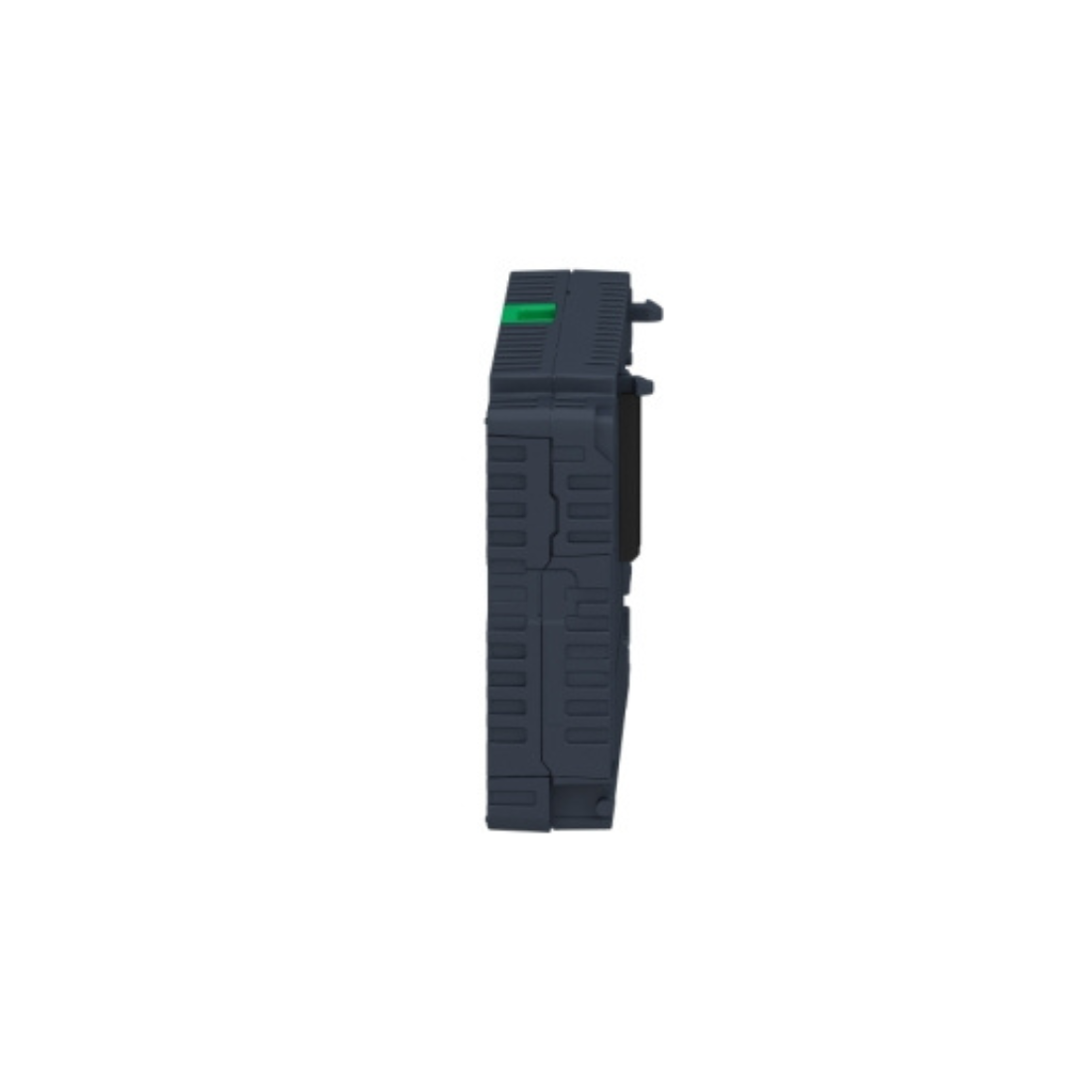

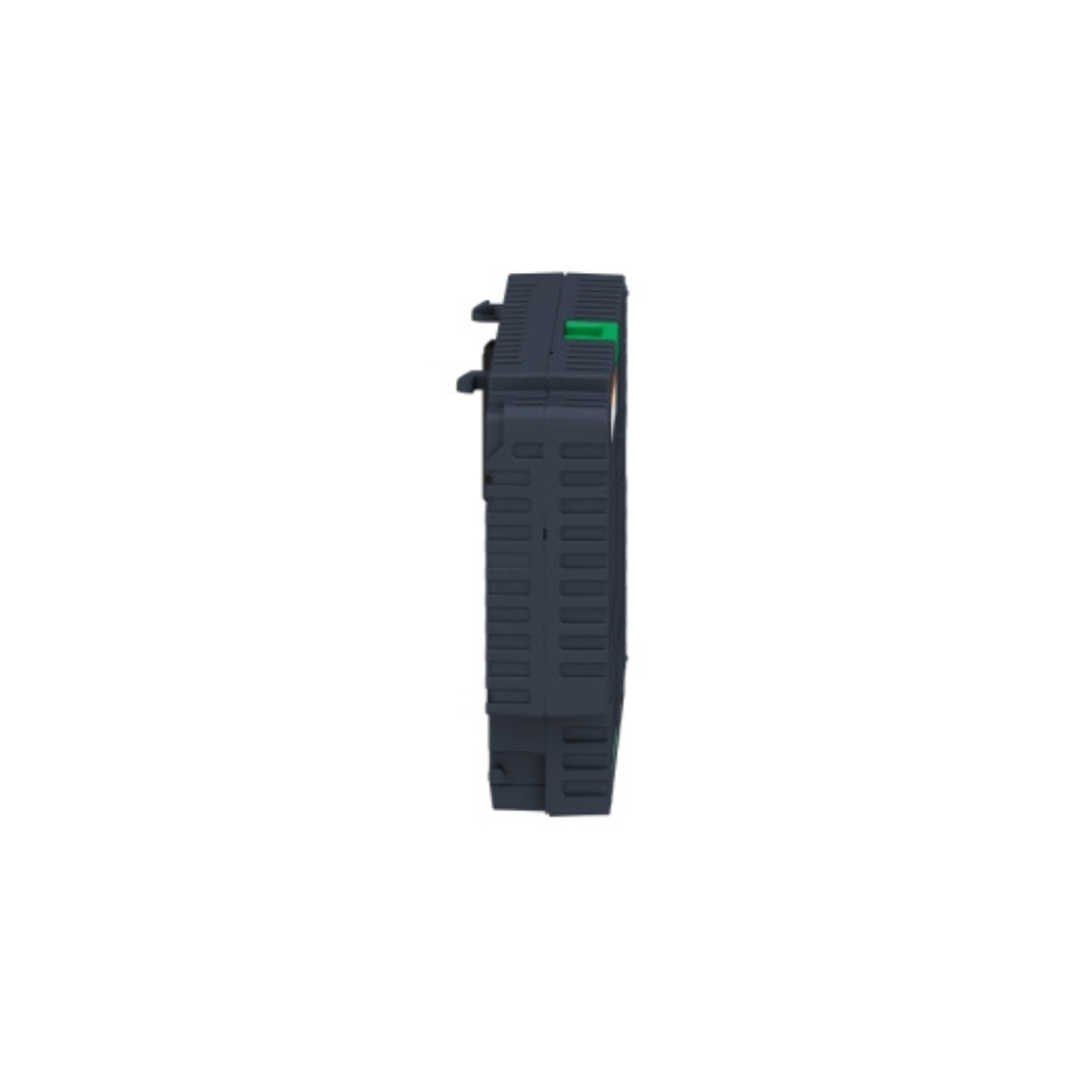

Schneider Electric Harmony GTU Base Unit Premium BOX for Universal Panel HMIG3U
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Base Unit
Description

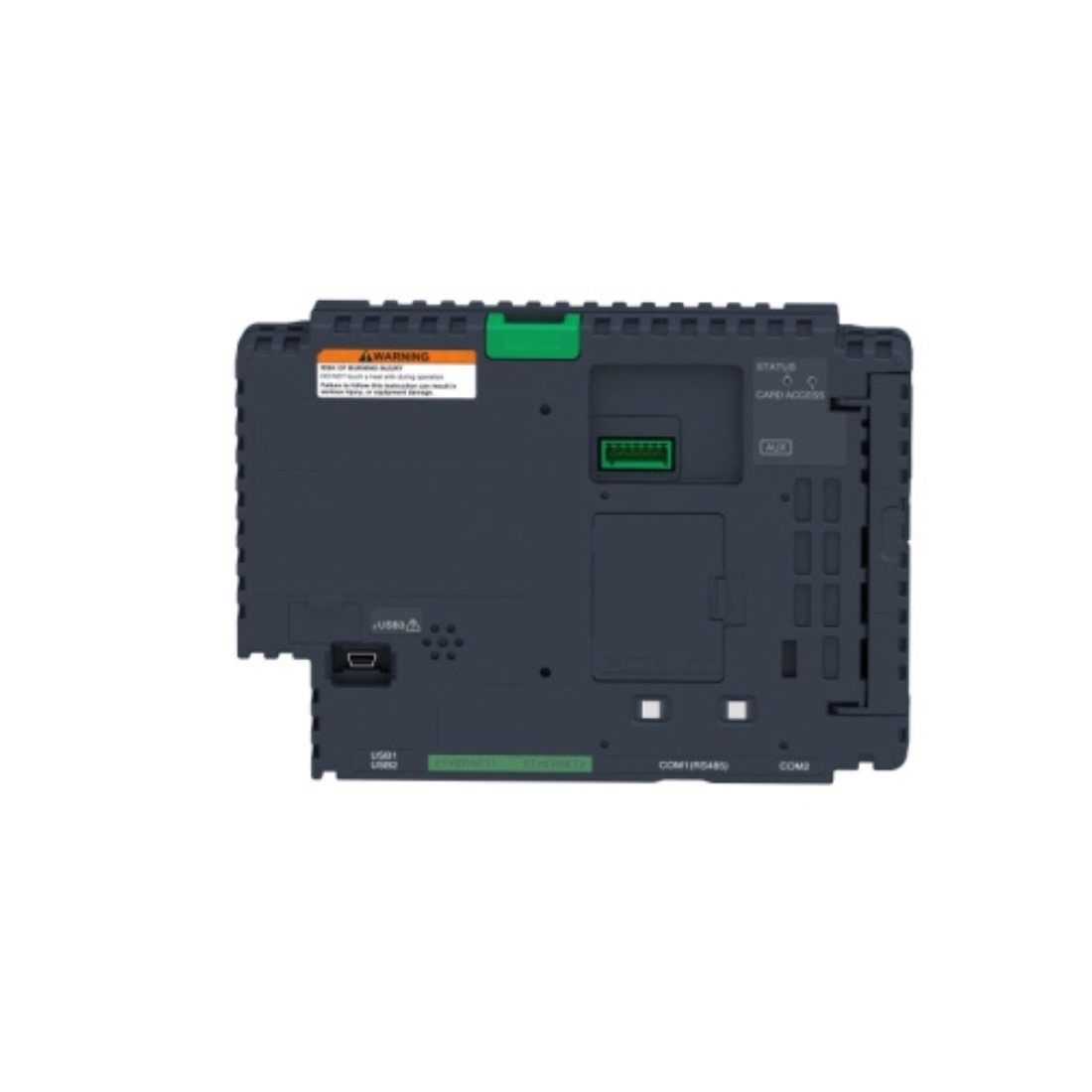

Schneider Electric HMIG3U Harmony GTU Base Unit features 256MB of RAM, a RISC CPU, and 2 SD card slots, including a pre-installed 1GB card. It also has 2 host ports and 1 USB Mini-B port, 1 RS232C/RS422/RS485 port, 1 RS485 port, and 1 Ethernet TCP/IP port. This premium universal case is designed for building advanced HMI systems alongside Magellis universal GTU panels.
Schneider Electric HMIG3U Harmony GTU Base Unit also offers an LED power indicator and a lock button to connect the case module and display. It has a powerful RISC CPU for low-latency visualization and automation. Its RS485 and Ethernet ports are ideal for monitoring and controlling complex systems and machines.
Features
-
Features 256MB of RAM, a RISC CPU, and 2 SD card slots, including a pre-installed 1GB card.Â
- It has a powerful RISC CPU for low-latency visualization and automation.
| Brand | Schneider Electric |
| Item Name | Base Unit |
| Model | HMIG3U |
| Rated Supply Voltage | 12...24 V DC power supply |
| Ambient Air Temperature For Storage | -20-60 °C |
| Depth | 45 mm |
| Device Short | Premium Box |
| Operating Altitude | 2000 m |
| Pollution Degree | 2 conforming to EN 61131-2 Ed.3 |
| Certifications | CE, cULus, ATEX, IEC-Ex, RCM, GL, KC, cUL, EAC, ABS, BV, CCS, DNV, LR, RINA, UKCA, UKEX |
| Range Of Product | Harmony GTU |
| Relative Humidity | 10-90 % non-condensing |
| Width | 188 mm |
| Operating System | Harmony |
| Type Of Cooling | Natural convection |
| Data Storage Equipment | 1 GB SD card |
| Memory Description | 256 MB RAM internal (2 x 13 mm board), 512 kB NVRAM backup memory |
| Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Software Package | Vijeo Designer run time |
| Processor Name | CPU RISC 600 MHz |
| Vibration Resistance | 3.5 mm constant amplitude (f = 5-9 Hz) conforming to EN/IEC 61131-2, 9.8 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2 |
| Ambient Air Temperature For Operation | 0-60 °C |
| Standards | CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, class I division 2 CSA C22.2 No 213, IEC 61132-2 |
| Communication Port Protocol | Modbus, Modbus TCP/IP, Uni-Telway |
| Range Compatibility | Harmony GTU |
