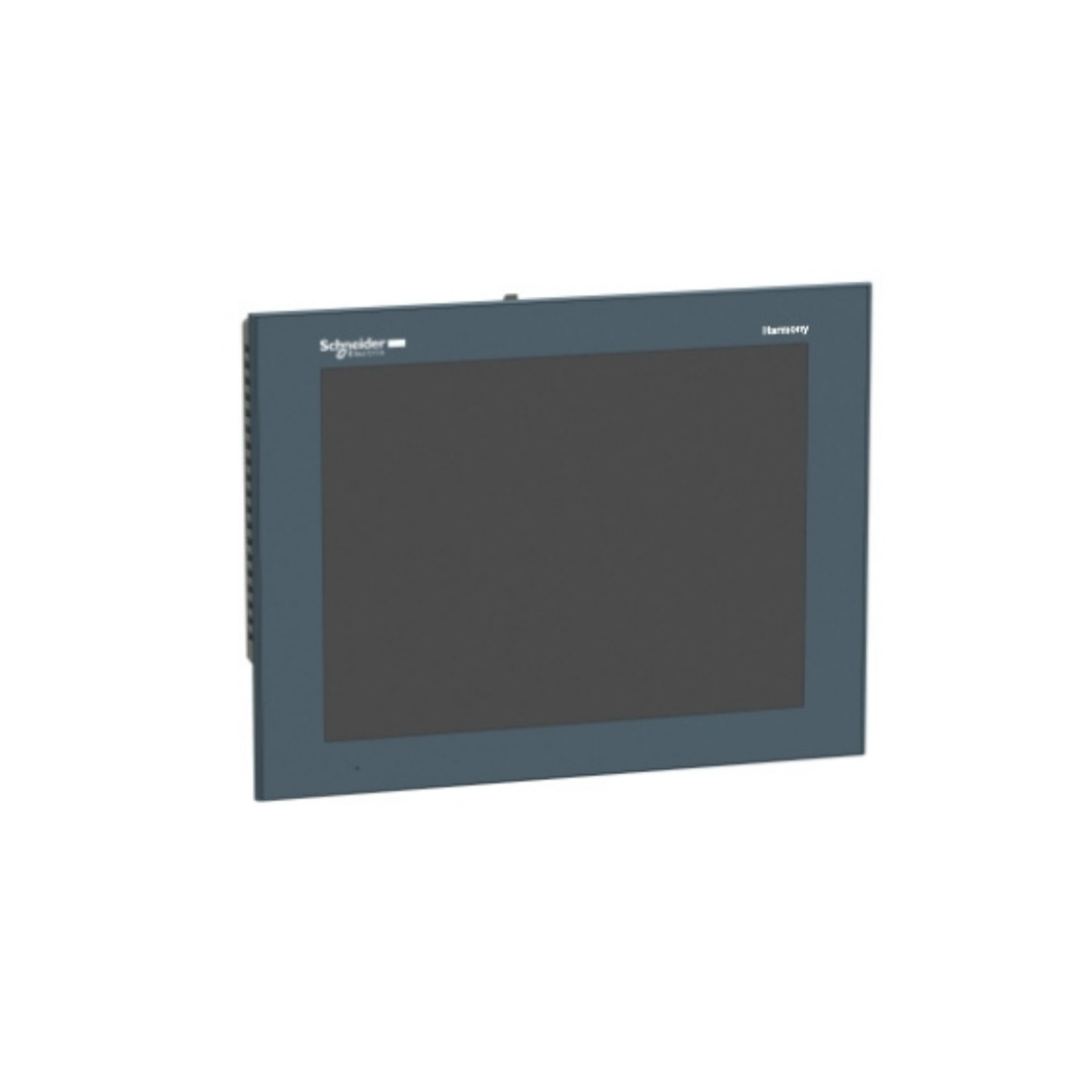

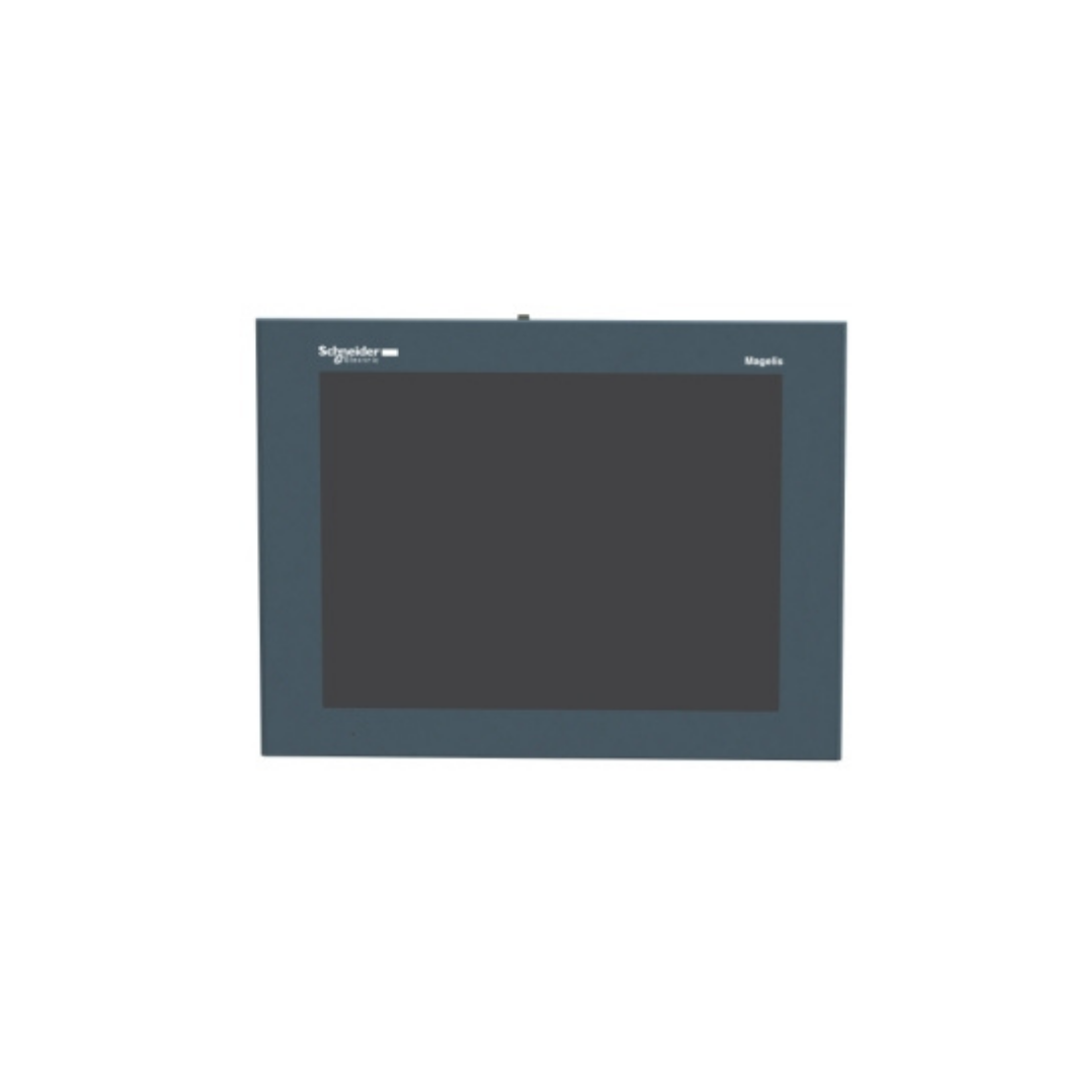

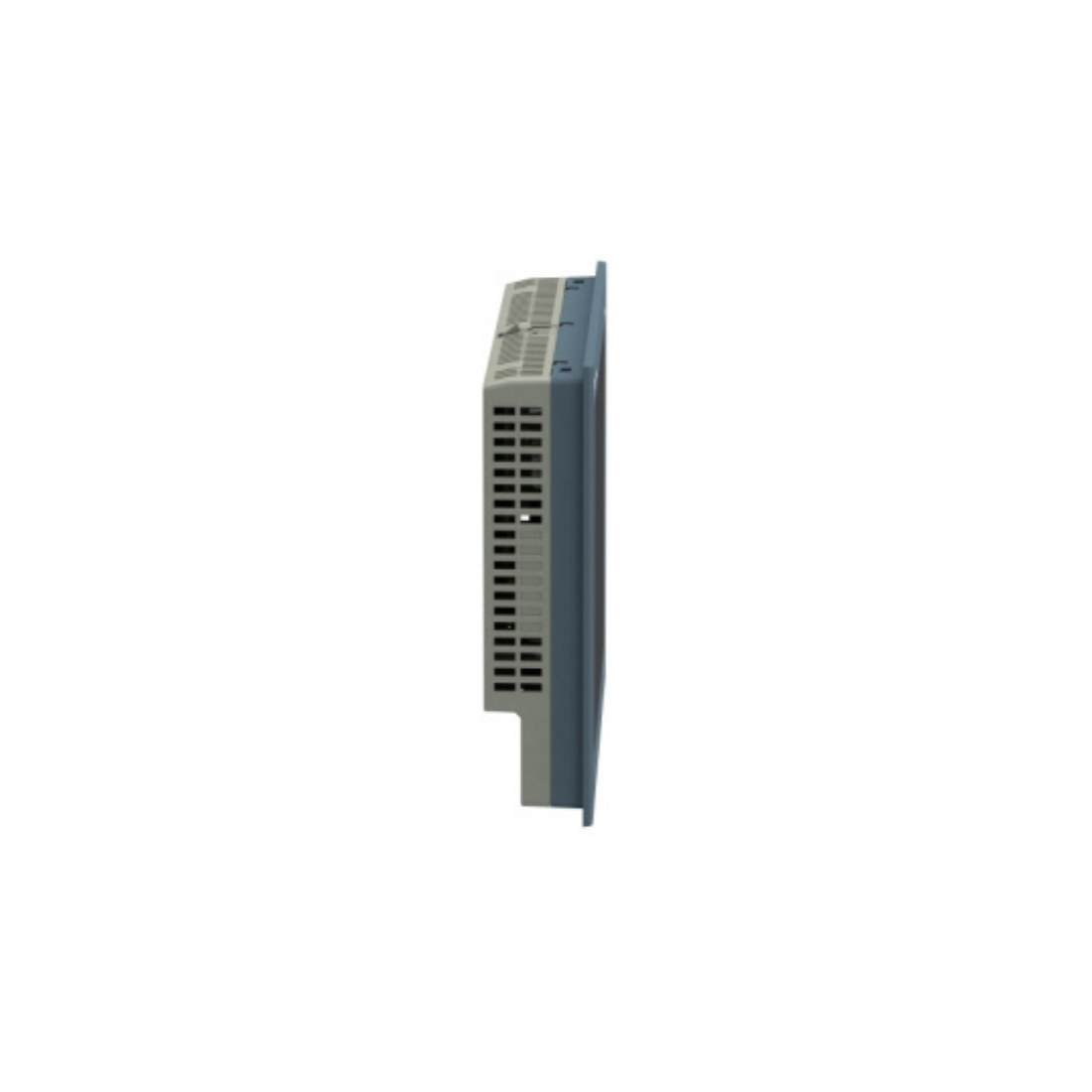

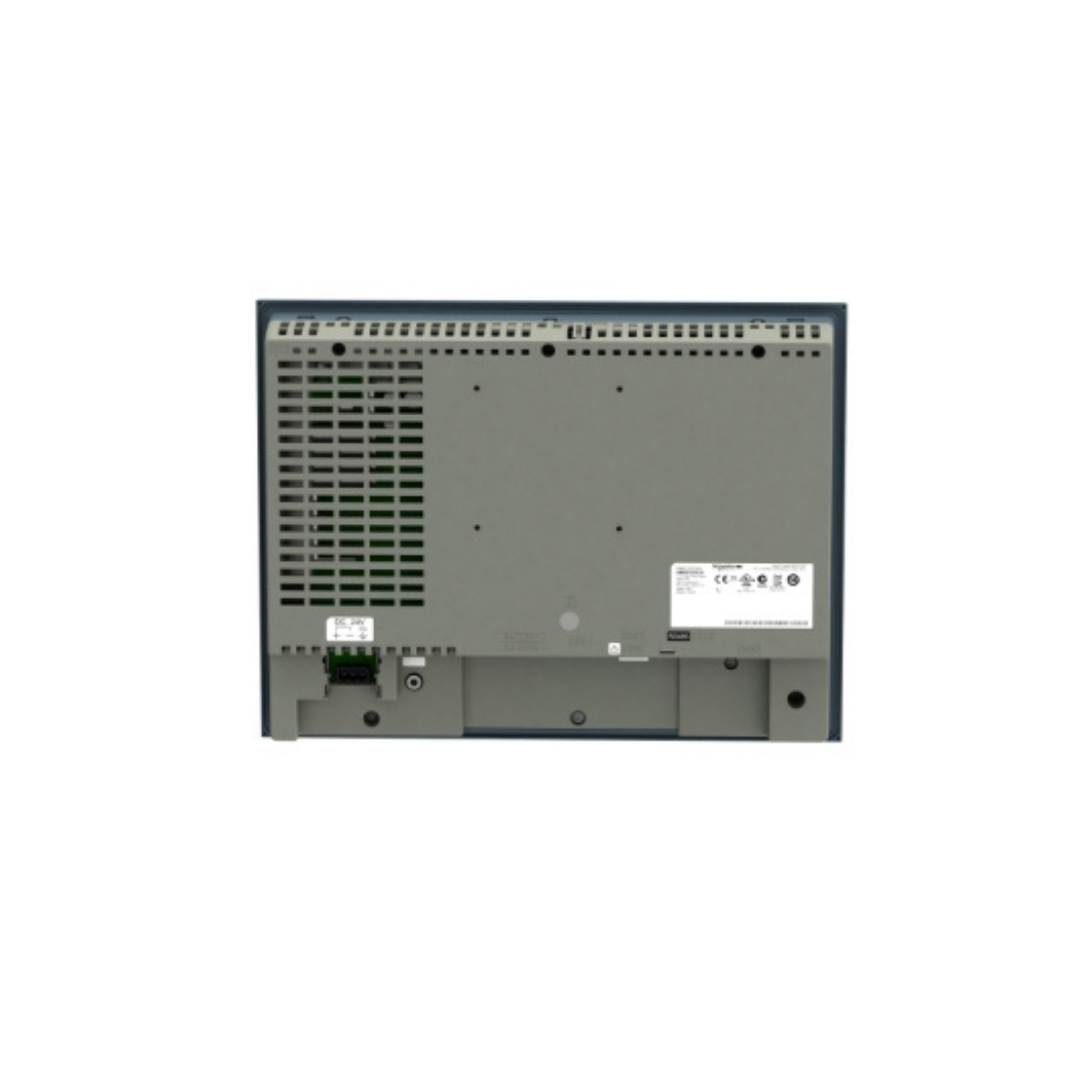

Schneider Electric Harmony GTO Advanced Touchscreen Panel 800 X 600 Pixels SVGA 12.1 Inch TFT 96 MB HMIGTO6310
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Advanced Touchscreen Panel
Description
Schneider Electric HMIGTO6310 Advanced Touchscreen Panel operates on 24V DC, and features a 12.1" TFT color LCD display, 800 x 600 pixels (SVGA), and 96MB EPROM. It also features 1 SD card slot, 1 host port + 1 USB Mini-B, 1 RS232C port, 1 RS485 port, and 1 Ethernet TCP/IP port.
Ideal for optimized information and communication with automation systems in industry and infrastructure, such as compact machines, handling systems, food and beverage machines, and the pharmaceutical industry. The display shows text messages, graphical objects, and dummy charts, as well as data control and configuration. Thanks to its RS485 host connection, it is ideal for monitoring and controlling simple systems and machines. With Vijeo Designer it is easy to program, with almost no programming effort.
Features
- Operates on 24V DC
- Ideal for optimized information and communication with automation systems in industry and infrastructure
- 800 X 600 Pixels SVGA
| Brand | Schneider Electric |
| Item Name | Advanced Touchscreen Panel |
| Model | HMIGTO6310 |
| Resistance To Tlectrostatic Discharge | 6 kV contact discharge conforming to IEC 61000-4-2 level 3 |
| Rated Supply Voltage | 24 V DC |
| Depth | 56mm |
| Ambient Air Temperature For Storage | -20-60 °C |
| Operating Altitude | < 2000 m |
| Certifications | C-Tick, KCC, cULus, CE, UKCA, UKEX |
| Range Of Product | Harmony GTO |
| Relative Humidity | 10-90 % without condensation |
| Shock Resistance | 147 m/s² 3 chocks in each direction X, Y and Z conforming to EN/IEC 61131-2 |
| Width | 315 mm |
| Supply Voltage Limits | 19.2-28.8 V |
| Supply | External Source |
| Display Resolution | 800 x 600 pixels SVGA |
| Operating System | Harmony |
| Terminal Type | Touchscreen display |
| NEMA Degree Of Protection | NEMA 4X front panel (indoor use) |
| Enclosure Material | PPT |
| Front Material | PPT |
| Maximum Power Consumption in W | 12 W when power is not supplied to external devices, 7 W when backlight is OFF, 8 W when backlight is dimmed, 17 W |
| Data Backed Up | 512 kB internal RAM (SRAM) |
| Touch Sensitive Zone | 1024 x 1024 |
| Software Designation | Vijeo Designer configuration software >= V6.1 |
| Brightness | 16 levels - control by touch panel, 16 levels - control by software |
| Backlight Lifespan | 50000 hours white at 25 °C |
| Type Of Cooling | Natural convection |
| Touch Panel | Resistive film, 1000000 cycles |
| Display Size | 12.1 inch |
| Product Mounting | Flush mounting |
| Display Color | 65536 colors |
| Downloadable Protocols | Schneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAY, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP |
| Data Storage Equipment | SD card, <= 32 GB, SDHC card, <= 32 GB |
| Character Font | Taiwanese (traditional Chinese), ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Korean |
| Memory Description | Flash EPROM, 96 MB |
| Display Type Backlit Colour | TFT LCD |
| Vibration Resistance | 3.5 mm (f = 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to EN/IEC 61131-2, 1 gn (f = 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to EN/IEC 61131-2 |
| Ambient Air Temperature For Operation | 0-55 °C |
| Local Signalling | 1 LED per channel (green) for output status |
| Standards | UL 508, EN 61131-2, IEC 61000-6-2 |
