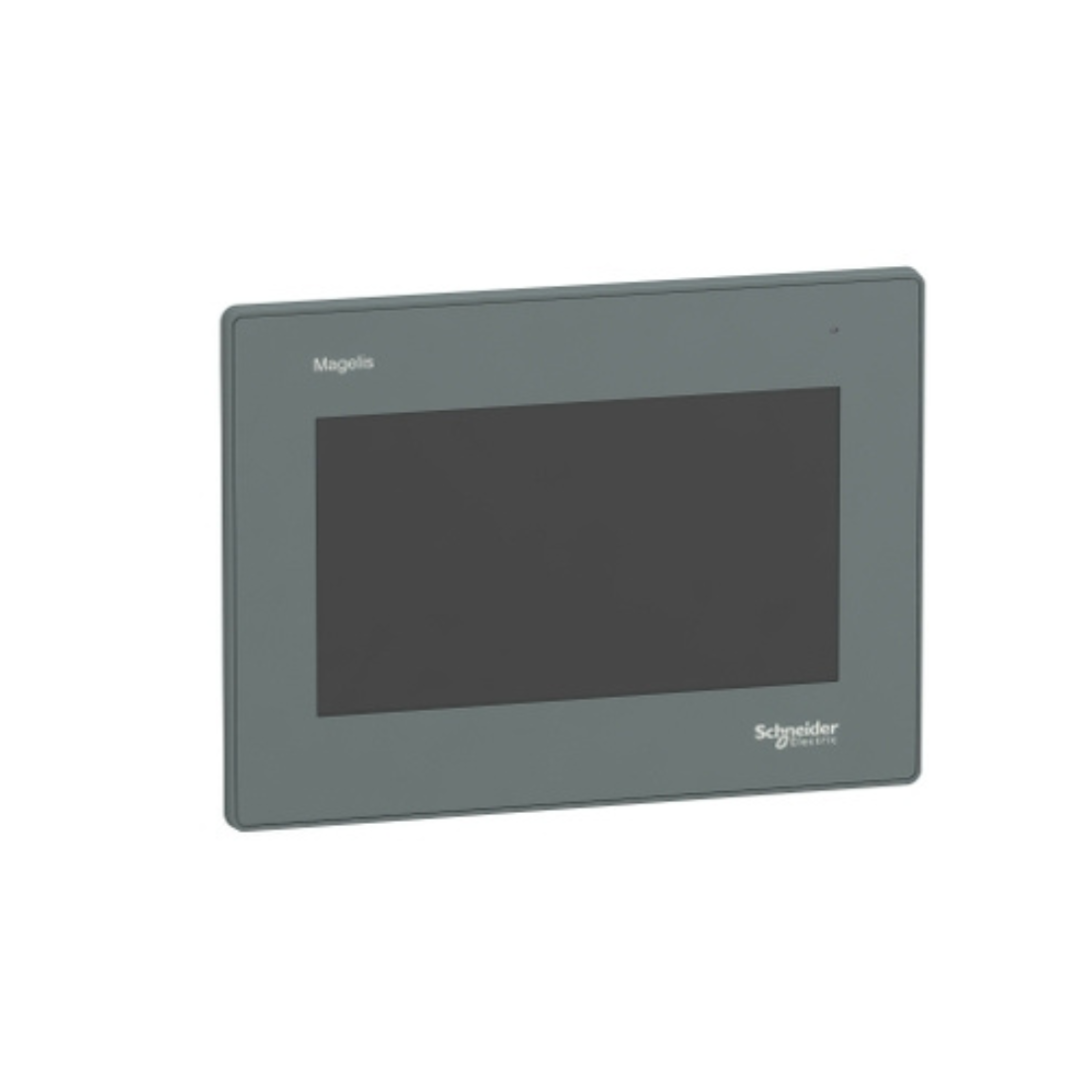

Schneider Electric HMIGXU3512 Advanced Touchscreen Panel is part of the Magelis Easy GXU range, a range of touchscreen panels. The advanced touch panel features a 7-inch LCD screen and supports a WVGA resolution of 800 x 480 pixels. It is equipped with 48 MB internal memory for applications, 128 MB internal DDR memory, and 128 KB internal backup memory. Supports 65,536 colors with a backlight life of 20,000 hours. It is a touchscreen panel with a nominal supply voltage of 24V DC.

Schneider Electric HMIGXU3512 Advanced Touchscreen Panel is equipped with USB Type Mini B, COM1 serial interface is a 9-pin SUB-D connector, RS232C, COM2 serial interface is a 9-pin SUB-D connector, RS422/RS485, USB Type A, and 10/100BASE Ethernet -TX are integrated connections. It has an IP65 certification. Suitable for textile, packaging, HVAC, and pumping applications. It has CE certification.

Magelis Easy GXU, the essential touchscreen panels, are entry-level products perfectly tailored to the specific needs of emerging markets. In other words, they are the answer to the following challenges and serve their purpose at an affordable price without compromising on usability, robustness, availability, and services.

Features

• Features a 7-inch LCD screen and supports a WVGA resolution of 800 x 480 pixels.
• IP65 Protection
