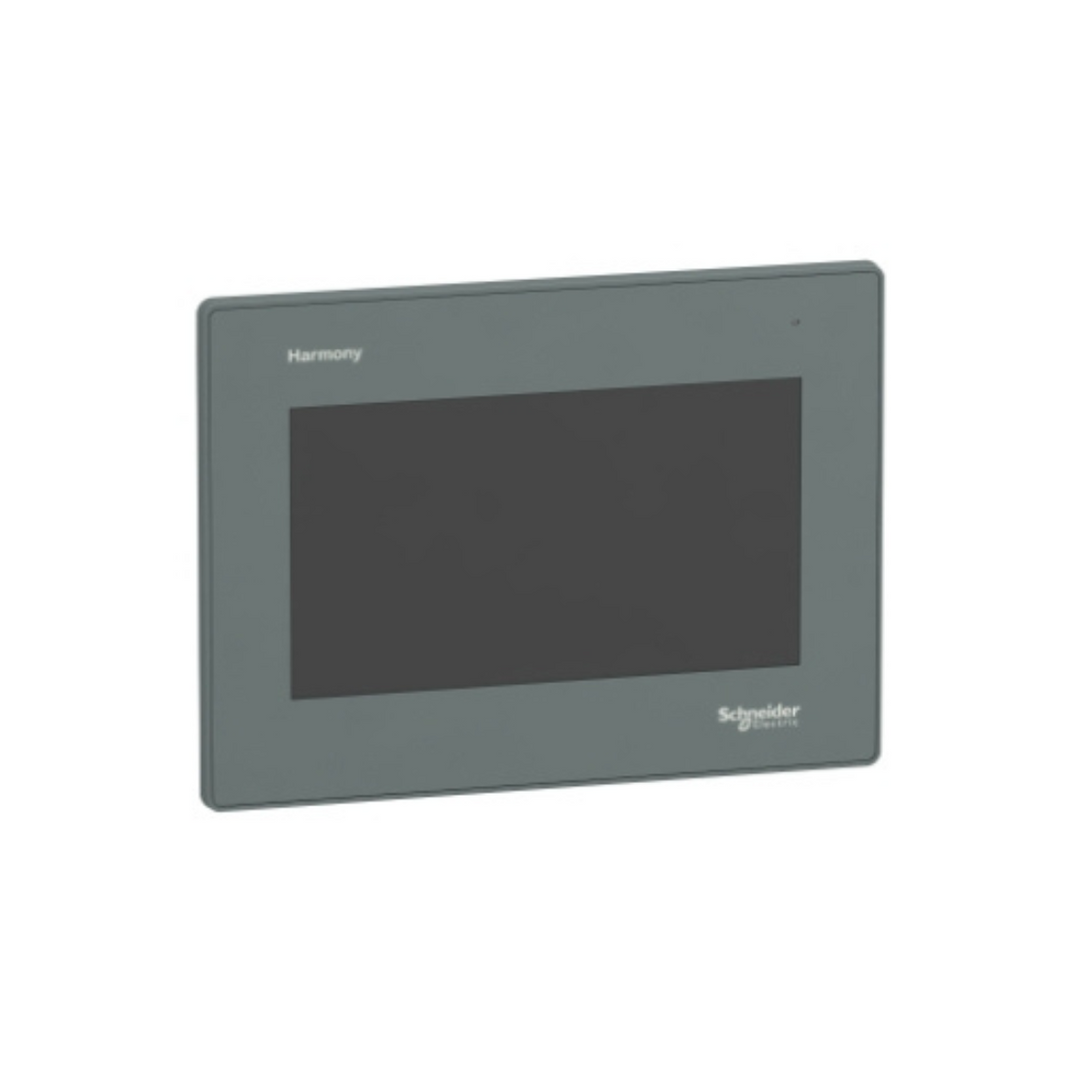

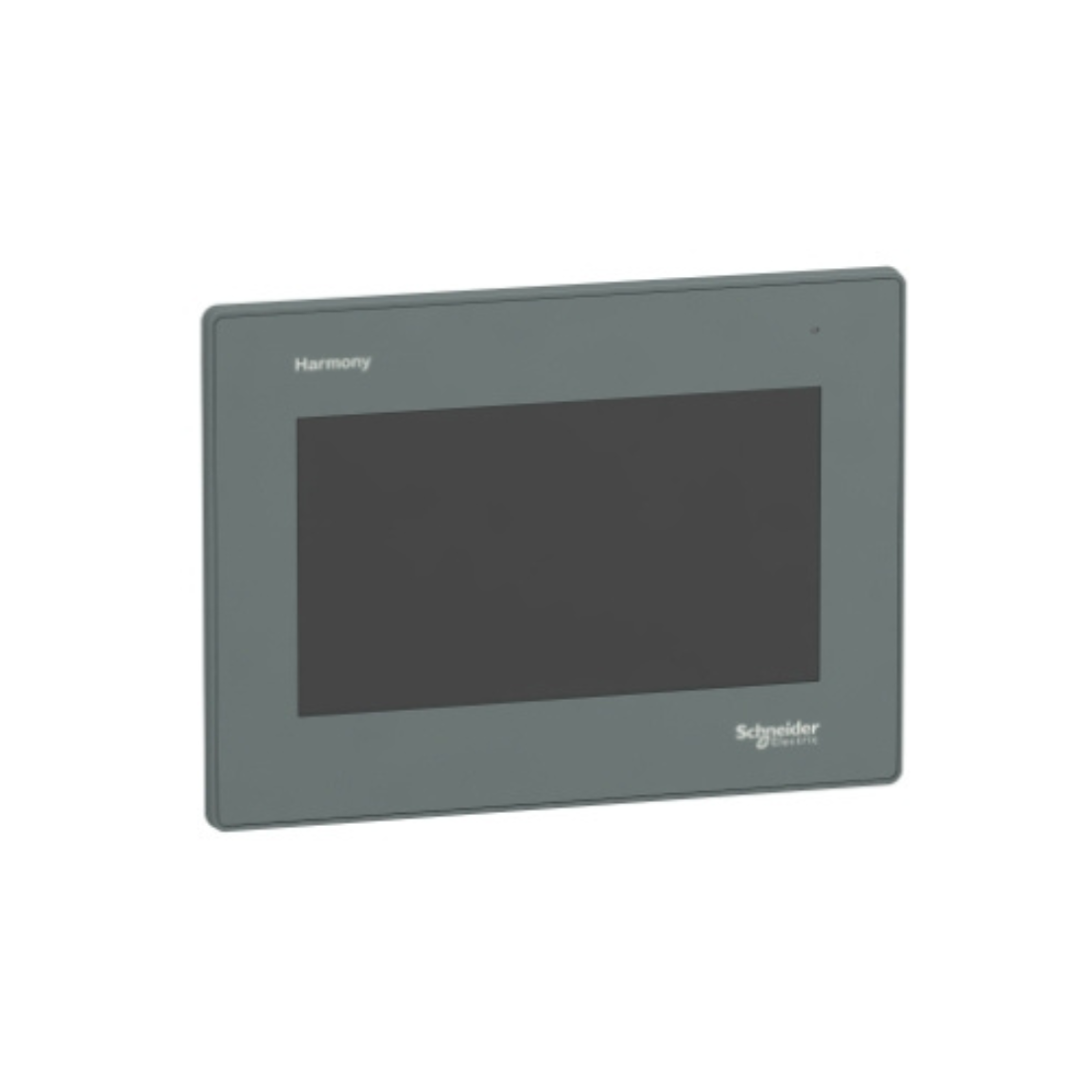

Schneider Electric Harmony Easy GXU Advanced Touchscreen Panel 7 Inch Wide Screen Basic Model 1 Serial Port Embedded RTC HMIGXU3500
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Advanced Touchscreen Panel
Description
Schneider Electric HMIGXU3500 Advanced Touchscreen Panel is part of the Magelis Easy GXU range, a range of touchscreen panels. The advanced touch panel features a 7-inch LCD screen and supports a WVGA resolution of 800 x 480 pixels. It is equipped with 32 MB internal memory for applications, 128 MB internal DDR, and 128 KB internal backup memory. Supports 65,536 colors with a backlight life of 20,000 hours. It is a touchscreen panel with a nominal supply voltage of 24V DC.
Schneider Electric HMIGXU3500 Advanced Touchscreen Panel is equipped with a 9-pin D-Sub connector (DE-09), an RS422/RS485 COM1 serial port, and integrated Mini-B type USB ports. It has IP65 certification. It is suitable for textile, packaging, HVAC, and pumping applications. Magelis Easy GXU, the essential touchscreen panels, are entry-level products perfectly tailored to the specific needs of emerging markets.Â
Features
- Features a 7-inch LCD screen and supports a WVGA resolution of 800 x 480 pixels.
- Equipped with 32 MB internal memory for applications, 128 MB internal DDR, and 128 KB internal backup memory.
- IP65 Protection
- Suitable for textile, packaging, HVAC, and pumping applications.Â
| Brand | Schneider Electric |
| Item Name | Advanced Touchscreen Panel |
| Model | HMIGXU3500 |
| Rated Supply Voltage | 24 V DC |
| Ambient Air Temperature For Storage | -20-60 °C |
| IP Degree Of Protection | IP65 (front panel) |
| Range Of Product | Harmony Easy GXU |
| Display Resolution | 800 x 480 pixels WVGA |
| Software Designation | Vijeo Designer Basic configuration software |
| Backlight Lifespan | 20000 hours |
| Display Size | 7 inch |
| Display Color | 65536 colours |
| Memory Description | Internal, 32 MB for application, internal DDR, 128 MB, internal, 128 kB for backup |
| Cut-out Dimensions | 190 x 135 mm |
| Main Type | Basic |
| Ambient Air Temperature For Operation | 0-50 °C |
| Integrated Connection Type | COM1 serial link: 9-way male SUB-D connector, RS422/RS485, USB type mini B |
| Display Type | LCD Touch Screen |
