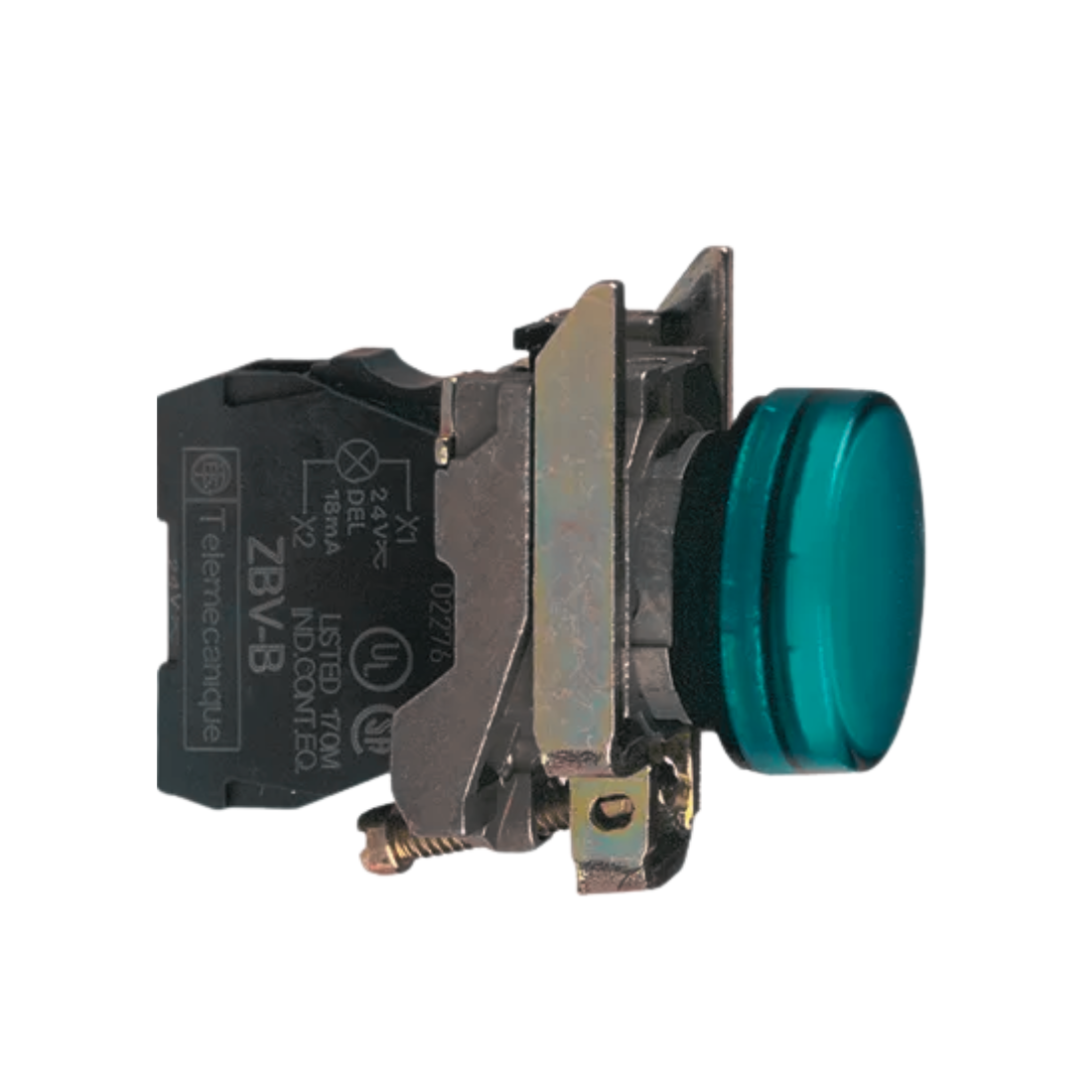

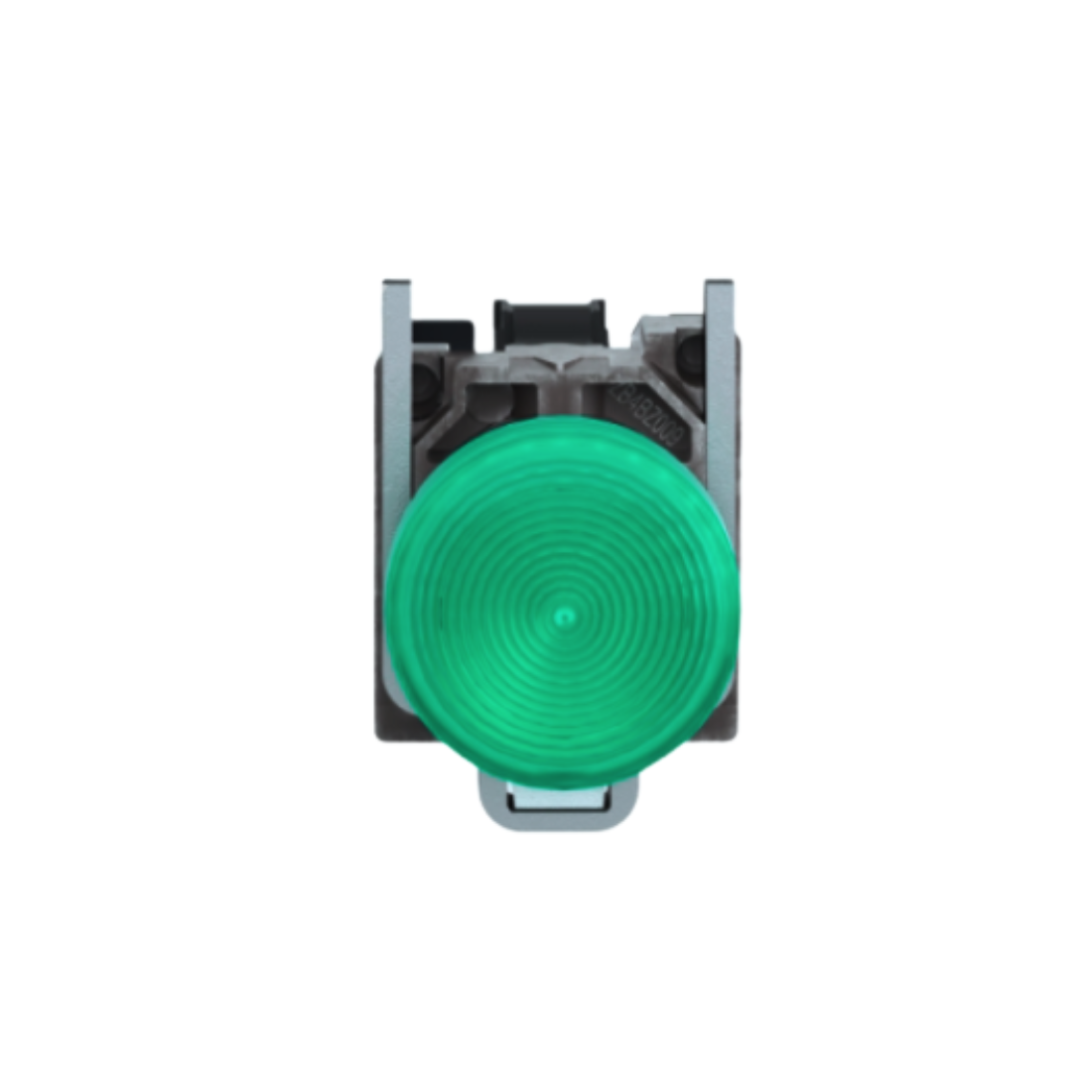

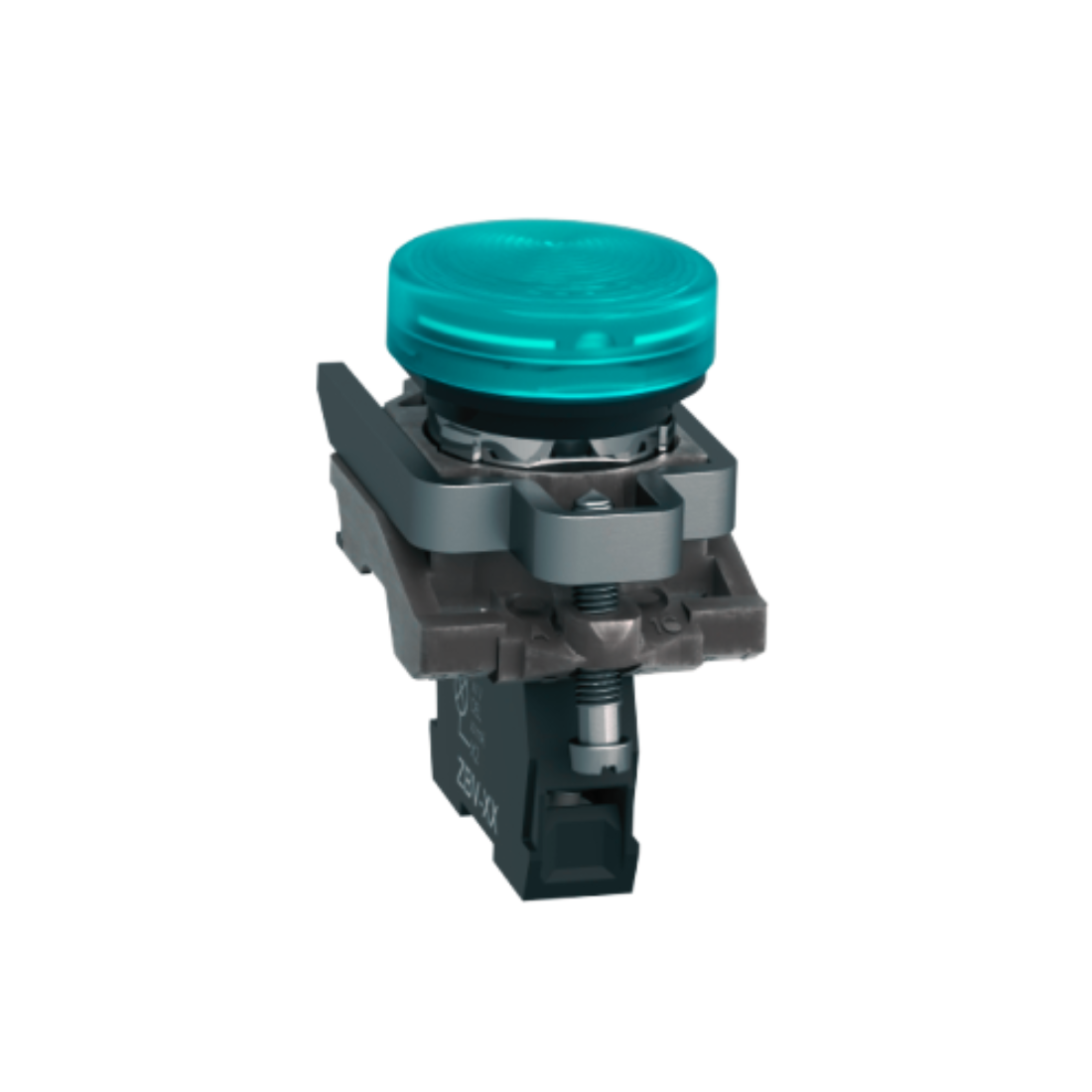

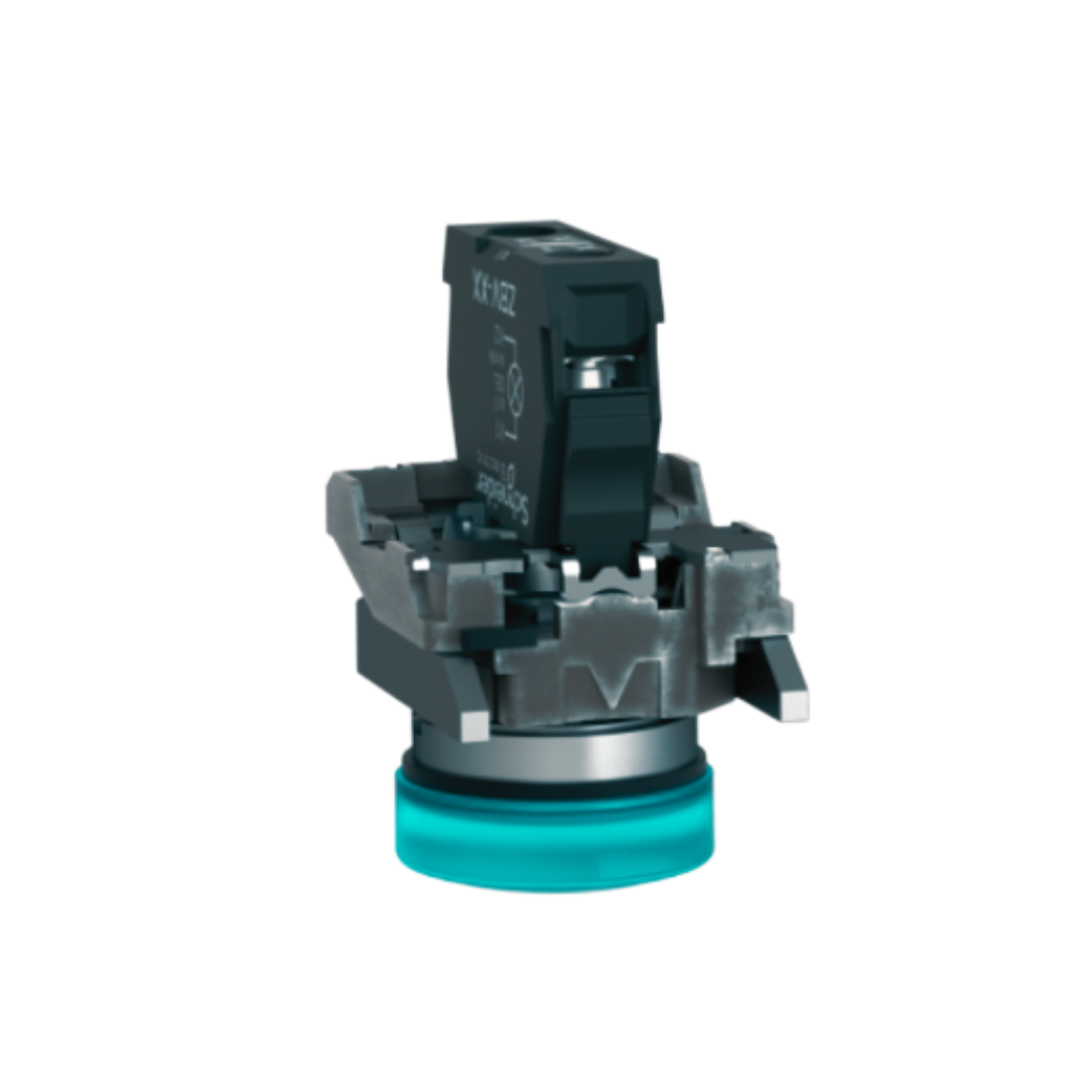

Schneider Electric Green Pilot Light Metal Ø22 Plain Lens With BA9s Bulb <= 250V XB4BV63
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Pilot Light
Description
Schneider Electric XB4BV63 Green Pilot Light operates on 250V AC/DC and uses a BA9s base. It has a metal bezel. This indicator light is designed to be maintenance-free and provide a bright indication of process and machine operation. It can be easily installed into standard 22mm diameter cutouts and connected with simple screw terminal connections.
Thanks to a bright and long-lasting BA9s basic illumination, it is visually clearly visible from afar. Thanks to IP66/IP67/IP69/IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments.
Features
- Maintenance-free and provide a bright indication of process and machine operation.
- Operates on 250V AC/DC and uses a BA9s base.
- Shock, dust, water and vibration proof
| Brand | Schneider Electric |
| Item Name | Pilot Light |
| Model | XB4BV63 |
| Rated Insulation Voltage | 250 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand Voltage | 4 kV conforming to EN 60947-1 |
| Rated Supply Voltage | <= 250 V |
| Bezel Material | Chromium plated metal |
| Bulb Base | BA 9s |
| Cap/Operator Or Lens Color | Green |
| Compatibility Code | XB4 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Depth | 55 mm |
| Fixing Collar Material | Zamak |
| Height | 47 mm |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Light Source | Bulb not included |
| Mounting Diameter | 22.5 mm |
| Protective Treatment | TH |
| Certifications | UL listed, CSA |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Signalling Type | Steady |

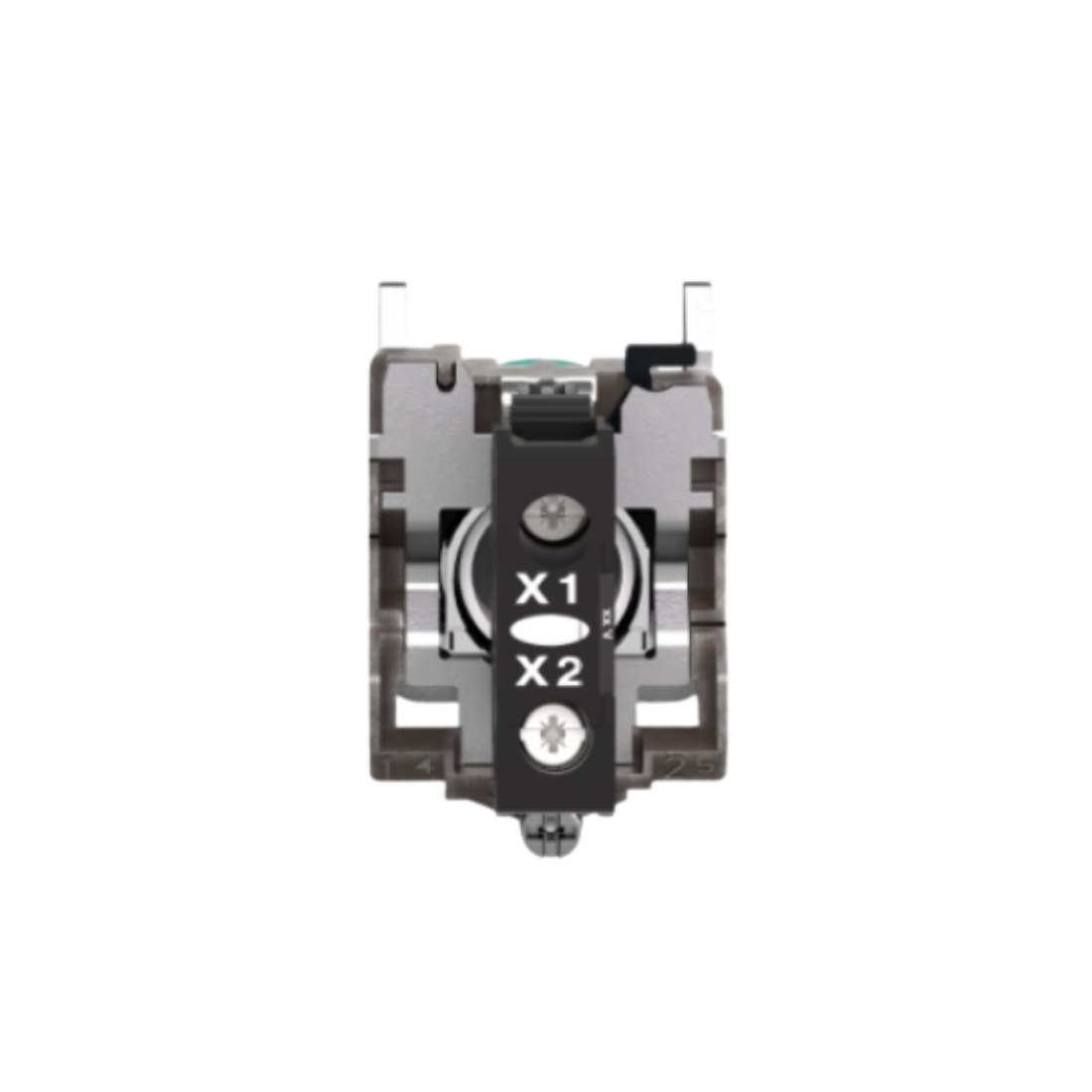

| Terminals description ISO n°1 | (X1-X2)PL |
| Width | 30 mm |
| Operator Additional Information | With plain lens |
| Light Block Supply | Direct <2.4 W |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | 1 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | XB5AVCUST02 |
| Light Source Color | Green |
| Vibration Resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/IEC 60947-1, UL 508, JIS C8201-1 |
| Electrical Shock Protection Class | Class I conforming to IEC 60536 |
| Device Presentation | Complete Product |
| Weight | 0.075 kg |
