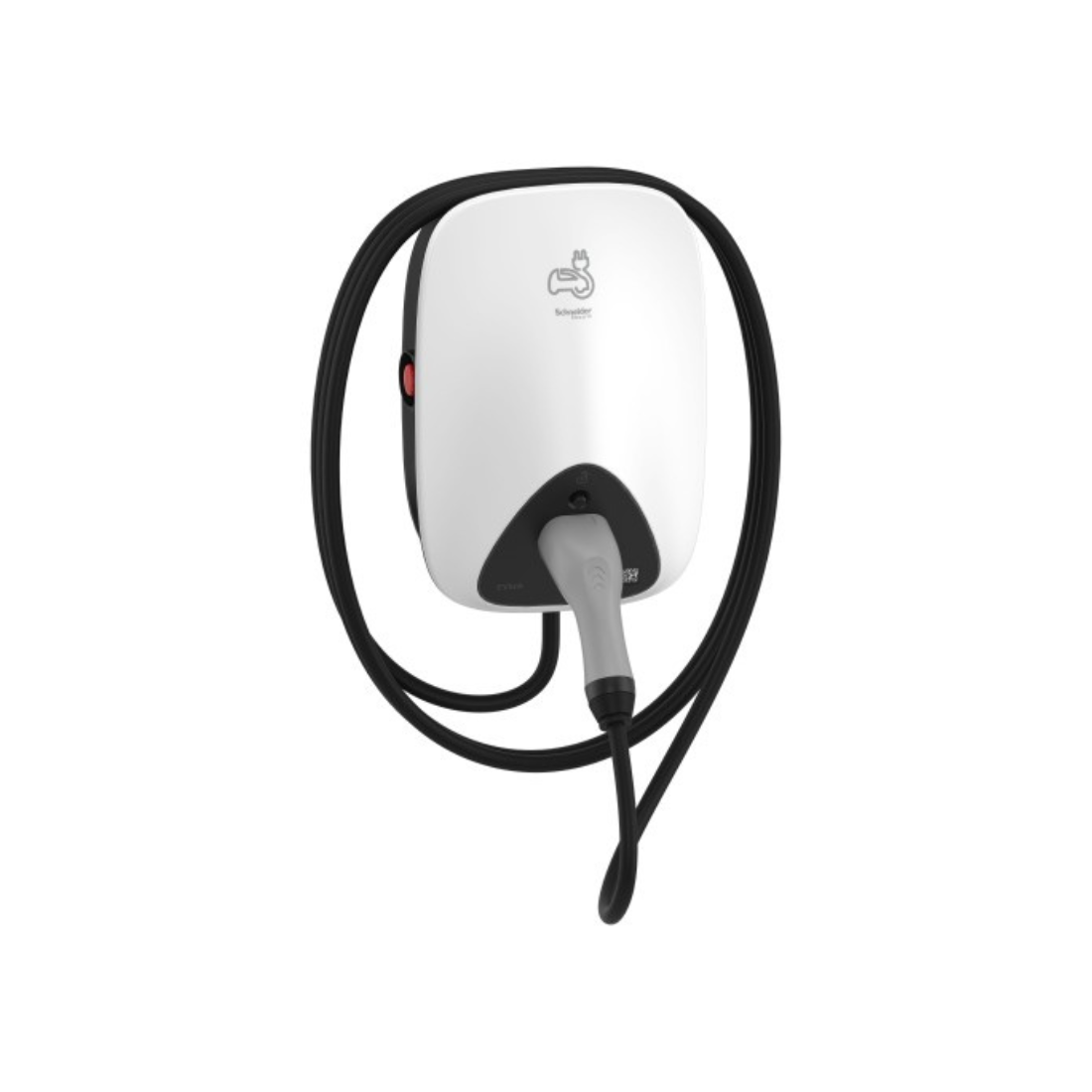

Schneider Electric EVH4S11NC Charging Station 3P+N, attached cable 5m, 11kW, 16A, with RDC-DD
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Charging Station
Description
Schneider Electric EVH4S11NC Charging Station is an electric vehicle (EV) charging station designed to provide charging capabilities for electric vehicles. 5m is the length of the charging cable provided with the charging station. This length indicates the distance between the charging station itself and the electric vehicle that will be charged.
11kW is the charging power rating of the station. It indicates that the charging station can deliver up to 11 kilowatts of power to the connected electric vehicle. 16A is the maximum current that the charging station can deliver to the electric vehicle. In this case, the station can deliver up to 16 amperes of current.
To summarize, Schneider Electric EVH4S11NC Charging Station is an EV charging station with a 5-meter charging cable, capable of delivering up to 11 kW of power at a maximum current of 16 A.
Features
- Effortless and fast charging
- Reliable & secure
- Minimizing the risk of electrical hazards
- Any direct current leakage is promptly detected and disconnected
| Brand | Schneider Electric |
| Item Name | Charging Station |
| Model | EVH4S11NC |
| Rated Supply Voltage | 400 V AC 50 Hz +/- 10 % |
| Ambient Air Temperature For Storage | -40-85 °C |
| Color | White (RAL 9003) |
| Control Type | Red 1 Emergency Stop |
| Function | 1 push-Button |
| Depth | 148mm |
| Height | 409mm |
| IK Degree Of Protection | IK10 conforming to IEC 62262 |
| IP Degree Of Protection | IP55 conforming to EN/IEC 60529 |
| Mounting Type | Wall-Mounted |
| Operating Altitude | 0...2000 m |
| Poles Description | 3P + N |
| Certifications | CE, UKCA |
| Component Type | Charging Station |
| Protection Type | Earth-Leakage Protection |
| Range | EVlink |
| Relative Humidity | 5-95 % |
| Socket Number | 1 |
| Width | 282 mm |
| Offer Type | Basic |
| Number Of Inputs | 1 |
| Output Type Attached Cable | T2 Bottom And Top Centre Of Enclosure 5 m |
| Nominal Output Power | 11 kW 16 A 400 V |
| Input Type | Auxiliary For Dynamic Energy Management |
| Maximum Supply Current | 16 A |
| Ambient Air Temperature For Operation | -30-50 °C |
| Standards | EN 61851, IEC 61851-1, EN 61000-6-1, EN 61000-6-3 |
| Local Signalling | Red, Green & Blue 1 LED; Function: Status Indication |
| Earthing System | TT, TN-S |
| Net Weight | 5.6 kg |
