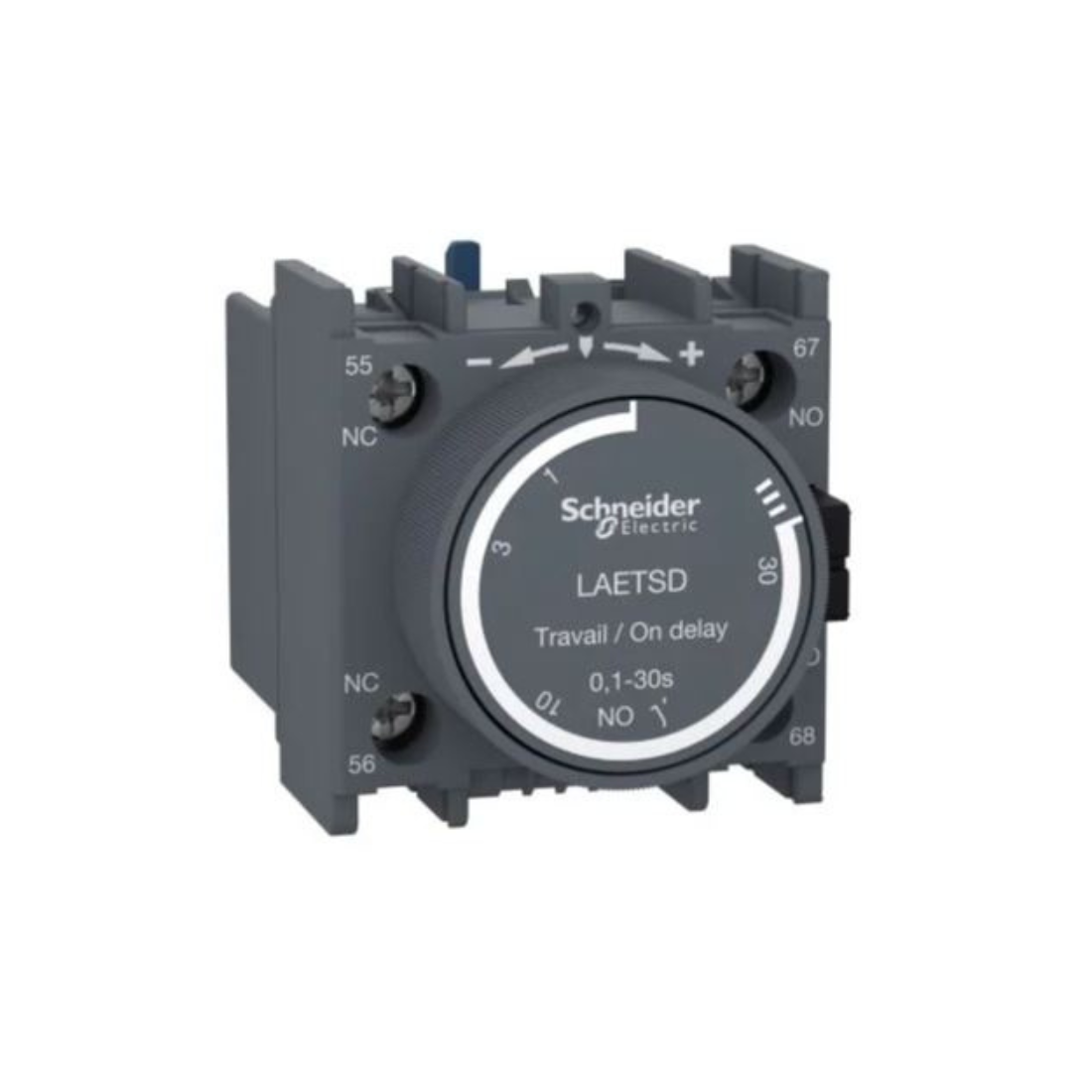

Schneider Electric EasyPact TVS - Time Delay On Delay 1 NO + 1 NC LAETSD
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Auxiliary Contact Block
Description
Schneider Electric LAETSD EasyPact TVS Time Delay Auxiliary Contact Block is an electrical component commonly used in control circuits of industrial equipment and machinery. It is equipped with a time delay function. The auxiliary contact block allows additional functions or controls to be integrated into the primary control circuit.
1NO + 1NC is the number of normally open (NO) and normally closed (NC) contacts available in the auxiliary block. There is a contact that is open when the relay or contactor is in the inactive state. There is a contact that closes when the relay or contactor is in an inactive state. Power-on delay means that the delay occurs after receiving the input signal. In other words, after the first trigger event, there is a delay before the output signal is triggered.
In practice, Schneider Electric LAETSD EasyPact TVS Time Delay Auxiliary Contact Block is used in a control circuit to achieve a specific sequence of events.
Features
- Mounting Location Front.
- Device Application Signalling.
- Environmental Characteristic Standard.
- Auxiliary Contacts Operation OnDelay Contact.
| Brand | Schneider Electric |
| Item Name | Time Delay Auxiliary |
| Model | LAETSD |
| Color | Grey(RAL 7011) |
| Conventional Free Air Thermal Current | 8 A (at 60 °C) |
| Rated Insulation Voltage | 690 V - for control circuit conforming to IEC 60947-5-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Connections - Terminals | Control Circuit: screw clamp terminals 1 1-1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end, control circuit: screw clamp terminals 1 1-1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end, control circuit: screw clamp terminals 2 2.5-2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end, control circuit: screw clamp terminals 2 2.5-2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end |
| Device Application | Signalling |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Irms Rated Making Capacity | 140 A AC conforming to IEC 60947-5-1 |
| Mechanical Durability | 10 Mcycles |
| Minimum Switching Current | 5 mA |
| Non-overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Operating Altitude | 3000 m without derating |
| Pole Contact Composition | 1 NO + 1 NC |
| Certifications | GOST |
| Protective Treatment | TH Conforming to IEC 60068 |
| Range | EasyPact |
| Rated Operational Voltage Limits | <= 690 V |
| Rated Short-time Withstand Current | 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms |
| Tightening Torque | 1.7 N.m - with screwdriver flat Ø 6 mm, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver pozidriv No 2 |
| Time Delay Range | 1...30 s |
| Switching Voltage | 17 V |
| Permissible Short-time Rating | 100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms |
| Auxiliary Contacts Operation | On Delay Contact |
| Ambient Air Temperature For Operation | -5-55 °C |
| Standards | IEC 60947-5-1 |
| Environmental Characteristic | Standard Environment |
| Insulation Resistance | > 10 MOhm |
| Range Compatibility | EasyPact (EasyPact TVS) LC1E |
