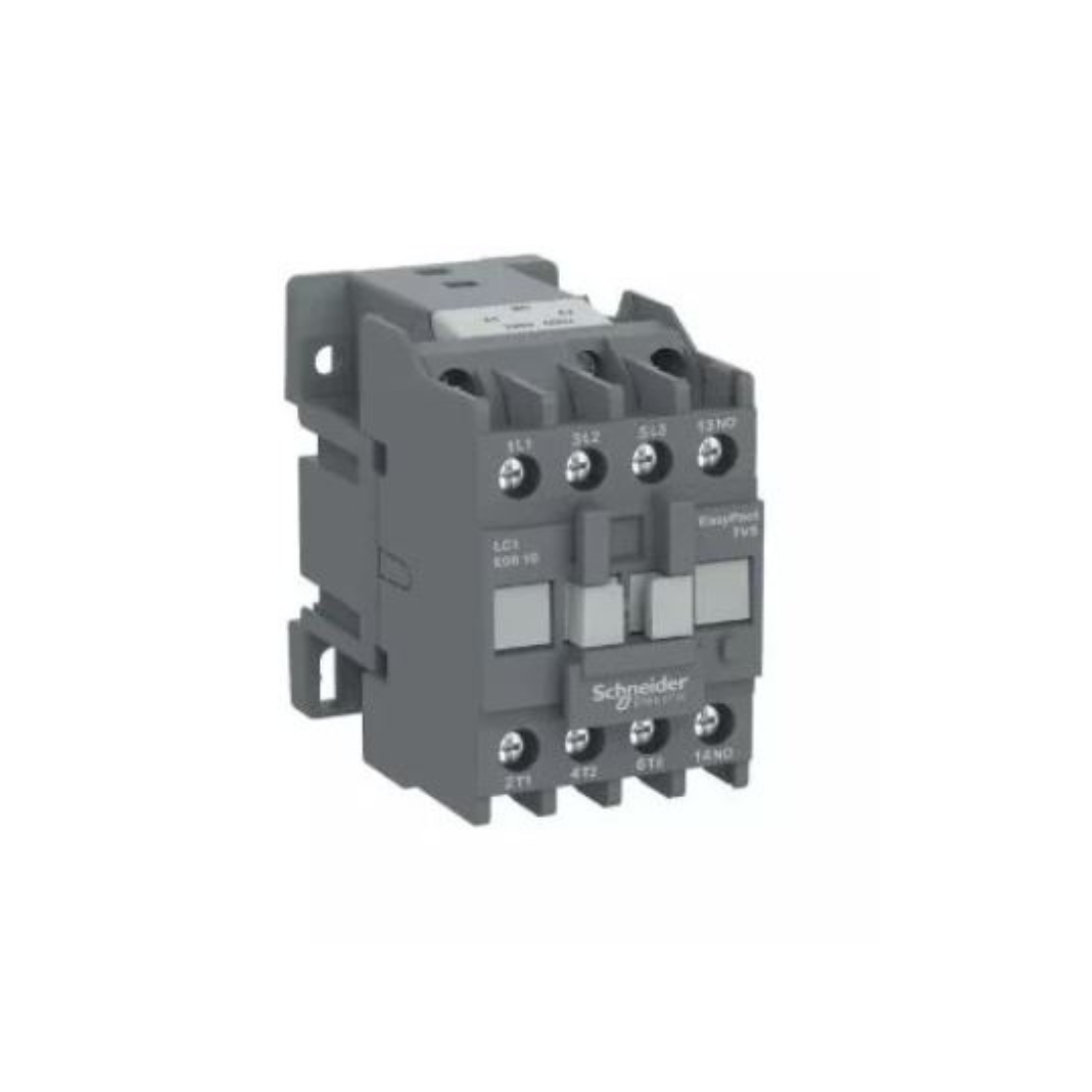

Schneider Electric EasyPact TVS Contactor 3P(3 NO) AC-3 <= 440V 12A 220V AC Coil LC1E1210M5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Contactor
Description
Schneider Electric LC1E1210M5 EasyPact TVS Contactor is an electrical relay that is used to control a high-current circuit with a low-current signal. It is a three-pole contactor. It has three sets of contacts, which means it can control three separate circuits. AC-3 is a classification for the type of load the contactor is designed to handle.
AC-3 is a category typically used for controlling squirrel cage motors. It's suitable for frequent starting, stopping, and reversing of the motor. <= 440V, 12A is the contactor's voltage and current ratings. It's designed to handle voltages up to 440 volts and a current of up to 12 amperes. This means it can control devices or circuits that fall within these voltage and current limits.
220V AC Coil is the voltage required to activate the contactor's electromagnet (coil). When 220V AC is applied to the coil, it creates a magnetic field that pulls in the contacts and closes the circuit.
In summary, Schneider Electric LC1E1210M5 EasyPact TVS Contactor is designed for three-phase AC applications (AC-3) with a maximum voltage of 440V and a current of up to 12A. It's activated by applying 220V AC to its coil.
Features
- 12A TP AC3 Contactor AC3 220V AC Coil
- Control the flow of electric current in a circuit
- 3-pole contactor for connection by screw clamp terminals
| Brand | Schneider Electric |
| Item Name | Contactor |
| Model | LC1E1210M5 |
| Color | Grey (RAL 7011) |
| Package1 Length*Width*Height | 8.6 cm x 7.6 cm x 5.0 cm |
| Country of Manufacturing | India |
| Rated Operational Ccurrent | 25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit, 12 A (at <55 °C) at <= 440 V AC AC-3 for power circuit |
| Conventional Free Air Thermal Current | 25 A (at 55 °C) for power circuit |
| Control Circuit Voltage | 220 V AC 50/60 Hz |
| Rated Operational Voltage | Power Circuit: <= 690 V AC 50/60 Hz |
| Rated Insulation Voltage | 690 V conforming to IEC 60947-4-1 |
| Rated Impulse Withstand Voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Ambient Air Temperature For Operation | -5-55 °C |
| Ambient Air Temperature For Storage | -60-80 °C |
| Associated Fuse Rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1, 25 A gG at <= 690 V coordination type 1 for power circuit |
| Auxiliary Contact Composition | 1 NO |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Connections - Terminals | power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end |
| Contactor Application | Motor Control, Resistive Load |
| Control Circuit Type | AC at 50 Hz |
| Control Circuit Voltage Limits | 0.85...1.1 Uc (55-55 °C):operational 50 Hz, 0.3...0.6 Uc (55-55 °C):drop-out 50 Hz |
| Depth | 80 mm |
| Electrical Durability | 1400000 cycles AC-3, 300000 cycles AC-1 |
| Fire Resistance | 850 °C conforming to IEC 60695-2-1 |
| Heat Dissipation | 2-3 W for control circuit |
| Height | 74 mm |
| Hold-in Power Consumption in VA | 8.3-8.3 VA 50 Hz cos phi 0.3 (at 20 °C), 8.5-8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Inrush Power in VA | 95-95 VA 50 Hz cos phi 0.75 (at 20 °C), 95-95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Control Circuit |
| IP Degree Of Protection | IP2X conforming to IEC 60529 |
| Irms Rated Making Capacity | 120 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Maximum Operating Rate | 1800 cyc/h 60 °C |
| Mechanical Durability | 10000000 cycles |
| Mechanical Robustness | Vibrations contactor open: 1.5 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz, shocks contactor open: 7 Gn for 11 ms, shocks contactor closed: 10 Gn for 11 ms |
| Minimum Switching Current | 5 mA for control circuit |
| Minimum Switching Voltage | 17 V for control circuit |
| Motor Power kW | 3 kW at 220...230 V AC 50/60 Hz (AC-3), 5.5 kW at 380...400 V AC 50/60 Hz (AC-3), 5.5 kW at 415 V AC 50/60 Hz (AC-3), 5.5 kW at 440 V AC 50/60 Hz (AC-3), 7.5 kW at 500 V AC 50/60 Hz (AC-3), 7.5 kW at 660...690 V AC 50/60 Hz (AC-3) |
| Mounting Support | Plate, DIN Rail |
| Non-overlap Time | 1.5 ms on energisation guaranteed between NC and NO contact, 1.5 ms on de-energisation guaranteed between NC and NO contact |
| Operating Altitude | 3000 m without derating |
| Operating Time | 12...22 ms closing, 4...19 ms opening |
| Overvoltage Category | III |
| Permissible Ambient Air Temperature Around The Device | -20-70 °C at Uc, -60-80 °C storage, -5-55 °C operation |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 0.36 W AC-3, 1.6 W AC-1 |
| Certifications | CE, EAC |
| Protective Cover | With |
| Protective Treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Range | EasyPact |
| Rated Breaking Capacity | 96 A at 440 V for power circuit conforming to IEC 60947 |
| Rated Operational Voltage Limits | Power Circuit: <= 690 V AC 50/60 Hz |
| Standards | IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1 |
| Tightening Torque | Power Circuit: 1.2 N.m, control circuit: 1.2 N.m |
| Utilisation Category | AC-3, AC-1 |
| Width | 45 mm |
| Rated Short-time Withstand Current | 105 A 40 °C - 10 s for power circuit, 61 A 40 °C - 60 s for power circuit, 30 A 40 °C - 600 s for power circuit |
| Insulation Resistance | > 10 MOhm for control circuit |
| Weight | 338.0 g |
