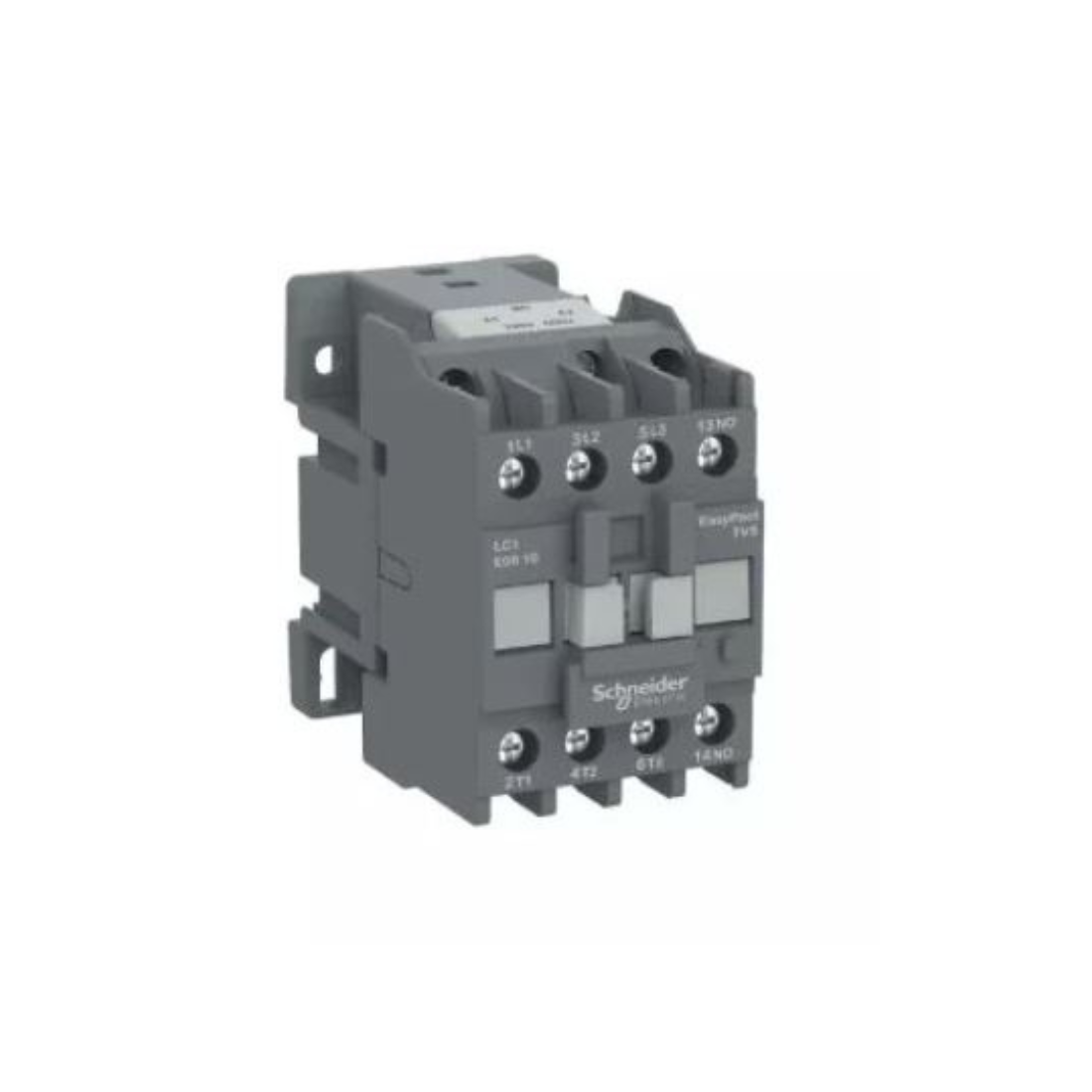

Schneider Electric EasyPact TVS Contactor 3P(3 NO) AC-3 <= 440V 12A 220V AC Coil LC1E1210M5

Name: Schneider Electric EasyPact TVS Contactor 3P(3 NO) AC-3 <= 440V 12A 220V AC Coil LC1E1210M5
Brand: Schneider Electric
Price: 32.0 AED
Availability: InStock

AED 32.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Contactor

Description

Schneider Electric LC1E1210M5 EasyPact TVS Contactor is an electrical relay that is used to control a high-current circuit with a low-current signal. It is a three-pole contactor. It has three sets of contacts, which means it can control three separate circuits. AC-3 is a classification for the type of load the contactor is designed to handle.

AC-3 is a category typically used for controlling squirrel cage motors. It's suitable for frequent starting, stopping, and reversing of the motor. <= 440V, 12A is the contactor's voltage and current ratings. It's designed to handle voltages up to 440 volts and a current of up to 12 amperes. This means it can control devices or circuits that fall within these voltage and current limits.

220V AC Coil is the voltage required to activate the contactor's electromagnet (coil). When 220V AC is applied to the coil, it creates a magnetic field that pulls in the contacts and closes the circuit.

In summary, Schneider Electric LC1E1210M5 EasyPact TVS Contactor is designed for three-phase AC applications (AC-3) with a maximum voltage of 440V and a current of up to 12A. It's activated by applying 220V AC to its coil.

Features

12A TP AC3 Contactor AC3 220V AC Coil
Control the flow of electric current in a circuit
3-pole contactor for connection by screw clamp terminals

Specifications

Brand : Schneider Electric

Item Name : Contactor

Model : LC1E1210M5

Color : Grey (RAL 7011)

Package1 Length*Width*Height : 8.6 cm x 7.6 cm x 5.0 cm

Country of Manufacturing : India

Rated Operational Ccurrent : 25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit, 12 A (at <55 °C) at <= 440 V AC AC-3 for power circuit

Conventional Free Air Thermal Current : 25 A (at 55 °C) for power circuit

Control Circuit Voltage : 220 V AC 50/60 Hz

Rated Operational Voltage : Power Circuit: <= 690 V AC 50/60 Hz

Rated Insulation Voltage : 690 V conforming to IEC 60947-4-1

Rated Impulse Withstand Voltage : 6 kV coil not connected to the power circuit conforming to IEC 60947

Ambient Air Temperature For Operation : -5-55 °C

Ambient Air Temperature For Storage : -60-80 °C

Associated Fuse Rating : 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1, 25 A gG at <= 690 V coordination type 1 for power circuit

Auxiliary Contact Composition : 1 NO

Average Impedance : 2.5 mOhm - Ith 25 A 50 Hz for power circuit

Connections - Terminals : power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end

Contactor Application : Motor Control, Resistive Load

Control Circuit Type : AC at 50 Hz

Control Circuit Voltage Limits : 0.85...1.1 Uc (55-55 °C):operational 50 Hz, 0.3...0.6 Uc (55-55 °C):drop-out 50 Hz

Depth : 80 mm

Electrical Durability : 1400000 cycles AC-3, 300000 cycles AC-1

Fire Resistance : 850 °C conforming to IEC 60695-2-1

Heat Dissipation : 2-3 W for control circuit

Height : 74 mm

Hold-in Power Consumption in VA : 8.3-8.3 VA 50 Hz cos phi 0.3 (at 20 °C), 8.5-8.5 VA 60 Hz cos phi 0.3 (at 20 °C)

Inrush Power in VA : 95-95 VA 50 Hz cos phi 0.75 (at 20 °C), 95-95 VA 60 Hz cos phi 0.75 (at 20 °C)

Insulation Resistance : > 10 MOhm for Control Circuit

IP Degree Of Protection : IP2X conforming to IEC 60529

Irms Rated Making Capacity : 120 A at 440 V AC for power circuit conforming to IEC 60947-4-1

Maximum Operating Rate : 1800 cyc/h 60 °C

Mechanical Durability : 10000000 cycles

Mechanical Robustness : Vibrations contactor open: 1.5 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz, shocks contactor open: 7 Gn for 11 ms, shocks contactor closed: 10 Gn for 11 ms

Minimum Switching Current : 5 mA for control circuit

Minimum Switching Voltage : 17 V for control circuit

Motor Power kW : 3 kW at 220...230 V AC 50/60 Hz (AC-3), 5.5 kW at 380...400 V AC 50/60 Hz (AC-3), 5.5 kW at 415 V AC 50/60 Hz (AC-3), 5.5 kW at 440 V AC 50/60 Hz (AC-3), 7.5 kW at 500 V AC 50/60 Hz (AC-3), 7.5 kW at 660...690 V AC 50/60 Hz (AC-3)

Mounting Support : Plate, DIN Rail

Non-overlap Time : 1.5 ms on energisation guaranteed between NC and NO contact, 1.5 ms on de-energisation guaranteed between NC and NO contact

Operating Altitude : 3000 m without derating

Operating Time : 12...22 ms closing, 4...19 ms opening

Overvoltage Category : III

Permissible Ambient Air Temperature Around The Device : -20-70 °C at Uc, -60-80 °C storage, -5-55 °C operation

Pole Contact Composition : 3 NO

Poles Description : 3P

Pollution Degree : 3

Power Dissipation Per Pole : 0.36 W AC-3, 1.6 W AC-1

Certifications : CE, EAC

Protective Cover : With

Protective Treatment : TH (pollution degree 3) conforming to IEC 60068-2-30 test Db

Range : EasyPact

Rated Breaking Capacity : 96 A at 440 V for power circuit conforming to IEC 60947

Rated Operational Voltage Limits : Power Circuit: <= 690 V AC 50/60 Hz

Standards : IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1

Tightening Torque : Power Circuit: 1.2 N.m, control circuit: 1.2 N.m

Utilisation Category : AC-3, AC-1

Width : 45 mm

Rated Short-time Withstand Current : 105 A 40 °C - 10 s for power circuit, 61 A 40 °C - 60 s for power circuit, 30 A 40 °C - 600 s for power circuit

Insulation Resistance : > 10 MOhm for control circuit

Weight : 338.0 g
