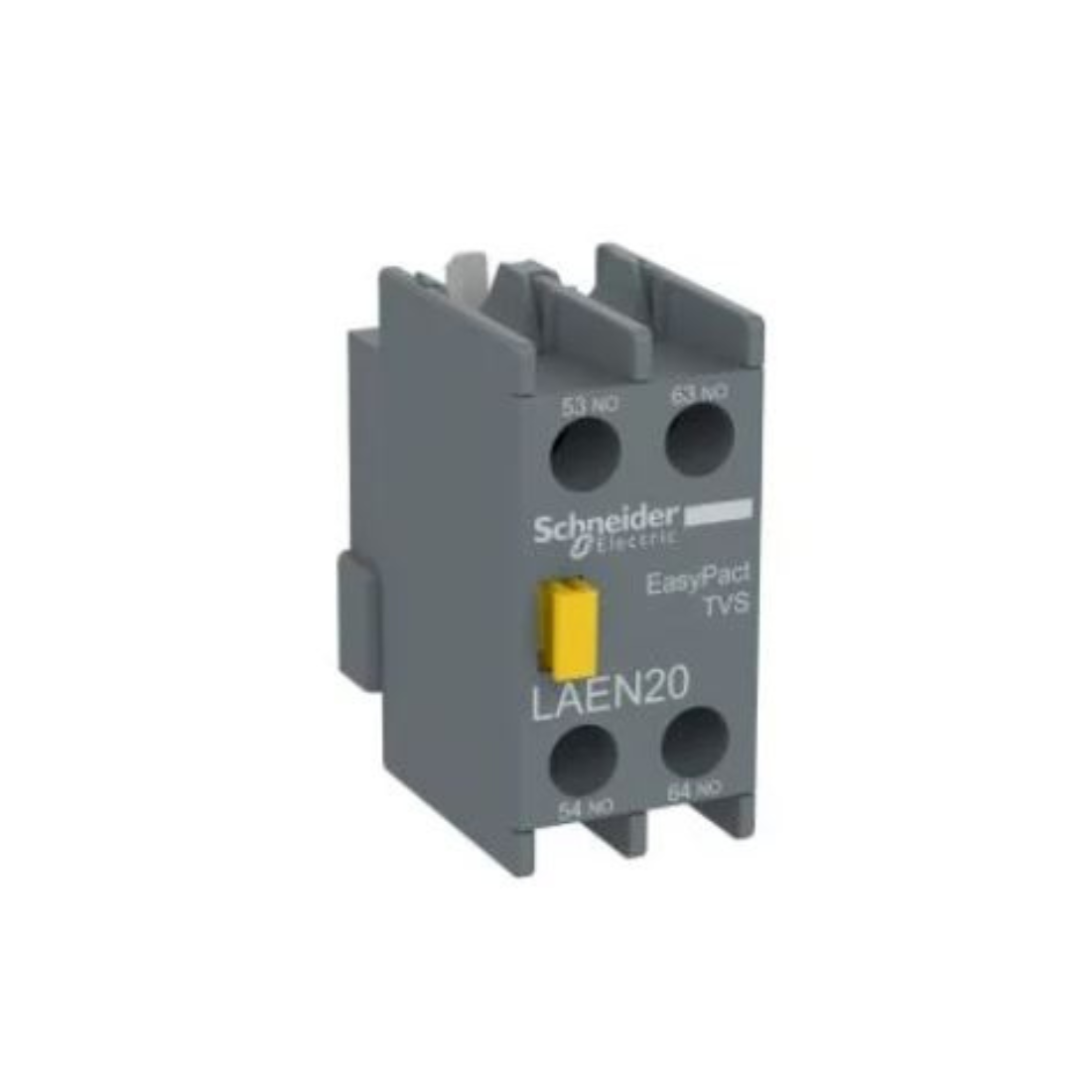

Schneider Electric EasyPact TVS Auxiliary Contact Block 2 NO Screw Clamps Terminals LAEN20

Name: Schneider Electric EasyPact TVS Auxiliary Contact Block 2 NO Screw Clamps Terminals LAEN20
Brand: Schneider Electric
Price: 16.8 AED
Availability: InStock

AED 16.80

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Auxiliary Contact Block

Description

Schneider Electric LAEN20 EasyPact TVS Auxiliary Contact Block is a component commonly used in electrical circuits and control systems. It is a device used in electrical circuits, often in conjunction with a main contactor or relay. It is used to monitor or control the status of the main contactor or relay.

2 NO stands for Normally Open. This means that under normal conditions, the contacts are open, meaning no electrical current can pass through them. Screw Clamp Terminal is the type of terminals used to connect wires to the contact block. It has screws that can be tightened to secure the wire in place. They are a common and reliable method for making electrical connections.

In practical terms, Schneider Electric LAEN20 EasyPact TVS Auxiliary Contact Block is used in a control circuit that wants to monitor if a specific event has occurred (like a motor reaching a certain speed or a door being closed). When that event occurs, it energizes the main contactor, which in turn closes its contacts to allow current to flow. At the same time, it might also close the auxiliary contacts, which could be used to signal other parts of the system or perform additional functions.

Features

Used in electrical circuits and control systems
Instantaneous auxiliary contacts operation
Minimum switching current of 5mA at 17V

Specifications

Brand : Schneider Electric

Item Name : Auxiliary Contact Block

Model : LAEN20

Color : Grey

Conventional Free Air Thermal Current : 8 A (at 60 °C)

Rated Insulation Voltage : 690 V - for control circuit conforming to IEC 60947-5-1

Ambient Air Temperature For Storage : -60-80 °C

Connections - Terminals : Control Circuit: screw clamp terminals 1 1-1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end, control circuit: screw clamp terminals 1 1-1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end, control circuit: screw clamp terminals 2 2.5-2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end, control circuit: screw clamp terminals 2 2.5-2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end

Device Application : Signalling

IP Degree Of Protection : IP20 conforming to IEC 60529

Irms Rated Making Capacity : 140 A AC conforming to IEC 60947-5-1

Mechanical Durability : 10 Mcycles

Minimum Switching Current : 5 mA

Minimum Switching Voltage : 17 V

Non-overlap Time : 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact

Operating Altitude : 3000 m without derating

Pole Contact Composition : 2 NO

Certifications : GOST

Protective Treatment : TH conforming to IEC 60068

Range : EasyPact

Rated Operational Voltage Limits : <= 690 V

Standards : IEC 60947-5-1

Rated Short-time Withstand Current : 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms

Switching Voltage : 17 V

Auxiliary Contacts Operation : Instantaneous

Ambient Air Temperature For Operation : -5-55 °C

Environmental Characteristic : Standard Environment

Insulation Resistance : > 10 MOhm

Mounting Location : Front

Range Compatibility : EasyPact (EasyPact TVS) LC1E

Weight : 0.035 kg
