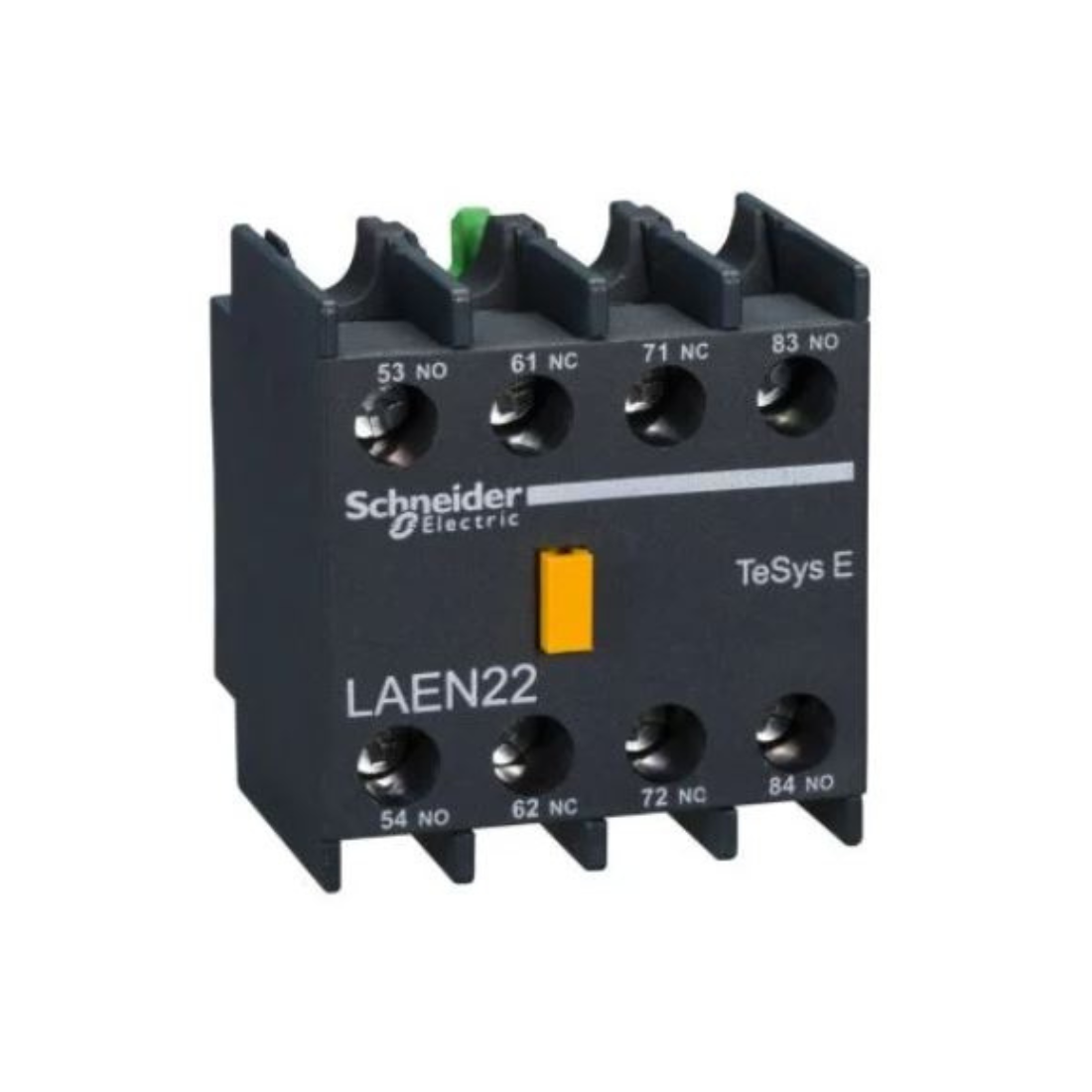

Schneider Electric EasyPact TVS Auxiliary Contact Block 2 NO + 2 NC Screw Clamp Terminals LAEN22
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Auxiliary Contact Block
Description
Schneider Electric LAEN22 EasyPact TVS Auxiliary Contact Block is a component commonly used in electrical control panels and industrial automation systems. It is used in conjunction with a main switching device to provide additional functions or contacts. It's used to monitor or control the status of the main device. 2 NO + 2 NC is the type and number of contacts available in the auxiliary contact block.
NO stands for Normally Open contacts. These contacts are open when the auxiliary contact block is not energized. NC stands for Normally Closed contacts. These contacts are closed when the auxiliary contact block is not energized. Screw Clamp Terminals are the type of terminals used for wiring connections. Screw clamp terminals have screws that can be tightened to secure the wires in place. This provides a reliable and secure connection.
In practical terms, Schneider Electric LAEN22 EasyPact TVS Auxiliary Contact Block is used to monitor the status of a device or control the status of another device based on the state of the main switching device.
Features
- Front mounting with Screw clamp terminals
- Instantaneous auxiliary contacts operation
- Minimum switching current of 5mA at 17V
| Brand | Schneider Electric |
| Item Name | Auxiliary Contact Block |
| Model | LAEN22 |
| Color | Grey |
| Conventional Free Air Thermal Current | 8 A (at 60 °C) |
| Rated Insulation Voltage | 690 V - for control circuit conforming to IEC 60947-5-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Connections - Terminals | control circuit: screw clamp terminals 1 1-1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end, control circuit: screw clamp terminals 1 1-1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end, control circuit: screw clamp terminals 2 2.5-2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end, control circuit: screw clamp terminals 2 2.5-2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end |
| Device Application | Signalling |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Irms Rated Making Capacity | 140 A AC conforming to IEC 60947-5-1 |
| Mechanical Durability | 10 Mcycles |
| Minimum Switching Current | 5 mA |
| Minimum Switching Voltage | 17 V |
| Non-overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Operating Altitude | 3000 m without derating |
| Pole Contact Composition | 2 NO + 2 NC |
| Certifications | GOST |
| Protective Treatment | TH conforming to IEC 60068 |
| Range | EasyPact |
| Rated Operational Voltage Limits | <= 690 V |
| Standards | IEC 60947-5-1 |
| Rated Short-time Withstand Current | 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms |
| Switching Voltage | 17 V |
| Auxiliary Contacts Operation | Instantaneous |
| Ambient Air Temperature For Operation | -5-55 °C |
| Environmental Characteristic | Standard Environment |
| Insulation Resistance | > 10 MOhm |
| Mounting Location | Front |
| Range Compatibility | EasyPact (EasyPact TVS) LC1E |
