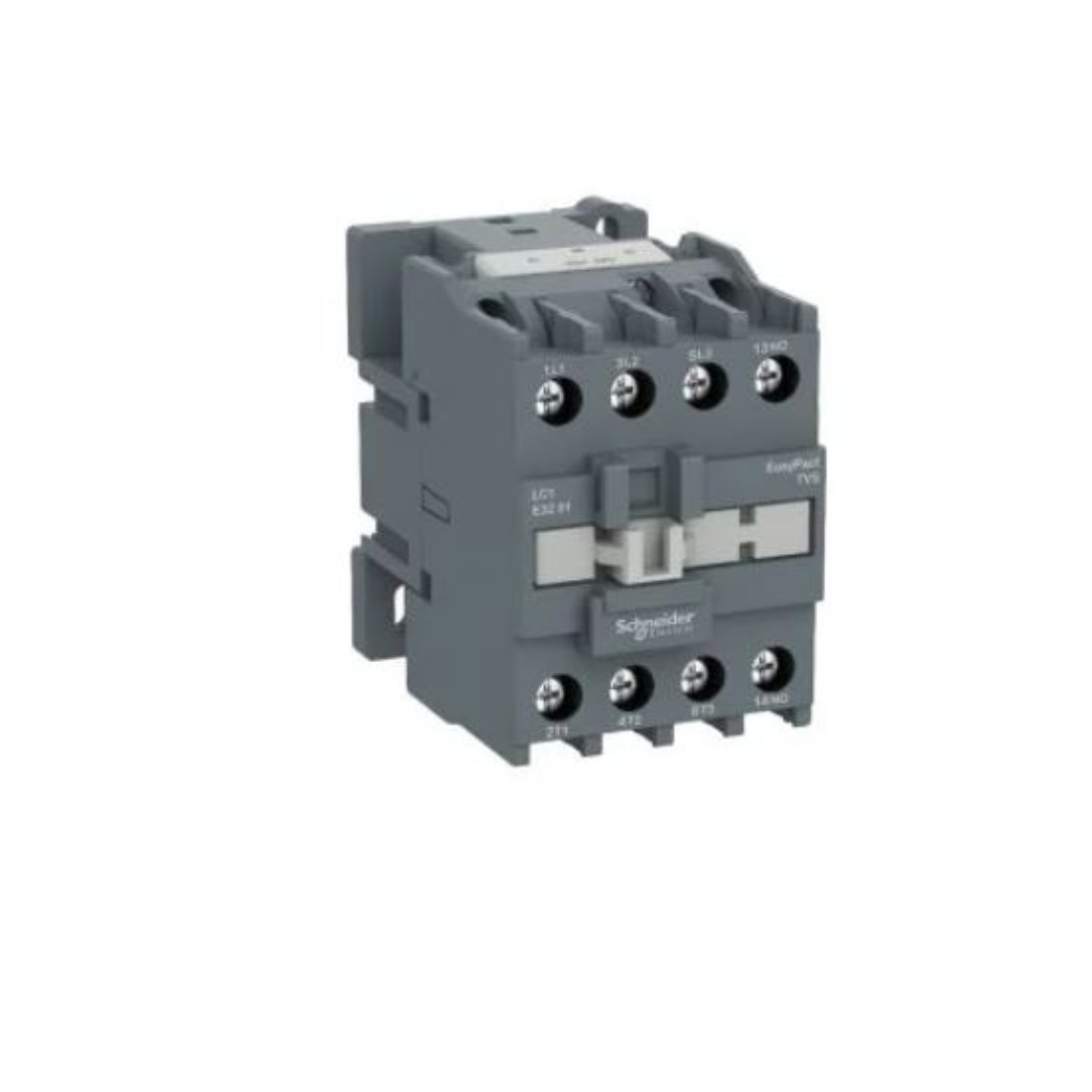

Schneider Electric Easy TeSys Contactor 3P(3 NO) AC-3 <= 440V 32A 220V AC Coil LC1E3210M5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Contactor
Description
Schneider Electric LC1E3210M5 EasyPact TVS Contactor is an electrical device used for controlling and switching electrical circuits. The contactor has three sets of contacts that can be used to control three separate electrical circuits. AC-3 is typically associated with the switching of electric motors.
<= 440V 32A is the rated operational voltage and current. The contactor is designed to handle voltages up to 440V and currents of up to 32 amperes. 220V AC Coil is the voltage required to activate the electromagnetic coil within the contactor. When a voltage of 220V AC is applied across the coil, it generates a magnetic field, which in turn, closes or opens the contacts within the contactor.
In summary, Schneider Electric LC1E3210M5 EasyPact TVS Contactor is designed for medium-duty applications that need to control three-phase AC motors or other similar loads that operate at voltages up to 440V and draw currents up to 32A. The coil requires a control voltage of 220V AC to operate.
Features
- 32A TP AC3 Contactor AC3 220V AC Coil
- Control the flow of electric current in a circuit
- 3-pole contactor for connection by screw clamp terminals
| Brand | Schneider Electric |
| Item Name | Contactor |
| Model | LC1E3210M5 |
| Color | Grey (RAL 7011) |
| Conventional Free Air Thermal Current | 50 A (at 55 °C) |
| Control Circuit Voltage | 220 V AC 50 Hz |
| Rated Operational Voltage | Power Circuit: <= 690 V AC 50/60 Hz |
| Rated Insulation Voltage | 690 V conforming to IEC 60947-4-1 |
| Rated Impulse Withstand Voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Associated Fuse Rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1, 63 A gG at <= 690 V coordination type 1 for power circuit |
| Auxiliary Contact Composition | 1 NO |
| Average Impedance | 2.5 mOhm - Ith 50 A 50 Hz for power circuit |
| Connections - Terminals | control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1-6 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end |
| Contactor Application | Motor Control, Resistive Load |
| Control Circuit Type | AC at 50 Hz |
| Control Circuit Voltage Limits | 0.85...1.1 Uc (55-55 °C):operational 50 Hz, 0.3...0.6 Uc (55-55 °C):drop-out 50 Hz |
| Depth | 86 mm |
| Electrical Durability | 1000000 cycles AC-3, 350000 cycles AC-1 |
| Fire Resistance | 850 °C conforming to IEC 60695-2-1 |
| Heat Dissipation | 2-3 W for control circuit |
| Height | 84 mm |
| Hold-in Power Consumption in VA | 8.3-8.3 VA 50 Hz cos phi 0.3 (at 20 °C), 8.5-8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Inrush Power in VA | 95-95 VA 50 Hz cos phi 0.75 (at 20 °C), 95-95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Insulation Resistance | > 10 MOhm for Control Circuit |
| IP Degree Of Protection | IP2X conforming to IEC 60529 |
| Irms Rated Making Capacity | 320 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Maximum Operating Rate | 1800 cyc/h 60 °C |
| Mechanical Durability | 8000000 cycles |
| Mechanical Robustness | vibrations contactor open (1.5 Gn, 5...300 Hz) , vibrations contactor closed (3 Gn, 5...300 Hz) , shocks contactor closed (10 Gn for 11 ms) , shocks contactor open (6 Gn for 11 ms) |
| Minimum Switching Current | 5 mA for control circuit |
| Minimum Switching Voltage | 17 V for control circuit |
| Motor Power kW | 7.5 kW at 220...230 V AC 50/60 Hz, 15 kW at 380...400 V, 15 kW at 415 V, 15 kW at 440 V, 18.5 kW at 500 V, 18.5 kW at 660...690 V |
| Mounting Support | Plate, DIN Rail |
| Non-overlap Time | 1.5 ms on energisation guaranteed between NC and NO contact, 1.5 ms on de-energisation guaranteed between NC and NO contact |
| Operating Altitude | 3000 m without derating |
| Operating Time | 12...22 ms on closing, 4...19 ms on opening |
| Overvoltage Category | III |
| Permissible Ambient Air Temperature Around The Device | -20-70 °C at Uc, -60-80 °C storage, -5-55 °C operation |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Pollution Degree | 3 |
| Power Dissipation Per Pole | 2 W AC-3, 5 W AC-1 |
| Certifications | CE, EAC |
| Protective Cover | With |
| Protective Treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Range | EasyPact |
| Rated Breaking Capacity | 256 A at 440 V for power circuit conforming to IEC 60947 |
| Rated Operational Voltage Limits | Power Circuit: <= 690 V AC 50/60 Hz |
| Standards | IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1 |
| Tightening Torque | Control Circuit: 1.2 N.m, power circuit: 1.5 N.m |
| Utilisation Category | AC-3, AC-1 |
| Width | 45 mm |
| Rated Short-time Withstand Current | 260 A 40 °C - 10 s for power circuit, 138 A 40 °C - 60 s for power circuit, 60 A 40 °C - 600 s for power circuit |
| Insulation Resistance | > 10 MOhm for control circuit |
| Weight | 0.45 kg |
