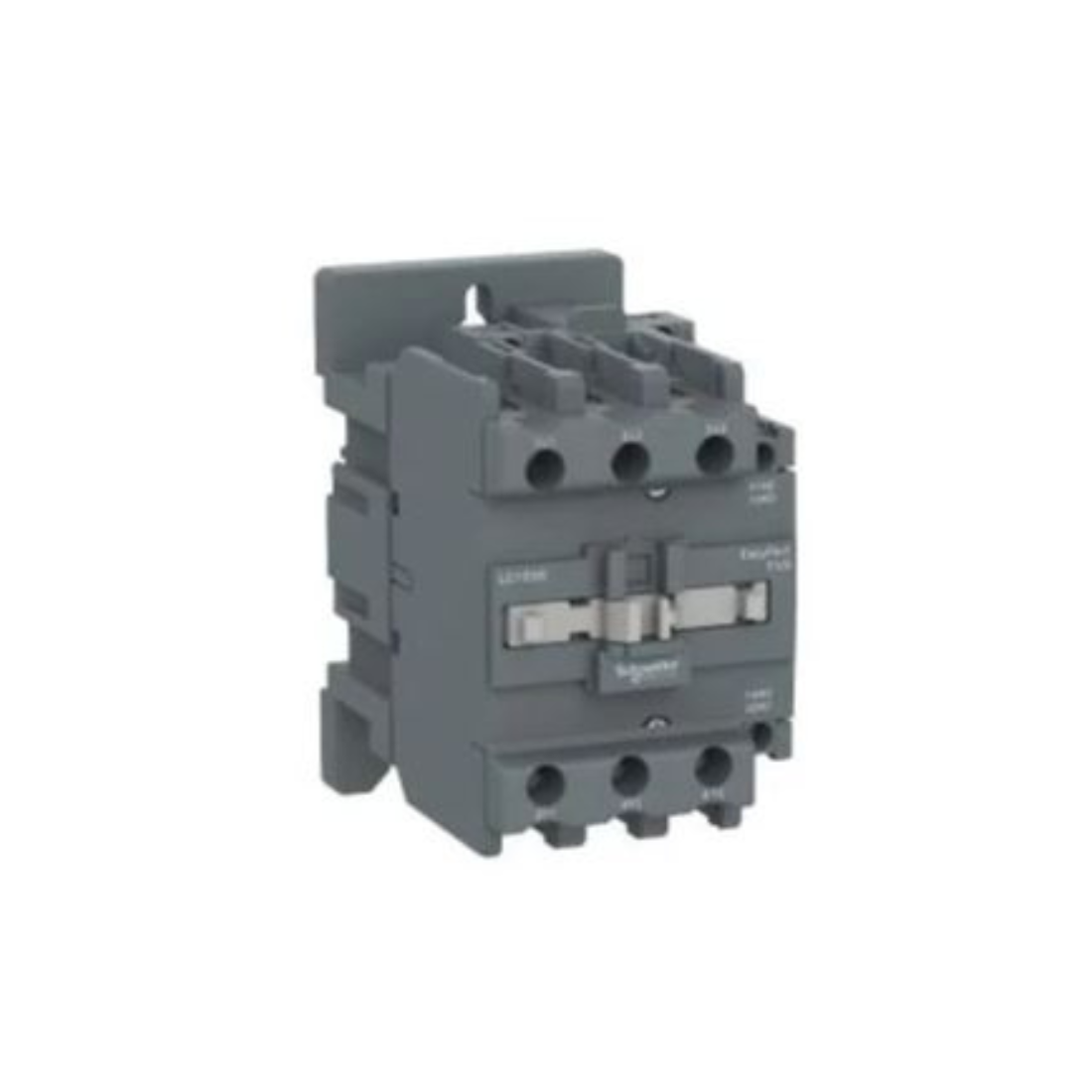

Schneider Electric Easy TeSys Contactor 3P(3 NO) AC-3 <= 440 V 65A 220V AC Coil LC1E65M5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Contactor
Description
Schneider Electric LC1E65M5 EasyPact TVS 3-pole Contactor for motor applications up to 65A 37kW at 440V. It has a 220V 50Hz AC coil without built-in auxiliary contacts, power, and control connections through screw terminals. 75mm wide for standard operating speeds up to 1200 cycles per hour.
Ensures standard reliability and durability with an electrical life of 0.9 Mcycles AC-3 and a mechanical durability of 5 Mcycles. It can cover a working temperature of -5°C to 55°C and is mounted on a DIN rail. Up to an altitude of 3000 m, there is no power reduction. Certified to multiple standards (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
Features
- 65A TP AC3 Contactor AC3 220V AC Coil
- Control the flow of electric current in a circuit
- 3-pole contactor for connection by screw clamp terminals
Brand | Schneider Electric |
Item Name | Contactor |
Model | LC1E65M5 |
Rated Operational Ccurrent | 65 A (at <55 °C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
Conventional Free Air Thermal Current | 80 A (at 55 °C) |
Control Circuit Voltage | 220 V AC 50/60 Hz |
Rated Operational Voltage Limits | Power Circuit: <= 690 V AC 50/60 Hz |
Rated Insulation Voltage | 690 V conforming to IEC 60947-4-1 |
Rated Impulse Withstand Voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
Associated Fuse Rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1, 125 A gG at <= 690 V coordination type 1 for power circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
Average Impedance | 1 mOhm - Ith 80 A 50 Hz for power circuit |
Connections - Terminals | control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: solid without cable end |
Contactor Application | Motor Control, Resistive Load |
Control Circuit Type | AC at 50 Hz |
Control Circuit Voltage Limits | 0.85...1.1 Uc (55-55 °C):operational 50 Hz, 0.3...0.6 Uc (55-55 °C):drop-out 50 Hz |
Depth | 114mm |
Electrical Durability | 300000 cycles AC-1, 1200000 cycles AC-3 |
Fire Resistance | 850 °C conforming to IEC 60695-2-1 |
Heat Dissipation | 6-10 W for control circuit |
Height | 127 mm |
Hold-in Power Consumption in VA | 15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 13-13 VA 60 Hz cos phi 0.3 (at 20 °C) |
Inrush Power in VA | 160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 140-140 VA 60 Hz cos phi 0.75 (at 20 °C) |
Insulation Resistance | > 10 MOhm for Control Circuit |
IP Degree Of Protection | IP2X conforming to IEC 60529 |
Irms Rated Making Capacity | 650 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
Maximum Operating Rate | 1200 cyc/h 60 °C |
Mechanical Durability | 5000000 cycles |
Mechanical Robustness | vibrations contactor open (1.5 Gn, 5...300 Hz) , vibrations contactor closed (3 Gn, 5...300 Hz) , shocks contactor open (6 Gn for 11 ms) , shocks contactor closed (7 Gn for 11 ms) |
Minimum Switching Current | 5 mA for control circuit |
Minimum Switching Voltage | 17 V for control circuit |
Motor Power kW | 18.5 kW at 220...230 V AC 50/60 Hz, 30 kW at 380...400 V, 37 kW at 415 V, 37 kW at 440 V, 37 kW at 500 V, 37 kW at 660...690 V |
Mounting Support | Plate, DIN Rail |
Non-overlap Time | 1.5 ms on energisation guaranteed between NC and NO contact, 1.5 ms on de-energisation guaranteed between NC and NO contact |
Operating Altitude | 3000 m without derating |
Operating Time | 20...26 ms on closing, 8...12 ms on opening |
Overvoltage Category | III |
Permissible Ambient Air Temperature Around The Device | -20-70 °C at Uc, -60-80 °C storage, -5-55 °C operation |
Pole Contact Composition | 3 NO |
Poles Description | 3P |
Pollution Degree | 3 |
Power Dissipation Per Pole | 4.2 W AC-3, 6.4 W AC-1 |
Certifications | CE, EAC |
Protective Cover | With |
Protective Treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
Range | EasyPact |
Rated Breaking Capacity | 520 A at 440 V for power circuit conforming to IEC 60947 |
Rated Operational Voltage Limits | Power Circuit: <= 690 V AC 50/60 Hz |
Standards | IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1 |
Tightening Torque | control circuit: 1.2 N.m, power circuit: 5 N.m |
Utilisation Category | AC-1, AC-3 |
Width | 75 mm |
Rated Short-time Withstand Current | 520 A 40 °C - 10 s for power circuit, 260 A 40 °C - 60 s for power circuit, 110 A 40 °C - 600 s for power circuit |
Insulation Resistance | > 10 MOhm for control circuit |
Weight | 0.98 kg |
