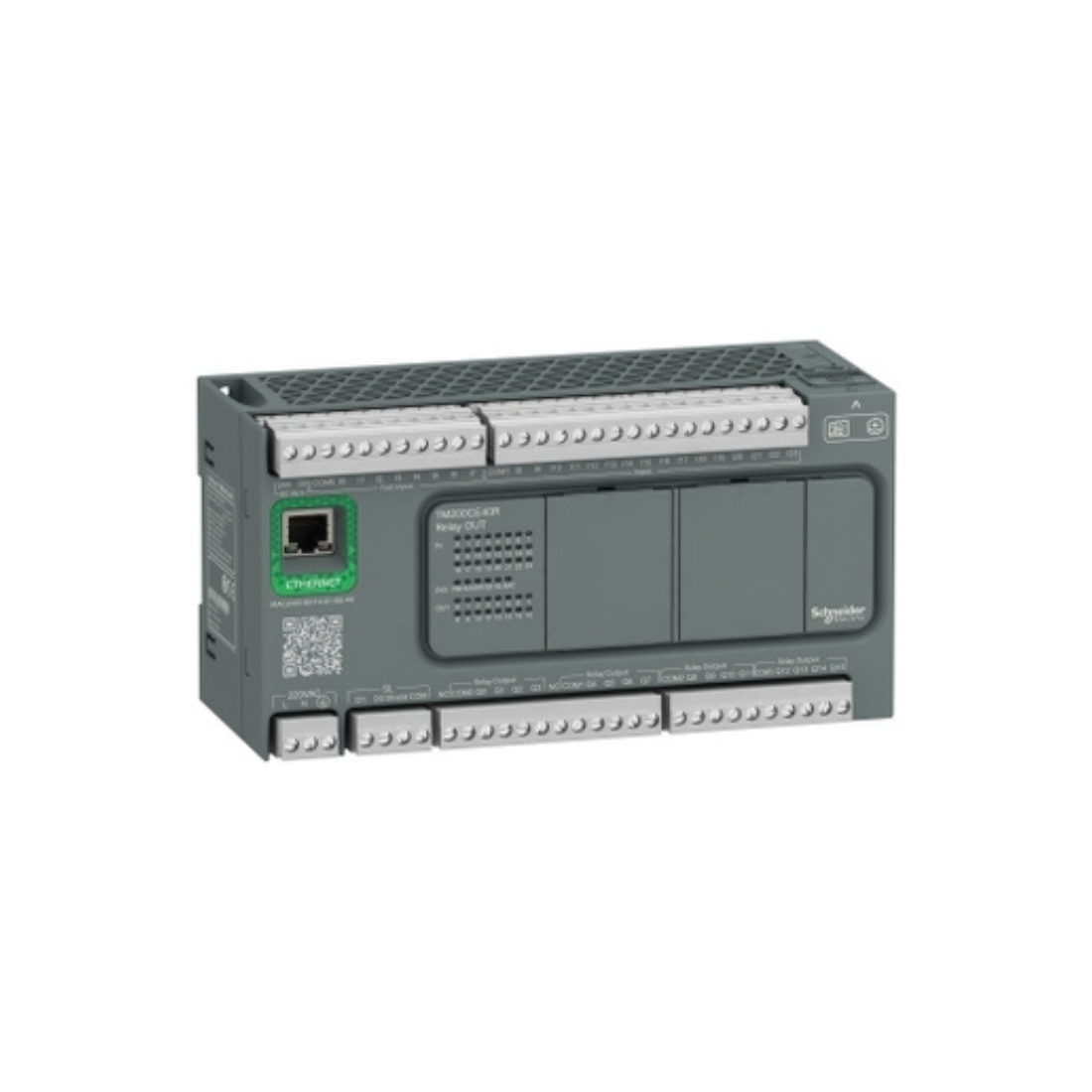

Schneider Electric Easy Modicon M200 Logic Controller 40 I/O Relay Ethernet TM200CE40R
Schneider Electric Easy Modicon M200 Logic Controller 40 I/O Relay Ethernet TM200CE40R

Schneider Electric Easy Modicon M200 Logic Controller 40 I/O Relay Ethernet TM200CE40R

Regular price AED 1,741.95
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Logic Controller
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric TM200CE40R Logic Controller is part of the Easy Modicon M200 range, a range of logic controllers for up to 168 I/O and 2-axis motion control. This logic controller provides 4 fast inputs, 4 high-speed inputs, 16 regular inputs, and 16 relay outputs, as well as one normally open relay output. It is a Modicon logic controller with an input voltage of 24 V DC, a discrete output voltage of 24 V DC, 220 V AC, and an output current of 2 A. It is easy to maintain and upgrade with the micro SD memory card.

    Integrated ports include Mini-B USB 2.0, Serial Link 1 and RS485, Serial Link 2 and RS232/RS485, Ethernet Modbus TCP/IP, and Serial Link 2 and RS485. It is a controller with a 512-byte internal flash and a 32 GB capacity micro SD card. It has IP20 certification. Its dimensions are 175 mm (width) x 70 mm (depth) x 90 mm (height). Designed for textile machines, machine tools, packaging, material handling, pumping, lifting, and electronic assembly.

    Schneider Electric TM200CE40R Easy Modicon M200 Logic Controller has CE, CSA, IACS E10, RCM, and CULus certifications. Complies with EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. Supports DIN rail mounting. Perfect entry-level PLC to meet the specific needs of emerging markets at an uncompromisingly affordable price. Solutions with the best performance/price ratio for your small automation systems that require flexibility and ease of movement.

    Features
    • Provides 4 fast inputs, 4 high-speed inputs, 16 regular inputs, and 16 relay outputs, as well as one normally open relay output.
    • IP20 certification
    • It has an internal flash of 512 bytes and a micro SD card capacity of 32GB.
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Logic Controller

    Model : TM200CE40R

    Supply Voltage Limits : 85-264 V

    Depth : 70 mm

    Width : 175 mm

    Discrete Output Current : 2 A

    Data Backed Up : 128 MB built-in flash memory for backup of user programs

    Data Storage Equipment : 32 GB micro SD card (optional)

    Clock Drift : <= 90 s/month at 25-25 °C

    Immunity To Microbreaks : 10 ms

    Power Consumption in VA : 59-69 VA at 100...240 V AC (with max I/O)

    Discrete Input Current : 7 mA for input

    Voltage State 1 Guaranteed : >= 15 V for input

    Backup Time : 3 years at 25 °C (by interruption of power supply)

    Voltage State 0 Guaranteed : <= 5 V for input

    Discrete Input Number : I2...I5: 4 fast input, I0, I1, I6, I7: 4 high speed input, I8...I23: 16 regular input

    Discrete Output Type : Relay Normally Open

    Discrete Output Number : 16 relay

    Sensor Power Supply : 24-24 V DC at 250 mA supplied by the controller

    Discrete Input Logic : Sink or source (positive/negative) type 1 conforming to EN/IEC 61131-2

    Discrete Input Voltage Type : DC

    Maximum Number Of I/O Expansion Module : 4 with 128 discrete output(s) for transistor output, 4 with 80 discrete output(s) for relay output

    Counting Input Number : 4 fast input (HSC mode) at 100 kHz 32 bits

    Maximum Cable Distance Between Devices : Unshielded cable: <50 m for input, shielded cable: <10 m for fast input, shielded cable: <10 m for high speed input, unshielded cable: <150 m for output

    Maximum Current Per Output Common : 4A

    Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 12 Mbit/s for USB, 10/100 Mbit/s for bus length of 100-100 m for Ethernet Modbus TCP/IP

    Discrete I/O Number : 40

    Configurable Filtering Time : 0 ms for input, 3 ms for input, 12 ms for input

    Discrete Output Voltage : 24 V DC, 220 V AC

    Memory Capacity : 512 byte internal flash for backup of programs

    Execution Time For 1 KInstruction : 0.3 ms for event and periodic task

    Maximum Output Frequency : 1 kHz for transistor output, 20 kHz for fast output (PWM mode), 100 kHz for fast output (PLS mode)

    Regulation Loop : Adjustable PID regulator up to 14 simultaneous loops

    Exct Time For Event Task : 60 µs response time

    Execution Time Per Instruction : 0.2 µs Boolean

    Minimum Load : 10 mA at 5 V DC for relay output

    Vibration Resistance : 3.5 mm at 5-8.4 Hz on symmetrical rail, 1 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.7 Hz on panel mounting, 2 gn at 8.7-150 Hz on panel mounting

    Ambient Air Temperature For Operation : 0-55 °C (horizontal installation)

    Standards : EN/IEC 61010-2-201, EN/IEC 61131-2

    Communication Port Protocol : USB port: USB - SoMachine-Network, non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet Modbus TCP/IP: Modbus TCP/IP client/server

    Control Signal Type : Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode), pulse/direction at 100 kHz for fast input (HSC mode), single phase at 100 kHz for fast input (HSC mode), CW/CCW at 100 kHz for fast input (HSC mode)

    Storage Altitude : 0-3000 m

    Switching Frequency : 0.1 Hz with maximum load

    Electrical Durability : 100000 cycles AC-12, 240 V, 480 VA, resistive, 100000 cycles DC-12, 24 V, 48 W, resistive
