Schneider Electric Easy Modicon ABL2 Single Phase Power Supply ABL2REM24085K in Dubai UAE
Schneider Electric Easy Modicon ABL2 Single Phase Power Supply ABL2REM24085K in Dubai UAE

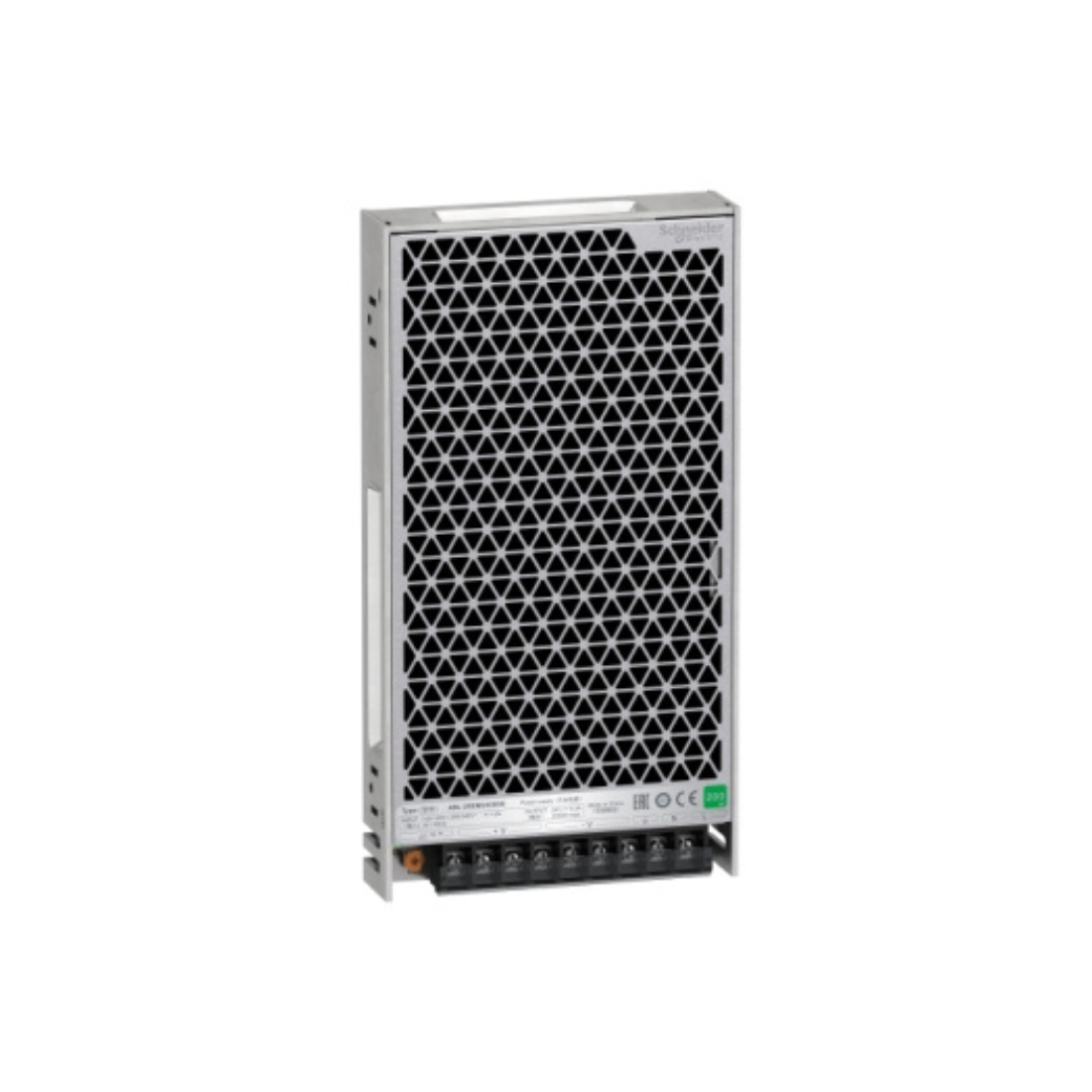

Schneider Electric Easy Modicon ABL2 Single Phase Power Supply ABL2REM24085K

Regular price AED 302.40
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Single Phase Power Supply
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric ABL2REM24085K Single Phase Power Supply belongs to the Modicon Easy range of power supplies. This is a 24V DC-regulated switching power supply, 200W model, with an output voltage of 100V to 240V AC and a nominal power of 200W. Its output current is 8.3A. It offers better performance with profitability. Its cooling is based on natural convection.

    Schneider Electric ABL2REM24085K Easy Modicon ABL2 Single Phase Power Supply has manual voltage switching. Measures 215mm wide x 115mm high x 30mm deep. This power supply is suitable for repetitive machines. ABL2 ps are certified according to CE, EAC, KC, RCM, EN62368-1 (safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 Class B, RoHS. This power supply has mounting holes for panel mounting or 4-corner bracket mounting. Better performance with profitability. Smart design.

    Features
    • It has a 24V DC-regulated switching power supply, a 200W model, with an output voltage of 100V to 240V AC and a nominal power of 200W.
    • Manual voltage switching.
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Single Phase Power Supply

    Model : ABL2REM24085K

    Country Of Manufacturing : China

    Connections - Terminals : For ground connection: screw-type terminals, connection capacity: 1 x 4 mm² AWG 12

    Anti-harmonic Filter : Low frequency harmonic currents

    Compatibility Code : ABL2

    Cos phi : 0.5-0.5

    Current Consumption : 2 A at 240 V

    Depth : 30 mm

    Dielectric Strength : 2000 V between input and ground

    Efficiency : 89 %

    Electromagnetic Compatibility : Immunity to electromagnetic interference conforming to EN 55022 class B

    Height : 115 mm

    Holding Time : >= 12 ms at 115 V

    Input Protection Type : Integrated fuse (not interchangeable)

    Input Voltage : 100...120 V AC single phase, 200...240 V

    Input Voltage Limits : 90...132 V, 180...264 V

    Inrush Current : 60 A at 100...120 V AC, 60 A at 200...240 V AC

    IP Degree Of Protection : IP20 conforming to IEC 62368-1

    Line And Load Regulation : +/- 1 %

    Marking : CE

    Range Of Product : Easy Modicon ABL2

    MTBF : 600000 h at 25 °C

    Mounting Support : DIN rail with accessory, panel mounting with accessory

    Name Of Test : Electromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A

    Network Frequency : 47...63 Hz

    Operating Altitude : 5000 m

    Operating Position : Any position

    Output Coupling : Serial

    Output Protection : Against overload, protection technology: 1.1...1.5 x In, against short-circuits, protection technology: 1.1...1.5 x In, against overvoltage, protection technology: 28.8...33.6 V, thermal

    Output Voltage : 24 V DC

    Output Voltage Limits : 20.4...27.6 V

    Pollution Degree : 2

    Power Dissipation in W : 24.7 W

    Power Supply Output Current : 8.3 A

    Power Supply Type : Regulated switch mode

    Certifications : EAC, IC, RoHS, KC, RCM

    Rated Power in W : 200 W

    Relative Humidity : 10-95 %

    Width : 215 mm

    Main Input Voltage : 100...120 V AC single phase, 200...240 V

    Vibration Resistance : 4 gn (f= 10-500 Hz) conforming to EN/IEC 61131-2

    Output Protection Type : Against overload and short-circuits, protection technology: automatic reset, against over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset

    Status LED : 1 LED (green) output voltage

    Electric Compatibility : Immunity to electromagnetic interference conforming to EN 55022 class B

    Ambient Air Temperature For Operation : -30-70 °C (with power derating of 2.5 % per °C)

    Ambient Air Temperature For Storage : -40-85 °C

    Name Of Test : Electromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A

    Weight : 0.73 kg
