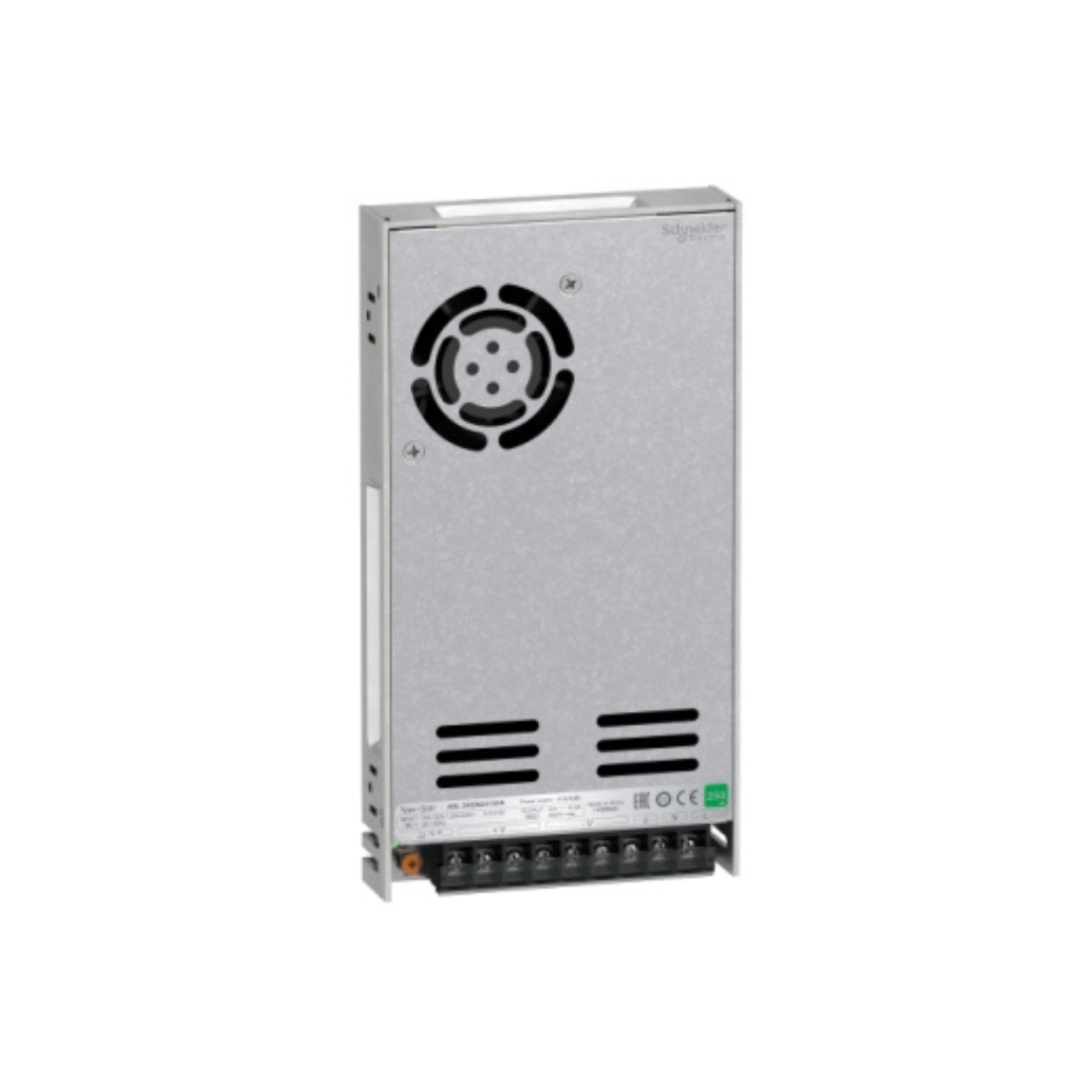

Schneider Electric Easy Modicon ABL2 Single Phase Power Supply 24V DC Out 252W 10.5A ABL2REM24100K

Name: Schneider Electric Easy Modicon ABL2 Single Phase Power Supply 24V DC Out 252W 10.5A ABL2REM24100K
Brand: Schneider Electric
Price: 347.55 AED
Availability: InStock

AED 347.55

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Single Phase Power Supply

Description

Schneider Electric ABL2REM24100K Single Phase Power Supply belongs to the Modicon Easy (formerly known as Phaseo Easy) range of power supplies. This is a 24V DC-regulated switching power supply, 250W model, with an output voltage of 100V to 240V AC and a nominal power of 252W. Its output current is 10.5A. It offers better performance with profitability. Cooling is carried out by air circulation with an integrated DC fan.

Schneider Electric ABL2REM24100K Easy Modicon ABL2 Single Phase Power Supply has manual voltage switching. Overload protection is 110-150%. Measures 215mm wide x 115mm high x 30mm deep. This power supply is suitable for repetitive machines. ABL2 ps are certified according to CE, EAC, KC, RCM, EN62368-1 (safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 Class B, RoHS. This power supply has mounting holes for panel mounting or 4-corner bracket mounting. Better performance with profitability. Smart design.

Features

It has a 24V DC-regulated switching power supply, 250W model, with an output voltage of 100V to 240V AC and a nominal power of 252W.
Manual voltage switching
Its output current is 10.5A

Specifications

Brand : Schneider Electric

Item Name : Power Supply

Model : ABL2REM24100K

Package1 Length*Width*Height : 22.2 cm x 12.3 cm x 3.6 cm

Country Of Manufacturing : China

Connections - Terminals : For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12

Anti-harmonic Filter : Low frequency harmonic currents

Compatibility Code : ABL2

Cos phi : 0.5-0.5

Current Consumption : 2.5 A at 240 V

Depth : 30 mm

Dielectric Strength : 2000 V between input and ground

Efficiency : 87%

Electromagnetic Compatibility : Immunity to electromagnetic interference conforming to EN 55022 class B

Height : 115 mm

Holding Time : >= 12 ms at 115 V

Input Protection Type : Integrated fuse (not interchangeable)

Input Voltage : 100...120 V AC single phase, 200...240 V

Input Voltage Limits : 90...132 V, 180...264 V

Inrush Current : 60 A at 100...120 V AC, 60 A at 200...240 V AC

IP Degree Of Protection : IP20 conforming to IEC 62368-1

Line And Load Regulation : +/- 1 %

Marking : CE

Range Of Product : Easy Modicon ABL2

MTBF : 600000 h at 25 °C

Mounting Support : DIN rail with accessory

Name Of Test : Electromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A

Network Frequency : 47...63 Hz

Operating Altitude : 5000 m

Operating Position : Any position

Output Coupling : Series

Output Protection : Against overload, protection technology: 1.1...1.5 x In, against short-circuits, protection technology: 1.1...1.5 x In, against overvoltage, protection technology: 28.8...33.6 V, thermal

Output Voltage : 24 V DC

Output Voltage Limits : 20.4...27.6 V

Overvoltage Category : Class I conforming to IEC 62368-1

Pollution Degree : 2

Power Dissipation in W : 37.6 W

Power Supply Output Current : 10.5 A

Power Supply Type : Regulated switch mode

Certifications : EAC, IC, RoHS, KC, RCM

Rated Power in W : 252 W

Relative Humidity : 10-95 %

Width : 215 mm

Main Input Voltage : 100...120 V AC single phase, 200...240 V

Vibration Resistance : 4 gn (f= 10-500 Hz) conforming to EN/IEC 61131-2

Output Protection Type : Against overload, protection technology: 1.1...1.5 x In, against short-circuits, protection technology: 1.1...1.5 x In, against overvoltage, protection technology: 28.8...33.6 V

Status LED : 1 LED (green) output voltage

Electric Compatibility : Immunity to electromagnetic interference conforming to EN 55022 class B

Ambient Air Temperature For Operation : -30-70 °C (with power derating of 2.5 % per °C)

Ambient Air Temperature For Storage : -40-85 °C

Name Of Test : Electromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A

Weight : 850.0 g
